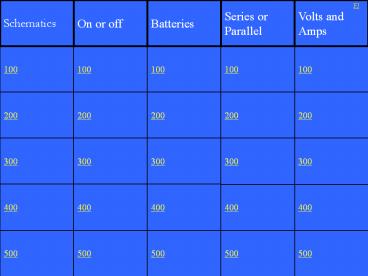

Schematics

1
Schematics
On or off
Batteries
Series or Parallel
Volts and Amps
FJ
100
100
100
100
100
200
200
200
200
200
300
300
300
300
300
400
400
400
400
400
500
500
500
500
500
2
Draw a schematic of an closed series circuit with
one light and one fan. Make your power source be
a compound battery in series.
3
(No Transcript)
4
List all the materials in the schematic
5

• 2 light bulbs
• 1 ammeter
• 1 switch
• 1 battery
• 6 wires

6
Draw a new schematic to show how you would
connect a voltmeter and an ammeter to the circuit
right
7
(No Transcript)
8
Label the symbols
9
(No Transcript)
10
Label the symbols
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
L1
16
(No Transcript)
17
L3
18
(No Transcript)
19

• OFF
• (this is not a circuit)

20
(No Transcript)
21

• Because the volt meter needs to be set across the
  device it is measuring.

22
(No Transcript)
23
(No Transcript)
24

• How many batteries are in the compound battery?

25
4 batteries

26
Draw a compound battery in parallel
27
(No Transcript)
28
(No Transcript)
29
Fig. 2 and Fig 1 are equal
30
(No Transcript)
31

• Figure 1 will last longer

32

• What are the advantages of a compound battery in
  parallel?

33

• Compound batteries in parallel will last longer.

34

• What are the advantages of a compound battery in
  series?

35

• Compound batteries in series will provide more
  power (the fan will spin faster and the light
  will be brighter).

36

• Which schematic(s) is a series circuit with a
  compound battery

37
(No Transcript)
38

• Which schematic(s) is a s parallel circuit with a
  compound battery in series?

39
(No Transcript)
40

• Which schematic(s) is is a parallel circuit

41
(No Transcript)
42
What is the units for electrical power?
43
Watts
44

• What is the power rating if you have a 25 Amp saw
  that runs on 120 volt service ?

45

• The power rating would be
• 3000 watts

46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
A1A2A3 100A250 A250

50
(No Transcript)
51

• 0.1A 4V
• 0.4 watts

52
Final Jeopardy

• Build a circuit

53
Final Jeopardy

• Directions Draw a circuit with two batteries,
  three light bulbs, and two switches so that it
  has all the following components
• A master switch that turns the entire circuit on
  or off
• Two light bulbs remain lit when the third light
  bulb is taken out of its light socket
• A switch that will turn two light bulbs on or off
  at the same time, but will keep the third light
  on
