Title: Combinational MOS Logic Circuit

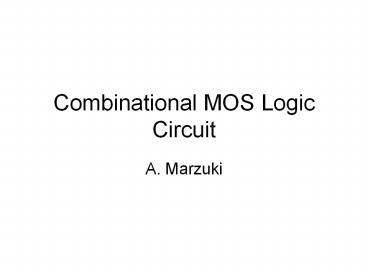

1
Combinational MOS Logic Circuit
  • A. Marzuki

2
Topics
  • Static Characteristic
  • Dynamic Characteristic
  • Stick Diagram

3
Two-Input NOR Gate
VGS,load 0 V
4
VOL
  • k µCox W/L

for case either Driver are ON,
!VGS VOH
for case both Driver are ON,
5
CMOS NOR GATE
Analysis similar to CMOS Inverter , VOL 0 V,
VOHVDD
A
!VS4VDD-VSD3
!ID3ID42ID
B
!replace ID of B with A
6
CMOS TG
!Vout is varied. !see current direction for
Source terminal indication
7
CMOS TG
EXAMPLE
8
Complex Logic Circuits
  • OR by parallel-connected drivers.
  • AND by series-connected drivers.
  • Inversion by MOS circuit operation.

9
CMOS Logic Circuit
Pull up graph vertex is drawn with area of pull
down graph. Edge cross pull down graphs edge
once.
Vertex represents node
Pull down graph (NMOS)
10
Equivalency
PMOS Gate length increase, NMOS Gate width
increase
CMOS NOR Gate
11
Discuss Example 7.2
Assuming W/L for PMOS is 15 for NMOS is 10
Answer is W/L for n is 12, while p is 12.5
12
Dynamic Characteristics (Delay)
Capacitance? Pls read chapter 6 and chapter 3.
For our case, We just Use Cout i.e. the final
total capacitance.
13
Propagation Delay
Chapter Six
Equivalency
14
Stick Diagram
  • A stick diagram is a graphical view of a layout.
  • Does show all components/vias (except possibly
    tub ties), relative placement.
  • Does not show exact placement, transistor sizes,
    wire lengths, wire widths, tub boundaries.

15
Stick Diagram
  • Represents relative positions of transistors
  • Stick diagrams help plan layout quickly
  • Need not be to scale
  • Draw with color pencils or dry-erase markers

Inverter
NAND2
Out
Out
In
A
B
GND
GND
16
Common Euler Path
The Euler path is defined as an uninterrupted
path that traverses each edge (branch) of the
graph exactly once
17
Comparison
18
References
  • S-M. Kang and Y. Leblebici ,CMOS Digital
    Integrated Circuits Analysis and Design,, 3rd
    edition
  • Jan M. Rabaey, Anantha Chandrakasan, and Borivoje
    Nikolic, Digital Integrated Circuits A Design
    Perspective, 2nd edition, Prentice Hall, 2002.
