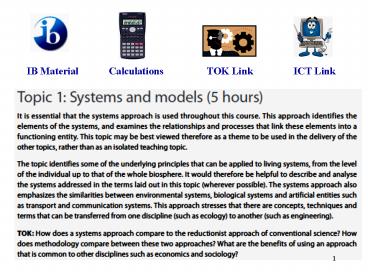

IB Material Calculations TOK Link ICT Link

1

• IB Material Calculations
  TOK Link ICT Link

2
(No Transcript)
3
Systems

• A system is a set of components that
• Function and interact in some regular,
  predictable manner.
• Can be isolated for the purposes of observation
  and study.

4
Systems on Many Scales

• Ecosystem The everglades in South FL
• Biome Tropical Rainforest
• The entire planet Gaia hypothesis

5
1.1.1 Concept and characteristics of a system

• A system is a collection of well-organised and
  well-integrated elements with perceptible
  attributes which establish relationships among
  them within a defined space delimited by a
  boundary which necessarily transforms energy for
  its own functioning.
• An ecosystem is a dynamic unit whose organised
  and integrated elements transform energy which is
  used in the transformation and recycling of
  matter in an attempt to preserve its structure
  and guarantee the survival of all its component
  elements.
• Although we tend to isolate systems by delimiting
  the boundaries, in reality such boundaries may
  not be exact or even real. Furthermore, one
  systems is always in connection with another
  system with which it exchanges both matter and
  energy.
• TOK Link Does this hold true for the Universe?

6
System B
Boundary
Relationships
E 3
E 1
E 2
System C
Systems A
Elements
7
A natural system Ecosystem
8
1.1.2 Types of systems (1)

• There are three types of systems based on
• whether they exchange energy and/or matter
• Isolated System
• System
• It exchanges neither energy nor matter
• Do isolated systems exist? If not, why then we
  have thought about them?

9
Isolated systems exchange neither matter nor
energy with the surroundings
Only possible though unproven example is the
entire cosmos
10
1.1.2 Types of systems (2)

• Closed System
• Energy System
  Energy
• It only exchanges energy.

11
Closed systems exchange energy but not matter.
dont naturally occur on earth
Biosphere II Built as self sustaining closed
system in 1991 in Tuscon, AZ Experiment failed
when nutrient cycling broke down
12
Nutrient cycles Approximate closed systems as well
13
1.1.2 Types of systems (3)

• Open System
• Energy
  Energy
• System
• Matter
  Matter
• It exchanges both energy and matter.

14
Coral Reef Ecosystem Most diverse aquatic
ecosystem in the world ------- Open
systems exchange matter and energy with the
surroundings
15
Components of systems

• Inputs things entering the system ? matter,
  energy, information
• Flows / throughputs passage of elements within
  the system at certain rates (transfers and
  transformations)
• Stores / storage areas within a system, where
  matter, energy, information can accumulate for a
  length of time (stocks)
• Outputs flowing out of the system into sinks in
  the environment

16
Components of systems

• Inputs things entering the system ? matter,
  energy, information
• Flows / throughputs passage of elements within
  the system at certain rates (transfers and
  transformations)
• Stores / storage areas within a system, where
  matter, energy, information can accumulate for a
  length of time (stocks)
• Outputs flowing out of the system into sinks in
  the environment

17
To assess an area you must treat all levels of
the system
18
Individuals work as well
19
Types of Flows Transfer vs. Transformation

• Transfers ? flow through the system, involving a
  change in location
• Transformation ? lead to interactions in the
  system, changes of state or forming new end
  products
• -Example Water processes
• Runoff transfer, Evaporation
  transformation
• Detritus entering lake transfer,
  Decomposition
• of detritus is transformation

20
Condensation
Rain clouds
Transpiration from plants
Transpiration
Precipitation
Precipitation
Evaporation
Precipitation to ocean
Evaporation From ocean
Infiltration and percolation
Surface runoff (rapid)
Groundwater movement (slow)
Ocean storage
Groundwater movement (slow)
What type of System is this? Name the inputs,
outputs, transfers and transformations
21
Systems and Energy

• We see Energy as an input, output, transfer, or
  transformation
• Thermodynamics study of energy
• 1st Law Energy can be transferred and
  transformed but it can never be created nor
  destroyed
• So
• All energy in living systems comes from the sun
• Into producers through photosynthesis, then
  consumers up the food web

22
Energy at one level must come from previous level
23
(No Transcript)
24
Using the first law of thermodynamics explain why
the energy pyramid is always pyramid shaped
(bottom bigger than top)
25
1.1.4 Laws of Thermodynamics

• 1st Law of Thermodynamics
• The first law is concerned with the conservation
  of energy and states that energy can not be
  created nor destroyed but it is transformed from
  one form into another.

26
1st Law of Thermodynamics

• In any process where work is done, there has
  been an energy transformation.
• With no energy transformation there is no way to
  perform any type of work.
• All systems carry out work, therefore all systems
  need to transform energy to work and be
  functional.

27
First Law of Thermodynamics

•
  ENERGY 2
• PROCESS
• ENERGY 1 (WORK)
•
  ENERGY 3

28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
Photosynthesis an example of the First Law of
Thermodynamics Energy Transformation
33
Photosynthesis and the First Law of Thermodynamics

•
  Heat Energy

• Light Energy
•
  Chemical Energy

Photosynthesis
34
The 2nd Law of Thermodynamics

• The second law explains the dissipation of energy
  (as heat energy) that is then not available to do
  work, bringing about disorder.

35
The 2nd Law of Thermodynamics cont.

• The Second Law is most simply stated as, in any
  isolated system entropy tends to increase
  spontaneously. This means that energy and
  materials go from a concentrated to a dispersed
  form (the capacity to do work diminishes) and the
  system becomes increasingly disordered.

36

• 2nd Law With every energy transfer or
  transformation energy dissipates (heat) so the
  energy available to do work decreases
• Or in an isolated system entropy tends to
  increase spontaneously
• Energy and materials go from a concentrated to a
  dispersed form The concentrated high quality
  energy is the potential energy of the system
• The system becomes increasingly disordered
• Order can only be maintained through the use of
  energy

37
First Trophic Level
Second Trophic Level
Third Trophic Level
Fourth Trophic Level
Producers (plants)
Primary consumers (herbivores)
Tertiary consumers (top carnivores)
Secondary consumers (carnivores)
Heat
Heat
Heat
Heat
Solar energy
Heat
Heat
Heat
Heat
Heat
Detritivores (decomposers and detritus feeders)
38
What results from the second law
of Thermodynamics?
39
Life and Entropy

• Life, in any of its forms or levels of
  organization, is the continuous fight against
  entropy. In order to fight against entropy and
  keep order, organization and functionality,
  living organisms must used energy and transform
  it so as to get the energy form most needed.

40
Life and Entropy

• Living organisms use energy continuously in order
  to maintain everything working properly. If
  something is not working properly, living
  organisms must make adjustments so as to put
  things back to normal. This is done by negative
  feedback mechanism.
• What is really life? What do we live for? What is
  out purpose?

41
The Second Law of Thermodynamics can also be
stated in the following way

• In any spontaneous process the energy
  transformation is not 100 efficient, part of it
  is lost (dissipated) as heat which, can not be
  used to do work (within the system) to fight
  against entropy.
• In fact, for most ecosystems, processes are on
  average only 10 efficient (10 Principle), this
  means that for every energy passage
  (transformation) 90 is lost in the form of heat
  energy, only 10 passes to the next element in
  the system.

42
The Second Law of Thermodynamics can also be
stated in the following way

• Most biological processes are very inefficient in
  their transformation of energy which is lost as
  heat.
• As energy is transformed or passed along longer
  chains, less and less energy gets to the end.
  This posts the need of elements at the end of the
  chain to be every time more efficient since they
  must operate with a very limited amount of
  energy.
• In ecological systems this problem is solved by
  reducing the number of individuals in higher
  trophic levels.

43
Combustion Cell Respiration two examples that
illustrate the 1st and the 2nd laws of
Thermodynamics
Chemical Energy (petrol)
Chemical Energy (sugar)
100 J
100 J
ATP
PROCESS Combustion 20 J
PROCESS Cell Respiration 40 J
Heat Energy
60 J
Heat Energy
80 J
44
The Second Law of Thermodynamics in numbers The
10 LawFor most ecological process, theamount
of energy that is passed from one trophic level
to the next is on average 10.

• Heat Heat
  Heat
• 900 J 90 J
  9 J
• Energy 1 Process 1 Process 2
  Process 3
• 1000 J 100 J 10 J
  1 J
• J Joule SI Unit of Energy
• 1kJ 1 Kilo Joule 1000 Joules

45
(No Transcript)
46
(No Transcript)
47

• (d) Calculate the percentage () of the solar
  energy received by plants which remain available
  for herbivores?

  2
• (e) Which energy transformation chain is more
  efficient? Support your answer with relevant
  calculations.

  3

48
Photosynthesis and the 2nd law of Thermodynamics
What is the efficiency of photosynthesis?
49
Primary Producers and the 2nd law of
Thermodynamics
(Output)
(Output)
(Output)
50
Consumers and the 2nd law of Thermodynamics
How efficient is the cow in the use of the food
it takes daily?
51
The Ecosystem and the 2nd law of Thermodynamics
What determines that some ecosystems are more
efficient than others?
52
(No Transcript)
53
(No Transcript)
54
IB Question
55
IB Question
56
IB Question
57
IB Question
58
(No Transcript)
59
1.1.5 The Steady State

• The steady state is a common property of most
  open systems in nature whereby the system state
  fluctates around a certain point without much
  change of its fundamental identity.
• Static equilibrium means no change at all.
• Dynamic equilibrium means a continuous move from
  one point to another with the same magnitude, so
  no net change really happens.
• Living systems (e.g. the human body, a plant, a
  population of termites, a community of plants,
  animals and decomposers in the Tropical
  Rainforest) neither remain static nor undergo
  harmonic fluctuations, instead living systems
  fluctuate almost unpredictably but always around
  a mid value which is called the steady state.

60
STATE OF THE SYSTEM
Static Equilibrium
Dynamic Equilibrium
Steady State
TIME
61
(No Transcript)
62
1.1.6 Positive and Negative Feedback Mechanisms

• Natural systems should be understood as
  super-organisms whose component elements react
  against disturbing agents in order to preserve
  the steady state that guarantees the integrity of
  the whole system.
• The reaction of particular component elements
  of the systems againts disturbing agents is
  consider a feedback mechanism.
• Feedback links involve time lags since
  responses in ecosystems are not immediate!

63
Positive feedback

• A runaway cycle often called vicious cycles
• A change in a certain direction provides output
  that further increases that change
• Change leads to increasing change it
  accelerates deviation
• Example Global warming
• Temperature increases ? Ice caps melt
• Less Ice cap surface area ? Less sunlight is
  reflected away from earth (albedo)
• More light hits dark ocean and heat is trapped
• Further temperature increase ? Further melting of
  the ice

64
(No Transcript)
65
Positive Feedback
Sun

• Positive feedback leads to increasing change in a
  system.
• Positive feedback amplifies or increases change
  it leads to exponential deviation away from an
  equilibrium.
• For example, due to Global Warming high
  temperatures increase evaporation leading to more
  water vapour in the atmosphere. Water vapour is a
  greenhouse gas which traps more heat worsening
  Global Warming.
• In positive feedback, changes are reinforced.
  This takes ecosystems to new positions.

Atmosphere
Water Vapour


Global
Heat Energy
Evaporation
Warming


Oceans
66
Negative feedback

• One change leads to a result that lessens the
  original change
• Self regulating method of control leading to the
  maintenance of a steady state equilibrium
• Predator Prey is a classic Example
• Snowshoe hare population increases
• More food for Lynx ? Lynx population increases
• Increased predation on hares ? hare population
  declines
• Less food for Lynx ? Lynx population declines
• Less predation ? Increase in hare population

67
Remember hares prey and other predators also
have an effect
68
Negative Feedback
Population of Lynx

• Negative feedback is a self-regulating method of
  control leading to the maintenance of a steady
  state equilibrium.
• Negative feedback counteracts deviations from the
  steady state equilibrium point.
• Negative feedback tends to damp down, neutralise
  or counteract any deviation from an equilibrium,
  and promotes stability.

-
-

Population of Hare
In this example, when the Hare population
increases, the Lynx population increases too in
response to the increase in food offer which
illustrates both Bottom-Up regulation and
Positive Feedback. However, when the Lynx
population increases too much, the large number
of lynxes will pray more hares reducing the
number of hares. As hares become fewer, some
lynxes will die of starvation regulating the
number of lynx in the population. This
illustrates both Top-Down and negative Feedback
regulation.
69
Negative feedback an example of population
control
70
Which of the populations show positive feedback?
Which of the populations show negative feedback?
71
Positive Negative Feedback

•
  Population 1
• Climate Food
  Population 2
• -
•
  Population 3

-

-
72
Positive Negative Feedback

• Food
  Population

Positive feedback
Negative feedback
73
Negative or Positive ?

• Climate
•
  Disease
• Food

• P1 P 2
  P3
•


74
Bottom-Up Top-Down Control

• In reality, ecosystems are controlled all the
  time by the combined action of Bottom-Up and
  Top-Down mechanisms of regulation.
• In Bottom-Up regulation the availability of soil
  nutrients regulate what happens upwards in the
  food web.
• In Top-Down regulation the population size
  (number of individuals) of the top carnivores
  determines the size of the other populations down
  the food web in an alternating way.

Plants
Ocean Food Webs - Bottom Up vs Top Down.flv Food
Web Bottom-Up Top-Down Middle Control
Worksheet.doc
Nutrient pool of the Soil
75
Positive and Negative Feedback
?

-
State of the Ecosystem
-

S2
S1
Time
76
Feedback loops

• Self regulation of natural systems is achieved by
  the attainment of equilibrium through feedback
  systems
• Change is a result of feedback loops but there is
  a time lag
• Feedback occurs when one change leads to another
  change which eventually reinforces or slows the
  original change.
• Or
• Outputs of the system are fed back into the input

77
Most systems change by a combination of positive
and negative feedback processes
78
Positive or Negative?

• If a pond ecosystem became polluted with
  nitrates, washed off agricultural land by surface
  runoff, algae would rapidly grow in the pond. The
  amount of dissolved oxygen in the water would
  decrease, killing the fish. The decomposers that
  would increase due to the dead fish would further
  decrease the amount of dissolved oxygen and so
  on...

79
Positive or Negative?

• A good supply of grass for rabbits to eat will
  attract more rabbits to the area, which puts
  pressure on the grass, so it dies back, so the
  decreased food supply leads to a decrease in
  population because of death or out migration,
  which takes away the pressure on the grass, which
  leads to more growth and a good supply of food
  which leads to a more rabbits attracted to the
  area which puts pressure on the grass and so on
  and on....

80
End result? Equilibrium

• A sort of equalization or end point
• Steady state equilibrium ? constant changes in
  all directions maintain a constant state (no net
  change) common to most open systems in nature
• Static equilibrium ? No change at all condition
  to which most natural systems can be compared but
  this does not exist
• Long term changes in equilibrium point do occur
  (evolution, succession)
• Equilibrium is stable (systems tend to return to
  the original equilibrium after disturbances)

81
(No Transcript)
82
Equilibrium generally maintained by negative
feedback inputs should equal outputs
83
(No Transcript)
84
You should be able to create a system model.

• Observe the next two society examples and create
  a model including input, flows, stores and output

85
High Throughput System Model
86
(No Transcript)
87
System Throughputs
Output (intro environment)
Inputs (from environment)
Low-quality heat energy
High-quality energy
Unsustainable high-waste economy
Waste matter and pollution
Matter
88
Low Throughput System Model
89
Inputs (from environment)
System Throughputs
Outputs (from environment)
Low-quality energy (heat)
High-quality energy
Sustainable low-waste economy
Pollution prevention by reducing matter throughput
Pollution control by cleaning up some pollutants
Waste matter and pollution
Matter output
Matter
Recycle and reuse
Matter Feedback
Energy Feedback
90
1.1.7 Transfer and Transformation Processes

• Transfers normally flow through a system from one
  compartment to another and involve a change in
  location. For example, precipitation involves the
  change in location of water from clouds to sea or
  ground. Similarly, liquid water in the soil is
  transferred into the plant body through roots in
  the same liquid form.

91
1.1.7 Transfer and Transformation Processes

• Transformations lead to an interaction within a
  system in the formation of a new end product, or
  involve a change of state.
• For example, the evaporation of sea water
  involves the absorption of heat energy from the
  air so it can change into water vapour. In cell
  respiration, carbon in glucose changes to carbon
  in carbon dioxide. Ammonia (NH3) in the soil are
  absorbed by plant roots and in the plant nitrates
  are transformed into Amino acids. During
  photosynthesis carbon in the form of CO2 is
  changed into carbon in the form of Glucose
  (C6H12O6).These are just some example of
  transformations.

92
1.1.8 Flows and Storages

• Flows are the inputs and outputs that come in and
  out between component elements in a system. This
  inputs and outputs can be of energy or quantities
  of specific substances (e.g. CO2 or H2O).
• Storages or stocks are the quantities that remain
  in the system or in any of its component elements
  called reservoirs.
• For example, in the Nitrogen Cycle, the soil
  stores nitrates (stock) (NO3-) however some
  nitrates are taken away as such by run-off water
  and absorbed by plant roots (output flows) but at
  the same time rainfall brings about nitrates,
  human fertilization and the transformation of
  ammonia (NH3) in to nitrates maintain the nitrate
  stock in soil constant under ideal conditions.

93

• http//bcs.whfreeman.com/thelifewire/content/chp58
  /5802004.html

94
IB Question
95
O2
CO2
A simple model of an aquarium
Heat
CO2
Air
O2
CO2
O2
Primary Producers
Herbivorous animals
Aq Plant 1
Aq Plant 2
Carnivorous animal
Snail
Light
Algae
Flea
Phytoplankton
Heat
NO3
CO2
O2
Water
NO3
Decomposers
DOM
Mud
96
(No Transcript)
97
Transfer, transformation, flows and storages(A
qualitative model)
98
Transfer, transformation, flows and storages
99
Transfer, transformation, flows and storages

• http//bcs.whfreeman.com/thelifewire/content/chp58
  /5802001.html

100

• What can you identify in a
• plant?
• Transfer
• Transformation
• Flows
• Storage

101
(No Transcript)
102
Models

• A model is an artificial construction designed to
  represent the properties, behavior or
  relationships between individual parts of the
  whole being studied or the order in which to
  study it under controlled conditions and to make
  predictions about its functioning when one or
  more elements and/or conditions are changed.
• A model is a representation of a part of the real
  world which helps us understand complexities
  large and small.

103
Limitations of Models

• Models are simplifications of real systems. They
  can be used as tools to better understand a
  system and to make predictions of what will
  happen to all of the system components following
  a disturbance or a change in any one of them.
• The human brain cannot keep track of an array of
  complex interactions all at one time, but it can
  easily understand individual interactions one at
  a time.
• Models are proposed representations of how a
  system is structured, which can be rejected in
  light of contradictory evidence. (hypothesis)
• No model is a 'perfect' representation of the
  system because, as mentioned above, all models
  are simplifications and in some cases over
  simplified.
• human subjectivity may lead to humans to make
  models biased by scholar background, disregard of
  the relevance of some components or simply by a
  limited perception or understanding of the
  reality which is to be modeled.

104
1.1.9 Quantitative Models

• A model is an artificial construction designed to
  represent the properties, behaviour or
  relationships between individual parts of the
  real entity being studied y order to study it
  under controlled conditions and to make
  predictions about its functioning when one or
  more elements and /or conditions are changed.
• A model is a representation of a part of the real
  world which helps us in ex situ studies.
• For example, the Carbon Cycle on the next slide
  is a quantitative model showing how carbon flows
  from one compartment to another in our planet.
  The width of the arrows are associated to the
  amount of carbon that is flowing. Figures next or
  on top of arrows indicate the amount of carbon in
  the flow. Similarly, figures inside boxes of
  compartments show the stocks or storages of
  carbon in each compartment.

105
A quantitative model(The Carbon Cycle)

• http//bcs.whfreeman.com/thelifewire/content/chp58
  /5802002.html

106
A simplified model on how the ecosystem works

• For an entire ecosystem to be in steady state, or
  for one of its components to be in steady state,
  the following must be achieved

The Steady State condition
107
(No Transcript)
108
(No Transcript)
109
(No Transcript)
110
ES-Practice-Model Making Pastoral System in
Angola.pdf
IB Question
MODEL MAKING PASTORAL SYSTEM IN ANGOLA.ppt
111
Models can be used to make predictions
The following model tries to explain the
ecological behaviour of a human communities.
MODELLING SYSTEMS Handout.doc
112
1.10 Strengths and Limitations of Models

• A model is a representation of part or the
  totality of a reality made by human beings with
  the hope that models can help us (i) represent
  the structural complexity of the reality in a
  simpler way eliminating unnecessary elements that
  create confusions, (ii) understand processes
  which are difficult to work out with the
  complexity of the real world, (iii) assess
  multiple interaction individually and as a whole
  (iv) predict the behaviour of a system within the
  limitations imposed by the simplification
  accepted as necessary for the sake of the
  understanding.
• Models are simplifications of real systems. They
  can be used as tools to better understand a
  system and to make predictions of what will
  happen to all of the system components following
  a disturbance or a change in any one of them. The
  human brain cannot keep track of an array of
  complex interactions all at one time, but it can
  easily understand individual interactions one at
  a time. By adding components to a model one by
  one, we develop an ability to consider the whole
  system together, not just one interaction at a
  time. Models are hypotheses. They are proposed
  representations of how a system is structured,
  which can be rejected in light of contradictory
  evidence.
• No model is a 'perfect' representation of the
  system because, as mentioned above, all models
  are simplifications and in some cases needed over
  simplifications. Moreover, human subjectivity may
  lead to humans to make models biased by scholar
  background, disregard of the relevance of some
  components or simply by a limited perception or
  understanding of the reality which is to be
  modeled.
