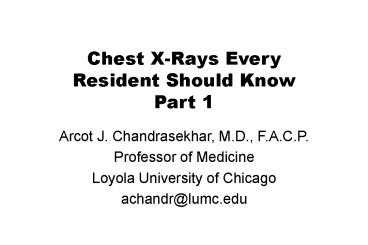

Chest X-Rays Every Resident Should KnowPart 1

• Arcot J. Chandrasekhar, M.D., F.A.C.P.
• Professor of Medicine
• Loyola University of Chicago
• achandr_at_lumc.edu

2
Normal
3
Lobar density Air bronchogram No loss of lung
volume
RUL Consolidation Strep Pneumonia
4
Loss of left heart margin Intact left diaphragm
5
Consolidation Lingula Air bronchogram
6
Radiation Port
Air bronchogram
Radiation Pneumonia
Pleural effusion
7
Round Pneumonia Blastomycosis
8
Segmental Pneumonia Aspiration Lung Abscess
9
Superior segment of RLL
10
LUL Atelectasis
11
Oblique Fissure
LUL atelectasis
Herniated right lung
12
Azygous lobe RML atelectasis
13
RML atelectasis
14
Plate like atelectasis
15
Pneumothorax Relaxation atelectasis Hydro-pneumo L
arge right hemithorax
16
(No Transcript)
17
Diffuse adhesive atelectasis ARDS
18
Diffuse alveolar infiltrates Pulmonary edema
19
Butterfly pattern Lobar Air bronchogram Pulmonary
hemorrhage
20
Autoppsy Hemorrhagic lung
21
Chronic diffuse aleveolar Alveolar proteinosis
22
Miliary nodules Interstitial disease Tuberculosis
23
Kerley lines Sub-pulmonic effusion Full
hilum Lymphangitic spread
24
Bronchiectasis Cystic fibrosis
Tram lines Multiple cavities Gloved fingers
25
Unilateral haziness Left lung atelectasis
26
Unilateral haziness Unilateral pulmonary
edema Pneumothorax
27
Pneumothorax with tube Preceding pulmonary edema
28
Unilateral hyperlucency Left hilum pulled up LUL
resection Compensatory hyperinflation LL
29
Pleural effusion LUL cavity Tuberculosis
30
Loculated empyema
Sub pulmonic effusion
31
Loculated Empyema
32
Massive effusion
Sub pulmonic Effusion
33
Pleural masses Iatrogeic pneumothorax
34
Triangular retrocardiac density LLL atelectasis
35
Pneumomediastinum Outlining Right pulmonary artery
LLL atelectasis
