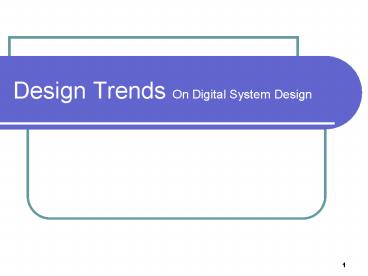

Title: Design Trends On Digital System Design


1
Design Trends On Digital System Design
2
Topics
  • IC Technology
  • Revolution
  • Devices
  • ASIP, ASIC, CPLD, FPGA
  • Design Trends
  • Co-design
  • Embedded Computing

3
Semiconductor Technology Roadmap
4
The Revolution
First transistor Bell Labs, 1948
5
The First Integrated Circuits
Bipolar logic 1960s
ECL 3-input Gate Motorola 1966
6
Intel 4004 Micro-Processor
1971 1000 transistors 1 MHz operation
7
Intel Pentium (IV) microprocessor
2001 42 M transistors 1.5 GHz operation
8
Photo-Lithographic Process
optical
mask
oxidation
http//it.darden.virginia.edu/explore/content/inde
x_frames.htm
photoresist coating
photoresist
removal (ashing)
stepper exposure
Typical operations in a single
photolithographic cycle (from Fullman).
photoresist
development
acid etch
process
spin, rinse, dry
step
9
Moores law in Microprocessors
1000
2X growth in 1.96 years!
100
10
P6
Pentium proc
Transistors (MT)
486
1
386
286
0.1
8086
8085
0.01
8080
8008
4004
0.001
1970
1980
1990
2000
2010
Year
Transistors on Lead Microprocessors double every
2 years
Courtesy, Intel
10
Frequency
10000
Doubles every2 years
1000
P6
100
Pentium proc
Frequency (Mhz)
486
386
10
8085
286
8086
8080
1
8008
4004
0.1
1970
1980
1990
2000
2010
Year
Lead Microprocessors frequency doubles every 2
years
Courtesy, Intel
11
Power density
10000
1000
Power Density (W/cm2)
100
8086
10
4004
P6
8008
Pentium proc
8085
386
286
486
8080
1
1970
1980
1990
2000
2010
Year
Power density too high to keep junctions at low
temp
Courtesy, Intel
12
Interconnect Delay
40
Gate delay
35
Interconnect delay
30
25
20
15
10
5
0
0.65 1989
0.5 1992
0.35 1995
0.25 1998
0.18 2001
0.13 2004
0.1 2007
Source SIA Roadmap 1997
13
Trends in VLSI
  • Transistor
  • Smaller, faster, use less power
  • Interconnect
  • Less resistive, faster, longer (denser design)
  • Yield
  • Smaller die size, higher yield

14
Technology on Semiconductor
15
TSMC
16
Design Methodology
17
Design Styles
  • Full-Custom Design
  • Standard Cell Design
  • Gate Array Design
  • Field Programmable Gate Array Design (FPGA)
  • or mixtures of the above

18
Full-Custom Design
  • No rigid restrictions on layout.
  • More compact design.
  • Longer design time.
  • Hierarchical chip ? clusters ? units ?
    functional units.

19
Standard Cell Design
  • Rectangular cells of the same height.
  • Cell library (has 500 - 1200 cells).
  • Cells placed in rows and space between rolls are
    called channels for routing.
  • Feedthroughs

20
Gate Array Design
  • Each chip is prefabricated with an array of
    identical gates or cells.
  • The chip is customized by fabricating routing
    layers on top.
  • For example, MPGA

21
Field Programmable Gate Array
  • Chips are prefabricated with logic blocks and
    interconnects.
  • Logic and interconnects can be programmed (erased
    and re-programmed) by users. No fabrication is
    needed.
  • Interconnects are predefined wire segments of
    fixed lengths with switches in between.
  • For example, FPGA, CPLD

22
Trends in Design Styles
  • More complex system
  • Digital and Analog IC (Mixed Signal)
  • Hardware and Software Codesign
  • SoC, SoPC
  • Resulting in
  • Higher abstract design level
  • Advanced design tools to automate complex designs
  • Short design time to compete market share

23
Chip Devices
24
Category
  • General Propose
  • CISC Complex Instruction Set Computer
  • RISC Reduced Instruction Set Computer
  • Specific Propose
  • ASIP Application Specific Instruction Processor
  • ASIC Application Specific IC
  • Reconfigurable Hardware
  • CPLD
  • FPGA

25
CISC vs RISC
  • CISC
  • Single memory for both data and instruction.
  • Typical PC architecture
  • Many instructions, some of them very complex
  • Makes programming easier
  • RISC
  • Register rich. Data and instruction are kept in
    different memories.
  • Fewer Instructions
  • Fixed instruction length
  • Fixed execution time

Pentium is a combination of both CISC and RISC!
26
ASIP
  • Excellent tradeoff between efficiency of ASIC and
    flexibility of DSP
  • Specific code generator required
  • Code generator must be generated automatically
    from description of processor
  • From register description and instruction set
    (behavior)
  • From structure of ASIP data path as generated by
    high level synthesis (structure)

27
ASIC
  • A circuit custom-designed for a specific
    application is integrated onto a single silicon
    chip.
  • Commercial chips are scarce and often require
    modification
  • Specialized expertise to carry out a new, custom
    design
  • Long development periods
  • Can be costly and have schedule risk
  • Low power, Small size, Fast

28
ASIP vs ASIC
29
Need Programmable Hardware?
  • Benefits
  • Non-permanent customization and application
    development after fabrication
  • Economies of scale
  • Time-to-market (evolving requirements and
    standards, new ideas)
  • Low risk
  • Drawbacks
  • Efficiency penalty (area, performance, power)

30
MPGA
  • MPGA (Mask Programmable Gate Array) is the first
    design way to make hardware programmable and gain
    more flexibility.
  • Sea of Gates

31
CPLD vs FPGA
  • CPLD
  • Rom-based
  • Low density (Thousands gates)
  • and-or plane (sum of product)
  • Slow configuration time
  • FPGA
  • Ram-based
  • High density (Thousands Multimillions gates)
  • LUT (Look-up-table structure)
  • Fast configuration time (ISP, runtime-reconfigurat
    ion)

32
FPGA Basic Structure
33
CLB Structure (Xilinx)
  • Each slice has 2 LUT-FF pairs with associated
    carry logic
  • Two 3-state buffers (BUFT) associated with each
    CLB, accessible by all CLB outputs

34
LUT (Look-Up Table)
  • Look-Up tables are primary elements for logic
    implementation
  • Each LUT can implement any function of 4 inputs

35
Routing Resources
36
Basic I/O Block Structure
37
More Guts in Modern FPGA
  • RAM blocks (512 512Kbit)
  • Dedicated multipliers (18x18 _at_200MHz)
  • Transceivers (Multi-Gigabit I/O)
  • Processor hard/soft cores (ARM, PowerPC, NIOS,
    MicroBlaze)
  • DSP blocks (MAC, MULTADD)

38
FPGA Usage
39
Implementation Levels
40
FPGA for ASIC Prototyping
41
System Integration
Board Level Integration
MCM, SoP
SoC, SoPC
42
Benefits
  • Less components
  • Component costs
  • Board size and cost
  • Assembly and testing costs
  • Less inter-chip interconnects
  • Reliability
  • Power consumption
  • Board design, fabrication and assembly costs
  • Smaller system volume (in cm2) and weight
  • Higher integration rate
  • Smaller case costs
  • Smaller transport costs
  • In high volumes (in pcs), also lower circuit
    costs

43
SoPC
  • System-on-a-Programmable Chip (SOPC) term coined
    by Synopsys
  • SoPC is a FPGA technology based user programmable
    solution
  • PR and programming done by the user
  • No delay on prototype production
  • No delay on mass production start
  • No NRE (production start) costs
  • Production tests done by the IC vendor
  • Design resource and time savings in the design
    flow
  • Quick and cheap modifications

44
SoC vs SoPC
  • SoC manufacturing is costly
  • Foundries more and more expensive
  • Mask costs for fine-grain lithography are
    increasing
  • Silicon vendors concentrate on big customers with
    big quantities
  • Very few multi-project prototype services
    available
  • Malfunction will cost a lot of money and time
  • Full-wafer prototype round may cost even 500,000
    ... 1M
  • FPGA-type solutions are also evolving
  • On-chip processor cores
  • Multi-million gate capacity
  • Some vendors also provide coarse-grain
    reconfigurability
  • FPGA-based SoC-type platforms thus have a growing
    niche

45
Hardware/Software Codesign Systems
46
Why Co-design
  • Hardware (ASIC, FPGA)
  • Fast
  • But very expensive
  • Software (Processor)
  • Flexible
  • But slow
  • Hardware Software Good solution?
  • Requirements?

47
HW/SW Cost Trend
100
Hardware
80
Development
60
Percent of total costs
40
Software
20
Maintenance
0
1955
1970
1985
2000
Year
48
Software Acceleration
Task is sequential units of computations
contained in an application.
49
Example of Digital Camera
50
Traditional Design Flow
51
HW/SW Codesign Flow
  • Concurrent design between hardware and software
    using
  • Co-simulation
  • Co-synthesis

52
Codesign in Reconfigurable System
  • FPGA as hardware
  • Reconfiguration can be applied an unlimited
    number of times.
  • Compile-time configuration
  • Run-time reconfiguration
  • More flexible
  • Hardware reuse

53
Temporal and Spatial
54
Interface IP Design
  • IP based design is the process of composing a
    new system design by reusing existing components.

55
More Complicated System
56
Reconfigurable Processor
RAM
CPU
FPGA
57
Embedded Computing
Source Rabaey, Sasimi04
58
What is an embedded system?
  • Systems which use computation to perform a
    specific function
  • embedded within larger devices
  • often completely unrecognized by the devices
    user
  • Examples home appliances, office automation,
    consumer electronics, smart buildings, sensor
    nets, wearable electronics, automobiles

59
Diversity in Embedded Computing
  • Pocket remote control RF transmitter
  • 100 KIPS, crush-proof, long battery life
  • Software optimized for size
  • Industrial equipment controller
  • 1 MIPS, safety-critical, 1 MB memory
  • Software control loops
  • Military signal processing
  • 1 GFLOP, 1 GB/sec IO
  • Software for high performance.

60
Trends in Embedded Systems
  • Increasing code size
  • average code size 16-64KB in 1992, 64K-512KB in
    1996
  • migration from hand (assembly) coding to
    high-level languages
  • Reuse of hardware and software components
  • processors (micro-controllers, DSPs)
  • software components (drivers)
  • Increasing integration and system complexity
  • integration of RF, DSP, network interfaces
  • 32-bit processors, IO processors

61
Embedded system metrics
  • Some metrics
  • performance MIPS, reads/sec etc.
  • power Watts
  • cost Dollars
  • Software and architecture
  • Instruction set, code density, register
    organization, caches, addressing, data types etc.
  • MIPS, Watts and cost are related
  • technology driven
  • to get more MIPS for fewer Watts
  • look at the sources of power consumption
  • use power management and voltage scaling

62
MIPS vs. Watts
63
MIPS/W/
64
Bandwidth vs. Watt and
65
BW/W/ with hard disk
66
Standby power
Here is why cell phone battery lasts longest, PDA
shorter and IPOD only a few hours
67
New Design Themes
  • Long-lived systems that can be untethered and
    unattended
  • Low-duty cycle operation with bounded latency
  • Exploit redundancy
  • Data processing inside the network
  • Exploit computation near data to reduce
    communication
  • Self configuring/adaptive systems that can be
    deployed ad hoc
  • Measure and adapt to unpredictable environment
  • Exploit spatial diversity and density of
    sensor/actuator nodes

68
Enter Wireless Design Challenges
  • Wireless
  • limited bandwidth, high latency (3ms-100ms)
  • variable link quality and link asymmetry due to
    noise, interference, disconnections
  • Mobility
  • causes variability in system design parameters
    connectivity, b/w, security domains, location
    awareness
  • Portability
  • limited capacities (battery, CPU, I/O, storage,
    dimensions)

69
Computing Technology Trend
70
Smartphone vs Tablet
71
SW (OS technology)
72
SW (OS technology)
73
HW technology
  • http//www.youtube.com/watch?vttuzw9qso8s
  • http//www.youtube.com/watch?vqripuN9Xdxsfeature
    related

74
Thank You
Write a Comment
User Comments (0)
About PowerShow.com
