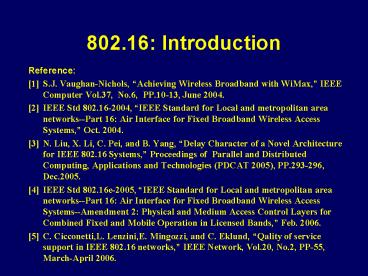

802.16: Introduction

1
802.16 Introduction

• Reference
• 1 S.J. Vaughan-Nichols, Achieving Wireless
  Broadband with WiMax, IEEE Computer Vol.37,
  No.6, PP.10-13, June 2004.
• 2 IEEE Std 802.16-2004, IEEE Standard for
  Local and metropolitan area networks--Part 16
  Air Interface for Fixed Broadband Wireless Access
  Systems, Oct. 2004.
• 3 N. Liu, X. Li, C. Pei, and B. Yang, Delay
  Character of a Novel Architecture for IEEE 802.16
  Systems, Proceedings of Parallel and
  Distributed Computing, Applications and
  Technologies (PDCAT 2005), PP.293-296, Dec.2005.
• 4 IEEE Std 802.16e-2005, IEEE Standard for
  Local and metropolitan area networks--Part 16
  Air Interface for Fixed Broadband Wireless Access
  Systems--Amendment 2 Physical and Medium Access
  Control Layers for Combined Fixed and Mobile
  Operation in Licensed Bands, Feb. 2006.
• 5 C. Cicconetti,L. Lenzini,E. Mingozzi, and C.
  Eklund, Qality of service support in IEEE 802.16
  networks, IEEE Network, Vol.20, No.2, PP-55,
  March-April 2006.

2
802.16 Architecture
3
(No Transcript)
4
802.16 Architecture(cont.)
Point-to-Multipoint
Mesh mode
5
802.16 Architecture(cont.)
6
IEEE 802.16 extensions
7
IEEE Std 802.16 Protocol Layering
8
Service Specific Convergence Sublayer

• Functions
• Provide transformation or mapping of external
  network data into MAC SDU for MAC CPS
• Classify external network data and associate them
  to proper MAC service flow identifier (SFID) and
  connection id (CID)
• Payload head suppression (optional)
• Two convergence sublayer specified
• ATM convergence sublayer
• Packet convergence sublayer

9
MAC Common Part Sublayer

• Functions
• System access
• Bandwidth allocation
• Connection establishment and maintenance with
  service flow
• Support point-to multipoint (PMP) and mesh modes
• Support ARQ scheme
• Dynamic uplink (UL) and downlink (DL)
• Flexible MAC with various scheduling schemes for
  real time, non-real time and best effort services

10
Security Sublayer

• Functions
• Authentication
• Secure key exchange
• Encryption
• Two component protocols
• Encapsulation protocol for dataencryption
• Privacy key management protocol (PKM)

11
Physical Sublayer

• WirelessMAN-SC PHY
• Single-carrier modulation
• Tangeted for 10-66 GHz frequency band
• WirelessMAN-SCa PHY
• Single-carrier modulation
• Frequency bands below 11GHz for NLOS
• WirelessMAN-OFDM PHY
• OFDM modulation with a FFT size of 256
• Frequency bands below 11GHz for NLOS
• AAS and MIMO (also for OFDM-PHY)
• WirelessMAN-OFDMA PHY
• OFDM modulation with scalable FFT sizes
• Frequency bands below 11GHz for NLOS
• Hybrid-ARQ
• Fast-feedback mechanisms
• Handover support

12
802.16 PHY Introduction
13
802.16 PHY Introduction(cont.)

• Support framing
• Support both Time Division Duplex (TDD) and
  Frequency Division Duplex (FDD) , as well as
  half-duplex FDD (H-FDD)
• Burst transmission format which support adaptive
  burst profiling
• Transmission parameters, including the modulation
  and coding schemes (burst-profiles)
• Downlink Channel Descriptor (DCD) and Uplink
  Channel Descriptor (UCD)
• MAC management messages Downlink Map (DL-MAP) and
  Uplink Map (UL-MAP)

14
802.16 PHY Introduction(cont.)
15
802.16 QoS Type
16
802.16 QoS Support
17
802.16 QoS Support(cont.)
18
802.16 Scheduling
PMP (Point-to-Multipoint)
IEEE 802.16
Mesh
19
Internet
Centralized
Bandwidth request

• Congestion at BS
• 1 SS active per time slot
• Longer route
• Serious Delay

MAC frame
BS
Data flow
SS A
MAC frame
SS B
MAC frame
SS C
SS D
SS E
MAC frame
MAC frame
SS F
SS I
MAC frame
SS H
MAC frame
SS G
SS K
SS J
SS J
SS J
SS J
MAC frame
SS L
SS M
SS M
Sender
Sender
Receiver
20
(No Transcript)
21
802.16 Mobility Management Middle Domain and
Vertical Handoff
Reference 1 J. Y. Hu, and C.-C. Yang, "On the
Design of Mobility Management Scheme for
802.16-based Network Environment," Proceedings of
IEEE 62nd Semiannual Vehicular Technology
Conference (VTC-2005 Fall), PP.25-28 Sept. 2005.
22
Introduction
GR Gateway Router (Gateway of CIP or GFA
of HMIP)
23
Introduction (cont.)
24
Introduction (cont.)
25
Middle-domain Mobility Management Scheme
26
Middle-domain Mobility Management Scheme (cont.)
27
Performance Evaluation-Quantitative Analysis by
Simulation(1)
28
Performance Evaluation (cont.)-Quantitative
Analysis by Simulation(2)
29
802.16e Mobile Version of 802.16
Cell Radius 5KM Non-line-of-sight Bandwidth
15Mbps
MH can connect to the BS directly.
30
Related Work Traditional Overlay Networks
Upper Layer Networks larger coverage, lower
bandwidth Lower Layer Networks smaller coverage,
higher bandwidth
Upper Layer Networks
Lower Layer Networks
31
Horizontal Vertical Handoff
1. Horizontal Handoff
2. Upward Vertical Handoff
3. Downward Vertical Handoff
32
Coverage-based Handoff Triggering
Upper Layer Networks With larger coverage size
and lower bandwidth
As soon as received the signal from lower layer,
Downward Vertical Handoff
C
Out of cell coverage, Upward Vertical Handoff
B
A
Lower Layer Networks With smaller coverage
size but higher bandwidth
As soon as received stronger signal strength from
other cell in the same layer, Horizontal Handoff
33
Handoff Times (Total)
34
Packet Loss (Total)
35
Quality of ServiceFramework, Routing, and
Scheduling
Reference 1 J. Chen, W. Jiao, and H. Wang,
A service flow management strategy for IEEE
802.16 broadband wireless access systems in TDD
mode, Proceedings of IEEE International
Conference on Communications (ICC 2005), Vol. 5,
PP. 3422-3426, May 2005. 2 J. Chen, W. Jiao,
and H. Wang, An Integrated QoS Control
Architecture for IEEE 802.16 Broadband Wireless
Access Systems, Proceedings of IEEE Global
Telecommunications Conference (Globecom 2005),
Vol. 5, PP. 3330-3335, Nov.-Dec. 2005. 3 C.C.
Yang, Y.T. Mai, and L.C. Tsai, Cross-Layer QoS
Support in the IEEE 802.16 Mesh Network,
Proceedings of 2006 Wireless Personal Multimedia
Communications (WPMC 2006), PP.567-571, La Jolla,
San Diego, California, Sept. 2006.
36
Introduction

• In IEEE 802.16 standard, scheduling algorithms
  for uplink and downlink bandwidth allocation in a
  single frame are undefined.
• There is no proposed bandwidth allocation
  solution considering uplink and downlink
  simultaneously.

37
Service Flow Management
DSA Dynamic Service Addition DSC Dynamic
Service Change DSD Dynamic Service Deletion
38
The hierarchical structure of the BW allocation
1st Layer
1. rtPS gt nrtPSgt BE 2. Downlink gt Uplink
2nd Layer
1. rtPS EDF 2. nrtPS WFQ 3. BE RR
39
Simulation Results (1)
40
Simulation Results (2)
41
Proposed Framework

• System Architecture
• QoS Parameter Extraction
• Centralized Route Selection with QoS Support
• Flow Setup
• QoS Scheduling

42
System Architecture
43
(No Transcript)
44
Avg. delay and variation by service type with
flow data rate 5Mbps
45
Average Throughput
Avg. throughput with flow data rate 5Mbps
46
Average Signaling Cost
Gain
Proposed vs. Centralized -38.11
Proposed vs. Distributed -76.95
