The Software Quality Challenge

1

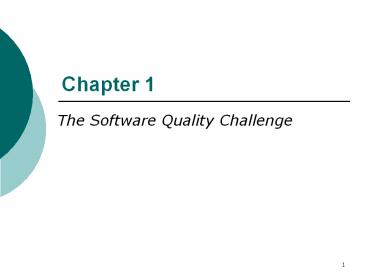

Chapter 1

• The Software Quality Challenge

2
The uniqueness of software quality assurance

• DO you think that there is a bug-free software?
• Can software developers warrant their software
  applications and their documentation from any
  bugs or defects ?
• What are the essential elemental differences
  between software and other industrial products
  such as automobiles, washing machines etc?

3
The essential differences between software and
other industrial products can be categorized as
follows

1. Product complexity of operational modes the
   product permit.
2. Product visibility SW products are invisible.
3. Product development and production process.

4
The phases at which the possibility of detecting
defects in industrial products and software
products

• SW products do not benefit from the
  opportunities for detection of defects at the
  three phases of the production process
• Industrial products
• Product development QA -gt product prototype
• Product production planning Production - line
• Manufacturing QA procedure applied
• Software products
• Product development QA -gt product prototype
• Product production planning Not required
• Manufacturing Copying the product printing
  copies

5
Factors affecting detecting defects in SW
products VS other industrial products
Characteristic SW products Other industrial products
Complexity Usually, v. complex allowing for v. large number of operational options Degree of complexity much lower
Visibility Invisible, impossible to detect defects or omissions by sight ( diskette or CD storing ) Visible, allowing effective detection of defects by sight
Nature of development and production process Opportunities to detect defects arise in only one phase, namely product development Opportunities to detect defects arise in all phases of development and production
6
Important Conclusion

• The great complexity as well as invisibility of
  software, among other product characteristics,
  make the development of SQA methodologies and its
  successful implementation a highly professional
  challenge

7
The environment for which SQA methods are
developed

• Pupils students
• Hobbies
• Engineers, economics , mgt other fields
• SW development professionals
• All those SW developers are required to deal with
  SW quality problems Bugs

8
SQA environmentThe main characteristics of this
environment

• Contractual conditions
• Subjection to customer-supplier relationship
• Required teamwork
• Cooperation and coordination with other SW teams
• Interfaces with other SW systems
• The need to continue carrying out a project
  despite team member changes.
• The need to continue out SW maintenance for
  extended period.

9
Contractual conditions

• the activities of SW development maintenance
  need to cope with
• A defined list of functional requirements
• The project budget
• The project timetable

10
Subjection to customer-supplier relationship

• SW developer must cooperate continuously with
  customer
• To consider his request to changes
• To discuss his criticisms
• To get his approval for changes

11
Required teamwork

• Factors motivating the establishment of a project
  team
• Timetable requirements
• The need of variety
• The wish to benefit from professional mutual
  support review for enhancement of project
  quality

12
Cooperation and coordination with other SW teams

• Cooperation may be required with
• Other SW dev. Teams in the same org.
• HW dev. teams in the same org.
• SW HW dev. teams of other suppliers
• Customer SW and HW dev. teams that take part in
  the projects dev.

13
Interfaces with other SW Systems

• Input interfaces
• Output interfaces
• I/O interfaces to the machines control board, as
  in medical and lab. Control systems

14
The need to continue carrying out a project
despite team member changes.

• During project dev. Period we might be face
• Leave from the members of the team
• Switch in employees
• Transfer to another city

15
The need to continue out SW maintenance for
extended period.

• From 5 to 10 years , customers need continue to
  utilizing their systems
• Maintenance
• Enhancement
• Changes ( Modification )

16
Chapter 2

• What is Software Quality ?

17
What is Software ?

• IEEE Definition
• Software Is
• Computer programs, procedures, and possibly
  associated documentation and data pertaining to
  the operation of a computer system.

18
IEEE Definition is almost identical to the ISO
def. ( ISO/IEC 9000-3 )

• Computer programs (Code)
• Procedures
• Documentation
• Data necessary for operation the SW system.

19
TO sum up

• Software quality assurance always includes
• Code quality
• The quality of the documentation
• And the quality of the necessary SW data

20
SW errors, faults and failures

• Questions arise from HRM conference Page 16.
• An error can be a grammatical error in one or
  more of the code lines, or a logical error in
  carrying out one or more of the clients
  requirements.
• Not all SW errors become SW faults.
• SW failures that disrupt our use of the software.

21
The relationship between SW faults SW failures

• Do all SW faults end with SW failures?
• The answer is not necessarily
• The SW fault becomes a SW failure only when it is
  activated.
• Example page 17-18

22
Classification of the causes of SW errors

• SW errors are the cause of poor SW quality
• SW errors can be
• Code error
• Documentation error
• SW data error
• The cause of all these errors are human

23
The nine causes of software errors

• Faulty requirement definition
• Client-developer communication failures
• Deliberate deviation from SW requirements
• Logical design errors
• Coding errors
• Non-compliance with documentation and coding
  instructions
• Shortcomings of the testing process
• Procedure errors
• Documentation errors

24
Faulty requirement definition

• Erroneous definition of requirements
• Absence of vital requirements
• Incomplete definition of requirements
• Inclusion of unnecessary requirements

25
Client-developer communication failures

• Misunderstandings resulting from defective
  client-developer comunications.
• Misunderstanding of the clients requirements
  changes presented to the developer
• In written forms
• Orally
• Responses to the design problems
• others

26
Deliberate deviation from SW requirements

• The developer reuse SW modules taken from the
  earlier project
• Due to the time budget pressure
• Due to the unapproved improvements

27
Logical design errors

• This is come from systems architects, system
  analysts, SW engineers such as
• Erroneous algorithms
• Process definitions that contain sequencing
  errors
• Erroneous definition of boundary conditions
• Omission of required SW system states
• Omission of definitions concerning reactions to
  illegal operations

28
Coding errors

• Misunderstanding the design documentation
• Linguistic errors in the prog. Lang.
• Errors in the application of CASE and other dev.
  Tools
• etc

29
Non-compliance with documentation and coding

• Team members who need to coordinate their own
  codes with code modules developed by
  non-complying team members
• Individuals replacing the non-complying team
  member will find it difficult to fully understand
  his work.
• Design review to other non-complying team

30
Shortcomings of the testing process

• Incomplete testing plans
• Failures to document and report errors and faults
• Failures to promptly correct detected SW faults
  as a result of inappropriate indications of the
  reasons for the fault.
• Incomplete correction of detected errors.

31
Procedure errors documentation errors

• See example page 22

32
Software quality - Definition IEEE

1. The degree to which a system, component, or
   process meets specified requirements.
2. The degree to which a system, component, or
   process meets customer or user needs or
   expectations.

33
Software Quality Pressmans def.

• Conformance to explicitly stated functional and
  performance requirements, explicitly documented
  standards, and implicit characteristics that are
  expected of all professionally developed
  software.

34
Software Quality Assurance The IEEE Definition

• SQA is
• A planned and systematic pattern of all actions
  necessary to provide adequate confidence that an
  item or product conforms to established technical
  requirements.
• A set of activities designed to evaluate the
  process by which the products are developed or
  manufactured. Contrast with quality control.

35
IEEE SQA definition exclude the maintenance
timetable and budget issues.

• The Author adopts the following
• SQA should not be limited to the development
  process. It should be extended to cover the long
  years of service subsequent to product delivery.
  Adding the software maintenance functions into
  the overall conception of SQA.
• SQA actions should not be limited to technical
  aspects of the functional requirements, It should
  include activities that deal with scheduling and
  timetable and budget .

36
SQA Expanded Definition
A systematic, planned set of actions necessary to
provide adequate confidence that the software
development process or the maintenance of a
software system product conforms to established
functional technical requirements as well as with
the managerial requirements of keeping the
schedule and operating within the budgetary
confines.

• .

This definition corresponds strongly with the
concepts at the foundation of ISO 9000-3,
1997and also corresponds to the main outlines of
the CMM for softwareSee the Table 2.2 page 27
37
Software Quality Assurance Vs. Software Quality
Control

• Quality Control a set of activities designed to
  evaluate the quality of a developed or
  manufactured product. It take place before the
  product is shipped to the client.
• Quality Assurance the main objective is to
  minimize the cost of guaranteeing quality by a
  variety of activities performed throughout the
  causes of errors, and detect and correct them
  early in the dev. Process.

38
The objectives of SQA activitiessee page 29

• Software development ( process-oriented )
• Software maintenance ( Product-oriented )

39
SQA Vs Software Engineering

• SW Engineering ( IEEE def. )
• The application of a systematic, restricted,
  quantifiable approach to the development and
  maintenance of SW that is the application of
  engineering to software.

40
Chapter 3

• Software Quality Factors

41
SQ. Factors

• From the previous chapters we have already
  established that the requirements document is one
  of the most important elements for achieving SQ.
• What is a Good SQ requirements document ?

42
The need for comprehensive SQ requirements

• Our Sales IS seems v. good , but it is frequently
  fails, at least twice a day for 20 minutes or
  more.( SW house claims no responsibility.
• Local product contains a SW and every thing is
  ok, but, when we began planning the development
  of a European version, almost all the design and
  programming will be new.
• etc see page 36.

43
There are some characteristics common to all
these buts

• All SW projects satisfactorily fulfilled the
  basic requirements for correct calculations.
• All SW projects suffered from poor performance in
  important areas such as maintenance, reliability,
  SW reuse, or training.
• The cause for poor performance of the developed
  SW projects in these areas was lack of predefined
  requirements to cover these important aspects of
  the SW functionality.
• The solution is
• The need for a comprehensive definition of
  requirements
• ( SQ Factors )

44
Classification of SW requirements into SW quality
factors.

• McCalls Factor Model
• This model classifies all SW requirements into 11
  SW quality factors, grouped into 3 categories
• Product operation Correctness, Reliability,
  Efficiency, Integrity, Usability
• Product revision Maintainability, Flexibility,
  Testability
• Product transition Portability, Reusability,
  Interoperability.
• See the McCall model of SW quality factors tree
• see page 38

45
Product operation SW quality factors

• Correctness Output specifications are usually
  multidimensional some common include
• The output mission
• The required accuracy
• The completeness
• The up-to-dateness of the info.
• The availability of the info.( the reaction time
  )
• The standards for coding and documenting the SW
  system
• See Example page 39.

46
Product operation SW quality factors

• Reliability
• Deals with failures to provide service. They
  determine the maximum allowed SW system failure
  rate, and can refer to the entire system or to
  one or more of its separate functions.
• See examples page 39 ( heart-monitoring unit )

47
Product operation SW quality factors

• Efficiency
• Deals with the HW resources needed to perform all
  the functions of the SW system in conformance to
  all other requirements.
• See examples page 40 ( CPU speed .. etc )
• Integrity
• Deals with the SW system security, that is
  requirements to prevent access to unauthorized
  persons.
• See examples page 40

48
Product operation SW quality factors

• Usability
• Deals with the scope of staff resources needed to
  train a new employee and to operate the SW
  system.
• See examples page 41

49
Product revision SW quality factors

• Maintainability
• Maintainability requirements determine the
  efforts that will be needed by users and
  maintenance personnel to identify the reasons for
  SW failures, to correct the failure, and to
  verify the success of the corrections.
• Example Typical maintainability requirements
• The size of a SW module will not exceed 30
  statements
• The programming will adhere to the company coding
  standards and guidelines.

50
Product revision SW quality factors

• Flexibility
• The capabilities and efforts required to support
  adaptive maintenance activities are covered by
  flexibility requirements. This factors
  requirements also support perfective maintenance
  activities, such as changes and additions to the
  SW in order to improve its service and adapt it
  to changes in the firms technical or commercial
  environment.
• Example page 42

51
Product revision SW quality factors

• Testability
• Deal with the testing of an IS as well as with
  its operation.
• Providing predefined intermediate results and log
  files.
• Automatic diagnostics performed by the SW system
  prior starting the system, to find out whether
  all components of SW system are in working order.
• Obtain a report about detected faults.
• Example page 42, 43

52
Product transition SW quality factors

• Portability
• Tend to the adaptation of a SW system to other
  environments consisting
• Different HW
• Different OS
• Example SW designed to work under windows 2000
  env. Is required to allow low-cost transfer to
  Linux.

53
Product transition SW quality factors

• Reusability
• Deals with the use of SW modules originally
  designed for one project in a new SW project
  currently begin developed.
• The reuse of SW is expected to save resources.,
  shorten the project period, and provide higher
  quality modules. These benefits of higher quality
  are based on the assumption that most SW faults
  have already been detected by SQA activities
  performed previously on it.

54
Product transition SW quality factors

• Interoperability
• Focus on creating interfaces with other SW
  systems or with other equipment firmware.
• Example
• The firmware of medical lab. equipment is
  required to process its results according to a
  standard data structure that can be then serve as
  input for a number of standard laboratory IS.

55
Alternative Models Of SW Quality Factors

• Two other models for SQ factors
• Evans and Marciniak 1987 ( 12 factors )
• Deutsch and Willis 1988. ( 15 factors )
• Five new factors were suggested
• Verifiability
• Expandability
• Safety
• Manageability
• Survivability

56
Alternative Models Of SW Quality Factors

• Five new factors were suggested
• Verifiability define design and programming
  features that enable efficient verification of
  the design and programming ( modularity,
  simplicity, adherence to documentation and prog
  guidelines. )
• Expandability refer to future efforts that will
  be needed to serve larger populations, improve
  services, or add new applications in order to
  improve usability.
• Safety meant to eliminate conditions hazardous
  to equipment as a result of errors in process
  control SW.
• Manageability refer to the admin. tools that
  support SW modification during the SW development
  and maintenance periods.
• Survivability refer to the continuity of
  service. These define the minimum time allowed
  between failures of the system, and the maximum
  time permitted for recovery of service.

57
Who is interested in the definition of quality
requirements ?

• The client is not the only party interested in
  defining the requirements that assure the quality
  of the SW product.
• The developer is often interested also specially

• Reusability
• Verifiability
• Porotability
• Any SW project will be carried out according to 2
  requirements document
• The clients requirements document
• The developers additional requirements document.

58
Chapter 4

• The Components Of the SQA system- Overview

59
The SQA system- an SQA architecture

• SQA system components can be classified into 6
  classes
• Pre-project components
• Components of project life cycle activities
  assessment
• Components of infrastructure error prevention and
  improvement.
• Components of SQ management
• Components of standardization, certification, and
  SQA system assessment
• Organizing for SQA- the human components

60
Pre-project Components

• To assure that
• The project commitments have been adequately
  defined considering the resources required, the
  schedule and budget.
• The development and quality plans have been
  correctly determined.

61
Components of project life cycle activities
assessment

• The project life cycle composed of two stages
• The development Life cycle stage
• Detect design and programming errors
• Its components divided into
• Reviews
• Expert opinions
• Software testing
• Assurance of the quality of the subcontractors
  work and customer-supplied parts.
• The operation-maintenance stage
• Include specialize maintenance components as well
  as development life cycle components, which are
  applied mainly for functionality improving
  maintenance tasks.

62
Components of infrastructure error prevention and
improvement

• Main objectives of these components, which are
  applied throughout the entire organization, are
• To eliminate or at least reduce the rate of
  errors, based on the organizations accumlated
  SQA experience.

63
Components of software quality management

• This class of components is geared toward several
  goal
• The major ones being the control of development
  and maintenance activities and introduction of
  early managerial support actions that mainly
  prevent or minimize schedule and budget failures
  and their outcomes.

64
Components of standardization, certification, and
SQA system assessment

• The main objective of this class are
• Utilization of international professional
  knowledge
• Improvement of coordination of the organizational
  quality system with other organizations
• Assessment of the achievements of quality systems
  according to a common scale.
• The various standards classified into 2 groupes
• Quality management standards
• Project process standards.

65
Organizing for SQA- the human components

• The SQA organizational base includes
• Managers
• Testing personnel
• The SQA unit and practitioners interested in SQ.
• The main objectives are
• to initiate and support the implementation of SQA
  components
• Detect deviation from SQA procedures and
  methodology
• Suggest improvements

66
Part II Pre-project SQ components Chapter 5

• Contract Review

67
Contract Review

• Is the software quality element that reduces the
  probability of undesirable situation like in
• ( CFV project ).
• Contract review is a requirement by the ISO 9001
  and ISO 9000-3 guidelines.

68
The Contract review process and its stages

• Several situations can lead a SW company to sign
  a contract with a customer such as
• Participation in a tender
• Submission of a proposal according to the
  customers RFP.
• Receipt of an order from a companys customer
• Receipt of an internal request or order from
  another department in the organization

69
The Contract review process and its stages

• Contract review
• is the SQA component devised to guide review
  drafts of proposal and contract documents.
• If applicable, provides oversight ( supervision )
  of the contracts carried out with potential
  project partners and subcontractors.

70
The Contract review process itself is conducted
in two stages

• Stage 1 Review of the proposal draft prior to
  submission to the potential customer ( proposal
  draft review ) Reviews the final proposal draft
  and proposals foundations
• Customers requirement documents
• Customers additional details and explanations of
  the requirements
• Cost and resources estimates
• Existing contracts or contract drafts of the
  supplier with partners and subcontractors.

71
The Contract review process itself is conducted
in two stages

• Stage 2 Review of the proposal draft prior to
  signing ( Contract draft review )
• Reviews the contract draft on the basis of the
  proposal and the understandings ( include changes
  ) reached during the contract negotiations
  sessions.
• The individuals who perform the review thoroughly
  examine the draft while referring to a
  comprehensive range of review subjects ( a
  Check-list ) is very helpful for assuring the
  full coverage of relevant subjects.
• See appendix 5A, 5B

72
Contract Review objectives

• Proposal draft review objectives( assure the
  following )
• Customer requirements have been clarified and
  documented
• Alternative approaches for carrying out the
  project have been examined
• Formal aspects of the relationship between the
  customer and SW firm have been specified.
• Identification of development risks
• Adequate estimation of project resources and
  timetable have been prepared.
• Examination of the customers capacity to fulfill
  his commitments
• Definition of partners and subcontractors
  participation conditions
• Definition and projection proprietary rights.

73
Contract Review objectives

• Contract draft review objectives( assure the
  following )
• No un-clarified issues remain in the contract
  draft
• All the understandings reached between the
  customer and the firm are to be fully and
  correctly documented.
• No changes, additions, or omissions that have not
  been discussed and agreed upon should be
  introduced into contract draft.

74
Factors affecting the extent of a contract review

• Project magnitude, usually measured in man-month
  resources.
• Project technical complexity
• Degree of staff acquaintance with and experience
  in the project area.
• Project organizational complexity, the greater
  the number of organizations ( partners,
  subcontractors, and customers ) taking part in
  the project, the greater the contract review
  efforts required.

75
Who performs a contract review

• The leader or another member of the proposal team
• The members of the proposal team
• An outside professional or a company staff member
  who is not a member of the proposal team.
• A team of outside experts.

76
Implementation of a contract review of a major
proposal

• The characteristics of the major proposal
• Very large-scale project
• Very high technical complexity
• New professional area for the company
• High organizational complexity
• The difficulties of carrying out contract
  reviews for major proposals
• Time pressures
• Proper contract review requires substantial
  professional work
• The potential contract review team members are
  very busy.

77
Implementation of a contract review of a major
proposal

• Recommended avenues ( approaches ) for
  implementing major contract reviews
• The contract review should be scheduled.
• A team should carry out the contract review
• A contract team leader should be appointed
• The activities of the team leader include
• Recruitment of the team members
• Distribution of review tasks
• Coordination between members
• Coordination between the review team and the
  proposal team
• Follow-up of activities, especially compliance
  with the schedule
• Summarization of the findings and their delivery
  to the proposal team.

78
Contract review for internal projects

• See table 5.1 page 86
• The main point here is the internal relationship.
• Loose relationships are usually characterized by
  insufficient examination of the projects
  requirements, its resources and development
  risks.
• To avoid the previous problems we have to apply
  the contract review to the internal as external
  projects by implementing procedures that define
• An adequate proposal for the internal project
• Applying a proper contract review process
• An adequate agreement between the internal
  customer and the internal supplier.

79
Chapter 6 Development and quality plans

• Development plans and quality plans are the major
  elements needed for project compliance with ISO
  9000.3 standards and ISO/IEC 2001 and with IEEE
  730.
• It is also an important element in the Capability
  Maturity Model ( CMM ) for assessment of SW
  development organization maturity.
• The projects needs development and quality plans
  that
• Are based on proposal materials that have been
  re-examined and thoroughly updated
• Are more comprehensive than the approved
  proposal, especially with respect to schedules,
  resources, estimates, and development risk
  evaluations
• Include additional subjects, absent from the
  approved proposal
• others

80
Development plan and quality plan objectives

1. Scheduling development activities that will lead
   to successful and timely completion of the
   project, and estimating the required manpower
   resources and budget.
2. Recruiting team members and allocating
   development resources.
3. Resolving development risks.
4. Implementing required SQA activities
5. Providing mgt. with data needed for project
   control.

81
Elements of the development plan

• Project products
• Project interfaces
• Project methodology and development tools
• SW development standards and procedures
• The mapping of the development process.( proj.
  mgt. Gant )
• Project milestones ( documents , code , report )
• Project staff organization ( org. stru., prof.
  req., no of team mem., names of team leaders )
• Development facilities ( SW, HW tools, space,
  period req. for each use )
• Development risks ( see next slide )
• Control methods
• Project cost estimation

82
Development risks

• Is a state or property of a development task or
  environment which, if ignored, will increase the
  likelihood of project failure. Such as
• Technological gap
• Staff shortages
• Interdependence of organizational elements- the
  likelihood that suppliers or specialized HW or SW
  subcontractors, for example, will not fulfill
  their obligations or schedule.

83
Elements of Quality Plan

• Quality goals ( quantitative measures example
  page 102 )
• Planned review activities
• The scope of review activity
• The type
• The schedule ( priorities )
• The specific procedure to be applied
• Who responsible for carrying out the rev. act.
• Planned SW tests ( a complete list of planned SW
  tests should be provided ) each test
• The unit, integration or the complete system to
  be tested
• The type of testing activities to be carried out
• The planned test schedule
• The specific procedure
• Who responsible

84
Elements of Quality Plan

• Planned acceptance tests for externally developed
  SW
• Configuration management configuration mgt tools
  and procedures, including those change-control
  procedures meant to be applied throughout the
  project

85
Dev. And Quality Plan for small projects
internal projects

• See page 105 , 106

86
Chapter 7Integrating Quality activities in the
project life cycle

• Classic and Other SW development Methodologies
• SDLC ( Req. def. , Analysis, Design, Coding, sys.
  Tests, install and conversion, op. and
  maintenance )

87
Integrating Quality activities in the project
life cycle

• Prototyping

88
Integrating Quality activities in the project
life cycle

• The Spiral model See page 128
• It is an improved metho. for overseeing large and
  more complex projects
• Combines SDLC prototyping
• At each iteration of the spiral the following
  activities are performed
• Planning
• Risk analysis and reslution
• Engineering activities
• Customer evaluation, comm, changes, etc

89
Integrating Quality activities in the project
life cycle

• The object-oriented model.
• Easy integration of existing sw modules ( Objects
  ) into newly developed sw sys.
• A SW component library serves this purpose by
  supplying sw components for reuse. See page 130
• Advantages of library reuse
• Economy
• Improve quality
• Shorter development time
• The advantages of OOPS will grow as the storage
  of reusable SW grows ( Example Microsoft and
  Unix )

90
Factors affecting intensity of quality assurance
activities in the development projects

• Quality assurance activities will be integrated
  into development plan that implements one or more
  SW development models
• Quality assurance planners for project are
  required to determine
• The list of QA activities needed for a project
• For each QA activity
• Timing
• Who perform the resources required
• Team members, external body for QA
• Resources required for removal of defects and
  introduction of changes.

91
Factors affecting intensity of quality assurance
activities in the development projects

• Project factors
• Magnitude of the project
• Technical complexity and difficulty
• Extent of reusable SW components
• Severity of failure outcome if the project fails
• Team factors
• Professional qualification of team members
• Team acquaintance with the project and its
  experience in the area
• Availability of staff members who can
  professionally support team
• Familiarity with team members, in other words the
  percentage of new staff members in the team
• See example page 132

92
Verification, Validation and Qualification

• Three aspects of quality assurance of the SW
  product are examined under the issues of
  verification, validation, and qualification( IEEE
  std 610.12-1990)
• Verification the process of evaluating a system
  or component to determine whether the products of
  a given development phase satisfy the conditions
  imposed at the start of that phase.
• It examines the consistency of the products being
  developed with products developed in the previous
  phases.
• Examiner can assure that development phases have
  been completed correctly

93
Verification, Validation and Qualification

• Validation the process of evaluating a system
  or component during or at the end of the
  development process to determine whether it
  satisfies specified requirements.
• It represents the customers interest by
  examining the extent of compliance to his
  original req.
• Comprehensive validation reviews tend to improve
  customer satisfaction from the system

94
Verification, Validation and Qualification

• Qualification the process used to determine
  whether a system or component is suitable for
  operational use.
• It focuses on operational aspects, where
  maintenance is the main issues
• Planners are required to determine which of these
  aspects should be examined in each quality
  assurance activity.

95
A model for SQA defect removal effectiveness
Cost

• The model deals with 2 quantitative aspects
• Effectiveness in removing project defects
• The cost of removal
• See page 135

96
Defect removal effectiveness

• It is assumed that any SQA activity filters (
  screens ) a certain percentage of existing
  defects.
• In most cases the percentage of removed defects
  is somewhat lower than the percentage of detected
  defects as some corrections are ineffective or
  inadequate.
• The next SQA activity will faces both the
  remaining defects and the new defects created in
  the current development phases.
• It is assumed that the filtering effectiveness of
  accumulated defects of each QA activity is not
  less than 40.
• Table 7.4 page 136 list the average filtering
  effectiveness by QA activities.

97
Cost of defect removal

• The cost of defect removals varies by development
  phase, while costs rise substantially as the
  development process proceeds.
• Example removal of a design defect detected in
  the design phase may require an investment of 2.5
  working days removal of the same defect may
  required 40 days during the acceptance tests.
• Defect-removal costs based on some surveys are
  shown in table 7.5 page 137.

98
The Model

• The model is based on the following assumptions
• The development process is linear and sequential,
  following the waterfall model.
• A number of new defects are introduced in each
  development phase ( see table 7.3 page 135 ).
• Review and test SQA activities serve as filters,
  removing a percentage of the entering defects and
  letting the rest pass to the next phase. If we
  have 30 defects and the filtering efficiency 60
  then 18 defects will be removed 12 will stay to
  the next.
• At each phase the incoming defects are the sum of
  defects not removed together with the new defects
  introduced ( created ) in the current development
  phase.
• The cost is calculated for each QA activity by
  multiplying the number of defects removed by the
  relative cost of removing a defect. ( table 7.5 )
• The remaining defects passed to the customer,
  will be detected by him.

99
The model presents the following

• POD phase originated defects ( table 7.3 )
• PD passed defects.
• FE filtering effectiveness ( table 7.4 )
• RD removed defects
• CDR cost of defect removal ( table 7.5 )
• TRC total removal cost.

100
Chapter 8 Reviews

• IEEE definition Review process
• A process or meeting during which a work product
  or set of products is presented to project
  personnel , managers, users, customers, or other
  interested parties for comment or approval.

101
Methodologies for reviewing documents

• Reviews acquire special importance in the SQA
  process because they provide early direction and
  prevent the passing of design and analysis errors
  down-stream , to stages where error detection
  and correction are much complicated and costly
• The methodologies for reviewing
• Formal design review
• Peer reviews ( inspections and walkthroughs )
• Expert opinions
• Standards for SW reviews are the subject of IEEE
  std 1028 ( IEEE, 1997 ).

102
Reviews Objectives ( Direct Objectives )

• To detect analysis design errors as well as
  subjects where corrections, changes and
  completions are required with respect to the
  original specifications and approved changes.
• To identify new risks likely to affect completion
  of the project.
• To locate deviations from templates and style
  procedures and conventions. Correction of these
  deviations is expected to contribute to improved
  communication coordination resulting from
  greater uniformity of methods documentation
  style.
• To approve the analysis or design product.
  Approval allows the team to continue to the next
  development phase.

103
Reviews Objectives ( Indirect Objectives )

• To provide an informal meeting place for exchange
  of professional knowledge about development
  methods, tools, and techniques.
• To record analysis and design errors that will
  serve as a basis for future corrective actions.
  The corrective actions are expected to improve
  development methods by increasing effective and
  quality, among other product features.

104
Formal design reviews ( DRs )

• Formal design review, also called
• Design reviews ( DRs )
• Formal technical reviews ( FTR )
• Without this approval, the development team
  cannot continue to the next phase of SW
  development project.
• Formal design review can be conducted at any
  development milestone requiring completion of an
  analysis or design document, whether that
  document is a requirement specification or an
  installation plan.

105
A list of common Formal design reviews

• DPR - development plan review
• SRSR- Software requirement specification review
• PDR Preliminary design review
• DDR Detail design review
• DBDR Data base design review
• TPR Test plan review
• STPR Software test procedure review
• VDR Version description review
• OMR operator manual review
• SMR Support manual review
• TRR Test readiness review
• PRR Product release review
• IPR Installation Plan review

106
The Formal Design Review will focus on

• The participants
• The prior preparations
• The DR session
• The recommended post-DR activities

107
The participants in a DR

• All DRs are conducted by
• A review leader
• A review team
• The review leader characteristics
• Knowledge experience in development of projects
  of the type reviewed.
• Seniority at a level similar to if not higher
  than that of the project leader
• A good relationship with the project leader and
  his team
• A position external to the project team.
• Small dev. Departments and software houses
  typically have difficulties finding an
  appropriate candidate to lead the review team.
  One possible solution to this is the appointement
  of an external consultant.

108
The Review Team

• It is desirable for non-project staff to make up
  the majority of the review team.
• The size of the review team from 3 to 5 to be an
  efficient team

109
Preparation for a DR

• A DR session are to be completed by all three
  main participants in the review
• Review leader , an team
• Development team.
• Each one is required to focus on distinct aspects
  of the process.
• Review leader preparations (main tasks)
• To appoint the team members
• To schedule the review sessions
• To distribute the design document among team
  members ( hard copy, electronic copy etc )

110
Preparation for a DR

• Review team preparations (main tasks)
• Review the design document and list their
  comments prior to the review session
• team members may use a review checklists.
• See chapter 15 ( checklists )
• Development team preparations ( main tasks )
• Prepare a short presentation of the design
  document
• The presentation should focus on the main
  professional issues awaiting approval rather than
  wasting time on description of the project in
  general.

111
The DR session

• The agenda is the issue ( a typical DR session
  agenda )
• A short presentation of the design document
• Comments made by members of the review team.
• Verification and validation in which each of the
  comments is discussed to determine the required
  actions ( corrections, changes and addition )
  that the project team has to perform.
• Decisions about the design product ( document ),
  which determines the projects progress. These
  decisions take the following three forms

112
Decisions forms

• Full approval enables immediate continuation to
  the next phase. It may be accompanied by demands
  for some minor corrections to be performed by
  project team.
• Partial approval approval of immediate
  continuation to the next phase for some parts of
  the project, with major action items demanded for
  the remainder of the project.
• Denial of approval demands to repeat of the DR

113
The DR report see appendix 8A

• one of the review leader responsibilities is to
  issue a DR report immediately after the review
  session.
• The development team should perform the
  corrections earlier and minimize the attendant
  delays to the project schedule.
• The report major sections contain
• A summary of the review discussion
• The decision of the continuation of the project
• A full list of the required actions ( corr,
  changes, additions) and the anticipated
  completion dates.
• The name(s) of the review team member(s) assigned
  to follow up performance of corrections.

114
The follow-up process

• The review leader himself is required to
  determine whether each action item has been
  satisfactory accomplished as a condition for
  allowing the project to continue to the next
  phase.
• Follow-up should be documented to enable
  clarification.

115
Pressman (2000, chapter 8 )

• Pressmans 13 golden guidelines for a
  successful design review
• See page 157

116
Peer Reviewstwo review methods ( Inspection and
Walkthrough )

• The major difference between formal design
  reviews and peer review methods is rooted in
  participants authority.
• In peer reviews, as expected, the project
  leaders equals, members of his department and
  other units.
• The other difference lies in degree of authority
  the objective of each review method.
• The peer review main objectives lies in detecting
  errors deviations from standards.
• The appearance of the CASE tools reduce the value
  of manual reviews such as inspection and
  walkthrough.
• Researches find out that peer reviews are highly
  efficient as well as effective method.

117
Inspection Walkthrough

• What differentiates a walkthrough from an
  inspection is the level of formality, inspection
  is the more formal of two.
• Inspection emphasizes the objective of corrective
  actions.
• Walkthroughs findings are limited to comments on
  the document reviewed.

118
Inspection Walkthrough

• Inspection is usually based on a comprehensive
  infrastructure, including
• Development of inspection checklists developed
  for each type of design document as well as
  coding language and tool, which are periodically
  updated.
• Development of typical defect type frequency
  tables, based past findings, to direct inspectors
  to potential defect concentration areas.
• Periodic analysis of the effectiveness of past
  inspections to improve the inspection methodology
• Introduction of scheduled inspections into the
  project activity plan and allocation of the
  required resources, including resources for
  correction of detected defects.

119
Participants of peer reviews

• A review leader
• Main tasks qualification page 161
• The author
• Invariably a participant in each type of peer
  review.
• Specialized professional
• For inspections
• A designer
• A coder or implementer
• A tester
• For walkthrough
• A standards enforcer
• A maintenance expert
• A user representative.

120
Team assignments

• The presenter
• The Scribe

121
Preparations for a peer review session

• Leader preparation
• Teams preparation

122
Session Documentation

• Inspection session findings report
• Prepared by the scribe
• Inspection session summary report
• Prepared by the leader
• See appendix 8b , 8c

123
Post-Peer review activities

• Post-inspection activities are conducted to
  attest to
• The prompt, effective correction and reworking of
  all errors by the designer/author and his team,
  as performed by the inspection leader in the
  course of the assigned follow-up activities.
• Transmission of the inspection reports to the
  internal Corrective Action Board ( CAB ) for
  analysis.
• See Fig 8.2 ( comparison of the peer review
  methods ( Page 166 )

124
The efficiency of peer reviews

• Some of the more common metrics applied to
  estimate the efficiency of peer reviews
• peer review detection efficiency( average hrs
  worked per defect detected)
• Peer review defect detection density ( average
  number of defects detected per page of the design
  document )
• Internal peer review effectiveness ( of defects
  detected by peer reviews as of total defects
  detected by the developer).

125
Comparisons

• See tables page 167-169

126
Expert opinions ( external )

• It is good in the following situations
• Insufficient in-house proff.
• Temporary lack in-house proff.
• Disagreements
• In small organizations

127
Chapter 9Software testing - Strategies

• Testing Definition
• Testing is the process of executing a program
  with intention of finding errors.
• IEEEdefinition
• The process of operating a system or component
  under specified condition, observing or recording
  the results, and making an evaluation of some
  aspect of the system or component.
• The process of analyzing a software item to
  detect the difference between the existing and
  required conditions ( that is, bugs ) and
  evaluate the features of the software item.

128
Software testing - Definition

• Is a formal ( SW test plan ) process carried out
  by specialized testing team ( independent ) in
  which a software unit, several integrated
  software units or entire software package are
  examined by running the programs on a computer.
  All the associated tests are performed according
  to approved test procedures on approved test
  case.

129
Software testing objectives

• Direct objectives
• To identify and reveal as many errors as possible
  in the tested SW.
• To bring the tested SW, after correction of the
  identified errors and retesting, to an acceptable
  level of quality.
• To perform the required tests efficiently, within
  budgetary and scheduling limitations.
• Indirect objectives
• To compile a record of SW errors for use in error
  prevention ( by corrective preventive actions )

130
Software testing Strategies

• To test the SW in its entirety, once the
  completed package is available otherwise known
  as big bang testing .
• To test the SW piecemeal, in modules, as they are
  completed ( unit tests ) then to test groups of
  tested modules integrated with newly completed
  modules ( integrated tests ). This process
  continues until all the entire package is tested
  as whole ( system test ). This testing strategy
  is usually termed incremental testing

131
Incremental testing is also performed according
to two basic Strategies

• Bottom-Up ( 4 stages ) see fig page 183
• Top-down ( 6 stages )
• The incremental pathes
• Horizontal sequence ( breadth first )
• Vertical sequence ( Depth first )

132
Stubs Drivers for incremental testing

• Stubs and drivers are SW replacement simulators
  required for modules not available when
  performing a unit test or an integration test.
• Stubs ( often termed a Dummy Module )replaces
  an unavailable lower level module, subordinate to
  the module tested.
• It is required for top-down testing of incomplete
  systems. See example fig 9.2

133
Stubs Drivers for incremental testing

• A driver is a substitute module but of the upper
  level module that activates the module tested.
• The driver is passing the test data on to the
  tested module and accepting the results
  calculated by it.
• It is required in bottom-up testing until the
  upper level modules are developed.
• See example fig 9.2

134
Bottom-Up Vs Top-Down strategies

• Main Adv. Of bottom-up
• The relative ease of its performance
• Main disadv.
• The lateness at which the prog. As whole can be
  observed ( at the stage following testing of the
  last module )
• Main adv. Of Top-down
• The possibility it offers to demonstrate the
  entire prog. Function shortly after activation of
  the upper-level modules has been completed. This
  characteristic allows for early identification of
  analysis design errors related to algorithms,
  functional requir. , and the like.
• Main disadv.
• The relative difficulty of preparing the required
  stubs, with often require very complicated
  programming.
• The relative difficulty of analyzing the result
  of the tests.

135
Big bang Vs. Incremental testing

• The main disadvantages of big bang
• Identification of errors becomes difficult
• Corrections will be at the same time.
• Error correction estimation of the required
  testing resources and testing schedule a rather
  fuzzy endeaver.
• Incremental testing adv.
• Usually performed on relatively small SW modules,
  as unit or integration tests.( more errors
  detection )
• Identification and correction of errors is much
  simpler and requires fewer resources because it
  is performed on a limited volume of SW.

136
Software test classification.Classification
according to testing concept

• Two testing classes have been developed
• Black box ( functionality ) testing
• Identifies bugs only according to SW
  malfunctioning as they are revealed in its
  erroneous output.
• Incases that outputs are found to be correct,
  black box testing disregarded the internal path
  of calculations and processing performed.
• White box ( structural ) testing
• Examines internal calculation paths in order to
  identify bugs.
• The white is meant to emphasize the contrast
  between methods

137
Software test classification.Classification
according to requirements

• See table 9.1 Page 188

138
White Box Testing

• White box testing concept requires verification
  of every program statement and comment.
• See table 9.2 , white box testing enables
  performance of
• data processing and calculations correctness
  tests
• SW qualification tests
• Maintainability tests
• Reusability tests
• Every computational operation in the sequence of
  operations created by each test case ( Path )
  must be examined.
• This type of verification allows us to decide
  whether the processing operations and their
  sequences were programmed correctly for the path
  in question, but not for other pathes.

139
Data processing and calculation correctness
testsPath coverage line coverage

• Path coverage total number of possible paths
• 10 if-then-else 1024 paths
• Line coverage for full line coverage, every line
  of code be executed at least once during the
  process of testing. The line coverage metrics for
  completeness of a line-testing plan are defined
  as the percentage of lines indeed executed during
  the tests. Flow chart and a program flow graph
  are used.
• Example 191.

140
McCabes cyclomatic complexity metrics

• Measures the complexity of a program or module at
  the same time as it determines the maximum number
  of independent paths needed to achieve full line
  Coverage of the program.
• The measure is based on graph theory using
  program flow graph.
• An independent path is defined with reference to
  the succession of independent paths accumulated.
• Independent path is any path on the program flow
  graph that includes at least one edge that is not
  included in any former independent paths.
• See table 9.5 page
