Title: Bluetooth: Introduction


1

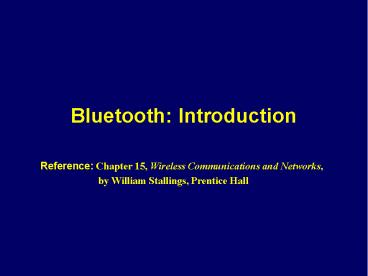

Bluetooth Introduction
  • Reference Chapter 15, Wireless Communications
    and Networks, by William Stallings, Prentice Hall

2
Overview
  • Initially developed by Ericsson in 1994
  • Using 2.4 GHz band (up to 720 kbps, 10m)
  • Provide consumer with the ability to do
  • Make calls from a wireless headset connected
    remotely to a cell phone
  • Eliminate cables linking computers to printers,
    keyboards, and the mouse
  • Hook up MP3 players wirelessly
  • Set up home networks
  • Call home from a remote location to turn
    appliances on and off, set the alarm, and monitor
    activity

3
Overview (cont)
  • Bluetooth Applications
  • Data and voice access points
  • Cable replacement
  • Ad Hoc networking

4
(No Transcript)
5
Protocol Architecture
6
(No Transcript)
7
(No Transcript)
8
Core Protocols
  • Radio
  • Details of the air interface, including
    frequency, the use of frequency hopping,
    modulation scheme, and transmit power
  • Baseband
  • Concerned with connection establishment within a
    piconet, addressing, packet format, timing and
    power control
  • Link manager protocol (LMP)
  • Responsible for link setup between BT devices and
    ongoing link management
  • Security aspects authentication and encryption
  • Control and negotiation of baseband packet sizes

9
Core Protocols (cont)
  • Logical link control and adaptation protocol
    (L2CAP)
  • Adapts upper-layer protocols to the baseband
    layer
  • Provide both connectionless and
    connection-oriented services
  • Service discovery protocol (SDP)
  • Device information, services, and the
    characteristics of the services can be queries to
    enable the establishment of a connection between
    two or more BT devices

10
Bluetooth Protocols
  • RFCOMM
  • Cable replacement protocol
  • RFCOMM presents a virtual serial port that is
    designed to make replacement of cable
    technologies as transparent as possible
  • Provides for binary data transport and emulates
    EIA-232 control signals over the BT baseband
    layer
  • Telephony control protocol (TCS BIN)
  • Defines the call control signaling for the
    establishment of speech and data calls between BT
    devices

11
Usage Model
12
Usage Model (cont)
13
Usage Model (cont)
14
Piconets
  • Piconet
  • Basic unit of networking in BT
  • Consisting of a master and from 1 to 7 active
    slave devices
  • The radio designated as the master makes the
    determination of the channel and phase that shall
    be used by all devices on this piconet
  • A slave may only communicate with the master and
    may only communicate when granted permission by
    the master
  • A device in one piconet may also exist as part of
    another piconet and may function as either a
    slave or master in each piconet

15
Master/Slave Relationships
16
Wireless Network Configurations
17
Wireless Network Configurations
18
Radio Baseband Parameters
19
Radio Specification
20
Baseband Specification
1600 hops per second
21
Baseband Specification (cont)
22
(No Transcript)
23
Baseband Specification (cont)
  • Physical links
  • Synchronous connection oriented (SCO)
  • Allocates a fixed bandwidth between a
    point-to-point connection involving the master
    and a single slave
  • The master maintains the SCO link by using
    reserved slots at regular intervals
  • The basic unit of reservation is two consecutive
    slots (one in each transmission direction)
  • The master can support up to 3 simultaneous SCO
    linkes, while a slave can support 2 or 3 SCO
    links
  • SCO packets are never retransmitted

24
Baseband Specification (cont)
  • Asynchronous connectionless (ACL)
  • A point-to-multipoint link between the master and
    all the slaves in the piconet
  • In slots not reserved for SCO links
  • The master can exchange packets with any slave on
    a per-slot basis
  • Only a single ACL link can exist
  • For most ACL packets, packet retransmission is
    applied

25
Baseband Specification (cont)
26
Baseband Specification (cont)
27
Baseband Specification (cont)
28
Baseband Specification (cont)
  • Packet format
  • Access code used for timing synchronization,
    offset compensation, paging and inquiry
  • Three types of access codes
  • Channel access code (CAC) identifies a piconet
  • Device access code (DAC) used for paging and its
    subsequent response
  • Inquiry access code (IAC) used for inquiry
    purposes
  • Header used to identify packet type and to carry
    protocol control information
  • Payload contains user voice or data, and in most
    cases a payload header

29
Baseband Specification (cont)
  • Packet Header
  • AM_ADDR
  • 3-bit AM_ADDR contains the active mode address
    (temporary address assigned to this slave in this
    piconet) of one of the slaves
  • A transmission from the master to a slave
    contains that slaves address
  • A transmission from a slave contains its address
  • The value 0 is reserved for a broadcast from the
    master to all slaves in the piconet
  • Type
  • Identifies the type of packet
  • For SCO HV1, HV2, HV3
  • For ACL DM1, DM3, DM5, DH1, DH3, DH5

30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
Baseband Specification (cont)
  • Flow
  • Provides a 1-bit flow control mechanism for ACL
    traffic only
  • ARQN
  • Provides a 1-bit acknowledgement mechanism for
    ACL traffic protected by a CRC
  • If the reception was successful, an ACK (ARQN1)
    is returned otherwise a NAK (ARQN0) is returned
  • SEQN
  • Provides a 1-bit sequential numbering scheme
  • HEC (Header Error Control)
  • An 8-bit error detection code used to protect the
    packet header

35
Baseband Specification (cont)
  • Payload format
  • Payload header
  • An 8-bit header is defined for single-slot
    packets, and a 16-bit header is defined for
    multislot packets
  • Payload body user information
  • CRC 16-bit CRC code on data payload
  • Payload header
  • L_CH identifies the logical channel
  • Flow used to control flow at the L2CAP level
  • Length the number of bytes of data in the
    payload, excluding the payload header and CRC

36
Baseband Specification (cont)
  • Error correction
  • 1/3 rate FEC (forward error correction)
  • Used on the 18-bit packet header
  • For the voice field in an HV1 packet
  • Simply sending three copies of each bit
  • A majority logic is used
  • 2/3 rate FEC
  • Used in all DM packets, in the data field of the
    DV packets, in the FHS packet, an in the HV2
    packet
  • Hamming code
  • Can correct all single errors and detect all
    double errors in each codeword

37
Baseband Specification (cont)
  • ARQ (automatic repeat request)
  • Used with DM and DH packets, and the data field
    of DV packets
  • Similar to ARQ schemes used in data link control
    protocols
  • 1. Error detection
  • 2. Positive acknowledgement
  • 3. Retransmission after timeout
  • 4. Negative acknowledgement and retransmissions

38
Baseband Specification (cont)
  • Logical Channels
  • Five types of logical data channels designed to
    carry different types of payload traffic
  • 1. Link control (LC)
  • Carries low level link control information ARQ,
    flow control, payload characterization
  • The LC channel is carried in every packet except
    in the ID packet, which has no packet header
  • 2. Link manager (LM)
  • Transports link management information between
    participating stations
  • Support LMP traffic and can be carried over
    either an SCO or ACL link

39
Baseband Specification (cont)
  • 3. User asynchronous (UA)
  • Carries asynchronous user data normally carried
    over the ACL link
  • 4. User isochronous (UI)
  • Carries isochronous user data normally carried
    over the ACL link but may be carried in a DV
    packet on the SCO link
  • 5. User synchronous (US)
  • Carries synchronous user data
  • This channel is carried over the SCO link

40
Baseband Specification (cont)
  • State diagram

41
Baseband Specification (cont)
  • Inquiry procedure
  • The first step in establishing a piconet is for a
    potential master to identify devices in a range
    that wish to participate in the piconet
  • Once a device has responded to an Inquiry, it
    moves to the page scan state to await a page from
    the master in order to establish a connection
  • Page procedure
  • Once the master has found devices within its
    range, it is able to establish connections to
    each device, setting up a piconet

42
Baseband Specification (cont)
  • Channel state
  • Standby
  • The default state, low-power state
  • Connection
  • The device is connected to a piconet as a master
    or a slave
  • Page
  • Device has issued a page
  • Used by the master to activate and connect to a
    slave
  • Master sends page message by transmitting slaves
    device access code (DAC) in different hop
    channels
  • Page scan
  • Device is listening for a page with its own DAC

43
Baseband Specification (cont)
  • Master response
  • A device acting as a master receives a page
    response from a slave
  • Slave response
  • A device acting as a slave responds to a page
    from a master
  • Inquiry
  • Device has issued an inquiry, to find the
    identity of the devices within range
  • Inquiry scan
  • Device is listening for an inquiry
  • Inquiry response
  • A device that has issued an inquiry receives an
    inquiry response

44
Baseband Specification (cont)
  • Connection state
  • Active
  • The slave actively participates in the piconet by
    listening, transmitting and receiving packets
  • The master periodically transmits to the slaves
    to maintain synchronization
  • Sniff
  • The slave does not listen on every receive slot
    but only on specified slots for its message
  • The slave can operate in a reduced-power status
    the rest of the time

45
Baseband Specification (cont)
  • Hold
  • The device in this mode does not support ACL
    packets and goes to reduced power status
  • The slave may still participate in SCO exchanges
  • Park
  • When a slave does not need to participate on the
    piconet but still is to be retained as part of
    the piconet, it can enter the park mode, which is
    a low-power mode with very little activity
  • The device is given a parking member address
    (PM_ADDR) and loses its active member (AM_ADDR)
    address
  • With the use of the park mode, a piconet may have
    more than seven slaves

46
Link Manager Specification
47
Link Manager Specification (cont)
48
L2CAP
49
L2CAP Formats
50
L2CAP Signaling Command Code
51
L2CAP Quality of Service
  • Flow specification
  • Service type
  • Token rate (bytes/second)
  • Token bucket size (bytes)
  • Peak bandwidth (bytes/second)
  • Latency (microseconds)
  • Delay variation (microseconds)

52
L2CAP Quality of Service
