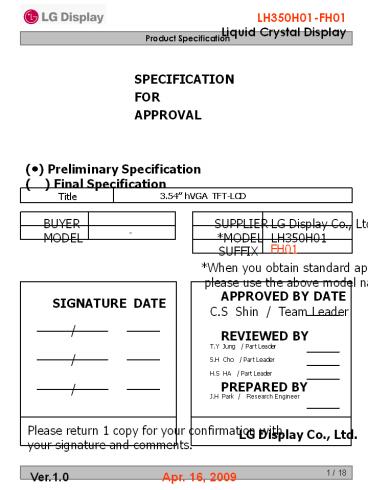

SPECIFICATION

1
SPECIFICATION FOR APPROVAL

(?) Preliminary Specification ( ) Final
Specification
Title
3.54 hVGA TFT-LCD
BUYER
SUPPLIER
LG Display Co., Ltd.
-
MODEL
MODEL
LH350H01
FH01
SUFFIX
When you obtain standard approval, please use
the above model name without suffix
APPROVED BY
DATE
SIGNATURE
DATE
C.S Shin / Team Leader
/
REVIEWED BY
T.Y Jung / Part Leader
/
S.H Cho / Part Leader
H.S HA / Part Leader
PREPARED BY
/
J.H Park / Research Engineer
Please return 1 copy for your confirmation
with your signature and comments.
LG Display Co., Ltd.
2
No. ITEM Page
- COVER 1
- CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
4 OPTICAL SPECIFICATIONS 7 8
5 MECHANICAL CHARACTERISTICS 13
6 RELIABILITY TEST 15
7 PACKING FORM 16
8 PRECAUTIONS 17



3
RECORDS OF REVISIONS
Revision No
Revision Date
Page
DESCRIPTION
Apr. 16, 2009
Ver. 1.0
First Released.
4
1. General Description
The LH350H01 is a Color Active Matrix Liquid
Crystal Display. The matrix employs a-Si Thin
Film Transistor as the active element. It is a
transflective type display operating in the
normally white mode. This model is a diagonal
3.54 inch with the portrait typed hVGA
(320xRGBx480) resolution. Each pixel is divided
into blue, green and red sub-pixels or dots which
are arranged in vertical stripes. The LH350H01 is
intended to support applications where thin
thickness, low power are critical factors and
graphic display are important. In combination
with the vertical arrangement of the sub-pixels,
the LH350H01 characteristics provide a high
quality display for mobile phone application.
General Features
Item Description
Model 3.54_hVGA
Mode Transflective ECB Mode
Resolution hVGA(320 X RGB X 480)
Outline Dimension 53.94(H) X 81.64 (V) mm
Dot Pitch 52? X 156?
Driving Frequency mode 60Hz, Line Inversion Driving
Panel Thickness 0.45t 0.225t(CF) / 0.225t(TFT)
Operating Temperature -20 70?
Storage Temperature -30 80?
5
2. Absolute Maximum Ratings
The following are maximum values which, if
exceeded, may cause operation or damage to the
unit.
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Value Value Unit Notes
Parameter Symbol Min. Max. Unit Notes
LC Operating Voltage 1) VOP 4.0 (Typ.) 4.0 (Typ.) V _at_ 255 ?
Operating Temperature TOP -20 70 ?
Storage Temperature TST -30 80 ?
Operating Ambient Humidity 2) HOP 10 3) RH
Storage Humidity 2) HST 10 4) RH
Notes 1) Liquid Crystal driving voltage.
Due to the characteristics of LC Material,
this voltage vary with environmental
temperature. 2) Non-condensation. 3)
Temp. 60? , 90 RH MAX. 4) Temp. gt60? ,
Absolute humidity shall be less than 90 RH at 60?
6
3. Electrical Specifications
Table 2. Recommend Parameters for Electrical
Characteristics
_at_ 25 ? 5C
Parameter Symbol Value Value Value Unit Notes
Parameter Symbol Min. Typ. Max. Unit Notes
TFT Gate ON Voltage VGH 1) - 13 - V 3)
TFT Gate OFF Voltage VGL 2) - -10 - V 3)
TFT Common Electrode Voltage VcomH - 3.2 - V 3)
TFT Common Electrode Voltage VcomL - -1 - V 3)
TFT Kick-Back Voltage Max. ?Vp Max -0.7 - 1.2 V 3)
TFT Kick-Back Voltage Min. ?Vp Min -0.7 - 1.2 V 3)
Notes 1) VGH is TFT Gate Operating Voltage.
2) VGL is TFT Gate Operating Voltage
The storage capacitance structure of
LH240Q35-SH01 is Cst (Storage on Common)
3) Vcom must be adjusted to optimize display
quality Cross-talk, Contrast Ratio and etc.
We just kindly recommend the setting-voltage as
the reference value. In order to get the
optimized display quality, the setting-voltage
should be changed as based on customer's
developing condition. (The display quality could
be changed by customer's setting-voltage.)
7
4. Optical Specification
Optical characteristics are determined after the
unit has been ON and stable for approximately
30 minutes in a dark environment at 25 C. The
values specified are at an approximate distance
50 cm from the TFT-LCD surface at a viewing
angle of 0 .
Measurement condition Refer to next pages
(Halogen Lamp )
1) with WV Polarizer (Fig. 5)
2) Only Color Filter glass
Optical Characteristics Backlight On
Parameter Symbol Values Values Values Unit Notes
Parameter Symbol Min Typ Max Unit Notes
Threshold Voltage 1) Vsat 2.3 2.4 2.5 V Fig.2
Threshold Voltage 1) Vth 1.0 1.1 1.2 V Fig.2
Transmittance 1) T() 4.5 5.0 - Fig.1
Contrast Ratio 1) C/R 150 200 -
Response Time 1) TrTf - 30 45 msec Fig.4
CIE Color Coordinate 2) Rx 0.612 0.632 0.652
CIE Color Coordinate 2) Ry 0.310 0.330 0.352
CIE Color Coordinate 2) Gx 0.264 0.284 0.304
CIE Color Coordinate 2) Gy 0.514 0.534 0.554
CIE Color Coordinate 2) Bx 0.115 0.135 0.155
CIE Color Coordinate 2) By 0.125 0.145 0.165
CIE Color Coordinate 2) Wx 0.278 0.298 0.318
CIE Color Coordinate 2) Wy 0.315 0.335 0.355
Viewing Angle 1) L 40 45 - Degree C/Rgt10 Fig.3
Viewing Angle 1) R 40 45 - Degree C/Rgt10 Fig.3
Viewing Angle 1) U 40 45 - Degree C/Rgt10 Fig.3
Viewing Angle 1) D 40 45 - Degree C/Rgt10 Fig.3
8
Optical Characteristics Backlight Off
Parameter Symbol Values Values Values Unit Notes
Parameter Symbol Min Typ Max Unit Notes
Reflectivity 1) R() 1.15 1.8 -
Contrast Ratio 1) C/R 6 - -
Response Time 1) TrTf - 30 45 msec
CIE Color Coordinate 1) Rx 0.409 0.424 0.459 ?? ?? D-65K
CIE Color Coordinate 1) Ry 0.288 0.313 0.338 ?? ?? D-65K
CIE Color Coordinate 1) Gx 0.270 0.295 0.320 ?? ?? D-65K
CIE Color Coordinate 1) Gy 0.370 0.395 0.420 ?? ?? D-65K
CIE Color Coordinate 1) Bx 0.189 0.219 0.239 ?? ?? D-65K
CIE Color Coordinate 1) By 0.188 0.218 0.238 ?? ?? D-65K
CIE Color Coordinate 1) Wx 0.289 0.309 0.329 ?? ?? D-65K
CIE Color Coordinate 1) Wy 0.313 0.333 0.353 ?? ?? D-65K
Viewing Angle 1) L 40 45 - Degree C/Rgt2 Fig.3
Viewing Angle 1) R 40 45 - Degree C/Rgt2 Fig.3
Viewing Angle 1) U 40 45 - Degree C/Rgt2 Fig.3
Viewing Angle 1) D 40 45 - Degree C/Rgt2 Fig.3
9
Notes
1. Contrast Ratio(CR) is defined mathematically
as
Surface Luminance with all white pixels
Contrast Ratio
Surface Luminance with all black
pixels 2. Surface luminance is the center point
across the TFT-LCD surface 500 mm from the
surface with all pixels displaying white.
For more information see FIG 1. 3. Response time
is the time required for the display to
transition from white to black(Rise Time, Tr)
and from black to white(Falling Time, Tf). For
additional information see FIG 3. 4. Viewing
angle is the angle at which the contrast ratio is
greater than 10. The angles are determined
for the horizontal or x axis and the vertical or
y axis with respect to the z axis which is
normal to the TFT-LCD surface. For more
information see FIG 4. 5. Optimum contrast is
obtained by adjusting the TFT-LCD Threshold
voltage(Vth Vsat)
FIG. 1 Optical Characteristic Measurement
Equipment and Method
Backlight On(PR-880)
Transmissive Mode
10
Diffuse light
DMS-803
Photometer
Diffuse light source
Diffuse light source
SMPL
Backlight Off(DMS-803)
Reflective Mode
FIG. 2 The definition of Vth and Vsat
100
90
Transmittance
50
10
0
Voltage
Vth
Vsat
11
FIG. 3 The definition of viewing angle
ltdimension of viewing angle rangegt
FIG. 4 The definition of Response Time
The response time is defined as the following
figure and shall be measured by switching the
input signal for white and black.
Voltage conditions for Response time Vgate
22V DC Vdata 0V4.5V DC Vcom 0V (Ground)
12
FIG. 5 The definition of Polarizer
13
5. Mechanical Characteristics
The contents provide general mechanical
characteristics for the model LH350H01-FH01. In
addition the figures in the following page are
detailed mechanical drawing of the TFT-LCD.
Parameter Symbol Specification Unit Notes
Active Area A 49.92 ?
Active Area B 74.88 ?
Upper Glass Size C 53.940.2 ?
Upper Glass Size D 78.940.2 ?
Bottom Glass Size E 53.940.2 ?
Bottom Glass Size F 81.640.2 ?
Panel thickness T 0.45(0.2250.225) 0.05 ?
Cell Margin G 2.010.1 ?
Cell Margin H 2.050.1 ?
Cell Margin I 2.010.1 ?
Cell Margin J 2.010.1 ?
COG PAD Area K 2.70.2 ?
Upper Glass Edge to D-IC P 0.70.1 ?
Bottom Glass Edge to D-IC O 1.20.1 ?
D-IC to FPC Q 0.3 ?
FPC to Glass Edge R 0.90.1 ?
FPC Length U 12.810 ?
FPC Pad Length(Metal) V 0.7 ?
FPC Pad(metal area) to Glass Edge W 0.20.1 ?
Weight g
14
FIG. 6 Outline Dimension of TFT-LCD Cell
C(E)
T
I
J
G
B
D
F
A
H
K
P
D-IC
O
Q
U
R
FPC PAD
a
a Detail
V
R
W
15
6. Reliability Test
Absolute Maximum Conditions
No. Parameter Condition
1 Operating Temperature -20 70?
2 Storage Temperature -30 80?
Reliability test conditions ( Polarizer
characteristics null )
No. Test Items Test Condition
1 High Temperature Storage T 80? for 240hr Module (Without Contamination)
2 Low Temperature Storage T -30? for 240hr Module (Without Contamination)
3 High Temperature Operating T 70? for 240hr Module (Without Contamination)
4 Low Temperature Operating T -20? for 240hr 1) Module (Without Contamination)
5 High Temp. and High Humidity Operating T 60? /90 for 240hr (But no condensation dew) Module (Without Contamination)
6 Thermal Shock -30 80?, 100cycle Module (Without Contamination)
7 Packing Shock 1coner, 3edge, 6face / 76cmDrop Packing
8 Packing Vibration Random 1.5Grms Z direction 1hr. Packing
Notes No.1 No.6 No guarantee for
panel, only for module with the above test
conditions. No.7 No.8 Refer to 7-1)
Packing Assy on page 16.
Result Evaluation Criteria TFT- LCD Panel
should be at room temperature for 2 hours when
the display quality test is over. There should
be no particular change which might affect the
practical display function and the display
quality test should be conducted under normal
operating condition.
16
7. Packing Form
a) Package quantity in one box 180 pcs b) Box
Size 393mm X 339mm X 135mm 7-1) PACKING
ASSY 7-2) PALLET ASSY
17
8. PRECAUTIONS
Please pay attention to the following when you
use this TFT-LCD panel.
8-1. MOUNTING PRECAUTIONS
1) When the surface becomes dusty, please
wipe gently with absorbent cotton or
other soft materials. 2) Since a TFT-LCD
Panel is composed of electronic circuits, it is
not strong to electrostatic discharge.
Make certain that treatment persons are connected
to ground through wrist band etc .
3) Do not leave at the high temperature and
high humidity in long time. 4) Do not leave
the TFT-LCD panel from direct sunlight. 5)
Do not contact with water to avoid Metal
corrosion. 6) The TFT-LCD Panel shall be
installed flat, without twisting or bending
8-2. OPERATING PRECAUTIONS
1) The spike noise causes the mis-operation of
circuits. It should be lower than following
voltage V200mV(Over and under shoot
voltage) 2) Response time depends on the
temperature.(In lower temperature, it becomes
longer.) 3) Brightness depends on the
temperature. (In lower temperature, it becomes
lower.) And in lower temperature, response
time(required time that brightness is stable
after turned on) becomes longer. 4) Be
careful for condensation at sudden temperature
change. Condensation makes damage to
polarizer or electrical contacted parts. And
after fading condensation, smear or spot will
occur. 5) When fixed patterns are displayed for a
long time, remnant image is likely to occur. 6)
The TFT-LCD shall be operated within the
temperature limits specified. when you operate
the TFT-LCD panel at below(beyond) the limit
specified,It may cause damage or image
degradation. This phenomenon may not recover.
8-3. ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic
circuits, it is not strong to electrostatic
discharge. Make certain that treatment persons
are connected to ground through wrist band etc.
And dont touch interface pin directly.
18
8-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of color
filter. It may not recover
8-5. STORAGE
When storing TFT-LCD panel as spares for a long
time, the following precautions are necessary. 1)
Store them in a dark place. Do not expose to
sunlight or fluorescent light. Keep the
temperature between 5C and 35C at normal
humidity. 2) The TFT-LCD glass surface should not
come in contact with any other object. It is
recommended that they be stored in the container
in which they were shipped. 3) As TFT-LCD panels
are packed in a vacuum with PE bag and Al bag in
Nitrogen gas environment , Customer is
required to keep the product under a good
condition(25 degree, 50) to prevent any of
unwanted damage from the moisture, and chemicals,
etc. And recommended to use it in a short-time
period, after it's unpacked.
8-6. HANDLING PRECAUTIONS FOR TFT-LCD Glass
Be careful when TFT-LCD panel is broken.(TFT-LCD
is made of glass)
