Knowledge discovery

1

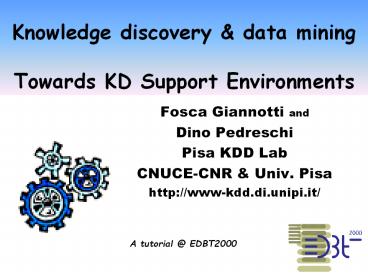

Knowledge discovery data mining Towards KD
Support Environments

• Fosca Giannotti and
• Dino Pedreschi
• Pisa KDD Lab
• CNUCE-CNR Univ. Pisa
• http//www-kdd.di.unipi.it/

A tutorial _at_ EDBT2000
2
Module outline

• Data analysis and KD Support Environments
• Data mining technology trends
• from tools
• to suites
• to solutions
• Towards data mining query languages
• DATASIFT a logic-based KDSE
• Future research challenges

3
Vertical applications

• We outlined three classes of vertical data
  analysis applications that can be tackled using
  KDD DM techniques
• Fraud detection
• Market basket analysis
• Customer segmentation

4
Why are these applications challenging?

• Require manipulation and reasoning over knowledge
  and data at different abstraction levels
• conceptual
• semantic integration of domain knowledge, expert
  (business) rules and extracted knowledge
• semantic integration of different analysis
  paradigms
• logical/physical
• interoperability with external components
  DBMSs, data mining tools, desktop tools
• querying/mining optimization loose vs. tight
  coupling between query language and specialized
  mining tools

5
Why are these applications challenging?

• The associated KDD processneeds to be carefully
  specified, tuned and controlled

6
Why are these applications challenging?

• Still not properly supported by available KDD
  technology
• what is offered horizontal, customizable
  toolkits/suites of data mining primitives
• what is needed KD support environments for
  vertical applications

7
Datamining vs. traditional Sw development process

• Traditional
• Focus on knowledge transfer, design and coding
• 30 - analysis and design
• 70 - program design, coding and testing
• Prototyping - expensive
• Development process has few loops
• Maintenance requires human analysis

• Data mining
• Focus on data selection, representation and
  search
• 70 - data preparation
• 30 - model generation and testing
• Prototyping - cheap
• Development process is inherently iterative
• Maintenance requires re-learning model

8
From R. Agrawals invited lecture _at_ KDD99
Chasm
Early Market
Mainstream Market
The greatest peril in the development of a
high-tech market lies in making the transition
from an early market dominated by a few
visionaries to a mainstream market dominated by
pragmatists.
9
Is data mining in the chasm?

• Perceived to be sophisticated technology, usable
  only by specialists
• Long, expensive projects
• Stand-alone, loosely-coupled with data
  infrastructures
• Difficult to infuse into existing
  mission-critical applications

10
Module outline

• Data analysis and KD Support Environments
• Data mining technology trends
• from tools
• to suites
• to solutions
• Towards data mining query languages
• DATASIFT a logic-based KDSE
• Future research challenges

11
Generation 1 data mining tools

• 1980 first generation of DM systems
• research-driven tools for single tasks, e.g.
• build a decision tree - say C4.5
• find clusters - say Autoclass (Cheeseman 88)
• Difficult to use more than one tool on the same
  data lots of data/metadata transformation
• Intended user a specialist, technically
  sophisticated.

12
Generation 2 data mining suites

• 1995 second generation of DM systems
• toolkits for multiple tasks with support for data
  preparation and interoperability with DBMS, e.g.
• SPSS Clementine
• IBM Intelligent Miner
• SAS Enterprise Miner
• SFU DBMiner
• Intended user data analyst suites require
  significant knowledge of statistics and databases

13
Growth of DM tools (source kdnuggets.com)

• From G. Piatetsky-Shapiro. The data-mining
  industry coming of age. IEEE Intelligent Systems,
  Dec. 1999.

14
Generation 3 data mining solutions

• Beginning end of 1990s
• vertical data mining-based applications and
  solutions oriented to solving one specific
  business problem, e.g.
• detecting credit card fraud
• customer retention
• Address entire KDD process, and push result into
  a front-end application
• Intended user business user the interfaces hid
  the data mining complexity

15
Emerging short-term technology trends

• Tighter interoperability by means of standards
  which facilitate the integration of data mining
  with other applications
• KDD process, e.g. the Cross-Industry Standard
  Process for Data Mining model (www.crisp-dm.org)
• representation of mining models e.g., the PMML -
  predictive modeling markup language (www.dmg.org)
• DB interoperability the Microsoft OLE DB for
  data mining interface

16
Approaches in data mining suites

• Database-oriented approach
• IBM Intelligent Miner
• OLAP-based mining
• DBMiner - Jiawei Hans group _at_ SFU
• Machine learning
• CART, ID3/C4.5/C5.0, Angoss Knowledge Studio
• Statistical approaches
• The SAS Institute Enterprise Miner.
• Visualization approach
• SGI MineSet, VisDB (Keim et al. 94).

17
Other approaches in data mining suites

• Neural network approach
• Cognos 4thoughts, NeuroRule (Lu et al.95).
• Deductive DB integration
• KnowlegeMiner (Shen et al.96)
• Datasift (Pisa KDD Lab - see refs).
• Rough sets, fuzzy sets
• Datalogic/R, 49er
• Multi-strategy mining
• INLEN, KDW, Explora

18
SFU DBMiner OLAP-centric mining
Active Object Elements
Warehouse Workplace
Active Object
19
IBM Intelligent Miner DB-centric mining
Contents Container
Mining Base Container
Work Area
20
IBM IM architecture
21
Angoss Knowledge Studio ML-centric mining
Work Area
Project Outline
Additional Visualizations
22
KS project outline tool

• (Limited) support to the KDD process

23
Support for data consolidation step

• DBMiner
• ODBC databases SQL SmartDrives
• Single database multiple tables
• Consolidation of heterogeneous sources
  unsupported
• Intelligent Miner
• DB2 and text SQL without SmartDrives
• Multiple databases
• Consolidation of heterogeneous sources supported
• Knowledge Studio
• ODBC databases and text
• Single table
• Consolidation of heterogeneous sources
  unsupported

24
Support for selection and preprocessing

• DBMiner
• SQL only
• Intelligent Miner
• SQL standard and advanced statistical
  functionalities
• Knowledge Studio
• descriptive statistics

25
Support for data mining step

• DBMiner
• Association rules
• Decision trees
• Prediction
• Intelligent Miner
• Associations rules
• Sequential patterns
• Clustering
• Classification
• Prediction
• Similar time series

• Knowledge Studio
• Decision trees
• Clustering
• Prediction

26
Support for interpretation and evaluation

• Predefined interestingness measures
• Emphasis on visualization
• Limited export capability of analysis results
• Gain charts for comparison of predictive models
  (KS and IM)
• Limited model combination capabilities (KS)

27
Module outline

• Data analysis and KD Support Environments
• Data mining technology trends
• from tools
• to suites
• to solutions
• Towards data mining query languages
• DATASIFT a logic-based KDSE
• Future research challenges

28
Data Mining Query Languages

• A DMQL can provide the ability to support ad-hoc
  and interactive data mining
• Hope achieve the same effect that SQL had on
  relational databases.
• Various proposals
• DMQL (Han et al 96)
• mine operator (Meo et el 96)
• M-SQL (Imielinski et al 99)
• query flocks (Tsur et al 98)

29
MINE operator of (Meo et al 96)
30
References - DMQL

• J. Han, Y. Fu, W. Wang, K. Koperski, and O. R.
  Zaiane. DMQL A Data Mining Query Language for
  Relational Databases. In Proc. 1996 SIGMOD'96
  Workshop on Research Issues on Data Mining and
  Knowledge Discovery (DMKD'96), pp. 27-33,
  Montreal, Canada, June 1996.
• R. Meo, G. Psaila, S. Ceri. A New SQL-like
  Operator for Mining Association Rules. In Proc.
  VLDB96, 1996 Int. Conf. Very Large Data Bases,
  Bombay, India, pp. 122-133, Sept. 1996.
• T. Imielinski and A. Virmani. MSQL a query
  language for database mining. Data Mining and
  Knowledge Discovery, 3373-408, 1999.
• S. Tsur, J. Ulman, S. Abiteboul, C. Clifton, R.
  Motwani, S. Nestorov. Query flocks a
  generalization of association rule mining. In
  Proc. 1998 ACM-SIGMOD, p. 1-12, 1998.

31
Module outline

• Data analysis and KD Support Environments
• Data mining technology trends
• from tools
• to suites
• to solutions
• Towards data mining query languages
• DATASIFT a logic-based KDSE
• Future research challenges

32
DATASIFT - towards a logic-based KDSE

• DATASIFT is LDL (Logic Data Language, MCC
  UCLA) extended with mining primitives (decision
  trees association rules)
• LDL syntax Prolog-like deductive rules
• LDL semantics SQL extended with recursion (and
  more)
• Integration of deduction and induction
• Employed to systematically develop the
  methodology for MBA and audit planning
• See Pisa KDD Lab references

33
Our position

• A suitable integration of
• deductive reasoning (logic database languages)
• inductive reasoning (association rules decision
  trees)
• provides a viable solution to high-level problems
  in knowledge-intensive data analysis applications

34
Our goal

• Demonstrate how we support design and control of
  the overall KDD process and the incorporation of
  background knowledge
• data preparation
• knowledge extraction
• post-processing and knowledge evaluation
• business rules
• autofocus datamining

35
With respect to other DMQLs

• extending logic query languages yields extra
  expressiveness, needed to bridge the gap between
• data mining (e.g., association rule mining)
• vertical applications (e.g., market basket
  analysis)

36
Architecture - client agent

• User interface
• Access to business rules and visualization of
  results through
• web browser to control interaction
• MS Excel objects (sheets and charts) to represent
  output of analysis (association rules)

37
Architecture - server agent

• A query engine (mediator)
• record previous analyses
• Metadata/meta knowledge
• interaction with other components
• LDL server
• extended with external calls to DBMSs and to
• Inductive modules
• Apriori
• classifiers (decision trees)
• Coupling with DBMS using the Cache-mine approach
• Performance comparable with SQL-based approaches
  on same mining queries (Giannotti at el 2000)

38
Deductive rules in LDL
A small database of cash register
transactions basket(1,fish). basket(2,bread).
basket(3,bread). basket(1,bread). basket(2,milk).
basket(3,orange). basket(2,onions).
basket(3,milk). basket(2,fish).

• E.g. select transactions involving milk
• milk_basket(T,I) ? basket(T,I),basket(T,milk).
• Querying ?- milk_basket(T,I)
• milk_basket(2,bread). milk_basket(3,bread).
• milk_ basket(2,milk). milk_basket(3,orange).
• milk_ basket(2,onions). milk_basket(3,milk).
• milk_ basket(2,fish).

39
Aggregates in LDL
A small database of cash register
transactions basket(1,fish). basket(2,bread).
basket(3,bread). basket(1,bread). basket(2,milk).
basket(3,orange). basket(2,onions).
basket(3,milk). basket(2,fish).

• E.g. count occurrences of pairs of distinct
  items in all transactions
• pair(I1,I2,countltTgt)? basket(T,I1),basket(T,I2),I
  1? I2.

aggregate

• Querying ?- pair(fish,bread,N)
• pair(fish,bread,2) (i.e., N2)
• Aggregates are the logical interface between
  deductive and inductive environment.

40
Association rules in LDL
basket(1,fish). basket(2,bread).
basket(3,bread). basket(1,bread). basket(2,milk).
basket(3,orange). basket(2,onions).
basket(3,milk). basket(2,fish).

• E.g., compute one-to-one association rules with
  at least 40 support
• rules(patternslt0.4,0,I1,I2gt)?basket(T,I1),baske
  t(T,I2).

patterns

• is the aggregate interfacing the
  computation of association rules
• patternsltmin_supp, min_conf, trans_setgt

41
Association rules in LDL
basket(1,fish). basket(2,bread).
basket(3,bread). basket(1,bread). basket(2,milk).
basket(3,orange). basket(2,onions).
basket(3,milk). basket(2,fish).

• Result of the query ?- rules(X,Y,S,C)
• rules(milk,bread,0.66,1)
• i.e. milk ? bread 0.66,1
• rules(bread,milk,0.66,0.66)
• rules(fish,bread,0.66,1)
• rules(bread,fish,0.66,0.66)
• Same status for data and induced rules

42
Reasoning on item hierarchies

• Which rules survive/decay up/down the item
  hierarchy?
• rules_at_level(I,patternltS,C,Itemsetgt) ?
• itemset_abstraction(I,Tid,Itemset).
• preserved_rules(Left,Right)
• ?
• rules_at_level(I,Left,Right,_,_),
• rules_at_level(I1,Left,Right,_,_).

43
Business rules reasoning on promotions

• Which rules are established by a promotion?
• interval(before, -?, 3/7/1998).
• interval(promotion, 3/8/1998, 3/30/1998).
• interval(after, 3/31/1998, ?).
• established_rules(Left, Right) ?
• not rules_partition(before, Left, Right, _, _),
• rules_partition(promotion, Left, Right, _, _),
• rules_partition(after, Left, Right, _, _).

44
Business rules temporal reasoning

• How does rule support change along time?

45
Decision tree construction in DATASIFT

• construct training and test set using rules
• training_set(P,Case_list) ? ...
• test_tuple(ID,F1,...,F20,Rec,Act_rec,CAR)
• ? ...
• construct classifier using external call to C5.0
• tree_rules(Tree_name,P,PF,MC,BO,Rule_list) ?
  training_set(P,Case_list),tree_induction(Case_li
  st,PF,MC,BO,Rule_list).
• parameters
• pruning factor PF
• misclassification costs MC
• boosting BO

external call
induced classifier
46
Putting decision trees at work

• prediction of target variable
• prediction(Tree_name,ID,CAR,Predicted_CAR) ?
  tree_rules(Tree_name, _ ,_ , _ ,
  Rule_list),test_subject(ID, F1, , F20, _, _,
  CAR),classify(Rule_list ,F1, , F20,
  Predicted_CAR).
• Model evaluation actual recovery of a classifier
  (sum recovery of tuples classified as positive)
• actual_recovery(Tree_name,sumltActual_Recoverygt)
  ?prediction(Tree_name, ID, _ ,
  pos),test_subject(ID, F1, , F20,
  _,Actual_Recovery, _).

aggregate
47
Combining decision trees

• Model conjunction
• tree_conjunction(T1,T2,ID,CAR,pos)
  ? prediction(T1, ID, CAR, pos), prediction(T2,
  ID, CAR, pos).
• tree_conjunction (T1, T2, ID, CAR, neg)
  ? test_subject(ID, F1, , F20, _, _, CAR),
  tree_conjunction(T1, T2, ID, CAR, pos).
• More interesting combinations readily
  expressible
• e.g. meta learning (Chan and Stolfo 93)

48
We proposed ...

• a KDD methodology for audit planning
• define an audit cost model
• monitor training- and test-set construction
• assess the quality of a classifier
• tune classifier construction to specific policies
• and its formalization in a prototype logic-based
  KDSE, supporting
• integration of deduction and induction
• integration of domain and induced knowledge
• separation of conceptual and implementation level

49
Module outline

• Data analysis and KD Support Environments
• Data mining technology trends
• from tools
• to suites
• to solutions
• Towards data mining query languages
• DATASIFT a logic-based KDSE
• Future research challenges

50
A data mining research agenda

• Integration with data warehouse and relational DB
• Scalable, parallel/distributed and incremental
  mining
• Data mining query language optimization
• Multiple, integrated data mining methods
• KDSE and methodological support for vertical
  appl.
• Interactive, exploratory data mining environments
• Mining on other forms of data
• spatio-temporal databases
• text
• multimedia
• web

51
Scale up!

• Scaling up existing algorithms (AI, ML, IR)
• Association rules
• Correlation rules
• Causal relationship
• Classification
• Clustering
• Bayesian networks

52
Background knowledge constraints

• Incorporating background knowledge and
  constraints into existing data mining techniques
• Double benefit for DMQL semantics and
  optimization!
• traditional algorithms
• Disproportionate computational cost for selective
  users
• Overwhelming volume of potentially useless
  results
• need user-controlled focus in mining process
• Association rules containing certain items
• Sequential patterns containing certain patterns
• Classification?

53
Vertical applications of data mining

• More success stories needed!
• Current data mining systems lack a thick semantic
  layer (similarly to the early relational database
  systems)
• Verticalized data mining systems, e.g.
• Market analysis systems
• Fraud detection systems
• Automated mining and interactive mining how far
  are they?

54
Autofocus data mining

• policy options, business rules

selection of data mining function fine parameter
tuning of mining function
55
DBMS coupling

• Tight-coupling with DBMS
• Most data mining algorithms are based on flat
  file data (i.e. loose-coupling with DBMS)
• A set of standard data mining operators
• (e.g. sampling operator)

56
Web mining why?

• No standards on the web, enormous blob of
  unstructured and heterogeneous info
• Very dynamic
• One new WWW server every 2 hours
• 5 million documents in 1995
• 320 million documents in 1998
• Indices get obsolete very quickly
• Better means needed for discovering resources and
  extracting knowledge

57
Web mining challenges

• Todays search engines are plagued by problems
• the abundance problem 99 of info of no
  interest to 99 of people!
• limited coverage of the Web
• limited query interface based on keyword-oriented
  search
• limited customization to individual users

58
Web mining

• Web content mining
• mining what Web search engines find
• Web document classification (Chakrabarti et al
  99)
• warehousing a Meta-Web (Zaïane and Han 98)
• intelligent query answering in Web search
• Web usage mining
• Web log mining find access patterns and trends
  (Zaiane et al 98)
• customized user tracking and adaptive sites
  (Perkowitz et al 97)
• Web structure mining
• discover authoritative pages a page is important
  if important pages point to it (Chakrabarti et
  al 99, Kleinberg 98)

59
Warehousing a Meta-Web (Zaïane Han 98)

• Meta-Web summarizes the contents and structure
  of the Web, which evolves with the Web
• Layer0 the Web itself
• Layer1 the lowest layer of the Meta-Web
• an entry a Web page summary, including class,
  time, URL, contents, keywords, popularity,
  weight, links, etc.
• Layer2 and up summary/classification/clustering
• Meta-Web is warehoused and incrementally updated
• Querying and mining is performed on or assisted
  by meta-Web
• Is it feasible/sustainable? Is XML of any help?

60
Meta-Web from Jiawei Hans panel talk _at_ SIGMOD99
More Generalized Descriptions
Layern
...
Generalized Descriptions
Layer1
Layer0
61
Weblog mining

• Web servers register a log entry for every single
  access.
• A huge number of accesses (hits) are registered
  and collected in an ever-growing web log.
• Why warehousing/mining web logs?
• Enhance server performance by learning access
  patterns of general or particular users (guess
  what user will ask next and pre-cache!)
• Improve system design of web applications
• Identify potential prime advertisement locations
• Greatest peril the privacy pitfall
• See e.g. (Markoff 99) the rise of the Little
  Brother.

62
Some web mining references

• M. Perkowitz and O. Etzioni. Adaptive sites
  Automatically learning from user access patterns.
  In Proc. 6th Int. World Wide Web Conf., Santa
  Clara, California, April 1997.
• J. Pitkow. In search of reliable usage data on
  the www. In Proc. 6th Int. World Wide Web Conf.,
  Santa Clara, California, April 1997.
• T. Sullivan. Reading reader reaction A proposal
  for inferential analysis of web server log files.
  In Proc. 3rd Conf. Human Factors the Web,
  Denver, Colorado, June 1997.
• O. R. Zaiane, M. Xin, and J. Han. Discovering Web
  access patterns and trends by applying OLAP and
  data mining technology on Web logs. In Proc.
  Advances in Digital Libraries Conf. (ADL'98),
  pages 19-29, Santa Barbara, CA, April 1998.
• O. R. Zaiane, and J. Han. Resource and knowledge
  discovery in global information systems a
  preliminary design and experiment. In Proc.
  KDD95, p.331-336, 1995.
• O. R. Zaiane, and J. Han. WebML querying the
  world-wide web for resources and knowledge. In
  Proc. Int. Workshop on Web informtion and Data
  management (WIDM98), p. 9-12, 1998.
• S. Chakrabarti, B. E. Dom, S. R. Kumar, P.
  Raghavan, et al. Mining the webs link structure.
  COMPUTER, 3260-67, 1999.
• S. Chakrabarti, B. E. Dom, P. Indik. Enhanced
  hypertext classification using hyperlinks. In
  Proc. 1998 ACM-SIGMOD, p. 307-318, 1999.
• J. Kleinberg. Autohoritative sources in a
  hyperlinked environment. In Proc. ACM-SIAM Symp.
  on Discrete Algorithms, 1998.
• J. Markoff. The Rise of Little Brother. Upside,
  Apr. 1999 http//www.upside.com/texis/mvm/story?i
  d36d4613c0

63
Pisa KDD Lab references

• F. Giannotti and G. Manco. Making Knowledge
  Extraction and Reasoning Closer. In Proc.
  PAKDD'99, The Fourth Pacific-Asia Conference on
  Knowledge Discovery and Data Mining, Kyoto, 2000.
• F. Giannotti and G. Manco. Querying Inductive
  Databases via Logic-Based User Defined
  Aggregates. In Proc. PKDD'99, The Third Europ.
  Conf. on Principles and Practice of Knowledge
  Discovery in Databases. Prague, Sept. 1999.
• F. Bonchi, F. Giannotti, G. Mainetto, D.
  Pedreschi. Using Data Mining Techniques in Fiscal
  Fraud Detection. In Proc. DaWak'99, First Int.
  Conf. on Data Warehousing and Knowledge
  Discovery. Florence, Italy, Sept. 1999.
• F. Bonchi , F. Giannotti, G. Mainetto, D.
  Pedreschi. A Classification-based Methodology for
  Planning Audit Strategies in Fraud Detection. In
  Proc. KDD-99, ACM-SIGKDD Int. Conf. on Knowledge
  Discovery Data Mining, San Diego (CA), August
  1999.
• F. Giannotti, G. Manco, D. Pedreschi and F.
  Turini. Experiences with a logic-based knowledge
  discovery support environment. In Proc. 1999 ACM
  SIGMOD Workshop on Research Issues in Data Mining
  and Knowledge Discovery (SIGMOD'99 DMKD).
  Philadelphia, May 1999.
• F. Giannotti, M. Nanni, G. Manco, D. Pedreschi
  and F. Turini. Integration of Deduction and
  Induction for Mining Supermarket Sales Data. In
  Proc. PADD'99, Practical Application of Data
  Discovery, Int. Conference, London, April 1999.
• F. Giannotti, G. Manco, M. Nanni, D. Pedreschi.
  Nondeterministic, Nonmonotonic Logic Databases.
  IEEE Trans. on Knowledge and Data Engineering.
  2000.
• F. Giannotti, M. Nanni, G. Manco, D. Pedreschi
  and F. Turini. Using deduction for intelligent
  data analysis. Submitted, 2000.
  http//www-kdd.di.unipi.it/
• P. Becuzzi, M. Coppola, S. Ruggieri and M.
  Vanneschi. Parallelisation of C4.5 as a
  particular divide and conquer computation.
  Proc.3rd Workshop on High Performance Data
  Mining, Springer-Verlag LNCS, 2000.
