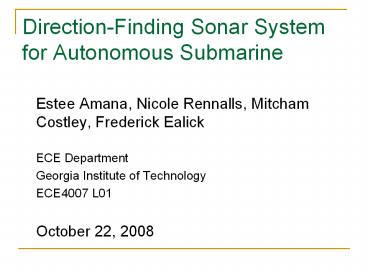

Direction-Finding Sonar System for Autonomous Submarine

1
Direction-Finding Sonar System for Autonomous
Submarine

• Estee Amana, Nicole Rennalls, Mitcham Costley,
  Frederick Ealick
• ECE Department
• Georgia Institute of Technology
• ECE4007 L01
• October 22, 2008

2
Project Overview
3
Submarine
4
Autonomous Underwater Vehicle
5
Georgia Tech Marine Robotics Group
6
Navy SEAL Practice Pool
7
Navy Competition 2009
Bridge
Rooftop
Rooftop
Practice Side
Competition Side
Launch Platform
8
Mission

• To build sonar system under 400 to complete
  Rooftop task for competition

9
Design Objectives
10
Detect Ping
2s
1.3ms

• Frequency 20-30kHz

11
Determine Direction
Direction of Motion
60
Top View
12
Communication
RS-232
Sonar Group
MRG Group
13
Physical Constraints
Length 5
Width 5
Depth 2
Voltage 24VDC
Current 2A
14
Time Delay
Receiver 2
t2
t1lt t2
t1
Receiver 1
15
Technical Approach
16
Sonar System Block Diagram
Variable Gain Amplifier
Linux SBC
Hydrophones
ADC
RS232
Pinger
Measure Time Delay
17
Hydrophones
Linux SBC
Variable Gain Amplifier
Hydrophones
ADC
RS232
Pinger
Measure Time Delay
18
Hydrophone Construction
Coaxial Cable
Metal Casing
Transducer
Metallic Membrane
Cost 150
19
Amplifiers
Variable Gain Amplifier
Linux SBC
Hydrophones
ADC
RS232
Pinger
Measure Time Delay
20
Filtering Amplifier Design and Testing
Cost 50
V
µV

• Four stage amplifier circuit
• Band pass filter to remove noise

21
Amplification
Incoming Hydrophone Signal
Outgoing Amplified Signal
22
Linux SBC
Linux SBC
Variable Gain Amplifier
Hydrophones
ADC
RS232
Pinger
Measure Time Delay
23
Sonar System Controller
Cost 150

• Receives 1000 samples/channel
• Averages 10 highest 10 lowest samples
• Determines time delay

24
Cross-correlation
V
V2
Time (sec)
25
Auto-calibration
Pinger
Hydrophone
Direction of motion
Submarine
Goal Eliminate error from submarine design
changes, trace lengths, etc.
26
Demonstration
Laptop
GT Pool
Serial Cable
Waterproof PVC Pipe
Pinger
Hydrophones
Electronics
27
Current Status

• Construct and test amplifier prototype
• Implement existing embedded code
• Build hydrophones
• Construct amplifier on solder board
• Test automatic gain control

28
Project Schedule
Test amplifier with pinger
Complete hydrophones
Mount hydrophones
Integrate system
Dec
Oct
Nov
Design PCB
Demonstration
Assemble circuit solder board
Control gain
Competition Date June 2009
