Title: Audio Routing in DCN Next Generation


1

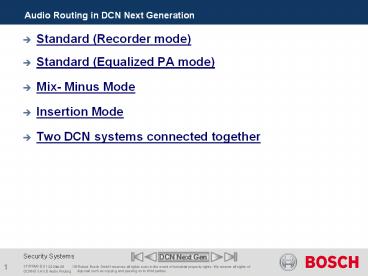

Audio Routing in DCN Next Generation
  • Standard (Recorder mode)
  • Standard (Equalized PA mode)
  • Mix- Minus Mode
  • Insertion Mode
  • Two DCN systems connected together

2
Standard (Recorder mode)
  • Setting via CCU menu
  • Audio output 2 transmits a signal for audio
    recording.
  • The central control unit has no effect on the
    volume of the signal.
  • In the Recorder mode, the signal on audio input 2
    of the central control unit is added to the floor
    signal.

IU Instructions
3
Standard (Equalized PA mode)
  • Setting via CCU menu
  • Audio output 2 transmits a signal that you can
    connect to an external public address system.
  • The central control unit sets
  • The volume of the signal
  • The levels of the bass signal
  • The level of the treble signal
  • The signal on audio input 2 of is added to the
    floor signal.

IU Instructions
4
Mix- Minus mode
Out
(Example) Audio Mixer
In
  • Setting via CCU menu

IU Instructions
5
Mix- Minus mode
(Example) Video-conference
Unit Or Telephone Coupler
Out
In
  • Setting via CCU menu

IU Instructions
6
Two DCN systems connected together in Mix-Minus
Modes
1
1
?
2
2
?
2
2
1
1
IU Instructions
7
Insertion mode
Out
(Example) Equalizer
In
  • Setting via CCU menu

IU Instructions
8
Audio Routing
  • End of section
