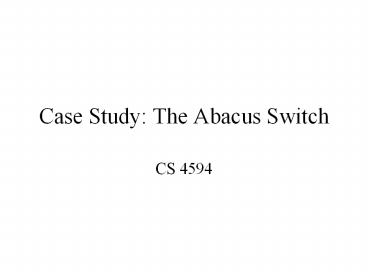

Title: Case Study: The Abacus Switch


1
Case Study The Abacus Switch
  • CS 4594

2
Goals and Considerations
  • Handles cell relay (fixed-size packets)
  • Can be modified to handle variable-sized packets.
  • Implements multicasting.
  • Scalable from few tens to few thousands of input
    ports.
  • Built from integrated circuits (chips).
  • Uses channel grouping to reduce hardware
    complexity.
  • Analyzed for throughput, average cell delay, and
    cell loss ratio.

3
History
  • Development lead by H J Chao
  • Described by a series of papers, starting in
    1991.
  • See copy of 1997 paper.
  • Called Abacus because of appearance of the
    integrated circuit (chip) that is used the
    construct it.

4
Components
  • Input port controller (IPC) for each input
  • Multicast Grouping Network (MGN) is first stage
    of switch fabric.
  • Multicast Translation Tables (MMT)
  • Small Switch Modules (SSM) at second stage of
    switch fabric.
  • Output port controller (OPC) for each output.

5
Overall Architecture (see fig 1)
IPC
Multicast Group Network
MTT
SSM
OPC
MTT
OPC
MTT
IPC
MTT
SSM
OPC
MTT
. . .
MTT
OPC
MTT
MTT
. . .
SSM
OPC
MTT
MTT
IPC
OPC
MTT
MTT
N
N
K groups of LxM
Feedback loop
6
Overall Architecture
  • Input port controller (IPC) for each input
  • Output port controller (OPC) for each output.
  • Output ports are divided into K groups of M.
  • Multicast Grouping Network (MGN) reads cells from
    IPCs and send cells to the correct output groups.
  • Separate small switch modules (SSM) for each
    group of outputs to send cells to correct OPC.

7
Input Port Controller
  • The IPC
  • Reads cells from SONET/ATM line into its input
    buffer.
  • Takes cells from the head of its input buffer and
    sends these cells to the switching fabric,
    tagging, grouping, and replicating the cells.

8
Location of IPCs
IPC
Multicast Group Network
MTT
SSM
OPC
MTT
OPC
MTT
IPC
MTT
SSM
OPC
MTT
. . .
MTT
OPC
MTT
MTT
. . .
SSM
OPC
MTT
MTT
IPC
OPC
MTT
MTT
N
N
K groups of LxM
9
Input Controller
Bus
Cell Extraction
Input Buffer(FIFO)
From SONET
Routing Table
One Cell buffer
P/S
to MGN
Multicast Contention Resolution Unit
K lines
Feedback from fabric
10
Input Port Controller Process
  1. If a new cell is to be sent, it examines the cell
    at the head of the line (HOL) of input buffer and
    matches VPI/VCI against routing table to
    determine the set of output port groups (via MP)
    and the multicast call (via BCN). The cell is
    tagged with this information and removed from the
    input buffer.
  2. The cell is temporarily stored in a one-cell
    holding buffer. It is held here in case it needs
    to be transmitted again.
  3. The cell is sent to the distribution network
    (MGN).
  4. The IPC then reads feedback information from MGN
    to see if cell needs to be sent again. If so, it
    loops back to step 3. If not, it goes back to
    step 1 for a new cell.

11
Multicasting Group Network
  • The MGN distributes the cells from the IPCs to
    the output groups.
  • It consists of K routing modules (RM), one for
    each of the K output groups.

12
Location in Overall Architecture
IPC
Multicast Group Network
MTT
SSM
OPC
MTT
OPC
MTT
IPC
MTT
SSM
OPC
MTT
. . .
MTT
OPC
MTT
MTT
. . .
SSM
OPC
MTT
MTT
IPC
OPC
MTT
MTT
N
N
K groups of LxM
Feedback loop
13
Multicasting Group Network
N
Routing Module
Routing Module
Routing Module
. . .
LxM
LxM
LxM
14
Routing Module
  • Each routing module (RM) listens to all inputs
    and sends cells to one group of outputs.
  • Each RM has inputs from all IPCs.
  • Each RM has LxM outputs to a particular group of
    M outputs. L is called the group expansion ratio.

15
Multicasting Group Network
N
Routing Module
Routing Module
Routing Module
. . .
LxM
LxM
LxM
16
Routing Module
AB
AB
AB
SWE
SWE
SWE
N Lines from N inputs
SWE
SWE
SWE
SWE
SWE
SWE
LxM lines to output group
17
Routing Module
  • A routing module (RM) consists of a N by LxM
    crossbar 2D array of switch elements (SWE)
  • At the top, a set of address broadcasters (AB)
    generates empty cells with the correct
    destination address, but low priority.
  • The flow through the RM starts at the top at the
    set of AB and goes down or to the right. At the
    bottom cells go to the output groups.
  • Each switch element has two states across
    (straight through) or toggle (turn). It
    normally sends old cells down toward their
    destination and new cells down the line.

18
Switch Elements
  • Across is the default state, it lets a downward
    cell continue toward its destination and sends an
    entering cell over to the right. It happens when
    the destination of the cell to the north (old
    cell) does not match the destination of the cell
    from the west (left) or the priority of the cell
    on the west (new cell) is less than the priority
    of the cell from the north.
  • Toggled happens when the destinations match and
    the cell on the left has higher priority. It
    bumps the downward (old) cell over to the right
    and lets the western (new) cell start heading
    down to its destination.

19
Switch Element
toggle state
across state
20
Switch Elements
  • Switch elements are small integrated circuits
  • Implemented in CMOS as the ARC chip
  • 32 x 32 per IC
  • 81,000 transistors
  • 240 MHz

21
Tables
  • Tables contain routing information (see figure
    6.18)
  • They are located in the
  • IPC to map the VPI/VCI to the destination and to
    an ID (BCN) that can be used to uniquely identify
    the virtual circuit in the switch
  • MMT to map the BCN to the new VPI/VCI and set up
    last cell replications

22
Performance
  • Throughput
  • Average Delay
  • Cell loss

23
Performance depends on
  • The type of buffering (input vs. output)
  • The number of inputs contending for outputs
  • The load
  • The burstiness of the traffic
  • The amount of grouping (M)
  • The amount of parallelism (group expansion ratio
    L)

24
Maximum Throughput
  • Maximum throughput utilization at the output
    port
  • For fixed expansion ratio, as the group size
    increases, throughput starts at .583 and
    gradually increases to one and burstiness
    gradually becomes less important (figure 7.7)
  • For fixed group size, as the expansion ratio
    increases, throughput starts at .583 and
    gradually increases to one and burstiness
    gradually becomes less important (figures 7.8,
    7.9)

25
Average Delay
  • There are two types of delay
  • Input-buffered delay
  • Output-buffered delay
  • Input-buffered delay is small under a light load
    and can go to infinity as a switch saturates
    (figure 7.10).
  • Output-buffered delay is larger than
    input-buffered delay for small loads (figure
    7.10).
  • Unicast traffic does not do as well as multicast
    traffic (figure 7.11).

26
Cell Loss
  • Cell loss occurs at the input buffers and output
    buffers, but not in the fabric (MGN)
  • See figure 7.12 for input buffer cell loss
    probability as a function of burstiness and input
    buffer size (load .9, N 256, M 16)
  • See figure 7.13 for output buffer cell loss
    probability as a function of burstiness and
    output buffer size (load .9, N 256, M 16)
  • For 10-6 cell loss probability, for burst length
    of 15 input buffer should be close to 50 cells
    and the output buffer size should be over 300.
  • For 10-10 cell loss probability, for burst length
    of 15, input buffer should be 100 cells
    (extrapolating).

27
Extensions to Abacus
  • Variable packet
  • Scaling up by multistaging the MGN
  • Resequencing cells at the output
