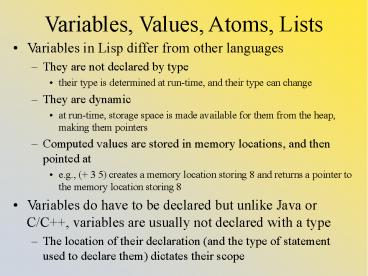

1Variables, Values, Atoms, Lists
- Variables in Lisp differ from other languages
- They are not declared by type
- their type is determined at run-time, and their
type can change - They are dynamic
- at run-time, storage space is made available for
them from the heap, making them pointers - Computed values are stored in memory locations,
and then pointed at - e.g., ( 3 5) creates a memory location storing 8
and returns a pointer to the memory location
storing 8 - Variables do have to be declared but unlike Java
or C/C, variables are usually not declared with
a type - The location of their declaration (and the type
of statement used to declare them) dictates their
scope
2What is Scope?
- The simplest definition for scope is the
instructions in which a given variable can be
referenced - The scope of the variable is the range of
instructions where that variable is bound - a variable is a name and it is bound to a memory
location that stores a pointer - inside its scope, referencing the variable
actually references the memory location it is
bound to - outside of its scope, there is no memory location
and so a reference yields an error - Scope for CL variables
- Global known everywhere in the run-time
environment and in any function if explicitly
declared as special - Local known only within the let statement it is
defined (or other construct such as the loop
variable(s) of a Do statement) - Parameter known throughout the body of the
function
3The Let Statements
- The Let and Let statements are used to declare a
block of instructions in which variables can be
declared locally - The scope of these variables is the let statement
itself - (let (variables go here) )
- the ) after the statements ends the scope of
these variables - the variables listed are all initialized to nil
unless you initialize them yourself - such initializations are done by placing the
variable and its initial value in ( ) as in (let
(a b (c 5)) ) - a and b are nil, c is 5
- the initialization can be performed by calling
functions as well leading to some complex looking
code - (let ((a 3) (b (square a)) (c (- (/ b 3) 1)) (d
(round (/ c 12))))
4Let vs. Let
- In general, the two statements are the same
- But, like the previous example, if you want to
initialize variables using values in the let
statement, you must use let - If you either are not initializing variables, or
you are initializing the variables with
values/function calls that do not utilize any
variables in that list, you can use let - Both let and let can be nested, so we can get
around the restriction in let by nesting lets
together
(let ((a 5) (b ( a 1))) ) (let ((a 5))
(let ((b ( a 1))) ))
But not (let ((a 5) (b ( a 1))) )
5Scope Example
- Local variables are statically scoped
- their scope can be determined by their position
within the code - Global variables are dynamically scoped
- their use is based on the most recent definition
with respect to the functions being called - Because of the complexity of dealing with dynamic
scoping, we will try to avoid using global
variables as much as possible!
(defun scopeexample (x) (let ((y 1) (z 0))
any reference to x is the
parameter any reference to y has
the value 1 (let ((y z))
reference to y with the value 0 )
ends the scope of this version of y
reference to y has the value 1 ) y and
z are no longer accessible ) ends the function
and xs scope
6Shadowing Variables
- Variables of the same name can shadow earlier
declared variables - There is no real reason to use the same named
variable, but if you do it, then only the most
recently declared variable will be accessible
(defun foo (x) (let ((y x))
(let ((x 2)) (setf y ( 2
x))) (setf x ( 2 y))
x)) This function should return the param 4
but (foo 3) returns 8 instead of 12, why?
7Self-Evaluating Forms
- In CL, everything entered into the interpreter is
evaluated - For functions, apply the function to the
parameters, where the parameters are evaluated
before the function is applied - (foo a b c) a, b and c are evaluated, those
values are passed to foo - (foo (bar a) (bar b) (bar c)) this is the same,
but recursive, so evaluating (bar a) means
evaluating a and applying bar to it, etc - Items that evaluate to themselves are
- Numbers
- Characters
- Strings
- T and nil
- Variables evaluate to the value in memory being
pointed to - so (setf a 5) means that a evaluates to 5
- To prevent an item from evaluating
- use (quote item) or just item
8Defvar, Defparameter, Defconstant
- Defvar, Defparameter used to declare global
variables - (defvar var) to declare only
- (defvar var value), (defparameter var value) to
declare and initialize - You cant declare a defparameter without giving
it an initial value - Use defparameter if the variable already has an
assigned value (defvar can not be used in such a
case) - Note these two functions return the variable,
not its value so you get - Defconstant declares a constant
- (defconstant var value)
- note you should declare global variables
outside of a function for clarity, but it is
permissible to assign them within a function, in
which case the variable will continue to exist
after the function terminates
CL-USER 68 1 gt (defparameter x 1) X
9Special
- Whether global variables are declared inside or
outside a function, they need to be denoted as
globals when used inside any given function - This is done by declaring them as special
- (declare (special name))
- If you dont do this, the CL interpreter will
probably guess that the undeclared variable is
special and tell you this by means of a warning - but explicitly declaring it as such ensures that
you wont have any problem - The naming convention is to place the name in
- it is generally bad programming practice to use
global variables, but the option is there for you
and there are certain occasions in functional
programming where it becomes very useful
10Assignment Operations
- The general-purpose assignment function is setf
- This is actually a special form which has a side
effect - (setf var value) ? roughly the same as var
value in Java - but, if value is not already in memory, it is
deposited into heap memory and the pointer var is
changed to point at this new memory - the change of pointer location is the side
effect, so interestingly this is a function whose
main purpose is the side effect - the function also returns the value so this can
be used in other function calls - (setf a ( (setf b 5) 1)) ? b is set to 5, a is
set to 6 - (or (setf a (and b c)) d) ? sets a to be (and b
c), ors result with d - You may assign as many variables as you want in a
single setf statement by using var value pairs - (setf a 5 b 6 c 7)
11More Assignments
- To reassign a variable a new value, you use
- (setf var (function using var)) as in
- (setf x ( 1 x))
- for simple increment/decrement reassignments, CL
has a shortcut similar to Java/C, incf and decf - (setf a ( a 1)) (incf a)
- (setf a (- a 1)) (decf a)
- (setf a ( a 10)) (incf a 10)
- (setf a (- a b)) (decf a b)
- You can also use the if-else construct to create
a conditional operator - in C or Java, we might have x (y gt z) ? y z
- in CL it would be (setf x (if (gt y z) y z))
12Other Assignment Statements
- Setf is the preferred assignment statement
because it can assign to any type of variable and
to a location within a variable - arrays, strings (we cover this later in the
semester) - car or cdr of a list as in (setf (car lis) a)
- Here are some variations of assignment
- setq can only assign to individual variables
- psetq multiple assignments happen in parallel
- (setq a 5 b a) assigns a to 5, b to a or 5
- (psetq a 5 b a) assigns a to 5 and b to as old
value (if a was uninitialized an error occurs) - set used to select a variable to change
- (set (if (gt a b) a b) c) assigns the larger
of a or b to c - in nearly any situation, you will want to use
setf - Makeunbound unbinds a variable
- Fmakeunbound unbinds a global variable
- use these with caution, it might be better to
assign a variable to nil
13Two More
- Not true assignment statements, but here are some
interesting variations - rotatef to swap two values
- the two values do not have to be the same type!
- (setf a a) (setf b 5) (rotatef a b) ? b is now
a and a is now 5 - (rotatef a b) is equivalent to (let ((tmp a))
(setf a b b tmp) nil) - shiftf left shifts a list of values
- each value in the set of parameters is moved into
the variable on its left, the leftmost variables
value is returned - if a 5, b 6, c 7 and d 8, (shiftf a b c d
9) returns 5 with a 6, b 7, c 8, d 9 - if the rightmost item is a variable, it retains
its original value - (shiftf a b c) would have a b, b c, and c
unchanged, returning the old value of a
14Parameters
- Like variables in CL, parameters are also not
declared by type (with a few exceptions) - However, they must be listed in your function
definition so that their scope is determined - CL uses pass by copy, but all variables are
pointers, so you can manipulate an item in memory
using a destructive operation (we will cover what
this means in more detail later) - When you write a function, you list the params in
( ) - When you call a function, you list the params
after the function name, without ( ) - All params listed are required unless they are
specified as optional (see the next slide), so
here we see only mandatory params
(defun foo (a b c) (if ( a b) c ( a b
c))) (foo 3 3 5) or (foo 1 2 3)
15Optional Parameters
- There are three ways to specify optional
parameters - optional
- here, after optional, you list extra params by
name - the function can be called with any number of
extra params, they are assigned to the list of
optional params one by one - (defun foo (a optional b c) )
- called with (foo 1 2) then a1, b2, cnil
- key
- the params listed after key are keyword params,
so that the calling unit specifies what value
should be used for each param - (defun foo (a key b c) )
- called with (foo 1 c 3) a1, c3, bnil
- rest
- similar to optional, but here only one param
name is used, any extra params are packaged into
a list and passed into this rest param - (defun foo (a rest b) )
- called with (foo 1 2 3) a 1, b (2 3)
16Optional Parameter Examples
- Here are some examples
- (defun foo (a optional b c d) (print (list a b c
d))) - (foo 5 6 7) ? (5 6 7 nil)
- (foo 5 6 7 8 9) ? error
- (defun foo (a rest b) (print (list a b)))
- (foo 5 6) ? (5 (6))
- (foo 5) ? (5 nil)
- (foo 5 6 7 8 9) ? (5 (6 7 8 9))
- Note you can combine optional, rest and key
in certain orders, but the behavior may not be as
expected - (defun foo (a optional b c rest d) (print (list
a b c d))) - (foo 5) ? (5 nil nil nil)
- (foo 5 6 7) ? (5 6 7 nil)
- (foo 5 6 7 8 9) ? (5 6 7 (8 9))
- (defun foo (a rest b optional c d) )
- this yields an error since rest cannot precede
optional (this would make no sense since rest
grabs all remaining params and places them in a
list referenced by b
17Atoms vs Lists
- While a variable can point to either form, atoms
and lists are very different, each having their
own set of functions - Atoms are stand alone and atomic
- Lists are embedded in ( ) and consist of at least
one cons cell
- cons cell permits the operations car and cdr
- the cdr is a pointer so that many list functions
use the pointer to go onto the next cons cell, or
if nil the function terminates - There is no explicit declaration of variables as
to their types, but be careful that you are using
the right type for a given function or else you
will get a run-time error - we will see functions to test if a variable is
currently pointing to a list or an atom
we view the car as a pointer to the first item,
but we can think of it in either way above
18Operations on Atoms
- Functions for atoms break into roughly five
types - Predicates
- functions that test a datum and return T or nil
- Numeric operations
- such as , -, , /, mod, rem, log, exp, sin, cos,
tan, floor, ceiling, round, truncate (note mod
and rem do the same thing) - Equality operations
- eq, eql, equal, equalp,
- Logical operations not, and, or
- and/or work on multiple items (2 or more)
looking for items that are non-nil (rather than
items that are only T) - or returns the first non-nil item rather than T
- and/or are short-circuited
- not returns T if the item is nil, or nil
otherwise (if the item is non-nil) - Other (char operations, string operations,
miscellany)
19Some Atom Predicate Functions
- Most predicate functions end in p
- Here are a group used to determine if a variable
currently points to a given type - integerp, rationalp, floatp, complexp,
characterp, stringp, vectorp, arrayp return T
or nil depending on whether the given argument is
of that form - (integerp foo) returns T if foo points to an
integer, nil otherwise - typep determine if a variable is currently
pointing to a given type - (typep foo integer)
- Note you can determine the type of a variable by
(type-of var) - symbolp and listp is the item a symbol or a
list? - consp is the variable a cons cell? This
differs from listp in that an empty list is still
a list for listp, but not a cons cell for consp - atom, null notice that these dont end in p
- functionp test to see if an item is a function
- zerop, plusp, minusp, evenp, oddp these work
only on numbers, the latter two only on integers
20Equality Functions
- eq are two variables pointing to the same item
in memory? - it is roughly equivalent to in Java when
comparing objects - note that the outcome of this function is in part
based on how CL is implemented - (eq 5 5) may be T or nil, did the CL
interpreter store 5 in two locations? - (setf a hi) (setf b hi) (eq a b) may be T or
nil - eql and are for numbers
- compares two numbers and returns T if they are
the same number - eql is stricter in that the two numbers must be
the same type - ( 3 3.0) is T but (eql 3 3.0) is nil
- note that can take more than 2 arguments
- equal same as eq/ for atoms and numbers, but
for lists, compares the elements of each list
rather than memory locations - (eq (a b (c d)) (a b (c d))) is nil (they are
not the same list in memory) - (equal (a b (c d)) (a b (c d))) is T
- equalp is a case insensitive version of equal
when comparing characters/strings
21List Functions
- There are a great number of List functions
- they break down into numerous categories
including obtaining a given item, creating a
list, joining multiple lists, set operations on
lists, and destructively manipulating lists - Functions that return a value from a specified
list location - car, cdr
- also combinations of car and cdr like cadr, caar,
cddr, caadr, caddr, caaar, cdddr, etc - rest is the same as cdr
- nthcdr performs cdr n times so (nthcdr 3 (1 2 3
4 5)) ? (4 5) - first, second, third, , tenth are all defined
- (first foo), (second foo), etc up to (tenth foo)
- nth general purpose function to get an item at
a specified location as in (nth 5 foo) note,
lists start at location 0, so this would return
the 6th item of foo - reverse return the entire list, but reversed
22Assigning Into A List
- Aside from retrieving items from a given location
in a list, you can also directly assign data into
a list by using setf and the previous operations
(car, cdr, first, nth, etc) - (setf a (a b c)) ? a is (a b c)
- (setf (car a) d) ? a is now (d b c)
- (setf (cdr a) (e)) ? a is now (d e)
- (setf a (a b c d e))
- (setf (third a) g) ? a is (a b g d e)
- (setf (rest a) (f g h)) ? a is (a f g h)
- note this does not work with setq or set
- You should make sure that you assign cdr or rest
of a list to a list, not an atom - (setf (rest a) i) ? a is (a . i) a dotted pair,
not a true list
23Examples
- (setf a (a b (c d e f) (g (h i j)) (k) (l (m n)
o (p (q r))) s t)) - (third a) ? (c d e f)
- (car (third a)) ? c
- (cadr (third a)) ? d
- (dolist (temp a) (print (temp)) ?
- (caddr a) ? c
- (fourth a) ? (g (h i j))
- (nth 4 a) ? (k)
- (cdddr a) ? ((g (h i j)) (k) (l (m n) o (p (q
r))) s t)) - (nth 1 (nth 3 (nth 5 a))) ? (q r)
- (setf (nth 2 a) c) ? c, this changes a to be (a
b c (g (h i j)) (k) (l (m n) o (p (q r))) s t)) - (setf (cddr a) nil) ? nil, this changes a to be
(a b) - (setf (cdr a) c) ? c, this changes a to be (a .
c) - (setf (cdr a) nil) ? nil, this changes a to be (a)
A B (C D E F) (G (H I)) (K) (L (M N) O (P (Q
R))) S T NIL
24List Creation Functions
- The common way to create a list is with cons
- (cons f s)
- cons creates a cons cell with the first pointer
pointing at f and the second pointing at s
- We expect s to be a list or nil (or ( ))
- (cons a (b)) ? (a b)
- If s is an atom, cons will create a dotted pair
- (cons a b) ? (a . b)
- To create a multi-item list, we need to embed or
cons calls - (cons a (cons b (cons c nil))) ? (a b c)
- Often, we will accomplish this through recursion
instead
(defun createlist ( ) (let ((temp
(read))) (if (equal temp '!)
(cons temp nil)
(cons temp (createlist)))))
25Cons Examples
In general, to build a list using cons, start
with an atom and cons it to ( ) (or nil) Cons
another atom to what you got from above,
etc Its easiest to build a list using cons by
recursion so that the list created by
the previous recursive call is the item
being cons-ed onto by a new atom
- (CONS A ( ) )
- returns (A)
- (CONS A (B C))
- returns (A B C)
- (CONS (A) (B))
- returns ((A) B)
- (CONS A ((B C)))
- returns (A (B C))
- (CONS (A B) (C D))
- returns ((A B) C D)
A
26The List Function
- cons is the preferred, but it is often difficult
to work with, especially if you dont like
recursion - Another way to build a list is to use the list
function, which takes items and groups them into
a list - Items can be atoms or lists
- but, you have to specify each individual item
- and lists are inserted as sublists
- (list a (b c)) ? (a (b c)) not (a b c)
- List can get around this problem because list
makes a dotted pair with the last cons cell - (list a b (c d) ? (a b c d)
- but (list a b c d) ? (a b c . d)
If s is a list, then this works out ok, otherwise
you get f . s
27Other List Creation Functions
- Append takes two (or more) lists and adds the
second to the end of a list - (append (a b) (c)) ? (a b c)
- does not work if any param is not a list
- append actually can work with one param, but it
doesnt make any sense to do that as you get back
the same list - Make-list takes an int value and creates a list
of that many items - initialized to nil unless you specify the initial
element - (make-list 3) ? (nil nil nil)
- (make-list 6 initial-element a) ? (a a a a a a)
- Copy-list takes a list and creates a copy
- this may be more desirable over append or cons
because append and cons return pointers to the
list(s) being manipulated (see next slide)
28Example
CL-USER 175 gt (setf a '(1 2)) (1 2) CL-USER 176
gt (setf b '(3 4)) (3 4) CL-USER 178 gt (setf c
(append a b)) (1 2 3 4) CL-USER 179 gt (setf (car
c) 5) 5 CL-USER 180 gt c (5 2 3 4) CL-USER 181 gt
a (1 2)
CL-USER 182 gt (setf c (append a b)) (1 2 3
4) CL-USER 183 gt (setf (car a) 5) 5 CL-USER 184
gt a (5 2) CL-USER 185 gt c (1 2 3 4)
Notice that changing a or c has no impact on the
other, but this will not necessarily be the case,
for instance if we do this (setf a (1 2 3
4)) (setf c (cdr a)) (setf (car c) 5) c is now
(5 3 4) but a is now (1 5 3 4) so be careful when
changing items in a list
29Some Other List Functions
- Some manipulation operations
- subst returns a list with one item substituted
for another - (subst a b (a b c a b c b)) returns the list
(a a c a a c a) - sublis same as subst but the items specified
can be sublists instead of atoms - remove return a copy of the list with the given
item removed - (remove 3 (1 2 3 4 5)) returns (1 2 4 5)
remove removes all occurrences, there is also - remove-duplicates will return a list with all
duplicate entries removed - More accessing functions
- butlast return the list without the last item
- (butlast x) (reverse (cdr (reverse x)))
- revappend same as reverse followed by append
- (revappend x y) (append (reverse x y))
- ldiff given a list and a sublist (the sublist
must be a pointer into a part of the list), this
returns the portion of list not in sublist - (setf a (a b c d e)) (setf b (cdr (cdr a)))
(ldiff a b) returns (a b)
30Using Lists for Other Types
- Because Lists play such a central role in Lisp,
some types do not have to be made available or
implemented as ADTs - instead we can simulate them using lists
- Stacks
- push add to beginning of list (destructive)
- (push item list)
- pop remove from beginning of list (destructive)
- (pop list) returns item at from of list and
removes it from list - basically does (let (temp (first list))) (setf
list (cdr list)) list) - pushnew same as push but only adds the item if
the item is not already present in the list - Queues
- to dequeue, use pop (destructive)
- you can define enqueue as (defun enqueue (val
lis) (append lis (list val))) - non-destructive, you would have to do (setf queue
(enqueue val queue)) - Empty for both ADTs is simply testing the list
against nil, and since we are using heap memory,
we assume the ADT is never full - We can implement peak using car
31Lists as Sets
- Sets are also easy to implement using lists
because of numerous built-in functions - member is a given item a member of the list?
- (member a foo) ? returns either nil or the list
starting at a - (setf a (a b c d e)), (member c a) ? (c d e)
- recall that anything that is not nil is t, so
member can be used as a predicate function - adjoin adds an element to the front of the list
if the element does not already occur in the list - (adjoin f a) ? (f a b c d e) but (adjoin c a) ?
(a b c d e) - union, intersection
- return the union or intersection of two lists
- the return lists order is the second list
reversed followed by the first list for union,
second list reversed for intersection - set-difference, set-exclusive-or
- destructive operations nunion, nintersection,
nset-difference, nset-exclusive-or (we examine
destructive operations in three slides)
32Lists as Trees
- Lists with sublists are a natural way to
represent a general tree - (a (b (c d e) f (g h) i j (k l m n))) represents
the tree to the right
- basically a nodes children are placed in parens
to the nodes right, in a recursive manner - we can access the children of a given node by
taking the sublist of children and looking only
for atoms, not lists - we can perform a depth-first traversal of the
tree by visiting every node, one at a time from
left to right in the list - to add a node to the tree, we have to find the
right sublist and then add an atom to the list in
the proper place (we could append it to the end,
cons it to the beginning for simplicity) - to delete a node, we have to find the right
sublist and remove the node - these operations are typically implemented
recursively but some could be done iteratively
making the tree implementation easier than in
other languages
33Lists as Tuples
- Newer languages like Python are not providing
arrays but instead are providing tuples - the items stored in the structure do not have to
be the same type - the items can be indexed like any ordinary array
- CLs arrays are homogenous just like other
languages, but lists do not have to be - (setf lis (a 3 foo (1 2 3) 3.1415 abc 3/5))
- lis consists of the symbol a, the int 3, the
string foo, the array storing 1, 2 and 3, the
float 3.1415, the symbol abc and the fraction 3/5 - While the non-homogenous list is not a true tuple
(you cant reference items as if it were an
array), we have list functions to simulate this - (dolist (a lis) (print lis)) prints out each
element of the array - (nth 2 lis) returns foo
- (setf (nth 3 lis) nil) removes the array from
lis in favor of nil - (dotimes (k (length lis)) (if (numberp (nth k
lis)) (setf (nth k lis) 0))) - iterates through the list and replaces each
number with 0
34Destructive Operations
- Many of the operations have destructive versions
- the original list will not remain intact
- nconc concatenates two lists
- returns the new list and alters the first to be
the concatenation - reverse returns a copy of the list reversed,
original list remains the same - nreverse is the same as reverse but alters the
original list - (setf a (a b c d))
- (reverse a) ? returns (d c b a) with a being (a b
c d) - (nreverse a) ? returns (d c b a) with a being (a)
- nreconc combines nreverse followed by nconc
- (setf a (a b c d)) and (setf b (a c g h))
- (intersection a b) returns (c a) with a and b
unchanged - (nintersection a b) returns (c a) but now a is
(a), b is unchanged - (setf a (a b c d)) and (setf b (a c g h))
- (union a b) returns (h g a b c d) with a and b
unchanged - (nunion a b) returns (h g a b c d) with a
unchanged but b is (a c g a b c d)
35More on Destructive Operations
- Because changing the car and cdr of a list is
common, a shortcut approach is to use rplaca and
rplacd - (setf a (a b c d e))
- (rplaca a f) ? (f b c d e) with a changed to
this list - (rplacd a (g h)) ? (f g h) with a changed to
this list - (rplacd a i) ? (f . i) with a changed to this
list - Other destructive functions include
- nsubst, nsublis
- nstring-capitalize, nstring-upcase,
nstring-downcase - these alter the characters in strings as you
might have guessed - nbutlast
- Destructive functions are dangerous for two
reasons - you are destroying data as a side effect of a
function, usually you dont expect functions to
have side effects - the new list may not reflect the data in the
order that you might expect - use destructive functions with caution, or use
the non-destructive versions and set a new
variable to the return of the function as is
needed - For instance, instead of doing (nbutlast a), do
(setf b (butlast a))
36Other Types of Data
- Believe it or not, we have only scratched the
surface regarding data types in CL - characters we can store, manipulate and test
characters (note these are characters like what
we find in Java, these are NOT symbols) - sequences a general category of homogenous
container, there are built-in functions for
sequences and then more specific functions for
some of the specific classes - strings are really arrays of characters, but
there are built-in string functions available to
make it easier to do things like capitalize the
letters, compare strings, etc - arrays arrays are typed and can include bit
arrays - hash tables to create dictionary-type of
structures - structures similar to Cs structs, there are
numerous built-in operations available - objects/classes added to CL is the Common Lisp
Object System (CLOS), which provides classes on
par with C - streams for input and output
- We will explore all of these later in the semester
