Title: 2/4/2015318-595

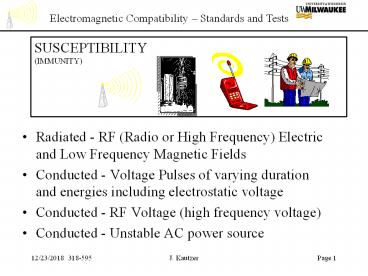

1
SUSCEPTIBILITY(IMMUNITY)
  • Radiated - RF (Radio or High Frequency) Electric
    and Low Frequency Magnetic Fields
  • Conducted - Voltage Pulses of varying duration
    and energies including electrostatic voltage
  • Conducted - RF Voltage (high frequency voltage)
  • Conducted - Unstable AC power source

2
SUSCEPTIBILITY(IMMUNITY)
Response ??
  • Product Response Summary per (EN61000-6-2)
  • Level (A) 1 No discernable change in product
    operation and function
  • Level (B) 2 Safe effect is noted in the product
    operation or function. Effect disappears when
    stress is removed without intervention.
  • Level (C) 3 Safe effect is noted in the product
    operation or function. Effect requires operator
    intervention to completely recover after stress
    is removed.
  • Level (D) 4 Safe effect is noted in the product
    operation or function. Effect requires service
    intervention to completely recover when stress is
    removed. (Repair)

3
SUSCEPTIBILITY(IMMUNITY)
Criteria A
  • Product Response Detail per (EN61000-6-2)
  • Criteria A (Level 1) The apparatus shall
    continue to operate as intended DURING and AFTER
    the test. No degradation of performance or loss
    of function is allowed below a performance level
    specified by the Mfg when the apparatus is used
    as intended. The performance level may be
    replaced by a permissible loss of performance.
    If the minimum performance level or the
    permissible loss is NOT specified by the Mfg,
    either of these may be derived from the product
    description and documentation, and from what the
    user may reasonably expect from the apparatus if
    used as intended.

4
SUSCEPTIBILITY(IMMUNITY)
Criteria B
  • Product Response Detail per (EN61000-6-2)
  • Criteria B (Level 2) The apparatus shall
    continue to operate as intended AFTER the test.
    No degradation of performance or loss of function
    is allowed below a performance level specified by
    the Mfg when the apparatus is used as intended.
    The performance level may be replaced by a
    permissible loss of performance. During the
    test, degradation of performance is however
    allowed. No change of actual operating state or
    stored data is allowed. If the minimum
    performance level or the permissible loss is NOT
    specified by the Mfg, either of these may be
    derived from the product description and
    documentation, and from what the user may
    reasonably expect from the apparatus if used as
    intended.

5
SUSCEPTIBILITY(IMMUNITY)
Criteria C
  • Product Response Detail per (EN61000-6-2)
  • Criteria C (Level 3) Temporary loss of
    function is allowed, provided the function is
    self-recoverable or can be restored by the
    operation of the controls.

6
SUSCEPTIBILITY(IMMUNITY)
  • Any response other than Level 1 requires that
    response/mode warning to be disclosed in operator
    /service manual
  • Governed by many different IEC test standards in
    the IEC61000-4 series
  • Most good product designs require Level 1 or 2
    responses although many products fail to meet it
    and are inadequately informing the user
  • Any unsafe response to any of the series of tests
    is not allowed! (Levels 5 and higher)

7
SUSCEPTIBILITYResponses Disallowed by Rev 002
of EN60601-1-2(Example For Medical Products)
8
IEC61000-4-2
  • Test Name Electro Static Discharge (ESD)
    Immunity
  • Energy/Stress Electrostatic Voltage
  • Simulates Real World Effect - ESD from human
    contact. Low humidity, low conductivity carpets,
    upholstery garments are contributors
  • Equipment Used Electrostatic Discharge Gun

9
IEC61000-4-2
  • Coupling Air Discharge, Direct Contact
    Coupling Plane Discharge
  • Permutations
  • Discharge points Likely points of human contact
    with product including keyboards, monitors,
    operator controls, cabinet exteriors, removable
    media drives
  • Air or Spark Gap Discharge 2000 volt increments
    to 8 kV
  • Direct Contact/Coupling Plane Discharge 2000
    volt increments to 6 kV
  • Positive and Negative Polarities for each
    discharge point
  • 10 hits per each discharge point

10
IEC61000-4-2
  • Coupling Plane Discharge used for keyboard and
    mouse test

11
IEC61000-4-3
  • Test Name Radiated E-Field Immunity
  • Energy/Stress Radiated Electromagnetic Voltage
  • Simulates Real World Effect Radiated Frequency
    signals from Cell Phones, Radios, Cell TV
    towers, CBs , PCs other various electronic
    devices
  • Equipment Used
  • RF Power Amplifier
  • Signal Generator Capable of Modulation
  • Transmitting Antenna and Isotropic Probe
  • RF Power meter
  • RF Directional Coupler RF Reverb Chambers

12
IEC61000-4-3 (Rev 002)
  • Permutations
  • Operational Modes including Imaging Modes
  • 3V/M RF Electric Field
  • RF Carrier is varied in 1 steps from 80Mhz to
    2.5Ghz
  • Amplitude Modulation using 80 modulation factor
    _at_ 1kHz, Dwell Time (product response time)
  • As many as 56 Tuner
  • (Horz and Vert Reflector) steps
  • which covers 80 of the room
  • height and width (80-300 Mhz)

13
IEC61000-4-3 (Rev 002)
  • Test Time 35 hours per operational mode using
    6 second dwell time between steps. 6
    seconds/step plus 6 second dwell time per step.
    (10,500 total steps/mode!)
  • Initial testing may require longer dwell times to
    gauge product response
  • Only test the modes that are absolutely
    necessary!
  • Reverb chamber with mode-stirs must be
    utilized. Expensive!

Need to plan test time and mode strategy well in
advance!
14
IEC61000-4-4
  • Test Name Electrical Fast Transient Burst
    (EFT)
  • Energy/Stress Voltage Transients up to 2000
    Volts
  • 50 nS Pulse with 5ns rise times - 400V/nS
  • Simulates Real World Effect Created on public
    power lines by electrical arcs across switch
    contacts during opening of inductive loads such
    as relays, motors and other commutations
  • Equipment Used Coupler, Transient Generator
    Scope
  • Coupling Capacitive (I/O Cables) Direct
    Injection (Main Power Input Cables). Capacitive
    coupling is a 1 meter long cable clamp of
    parallel plates. Energy goes right through the
    cable jackets!

15
IEC61000-4-4
  • Permutations
  • 500 Volt Increments
  • 2 Minutes/step
  • Positive and Negative Pulse Polarities for each
    Increment
  • AC Mains receive up to 15 injection points
  • I/O Cables gt 3M length require both ends be
    tested up to 1 Kv
  • Main Power Cables are tested at up to 2 Kv
    regardless of length
  • Cautions Must be done in shielded room as the
    test may create a large amount of RF energy

16
IEC61000-4-4
  • Electrical Fast Transient Generator with Coupling
    Circuits

17
IEC61000-4-5
  • Test Name Power Input Surge Immunity
  • Energy/Stress Voltage Surge Pulse
  • 50 uS open-circuit voltage pulse with 1.2 uS rise
    time
  • 20 uS short-circuit current pulse with 8 uS rise
    time
  • Simulates Real World Effect Voltage surges
    caused by lightning discharges and switching
    disturbances in power stations
  • Equipment Used Coupler, Surge Generator Scope
  • Coupling Direct Injection into System Mains
    Power)

18
IEC61000-4-5
  • Permutations
  • Differential Coupling (Phase-Phase) to 1 kV
  • Common Coupling (Phase-Ground) to 2 kV
  • 500V, 1 kV, 2 kV levels
  • Positive and Negative pulse polarities
  • Pulses at 90o increments of 360o AC input cycle.
    Many mfgs typically test at 45o
  • 5 pulses per phase angle increment
  • Minimum surge rate is 1/min

19
IEC61000-4-6
  • Test Name RF Conducted Immunity
  • Energy/Stress Induced RF Voltage
  • Simulates Real World Effect Lower frequency RF
    energy inductively coupled into system cabling
  • Equipment Used Injection Probe, Coupler, Signal
    Generator, RF Amplifier, Current probe, Spectrum
    Analyzer Calibrated fixture (LISN can be used
    in place of Injection Probe)

20
IEC61000-4-6
  • Coupling Inductively coupled into main power
    cables and all external I/O cables greater than 1
    meter in length
  • Permutations
  • Sweep Carrier frequency 150 kHz - 80 MHz in 1
    steps
  • Amplitude Modulation 80 _at_ 1 kHz, 3 Vrms
  • AC mains and I/O cables that are routed together
    (Within same cable tray)

21
IEC61000-4-8
  • Test Name PF Magnetic Field Immunity
  • Energy/Stress Power Frequency Alternating
    Magnetic Fields
  • Simulates Real World Effect Magnetic fields
    generated from power distribution lines,
    switchgear, and other high-current circuits
  • Equipment Used Magnetic field coil and power
    frequency variable transformer with stable
    constant current source
  • (See Related standard IEC61000-2-7, Low Frequency
    Magnetic Field Environments)

22
IEC61000-4-8
  • Coupling Radiated, No Attachments
  • Permutations
  • Excite three product axis
  • Horizontal Left-Right (X)
  • Horizontal Front-Back (Y)
  • Vertical (Z)
  • 3 Amps/Meter field (37 mG) using 50 or 60 Hz
    source
  • Cautions Very difficult to get equipment
    immersed in the field (Bulky Coil)
  • Cautions Example shown - Coil Frame is 10ft
    height X 11ft width, and is very difficult to
    position. Equipment setup needs to accommodate
    insertion of bucky coil frame on wheels

23
IEC 61000-4-11
  • Name Voltage Dip, Short Dropout Variation
    Immunity
  • Energy/Stress AC Voltage degradations (Power
    Brownout) and Voltage Dropouts
  • Simulates Real World Effect Varying loads on AC
    power lines cause changes in the line voltage.
  • Equipment Used Mains power disconnect switch and
    amplifier for products with line current
    lt16Amps/phase

24
IEC 61000-4-11
  • Permutations Drop out each phase of AC mains
    power individually
  • 5 second dropout regardless of current load
  • 4 test conditions with rated line current
  • of I-phase lt 16 Amps
  • 100 dropout for 0.5 cycle
  • 40 Vnom for 5 cycles
  • 70 Vnom for 25 cycles
  • 100 dropout for 5 seconds

25
Standards Summary
US/FCC 47 CFR 15 - Radio Frequency Devices
47 CFR 18 - Industrial Scientific and Medical
Equipment IEC 60601-1-2 Electromagnetic
compatibility - Requirements and tests 61000-3-2
EMC Part 3 Limits - Section 2 Limitation of
harmonics in low-voltage supplies lt16A 61000-3-3
EMC Part 3 Limits - Section 3 Limitation of
voltage fluctuations and flicker in low-voltage
supplies lt16A 61000-3-5 EMC Part 3 Limits -
Section 5 Limitation of voltage fluctuations and
flicker in low-voltage supplies gt16A 61000-4-1
EMC Part 4 Test/measurement techniques - Section
1 Overview of immunity tests 61000-4-2 EMC Part
4 Test/measurement techniques - Section 2 ESD
immunity tests 61000-4-3 EMC Part 4
Test/measurement techniques - Section 3 Radiated
radiofrequency immunity tests 61000-4-4 EMC Part
4 Test/measurement techniques - Section 4
Electrical fast transient/burst immunity tests
61000-4-5 EMC Part 4 Test/measurement
techniques - Section 5 Surge immunity tests
61000-4-6 EMC Part 4 Test/measurement
techniques - Section 6 Conducted radiofrequency
immunity tests 61000-4-7 EMC Part 4
Test/measurement techniques - Section 7 General
guide on harmonics measurement and instrum.
61000-4-8 EMC Part 4 Test/measurement
techniques - Section 8 Power frequency magnetic
field immunity tests 61000-4-9 EMC Part 4 Test/
measurement techniques - Section 9 Pulsed
magnetic field immunity tests 61000-4-10 EMC
Part 4 Test/measurement techniques - Section 10
Damped oscillatory magnetic field immunity tests
61000-4-11 EMC Part 4 Test/measurement
techniques - Section 11 Voltage dips, short
interruptions and variations CISPR 11 Limits
and methods of measurement for Industrial,
Scientific and Medical Equipment 16
Specifications for Radio Interference Measuring
Apparatus and Measurement Methods 22 Limits and
Methods of Measurements of Radio Interference of
Information Technology Equipment
26
Standards Limits and Guidelines Summary
27
Standards Limits and Guidelines Summary
28
Test Plan Basics Tests X Operating Modes Test
Time
  • Define System/Subsystem to be Tested
  • Catalog/BOM/Revision incl Accessories
  • List of Devices using external Cables
  • List of External cable interconnects (MIS)
  • List of Clocks within all Devices under test
  • Operating modes of interest
  • Table of Tests versus Modes ( Time!)
  • Define all applicable EMC tests
  • Table of operating modes per EMC test
  • Define Type of Test
  • Certification, Engineering, Audit
  • Define System/Subsystem Layout
  • Layouts (footprints) for OATS, Reverb Chamber,
    Screen Room

29
Basic Counter Measures
  • Circuit Designs
  • If possible minimize the number of asynchronous
    clocks
  • Minimize the edge rate transition of digital
    signals, terminations
  • Minimize signal loop areas/impedances, use ground
    planes or parallel runs for signal returns
  • Cabling
  • Ext signal cables fully shielded using 360o
    terminations, grounded
  • Grounded-Shielded connectors on signal cable
    bulkheads
  • Ferrites used on cables near high level, high
    frequency emissions
  • Enclosures
  • Electronics in shielded enclosures with minimal
    slot dimensions
  • No floating metal, grounded, shield with minimal
    leakage current
  • Main Power Inputs
  • Employ Line filter, Isolation Transformer or
    Surge Supression Devices
  • Keep unfiltered input wires away from filtered
    distribution wires

30
Cable Shielding Termination Autopsy Examples
2 sided non-conductive tape
Write a Comment
User Comments (0)
About PowerShow.com
