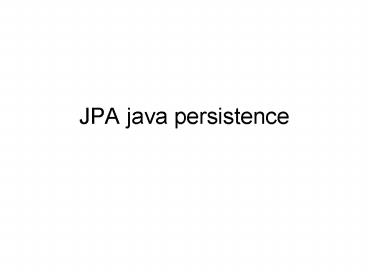

JPA java persistence

1
JPA java persistence
2
Notes from wikipedia

• Entities
• A persistence entity is a lightweight Java class
  that typically represents a table in a relational
  database. Entity instances correspond to
  individual rows in the table. Entities typically
  have relationships with other entities, and these
  relationships are expressed through
  object/relational metadata. Object/relational
  metadata can be specified directly in the entity
  class file by using annotations, or in a separate
  XML descriptor file distributed with the
  application.
• The Java Persistence Query Language
• The Java Persistence Query Language (JPQL) is
  used to make queries against entities stored in a
  relational database. Queries resemble SQL queries
  in syntax, but operate against entity objects
  rather than directly with database tables.
• Relationship between Java Persistence API and
  Enterprise JavaBeans
• The Java Persistence API was defined as part of
  the EJB 3.0 specification, which is itself part
  of the Java EE 5 platform. You do not need an EJB
  container or a Java EE application server in
  order to run applications that use persistence,
  however. Future versions of the Java Persistence
  API will be defined in a separate JSR and
  specification rather than in the EJB
  JSR/specification.
• The Java Persistence API replaces the persistence
  solution of EJB 2.0 CMP.

3
JPA from wikipedia

• Relationship between Java Persistence API and
  Java Data Objects API
• The Java Persistence API was developed in part to
  unify the Java Data Objects API, and the EJB 2.0
  Container Managed Persistence (CMP) API. This
  seems to have been successful as most products
  supporting each of those APIs now support the
  Java Persistence API.
• The Java Persistence API specifies only
  relational persistence (ORM) for Java (although
  there are providers that support other
  datastores). The Java Data Objects
  specification(s) provides relational persistence
  (ORM), as well as persistence to other types of
  datastores.
• Relationship between Java Persistence API and
  Service Data Object API
• The Java Persistence API is designed for
  relational persistence, with many of the key
  areas taken from object-relational mapping tools
  such as Hibernate and TopLink. It is generally
  accepted that the Java Persistence API is a
  significant improvement on the EJB 2.0
  specification. The Service Data Objects (SDO) API
  (JSR 235) has a very different objective to the
  Java Persistence API and is considered
  complementary. The SDO API is designed for
  service-oriented architectures, multiple data
  formats rather than only relational data, and
  multiple programming languages. The Java version
  of the SDO API is managed via the Java Community
  Process and the C version of the SDO API is
  managed via OASIS.

4
More on JPA

• Motivation for creating Java Persistence API
• Many enterprise Java developers have been using
  lightweight persistent objects provided by
  open-source frameworks or Data Access Objects
  instead of entity beans because entity beans and
  enterprise beans were considered too heavyweight
  and complicated, and they could only be used in
  Java EE application servers. Many of the features
  of the third-party persistence frameworks were
  incorporated into the Java Persistence API, and
  projects like Hibernate and Open-Source Version
  TopLink Essentials are now implementations of the
  Java Persistence API.
• Relationship to Hibernate
• Hibernate is an Open source Object-relational
  mapping framework for Java. Versions 3.2 and
  later provide an implementation for the Java
  Persistence API1.
• Gavin King is the founder2 of Hibernate. He
  represented JBoss on JSR2203, the JCP expert
  group charged with developing JPA. This led to
  ongoing controversy and speculation centered
  around the relationship between JPA and
  Hibernate. Sun states 4 that ideas were drawn
  from several frameworks including Hibernate and
  JDO.

5
Using jpa to persist entities
6
Some site info

• These sites have some jpql basics (java
  persistence query language)
• http//edocs.bea.com/kodo/docs40/full/html/ejb3_ov
  erview_query.html
• http//www.jpox.org/docs/1_2/jpa/query.html
• http//openjpa.apache.org/builds/1.0.2/apache-open
  jpa-1.0.2/docs/manual/jpa_langref.htmljpa_langref
  _bulk_ops
• http//java.sun.com/developer/technicalArticles/J2
  EE/jpa/

7
Where this example came from

• The openejb examples come with a
  JPABean/JPAServlet example and I built this
  example by modifying theirs.

8
Directory structure

• WEB-INF
• Web.xml
• Classes
• META-INF
• Persistence.xml
• Yourpackagename
• Beanclass
• servletclass

9
Running from a form
10
Minimal servlet

• package mycode
• import java.util.
• import javax.persistence.EntityManagerFactory
• import javax.persistence.PersistenceUnit
• import javax.persistence.EntityManager
• import javax.persistence.EntityTransaction
• import javax.persistence.Query
• import javax.servlet.ServletException
• import javax.servlet.ServletOutputStream
• import javax.servlet.http.HttpServlet
• import javax.servlet.http.HttpServletRequest
• import javax.servlet.http.HttpServletResponse
• import java.io.IOException
• public class JpaServlet extends HttpServlet
• _at_PersistenceUnit(name "my-jpa-example")
• private EntityManagerFactory emf
• protected void doGet(HttpServletRequest
  request, HttpServletResponse response) throws
  ServletException, IOException
• response.setContentType("text/plain")
• ServletOutputStream out
  response.getOutputStream()

11
Minimal bean

• package mycode
• import javax.persistence.Entity
• import javax.persistence.Id
• import javax.persistence.GeneratedValue
• import javax.persistence.GenerationType
• import javax.persistence.Column
• _at_Entity
• public class JpaBean
• _at_Id
• _at_GeneratedValue(strategy GenerationType.IDEN
  TITY)
• _at_Column(name "id")
• private int id
• _at_Column(name "name")
• private String name
• public int getId()

12
Web.xml just jpa stuff is needed at bottom with
servlet mapping

• lt?xml version"1.0" encoding"UTF-8"?gt
• ltweb-app xmlns"http//java.sun.com/xml/ns/javaee"

• xmlnsxsi"http//www.w3.org/2001/XMLSche
  ma-instance"
• xsischemaLocation"http//java.sun.com/x
  ml/ns/javaee http//java.sun.com/xml/ns/javaee/web
  -app_2_5.xsd"
• metadata-complete"false"
• version"2.5"gt
• ltdisplay-namegtJPA Servlet Examplelt/display-namegt

• ltservletgt
• ltservlet-namegtJpaServletlt/servlet-namegt
• ltservlet-classgtmycode.JpaServletlt/servlet-clas
  sgt
• lt/servletgt
• ltservlet-mappinggt
• ltservlet-namegtJpaServletlt/servlet-namegt
• lturl-patterngt/jpa/lt/url-patterngt
• lt/servlet-mappinggt
• ltpersistence-unit-refgt
• ltpersistence-unit-ref-namegtweb.xml/Persistence
  Unitlt/persistence-unit-ref-namegt
• ltpersistence-unit-namegtmy-jpa-examplelt/persist
  ence-unit-namegt

13
WEB-INF/classes/META-INF/Persistence.xml

• lt?xml version"1.0" encoding"UTF-8"?gt
• ltpersistence xmlns"http//java.sun.com/xml/ns/per
  sistence" version"1.0"gt
• ltpersistence-unit transaction-type"RESOURCE_LOC
  AL" name"my-jpa-example"gt
• ltjta-data-sourcegtjavaopenejb/Connector/Defaul
  t JDBC Databaselt/jta-data-sourcegt
• ltnon-jta-data-sourcegtjavaopenejb/Connector/De
  fault Unmanaged JDBC Databaselt/non-jta-data-source
  gt
• ltclassgtmycode.JpaBeanlt/classgt
• ltpropertiesgt
• ltproperty name"openjpa.jdbc.SynchronizeMapp
  ings" value"buildSchema(ForeignKeystrue)"/gt
• lt/propertiesgt
• lt/persistence-unitgt
• lt/persistencegt

14
CRUD with JPA

• Servlet in notes
• I did not complete update for multiple fields
• Use previous persistence.xml and web.xml format

15
Student list
16
Delete action

• else if("delete".equals(action)beanname!"")
• EntityManager em emf.createEntityManager()

• EntityTransaction transaction
  em.getTransaction()
• transaction.begin()
• Query query em.createQuery("delete from JpaBean
  j where j.name name")
• query.setParameter("name", beanname)
• int deleted query.executeUpdate()
• out.println("deleted"deleted)
• transaction.commit()

17
CRUD with java persistence deleting all the Mary
Sues
18
Add action

• if (action.equals("add"))
• out.println("_at_PersistenceUnit" emf)
• EntityManager em emf.createEntityManager()
• EntityTransaction transaction
  em.getTransaction()
• transaction.begin()
• jpaBean.setName(beanname)
• jpaBean.setYear(beanyear)
• jpaBean.setAge(Integer.parseInt(beanage)
  )
• jpaBean.setGpa(Double.parseDouble(beang
  pa))
• em.persist(jpaBean)
• transaction.commit()

19
add
20
Added Norman
21
List action

• EntityManager em emf.createEntityManager()
• EntityTransaction transaction
  em.getTransaction()
• //then list
• transaction.begin()
• Query query em.createQuery("SELECT j
  FROM JpaBean j")
• List beans query.getResultList()
• for(int i0iltbeans.size()i)
• jpaBean(JpaBean)beans.get(i)
• beannamejpaBean.getName()
• int agejpaBean.getAge()
• beanyearjpaBean.getName()
• double gpajpaBean.getGpa()
• out.println(beanname"\t"age'\t'gp
  a'\t'beanyear)
• transaction.commit()

22
update
23
Updating just the year
24
update
25
Updating all fields
26
Updating all fields
27
A workaround

• Couldnt get the prepared statement to work
  except for type strings
• So I collected results of query and updated them.
  They are persisted.
• else if("update".equals(action))
• EntityManager em emf.createEntityManager()
• EntityTransaction transaction
  em.getTransaction()
• transaction.begin()
• Query query em.createQuery("Select j from
  JpaBean as j where j.namename")
• query.setParameter("name",beanname)
• List beansquery.getResultList()
• for(int i0iltbeans.size()i)
• jpaBean(JpaBean)beans.get(i)
• double gpaDouble.parseDouble(beangpa)
• int ageInteger.parseInt(beanage)
• jpaBean.setAge(age)
• jpaBean.setYear(beanyear)
• //for
• transaction.commit()//update case

28
Params can have names or numbers

• Query query em.createQuery("Update JpaBean as j
  set j.ageage, j.gpagpa where j.namename")
• int ageInteger.parseInt(beanage)
• double gpaDouble.parseDouble(beangpa)
• query.setParameter("gpa", gpa)
• query.setParameter(age", age)
• query.setParameter("name", beanname)
• int updatedquery.executeUpdate()
• Or
• Query query em.createQuery("Update JpaBean as j
  set j.age?1, j.gpa?2 where j.name?3")
• Then
• query.setParameter(1, beanname)
• //etc
• Note I did not complete the full update at the
  time I made this presentation
