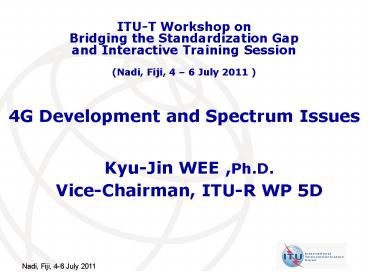

4G Development and Spectrum Issues

1
4G Development and Spectrum Issues
ITU-T Workshop on Bridging the Standardization
Gapand Interactive Training Session (Nadi,
Fiji, 4 6 July 2011 )

• Kyu-Jin WEE ,Ph.D.
• Vice-Chairman, ITU-R WP 5D

2
Contents

• What is 4G?
• Review of ITU activities on IMT
• What is 4G?
• IMT Standards in ITU-R
• Spectrum Issues
• IMT Identifications at WRCs
• Main principles of spectrum use for IMT
• Interference cases
• Channel arrangements in 700 MHz
• Spectrum Harmonization among APT

3

• What is 4G?

4
Start to Study on IMT(FPLMTS)
Review of ITU activities on IMT
First Release of IMT specification M.1457
ITU-R Report IMT.UPDATE
Regional Workshop for IMT.UPDATE
1985
1992
1999
2007
2000
2003
2011
2015/16
2012
IMT Spectrum (WARC-92)
IMT Spectrum (WRC-2000)
IMT Spectrum (WRC-2007)
Broadband/IMT Spectrum (WRC-2015/16)
5
Vision for IMT
6
Capacity Demands

• Traffic users x volume per user

7
What is 4G?
Images captured on the web
8
Evolution of IMT Technologies
9
IMT Standards in ITU-R

• Standardization of IMT-Advanced systems
• Developing Recommendation ITU-R IMT.RSPEC (to
  be approved in RA-12, 2012)
• LTE-Advanced (by the 3GPP)
• WirelessMAN-Advanced (802.16m by the IEEE)
• Forecast of future IMT services
• Developing Report ITU-R IMT.UPDATE (to be
  approved in 2011)
• Review of previous market forecast
• New trends in mobile broadband
• Broadband plans available including mobile
  broadband/IMT
• Spectrum Harmonization
• Revising Recommendation ITU-R M.1036 (to be
  approved in 2011)
• Harmonized channel arrangements

10

• Spectrum Issues

11
IMT identifications at WRCs

• No distinction between IMT-2000 IMT-Advanced in
  the use of frequencies
• IMT identification at WRC-07
• in the band 698-790 MHz in Bangladesh, China,
  Korea, India, Japan, New Zealand, Singapore,
  Papua New Guinea, and Philippines (RR No. 5.313A)
• in the band 3400-3500 MHz in Bangladesh, China,
  Korea, India, Japan, New Zealand, Singapore,
  Pakistan, Iran and French overseas communities in
  R3 (RR Nos. 5.432A and 5.432B)

12
IMT bands in some countries
13
Main Principles of spectrum use for IMT

• to minimize the impact on other systems and
  services within, and adjacent to, the bands
  identified for IMT
• to facilitate worldwide roaming of IMT terminals
• to optimize the efficiency of spectrum
  utilization within IMT bands
• minimized guardbands for IMT systems to avoid
  wasting spectrum
• sufficient frequency separation between
  transmitter and receiver frequencies must exist
  in a frequency division duplex system
• to minimize terminal costs, size and power
  consumption, etc.
• harmonized frequency arrangements to reduce the
  overall cost of IMT networks and terminals by
  providing economies of scale

14
Interference case (1)

• Opposite directions of Tx and Rx in the same
  frequency band may cause interference at
  cross-border area

Administration 1
Neighboring Administration 2
same IMT systems in the same frequency band
15
Interference case (2)

• Interference example in Korea
• Introduction of new system in the adjacent band
• Sufficient guard band is required to mitigate
  interference

• Special out-of-band emission limits are regulated
  for mobile terminal of Operator A and BS of
  Operator B

16
Channel Arrangements in 700 MHz (1)

• By APT Wireless Group (AWG)

• Option 1
• (FDD Conventional)

Center gap
806
694 698
45MHz
806
Option 2 (TDD)
2-4MHz
4-6MHz
BS and MS
PPDR
DTV
806
694 698
100MHz
17
Channel Arrangements in 700 MHz (2)

• By European Union

• By the US

18
Spectrum Harmonization among APT

• Plan of action from Bali Statement by Asia
  Pacific Ministerial Meeting on Strengthening
  Regional Collaboration towards a Broadband
  Economy in the Asia pacific
• Policy objective C Facilitate effective
  convergence of services
• Collaborate regionally possible to harmonize the
  RF bands allocated for broadband ICT application
  and services
• Most of spectrum plans led by EU countries and
  the Americas
• APT countries adopted them and not harmonized
  among APT
• AWG developed Channel arrangement in 700 MHz band
• First case of harmonized spectrum plan for
  Asia-Pacific countries
• Encouraged to keep collaborating for spectrum
  harmonization taking into account Bali statement

19
