New Source Review for Air Toxics

1

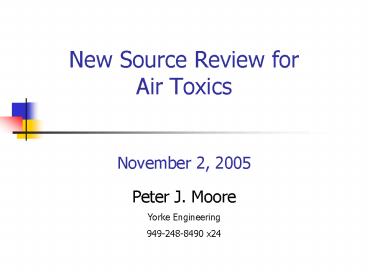

New Source Review for Air Toxics

• November 2, 2005

Peter J. Moore Yorke Engineering 949-248-8490 x24
2
What is ToxicsNew Source Review (NSR)?

• Evaluation of the health risk impacts to nearby
  exposed individuals (receptors)
• Calculate health risk indices
• Health risk indices cannot exceed thresholds

3
When is Toxics NSR Applied?

• When a new or modified source causes an increase
  in Toxic Air Contaminants (TAC), Toxics NSR is
  required
• SCAQMD Rule 1401 New Source Review of Toxic Air
  Contaminants
• Also Rule 219 permit-exempt equipment if health
  risk may exceed thresholds

4
Implications of Toxics NSR

• Permit denied if calculated health risk is too
  high
• Public notice required if cancer risk increase
  exceeds 1 in one million
• CEQA is triggered if combined project cancer risk
  increase exceeds 10 in one million
• May require Environmental Impact Report

5
Implications (continued)

• May set permit conditions
• Example Natural Gas Engine
• Toxic Air Contaminants from internal combustion
  must be evaluated for Toxics NSR
• If health risk calculations show that a limit on
  operation is necessary to stay below health risk
  thresholds, a daily or monthly limit on natural
  gas use may become a permit condition
• Carefully consider all possible toxic emissions
  for any new source

6
What Toxics are Considered?

• Toxic Air Contaminants (TAC) are listed in Rules
  1401 and 1402
• Carcinogenic 153 compounds
• Acute 58 chemicals
• Chronic 125 chemicals
• Risk factors are assigned by the California EPA
  Office of Environmental Health Hazard Assessment
  (OEHHA)
• New TACs being added over time

7
Health Risk Index - MICR

• Maximum Individual Cancer Risk (MICR)
• Long term impact
• Probability that an individual will contract
  cancer over 70 years (resident receptor) or 40
  years (commercial receptor)
• Must be lt 1 x 10-5 (10 in one million) for new
  equipment
• lt1 x 10-6 to avoid public notice

8
Health Risk Index - Chronic

• Chronic Hazard Index (HIC)
• Long term, non-cancer health effects
• Must be lt 1.0 for all target organs

9
Health Risk Index - Acute

• Acute Hazard Index (HIA)
• Short term (1-hour average) health effects
• Must be lt 1.0 for all target organs

10
What Are Target Organs?

• Specific systems in the human body that are
  affected by TACs

 Symbol Description Chronic Acute
AL Alimentary system (liver) X X
BN Bones and teeth X
CV Cardiovascular system X X
DEV Developmental X X
END Endocrine system X
EYE Eye X X
HEM Hematopoietic system (blood) X X
IMM Immune system X X
KID Kidney X
NS Nervous system X X
REP Reproductive system X X
RESP Respiratory system X X
SKIN Skin X X
11
Risk Assessment Tiers

• Tier 1 Screening Emission Levels
• Use Table 1A to check if emission rates are below
  thresholds
• Tier 2 Screening Risk Assessment
• Use Tables 2-10 to determine dispersion factors,
  etc.
• Tier 3 Screening Dispersion Modeling
• Use SCREEN3 to determine dispersion factors
• Tier 4 Detailed Risk Assessment
• Use HARP for highest fidelity model, full
  meteorology

Less Conservative
12
Tier I Screening Evaluation

• Max Annual Controlled Emissions (tons/year)
• Max Hourly Controlled (lbs/hr)
• Look up tables in Risk Assessment Procedures
  for Rules 1401 and 212
• Check for most recent version!
• If emissions are lower than screening levels,
  Rule 1401 is satisfied. If not, proceed to Tier
  II

13
Tier II Health Risk Assessment

• Max Annual Controlled Emissions (tons/year)
• Max Hourly Controlled (lbs/hr)
• Look up tables in Risk Assessment Procedures
  for Rules 1401 and 212
• If health risk indices lower than thresholds,
  Rule 1401 is satisfied. If not, proceed to Tier
  III

14
Tier II Risk Assessment for MICR

• MICR CP x DI x MP
• CP cancer potency factor (mg/kg-day)-1
• DI Dose inhalation (mg/kg-day)
• DI Cair x DBR x EVF x 10-6
• Cair concentration in air (µg/m3)
• DBR daily breathing rate (L/kg-day)
• EVR Exposure value factor (unitless)
• 1 x10-6 convert µg to mg(10-3 mg/µg), liters to
  cubic meters (10-3 m3/l)
• Cair Qtons x X/Q x AFann x MET
• Qtons Emission rate (tons/year)
• X/Q Dispersion Factor ((µg/m3)/(ton/yr)
• AFann Annual Averaging factor
• MET meteorological correction factor (unitless)
• MP multipathway factor (unitless)
• MICR CP x ((Qtons x X/Q x AFann x MET) x DBR
  x EVF x 10-6) x MP

15
Chronic Index Equation
HIC Chronic hazard index (calculated for each
target organ) ?TAC Sum of the contribution for
each Toxic Air Contaminant (TAC) QyrTAC Emission
rate of each TAC (tons/year) X/Q Annual average
dispersion factor (?g/m3)/(ton/year) RELTAC Chroni
c Reference Exposure Level (?g/m3) for each
TAC MP Multi-pathway adjustment factor
(n.d.) MET Meteorological correction factor (n.d.)
16
Acute Index Equation
HIA Acute hazard index (calculated for each
target organ) ?TAC Sum of the contribution for
each Toxic Air Contaminant (TAC) QhrTAC Emission
rate of each TAC (lb/hour) X/Qhr Hourly average
dispersion factor (?g/m3)/(lb/hour) RELTAC Acute
Reference Exposure Level (?g/m3) for each TAC
17
Cancer Burden Calculation

• Only Needed if MICR gt10-6
• Estimate Area (km2) with Risk gt10-6
• Multiply Area by 4,000 - 7,000 persons/ km2
• Multiply Total Persons by MICR
• If Burden gt0.5
• More detailed calculations or modeling required

18
Tier III Health Risk Assessment

• Similar to Tier II
• Use SCREEN3 to determine dispersion factors (X/Q)
  instead of from tables
• Exhaust temperature and velocity are included
• Simple building downwash effects
• Single source
• Equation is the same
• If health risk indices lower than thresholds,
  Rule 1401 is satisfied. If not, proceed to Tier
  IV

19
Tier IV Health Risk Assessment

• Most detailed health risk assessment
• Requires details of building dimensions, local
  topography, and local meteorology
• Use Hot Spots Analysis and Reporting Program
  (HARP) to calculate dispersion factors and health
  risk indices
• Free download from CARB website
  www.arb.ca.gov/toxics/harp/harp.htm
• Multiple sources in different locations

20
TACs from Natural Gas

• Ventura County APCD did testing of internal
  external combustion equipment in 1995 for TACs
• Ventura Factors can be used for emission
  factors for external combustion only
• Use EPAs AP-42 emission factors for internal
  combustion

21
TACs from External Combustion
As determined by Ventura APCD
22
TACs from Internal CombustionEPA AP-42
Emission Factors, Table 3.2-3
 Toxic Air Contaminant MICR HIC HIA
1,1,2,2-Tetrachloroethane X
1,1,2-Trichloroethane X
1,1-Dichloroethane X
1,3-Butadiene X X
Acetaldehyde X X
Acrolein   X X
Benzene X X X
Carbon Tetrachloride X X X
Chlorobenzene   X
Chloroform X X X
Ethylbenzene   X
Ethylene Dibromide X X
Ethylene dichloride (1,2-dichloroethane) X X
Formaldehyde X X X
Methanol   X X
Methylene Chloride X X X
n-Hexane   X
Naphthalene  X X
PAHs (w/o naphthalene) X
Phenol   X X
Styrene   X X
Toluene   X X
Vinyl Chloride X   X
Xylene   X X
23
Rule 1401 Limitations

• MICR of 1 X 10-6 Without T-BACT
• MICR of 1 X 10-5 With T-BACT
• Cancer Burden, excess cancer cases in the
  population subject to a risk greater than
  (1 x 10-6), of 0.5
• Acute and Chronic Hazard Index of lt 1
• T-BACT Criteria Similar to Existing BACT

24
Rule 1401 Exemptions

• Emergency Internal Combustion Engines
• Modifications with no increase in toxic emissions
• Functionally identical replacement
• Contemporaneous Risk Reductions
• No MICR increase at any location gt1x10-6, and
• Reduction occurs within 100 m of new equipment
• Alternative Hazard Index lt10

25
Example

• Facility adding three large, natural-gas fueled,
  cogeneration engines
• Four existing emergency diesels
• Nearby residents
• Each engine passed Rule 1401 with MICR of 9 in
  one million
• CEQA triggered due to combined MICR of 27 in one
  million

26
Example (continued)

• We calculated that cogeneration engines resulted
  in less usage of diesel backup engines
• Diesel health risk is high
• Contemporaneous health risk reduction allowed
  project to proceed without requiring an
  Environmental Impact Report

27
Risk is Dependent On

• Source and Receptor Location
• Emission Rate
• Emission Species
• Meteorology
• Stack Parameters
• Operating Schedule

28
Strategies

• Locate equipment away from adjacent residents or
  workers
• Raise stack height
• Perform detailed modeling to determine risk
  impacts to specific receptors
• Source test for actual toxic emissions
• Tests showed high destruction of PAH across
  catalyst
