Title: Powerline Communications: Channel Characterization and Modem Design

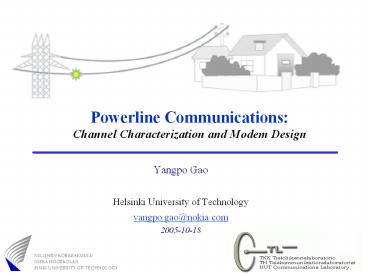

1
Powerline CommunicationsChannel
Characterization and Modem Design
  • Yangpo Gao
  • Helsinki University of Technology
  • yangpo.gao_at_nokia.com
  • 2005-10-18

2
Thesis Contents
  • Table of Contents
  • Introduction
  • PLC Technology Background
  • Channel Measurement and Modeling
  • Disturbance over PLC
  • DMT Based PLC Modem Design
  • Conclusion
  • Reference
  • This thesis is part of project PLC controlled
    LEDs for general lighting system, which is
    sponsored by TEKES

3
Introduction
4
History of PLC and Motivation of Thesis
  • What is PLC
  • PLC Powerline Communications
  • Using powerline as transmission medium for data
    communication
  • History of PLC
  • From high voltage (HV) low voltage (LV)
  • Low data rate high data rate
  • Control application multimedia data
    applications
  • Motivation
  • Cheap the last mile solution
  • However, worse channel than other wired network
  • Channel characterization reliable
    communications

5
PLC Technology Background
6
PLC Technologies
  • Three network levels
  • High voltage (110380 kV)
  • Medium voltage (1030 kV)
  • Low voltage (230/400 V, in the USA 110 V) (my
    thesis range)
  • Efficient coupling
  • Inductive coupling
  • Conductive coupling
  • Modulation and error correction
  • OFDM, DMT
  • CDMA
  • FEC

7
EMC Issues
  • EMC --Electromagnetic compatibility
  • The ability of a device or system to function
    satisfactorily in its electromagnetic environment
    without introducing intolerable electromagnetic
    disturbances in the form of interferences to any
    other system in that environment, even to itself.

8
Standardizations
  • PLC standardization bodies

9
Channel Measurement and Modeling
10
Transmission Line Theory
  • A piece of mains cable can be modeled as
    following figure

R resistance . L inductance. G
conductance C capacitance
11
Channel Measurement Setup
  • Equipment
  • Network Analyzer (NA)
  • Coupling Circuit
  • Coupling circuit
  • Conductive coupling
  • High pass filter
  • Galvanic isolation
  • Over Voltage protection

12
PLC Cable Measurements
Cable Type Size (mm2)
Vulcanize rubber cable (three-wire) 0.75
Vulcanize rubber cable (three-wire) 1
PVC/PVC cable (three-wire) 0.75
PVC/PVC cable (two-wire) 0.5
13
PLC Channel Measurements
  • Scenario 1 Internet access and
    distribution
  • Scenario 2 Home networking

Scenario 1 Network topology is known, or easy to
estimate. Channel is simple, and has few
multipath components Scenario 2 Network
topology is unknown or it is hard to define.
Channel acts as black box. A lot of multipath
components
14
Channel Responses
Scenario 1
Scenario 2
15
PLC Channel Modeling
  • According to PLC channel multipath phenomenon,
    channel can be modeled as

16
Disturbance over PLC
17
PLC Noise
  • Noise Classification
  • Colored background noise
  • Narrowband noise
  • Periodic impulsive noise, asynchronous to the
    main frequency
  • Periodic impulsive noise, noise, synchronous to
    the main frequency
  • Asynchronous impulsive noise
  • Our concentration
  • Colored background noise
  • Asynchronous impulsive noise

18
Noise Measurement setup
  • Equipment
  • Oscilloscope
  • Spectrum Analyzer
  • Coupler

19
Colored Background Noise
  • Quasi-Static behavior
  • Statistic information is extracted in table
  • Can be modeled as

s b c
Max -94 -80 -0.4
Min -124 -100 -0.6
Average -105 -90 -0.5
20
Random Impulsive Noise
  • Caused by frequency bursts generated by
    electrical devices connected to the powerline.
  • Statistic information is extracted

21
Other Disturbance
  • NEXT (Near End crosstalk)
  • FEXT (Far End crosstalk).

22
DMT Based PLC Modem Design
23
DMT Technology
  • Discrete Multi-tone Modulation (DMT)
  • Advantages
  • Multicarrier technology combat frequency
    selective fading
  • Dynamic bit loading based on SNR efficient
    spectrum utilization
  • High channel capacity

24
DMT Based PLC Modem Design
  • Simulation environment
  • MATLAB SimuLink
  • MATLAB DSP Blockset
  • Simulated channel response
  • Expected result
  • Bit Error Rate (BER)

25
Simulation and Performance
Optimized bit loading algorithm
Signal spectrum before PLC channel
Signal spectrum after PLC channel
26
Publications Related to My Thesis
27
Publications
  • More information can be found in my publications
  • Channel modeling and modem design for broadband
    power line communications, Proceeding of ISPLC
    2004, April, Spain
  • Broadband characterization of indoor powerline
    channel, Proceeding of ISPLC 2004, April, Spain
  • Broadband Characterization of Indoor Powerline
    Channel and Its Capacity Consideration,
    Proceeding of ICC 2005, May, Korea

28
Any Questions?
  • Thank You!
