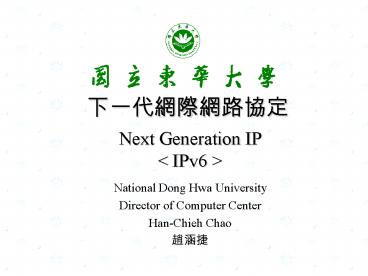

Next Generation IP < IPv6 >

1
Next Generation IPlt IPv6 gt
?????????

• National Dong Hwa University
• Director of Computer Center
• Han-Chieh Chao
• ???

2
Overview

• Limitations of current Internet Protocol (IP)
• IPv6 addressing
• IPv4/IPv6 Transition
• IPv6 features
• Autoconfiguration
• IPSec
• QoS
• IPv6 Mobility Support
• Summary

3
Internet Growth
4
Internet Growth
5
Growing Pains

• Depletion of IP address
• ( between 2005 and 2001 )
• Explosion of Routing Tables
• ( routing table explosion will condemn the
  internet even sooner than the exhaustion of
  network addresses )

6
IPv4 Addresses

• Example 203.64.105.100
• 1100 10110100 00000110 10010110 0100
• (32 bits)
• CB406964
• Maximum 232 4 Billion
• Class A Network 15 Million nodes
• Class B Network 64,000 nodes or less
• Class C Network 250 nodes or less

7
IPv4 Address (cont.)

• 127 Class A 16,381 Class B 2,097,151 Class C
  Network 2,113,659 networks total
• Class B is most popular
• 20 of Class B were assigned by 7/90 and doubling
  every 14 months gt Will exhaust by 3/94
• Question Estimate how big will you become?
• Answer more than 256!
• Class C is too small. Class B is just right.

8
How many address?

• Some believe 26 to 28 address per host
• Safety margin gt 1015 addresses
• IPng Requirements gt 1012 end systems and 109
  networks. Desirable 1012 to 1015 networks

9
Address Size

• H Ratio log10(number of objects)/available bits
• 2n objects with n bits H Ratio log102
  0.30103
• French telephone moved from 8 to 9 digits at 107
  households gt H 0.26 (assuming 3.3 bits/digit)
• US telephone expanded area codes with 108
  subscribers gt H 0.24
• SITA expanded 7-character address at 64k nodes gt
  H 0.14 (assuming 5 bits/char)

10
Address Size (cont.)

• Physics/space science net stopped at 15000 nodes
  using 16-bit addresses gt H 0.26
• 3 Million Internet hosts currently using 32-bit
  addresses gt H 0.20 gt A few more years to go

11
IPv6 motivation

• The enormous growth of Internet.
• The Address space is running out in IPv4 (32
  bits).
• Routing tables are exploding.
• The lack of security at the network layer
• Device Control Smart Homes
• High Performance Networks
• IP Based Cellular Systems
• Connect everything over IP

• Several years of networking with TCP/IP had
  brought lessons and knowledge
• Lack of Mobility support
• New Applications such as Real Time Multimedia.
• Networked Entertainment - your TV will be an
  Internet host
• More Scalable Solution is needed

12
IPv6 Standardization
Where in the standardization process is IPv6?
6ren, vBNS etc. GPRS, UMTS?
13
Ipng long term solution

• 1991 Work starts on next generation Internet
  protocols
• -- More than 6 different proposals were
  developed
• 1993 IETF forms IPng Directorate
• --To select the new protocol by
  consensus
• 1995 IPv6 selected
• -- Evolutionary (not revolutionary) step
  from IPv4
• 1996 6Bone started
• 1998 IPv6 standardized
• Today Initial products and deployments

14
(No Transcript)
15
IPv6 Main Features/Functionality

• expanded addressing and routing capabilities
• support for extension headers and options
• Simplified header format
• quality of service capabilities
• Auto-configuration
• Multi-Homing
• Class of Service/Multimedia support
• support for authentication and privacy
• Multicast (No more broadcast )
• IPv4 , IPv6 Transition Strategy

16
IPv4 Header20 OctetsOptions 13 fields,
include 3 flag bits
31
24
0 bits
8
4
16
Ver
IHL
Total Length
Service Type
Identifier
Flags
Fragment Offset
Time to Live
Header Checksum
Protocol
32 bit Source Address
32 bit Destination Address
Options and Padding
17
IPv6 Header40 Octets, 8 fields
Version
Class
Flow Label
Payload Length
Next Header
Hop Limit
128 bit Source Address
128 bit Destination Address
18
Major Simplifications

• Assign a fixed format to all headers (40 bytes)
• Remove the header checksum
• Remove the hop-by-hop segmentation
• procedure
• Built-in security

19
IPv6 Address

• 128 bits long. Fixed size
• 2128 3.41038 addresses gt 6.651023 addresses
  per m2 of earth surface
• If assigned at the rate of 106/?s, it would take
  20 years
• Expected to support 81017 to 21033 addresses
  81017 gt 1,564 address per m2
• Allows multiple interfaces per host
• Allows multiple addresses per interface

20
Text Representation of ddresses

• Colon-Hex
• 1080 0 0 0 8 800 200C 417A
• indicates multiple groups of
  16-bits of zeros
• Dot-Decimal
• 203.64.105.100
• Can leave the last 32 bits in dot-decimal,

21
Hierachy
35161683280
The remaining 48 bits define the particular
system on the subnetwork.
22
IPv6 Address Models

• Allows unicast, multicast, anycast
• Allows provider based, site-local, link-local
• 85 of the space is unassigned
• Addresses have lifetime
• Valid and Preferred lifetime

23
Local-Use Address

• Link Local Not forwarded outside the link,
• FE80xxx
• Site Local Not forwarded outside the site,
• FEC0xxx

24
Multicast Address

• T0 gt Permanent (well-known) multicast address,
  T1 gt Transient
• Scope 1 Node-local, 2 Link-local, 5 Site-local,
• 8 Organization-local, E Global, F Reserved
• Predefined 1 gt All nodes, 2 gt Routers,


25
Multicast Address (cont.)

• Link-local scope limits multicast to single
  Ethernet

26
Multicast Address (cont.)

• Organization-local scope limits multicast to
  organization boundary

27
Anycast Address (the subnet-router address)

• Workstation uses an anycast address to ask for
  help from any router.

28
Address Prefixes
Can specify a prefix by /length
29
IPv6 Address Allocation
Allocation
Prefix Fraction of
(binary)
Address Space -------------------------------
-------- ------------- Reserved
0000 0000
1/256 (0/8) Unassigned
0000 0001 1/256 (100/8) Reserved
for NSAP Allocation 0000 001 1/128
(200/7) Reserved for IPX Allocation 0000
010 1/128 (400/7) Unassigned
0000 011 1/128
(600/7) Unassigned
0000 1 1/32 (800/5) Unassigned
0001
1/16 (1000/4)
30
IPv6 Address Allocation (cont.)
Allocation Prefix
Fraction of
(binary) Address
Space -------------------------------
-------- ------------- Aggregatable
Global Unicast Addresses
001 1/8 (20003) Unassigne
d 1111 0
1/32 (F000/5) Unassigned
1111 10 1/64 (F800/6) Unassigned
1111 110 1/128
(FC00/7) Unassigned
1111 1110 0 1/512 (FE00/9) Link Local
Unicast Addresses 1111 1110 10 1/1024
(FE80/10) Site Local Unicast Addresses
1111 1110 11 1/1024 (FEC0/10) Multicast
Addresses 1111 1111 1/256
(FF00/8)
31
IPv6 Extension Headers

• IP options have been moved to a set of optional
  Extension Headers
• Extension Headers are chained together

Next Header
32
Routing Header
Next Header
Routing Type
Num. Address
Next Address
Reserved
Strict/Loose bit mask
Address 1
Address 2
..
Address n
33
Routing Header (cont.)

• Strict gt Discard if AddressNext-Address ?
  neighbor
• Type 0 gt Current source routing
• Type gt 0 gt Policy based routing (later)
• New Functionality Provider selection, Host
  mobility, Auto-readdressing (route to new
  address)

34
Address Autoconfiguration

• Allow plug and play
• BOOTP and DHCP are used in IPv4
• DHCPng will be used with IPv6
• Two Methods Stateless and Stateful
• Stateless
• A system uses link-local address as source and
  multicasts to "All routers on this link"
• Router replies and provides all the needed prefix
  info
• All prefixes have a associated lifetime
• System can use link-local address permanently if
  no router

35
Address Autoconfiguration (cont.)

• Stateful
• Problem w stateless Anyone can connect
• Routers ask the new system to go DHCP server (by
  setting managed configuration bit)
• System multicasts to "All DHCP servers"
• DHCP server assigns an address

36
Automatic Renumbering

• Renumbering IPv6 Hosts is easy
• Add a new Prefix to the Router
• Reduce the Lifetime of the old prefix
• As nodes depreciate the old prefix the new Prefix
  will start to be used for new connections
• Renumbering in IPv6 is designed to happen!
• An end of ISP lock in!
• Improved competition

37
Transition Mechanism

• Dual Stack Providing complete support for
  both IPv4
• and IPv6 in hosts and routers.

IPv6 host
IPv4 host
Dual IP host
This allows indefinite co-existence of IPv4 and
IPv6, and gradual, app-by-app upgrades to IPv6
usage
38
Transition Mechanism (cont.)

• IPv6 over IPv4 tunneling Encapsulating IPv6
  packets within
• IPv4 headers to carry them over IPv4 routing
  infrastructures.

Entry Router
Leaving Router
IPv4 Infrastructure
IPv4 header
Protocol number41
IPv6 packet
IPv6 packet
IPv6 packet
39
Transition Mechanism (cont.)

• Encapsulate IPv6 packets inside IPv4 packets(or
  MPLS frames)
• any methods exist for establishing tunnels
• -- configured tunnels - manual
• -- automatic tunnels - IPv4 compatible addresses
  ltipv4gt

• IPv6-to-IPv4 (inter-domain, using IPv4 addr as
  IPv6 site prefix)

40
Transition Mechanism (cont.)

• IPv4-compatible IPv6 Addresses

96 bits
32 bits 0000...................
...........00000000 IPv4 address
41
Transition Mechanism (cont.)

• IPv4-mapped IPv6 address

80 bits 16 bits 000000
11.11 IPv4
Dest. 1.2.3.4
Dest. FFFF 01020304
42
QoS

• Class Field
• Diff Serv Code Point will be used
• Can be used for distinguish between different
  traffic classes
• Flow label
• Identifies streams that needs special handling
• Used by RSVP today
• Not fully defined yet
• Could be used for a deterministic hashkey to
  classify on L2-L7 -gt Would make it easier to
  implement in Hardware

43
IPv6 Security

• Two headers in IPv6 that provides security - AH,
  ESP
• AH - Authentication Header
• Provides source authentication
• Integrity
• ESP - Encrypted Security Payload
• Integrity
• Authentication
• Confidentiality
• Note IPSec is exactly the same for IPv4 and IPv6
  only that it was Taylor-made for IPv6.
• Advantages with IPsec
• Network level security
• Transparent to End-user
• Open Standard

44
Mobile IPv6

• IPv6 Mobility is based on core features of IPv6
• The base IPv6 was designed to support Mobility
• Mobility is not an Add-on features
• All IPv6 Networks are IPv6-Mobile Ready
• All IPv6 nodes are IPv6-Mobile Ready
• All IPv6 LANs / Subnets are IPv6 Mobile Ready
• IPv6 Neighbor Discovery and Address
  Autoconfiguration allow hosts to operate in any
  location without any special support

45
Mobile IPv6 (cont.)

• No Foreign Agent
• In a Mobile IP, an MN registers to a foreign node
  and borrows its address to build an IP tunnel so
  that the HA can deliver the packets to the MN.
  But in Mobile IPv6, the MN can get a new IPv6
  address, which can be only used by the MN and
  thus the FA no longer exists.
• More Scalable Better Performance
• Less traffic through Home Link
• Less redirection / re-routing (Traffic
  Optimisation)

46
IPv6 Mobility Support
No FAs, ND, always Co-located Co addresses
for mn.ndhu.tw at
agent.mit.us
mn.ndhu.tw
Router
Home Agent
Correspondend Node
Gets an address trough ND
for mn.ndhu.tw
mit.us
INTERNET
ndhu.tw
47
Improved Performance

• Faster processing time per IPv6 packet
• Align on 64 bits boundary
• Fewer Optional Headers (from 12 to 8)
• Removed checksum
• Better designed for HW support
• Scalable hierarchical address architecture
• Faster routing lookups
• Smaller routing tables due to Hierarchical
  address architecture -gt which make ip_forwarding
  faster and more efficient use of the memory
• Less routing traffic in the backbone -gt which
  mean less load on the network

48
Summary

• Streamlined Header Format
• Flow Label
• 128-bit Network Addresses
• Elimination of Header Checksum
• Fragmentation only by source Host
• Extension Headers
• Built-in-security
