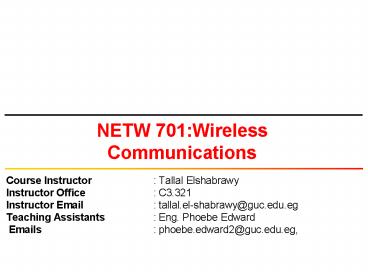

NETW 701:Wireless Communications

1
NETW 701Wireless Communications

• Course Instructor Tallal Elshabrawy
• Instructor Office C3.321
• Instructor Email tallal.el-shabrawy_at_guc.edu.eg

• Teaching Assistants Eng. Phoebe Edward
• Emails phoebe.edward2_at_guc.edu.eg,

2
Text Book and References

• Text Book
• Wireless Communications Principles and Practice
  2nd Edition, T. S. Rappaport, Prentice Hall,
  2001
• Reference Books
• Modern Wireless Communications, S. Haykin and,
  M. Moher, Prentice Hall, 2004
• Mobile Wireless Communications, M. Schwartz
  Cambridge University Press, 2005

3
Course Pre-Requisites

• Review communication theory COMM 502

4
Course Instructional Goals

• Build an understanding of fundamental components
  of wireless communications
• Investigate the wireless communication channel
  characteristics and modeling
• Discuss different access techniques to the shared
  broadcast wireless medium
• Highlight measures of performance and capacity
  evaluation of wireless communication networks
• Provide an insight to different practical
  wireless communication networks

5
Course Contents Overview
6
Wireless Communication Channels
Signal Interference
Power
PT
Frequency
d (Km)
7
Wireless Communication Channels
Signal Interference

• Large-Scale Parameters
• Distance Pathloss

Power
PT
PTPL(d)
Frequency
d (Km)
8
Wireless Communication Channels
Signal Interference

• Large-Scale Parameters
• Distance Pathloss
• Lognormal Shadowing

Power
PT
PTPL(d)
Frequency
d (Km)
9
Wireless Communication Channels
Signal Interference

• Large-Scale Parameters
• Distance Pathloss
• Lognormal Shadowing

Power
PT
PTPL(d)
Frequency
d (Km)
10
Wireless Communication Channels
Signal Interference

• Large-Scale Parameters
• Distance Pathloss
• Lognormal Shadowing

Power
PT
PTPL(d)
Frequency
d (Km)
11
Wireless Communication Channels
Signal Interference

• Large-Scale Parameters
• Distance Pathloss
• Lognormal Shadowing

Power
PT
PTPL(d)
PTPL(d)X
Frequency
d (Km)
12
Wireless Communication Channels
Signal Interference

• Large-Scale Parameters
• Distance Pathloss
• Lognormal Shadowing
• Small-Scale Parameters
• Multi-Path Fading

Power
PT
PTPL(d)
PTPL(d)X
Frequency
d (Km)
13
Wireless Communication Channels
Distance Pathloss Mobile Speed 3
Km/hr PL137.744 35.225log10(DKM)
d
Lognormal Shadowing Mobile Speed 3 Km/hr ARMA
Correlated Shadow Model
d
Small-Scale Fading Mobile Speed 3 Km/hr Jakess
Rayleigh Fading Model
d
14
Wireless Medium Access Techniques

• FDMA (Frequency Division Multiple Access)
• Channel bandwidth divided into frequency bands
• At any given instant each band should be used by
  only one user
• TDMA (Time Division Multiple Access)
• System resources are divided into time slots
• Each user uses the entire bandwidth but not all
  the time
• CDMA (Code Division Multiple Access)
• Each user is allocated a unique code to use for
  communication
• Users may transmit simultaneously over the same
  frequency band
• SDMA (Space Division Multiple Access)
• System resources are reused with the help of
  spatial separation

15
Signal Reception and SINR
Signal Interference
Reliable Signal Reception requires adequate SINR
(Signal to Interference and Noise Ratio)

• Factors influencing SINR
• Number of Interferers
• Identity of Interferers
• Interference Power
• Interference Channels

S
I
16
Signal Reception and SINR
Signal Interference
Reliable Signal Reception requires adequate SINR
(Signal to Interference and Noise Ratio)

• Factors influencing SINR
• Number of Interferers
• Identity of Interferers
• Interference Power
• Interference Channels

S
I
17
Signal Reception and SINR
Signal Interference
Reliable Signal Reception requires adequate SINR
(Signal to Interference and Noise Ratio)
I

• Factors influencing SINR
• Number of Interferers
• Identity of Interferers
• Interference Power
• Interference Channels

18
System Capacity

• Maximum number of customers that may be
  satisfactorily supported within the wireless
  network
• Example Criteria for a Satisfied-User
• Number of Interfering sessions lt N
• Outage Probability lt ?TH

19
Advances in Wireless Comm. Multi-Carrier
Modulation

• Subdivide wideband bandwidth into multiple
  Orthogonal
• narrowband sub-carriers
• Each sub-carrier approximately displays Flat
  Fading
• characteristics
• Flexibility in Power Allocation Sub-carrier
  Allocation to increase system capacity

20
Advances in Wireless Comm. MIMO

• Frequency and time processing are at limits
• Space processing is interesting because it does
  not increase bandwidth
• MIMO technology is evolving in different wireless
  technologies
• Cellular Systems
• WLAN

21
Wireless Communications Channels Large-Scale
Pathloss
22
Isotropic Radiation

• An Isotropic Antenna
• An antenna that transmits equally in all
  directions
• An isotropic antenna does not exist in reality
• An isotropic antenna acts as a reference to which
  other antennas are compared

Power Flux Density
d
From Wireless Communications Edfors, Molisch,
Tufvesson
23
Power Reception by an Isotropic Antenna
Power Received by Antenna
AeARx? Effective Area of Antenna
Power Received by Isotropic Antenna
From Wireless Communications Edfors, Molisch,
Tufvesson
LP? Free-space Path-loss between two isotropic
antennas
24
Directional Radiation

• A Directional Antenna
• Transmit gain Gt is a measure of how well an
  antenna emits radiated energy in a certain
  direction relative to an isotropic antenna.
• Receive gain Gr is a measure of how well the
  antenna collects radiated energy in a given area
  relative to an isotropic antenna.

Maximum (Peak) Antenna Gain
Main Lobe
Maximum transmit or receive antenna Gain
3 dB Beam Width
Side Lobes
Antenna Pattern for Parabolic (dish-shaped)
antenna
25
The Friis Equation
Friis Equation

• The received power falls off as the square of the
  T-R separation distance
• The received power decays with distance at a rate
  of 20 dB/decade
• Valid for Line of Sight (LOS) satellite
  communications
• The Friis free-space model is only valid for
  values of d in the far field. The far field is
  defined as the region beyond the far field
  distance df

D is the largest linear dimension of the
transmitting antenna aperture
Note df must also satisfy dfgtgtD, dfgtgt?
26
PR(d) in the Far Field

• The Friis equation is not valid at d0
• PR(d) could be related to a power level PR(d0)
  that is measured at a close in distance d0 that
  is greater than df

27
Relating Power to Electric Field

• Alternative formula for power flux density

Power Flux Density
where E depicts the electric field strength and
? is the intrinsic impedance of free-space
Power Received by Antenna
