Factory Programming Order

1

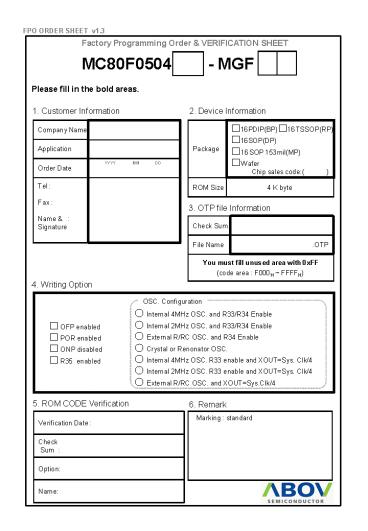

FPO ORDER SHEET v1.3
Factory Programming Order VERIFICATION SHEET
MC80F0504 - MGF
Please fill in the bold areas.
1. Customer Information
2. Device Information
Company Name
Package
?16PDIP(BP)?16 TSSOP(RP) ?16SOP(DP) ?16 SOP
153mil(MP) ? Wafer Chip sales
code( )
Application
Order Date
YYYY MM DD
Tel Fax Name Signature
ROM Size
4 K byte
3. OTP file Information
Check Sum
File Name
.OTP
You must fill unused area with 0xFF (code area
F000H FFFFH)
4. Writing Option
? OFP enabled ? POR enabled ? ONP disabled ? R35
enabled
? Internal 4MHz OSC. and R33/R34 Enable ?
Internal 2MHz OSC. and R33/R34 Enable ? External
R/RC OSC. and R34 Enable ? Crystal or Renonator
OSC. ? Internal 4MHz OSC. R33 enable and
XOUTSys. Clk/4 ? Internal 2MHz OSC. R33 enable
and XOUTSys. Clk/4 ? External R/RC OSC. and
XOUTSys.Clk/4
OSC. Configuration
5. ROM CODE Verification
6. Remark
Verification Date

Marking standard
Check Sum
Option
Name
2
FPO ORDER SHEET v1.3
Factory Programming Order VERIFICATION SHEET
MC80F0604 - MGF
Please fill in the bold areas.
1. Customer Information
2. Device Information
Company Name
Package
?20PDIP(BP)?20SSOP(RP) ?20SOP(DP) ? Wafer
Chip sales code( )
Application
Order Date
YYYY MM DD
Tel Fax Name Signature
ROM Size
4 K byte
3. OTP file Information
Check Sum
File Name
.OTP
You must fill unused area with 0xFF (code area
F000H FFFFH)
4. Writing Option
? OFP enabled ? POR enabled ? ONP disabled ? R35
enabled
? Internal 4MHz OSC. and R33/R34 Enable ?
Internal 2MHz OSC. and R33/R34 Enable ? External
R/RC OSC. and R34 Enable ? Crystal or Renonator
OSC. ? Internal 4MHz OSC. R33 enable and
XOUTSys. Clk/4 ? Internal 2MHz OSC. R33 enable
and XOUTSys. Clk/4 ? External R/RC OSC. and
XOUTSys.Clk/4
OSC. Configuration
5. ROM CODE Verification
6. Remark
Verification Date

Marking standard
Check Sum
Option
Name
