CSE 599 Lecture 2

1

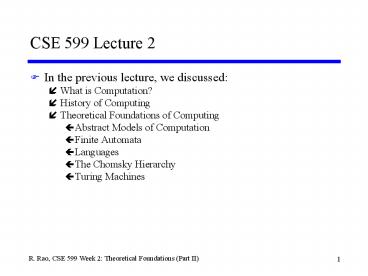

CSE 599 Lecture 2

• In the previous lecture, we discussed
• What is Computation?
• History of Computing
• Theoretical Foundations of Computing
• Abstract Models of Computation
• Finite Automata
• Languages
• The Chomsky Hierarchy
• Turing Machines

2
Overview of Todays Lecture

• Universal Turing Machines
• The Halting Problem Some problems cannot be
  solved!
• Nondeterministic Machines
• Time and Space Complexity
• Classes P and NP
• NP-completeness Some problems (probably) cannot
  be solved fast (on classical sequential
  computers)!

3
Recall from last class Turing Machines

• Can be defined as a program
• (current state, current symbol) to
• (next state, new symbol to write, direction of
  head movement), or
• A list of quintuples
• (q0, s0, q1, s1, d0)
• (q1, s1, q2, s2, d1)
• (q2, s2, q3, s3, d2)
• (q3, s3, q4, s4, d3)
• (q4, s4, q5, s5, d4)
• etc.
• Includes an initial state q0 and
• A set of halting states (for example, q3, q5)

4
Turing Machines

• Example (q0, 1, q1, 0, R)

5
Universal Turing Machines (UTMs)

• A UTM is a programmable Turing machine that can
  simulate any TM - it is like an interpreter
  running a program on a given input
• Takes as input a description or program (list
  of quintuples) of a TM and the TMs input, and
  executes that program
• Uses a fixed program (like all TMs) but this
  program specifies how to execute arbitrary
  programs
• Analogous to a digital computer running a
  program in fact, Von Neumanns stored program
  concept was partly motivated by UTMs

6
Universal Turing Machines How They Work

• A UTM U receives as input a binary description of

• an arbitrary Turing machine T (list of
  quintuples) and
• contents of Ts tape (a binary string t).
• U simulates T on t using a fixed program as
  follows
• INITIALIZE copy Ts initial state and Ts
  initial input symbol to a fixed machine
  condition (or workspace) area of the tape
• LOCATE Given Ts current state q and current
  symbol s
• Find the quintuple (q, s, q, s, d) in the
  description of T If q not found, then halt (q
  is a halt state) else
• COPY Write q in workspace and s in Ts
  simulated tape region Move Ts simulated head
  according to d
• Read new symbol s and write it next to q in
  workspace
• REPEAT Go to 2.

7
Universal Turing Machines Diagram

• See Feynman text, Figure 3.23
• This machine uses 8 symbols and 23 different
  states
• Exercise Identify which portions of the machine
  executes which subroutine (LOCATE, COPY, etc.)

8
Now we are ready for the big question

• Are there computational problems that no
  algorithm (or Turing Machine) can solve?
• Surprising answer YES!
• Proof relies on self-reference UTMs trying to
  solve problems about themselves.
• Related to the paradox This sentence is false
• Can you prove the above statement true or false?
• Related to Cantors proof by diagonalization
  that there are more real numbers than natural
  numbers

9
Proof by diagonalization An example

• Show that there are more real numbers than
  natural numbers
• Proof Form a 1-1 mapping from natural numbers to
  reals, and form a new real number by changing the
  ith digit of the ith real number For example, if
  1-1 map is given by

New Real Number 0.2404. (Add 1 to
diagonal) This number is different from all the
ones listed
1 0.1000
2 0.0345451
3 0.749399845
4 0.33333333333333.
etc.
10
The Halting Problem and Undecidability

• Question Are there problems that no algorithm
  can solve?
• Consider the Halting Problem Is there a general
  algorithm that can tell us whether a Turing
  machine T with tape t will halt, for any given T
  and input t?
• Answer No!
• Proof By contradiction. Suppose such an
  algorithm exists. Let D be the corresponding
  Turing machine. Note that D is just like a UTM
  except that it is guaranteed to halt
• D halts with a Yes if T halts on input t
• D halts with a No if T does not halt on input t

11
Diagram of Halting Problem Solver D

• Input to D description dT of a TM T and its
  input data t

12
Diagram of New Machine E

• Define E as the TM that takes as input dT, makes
  a second copy in the adjacent part of the tape,
  and then runs D

13
Diagram of final machine Z (the diagonalizer)

• Consider the machine Z obtained by modifying E as
  follows
• On input dT if E halts with a No answer, then
  halt
• if E halts with a Yes answer, then loop
  forever
• What happens when Z is given dZ as input?

14
The machine D cannot exist!

• By construction, Z halts on dT if and only if the
  machine T does not halt on dT
• Therefore, on input dZ
• Z halts on dZ if and only if Z does not halt on
  dZ
• A contradiction!
• We constructed Z and E legally from D. So, D
  cannot exist. The halting problem is therefore
  undecidable.
• Conclusion There exist computational problems
  (such as the halting problem) that cannot be
  solved by any Turing machine or algorithm.

15
Computability

• We can now make a distinction between two types
  of computability
• Decidable (or recursive)
• Turing Computable (or partial recursive/recursivel
  y enumerable)
• A language is decidable if there is a TM that
  accepts every string in that language and halts,
  and rejects every string not in the language and
  halts.
• A language is Turing computable if there is a TM
  that accepts every string in that language (and
  no strings that are not)
• Are all decidable languages Turing computable?
• Are all Turing computable languages decidable?

16
Examples Decidable Languages

• The language 0n1n is decidable
• If the tape is empty, ACCEPT
• Otherwise, if the input does not look like 0
  1, REJECT
• Cross off the first 0. Then move right until the
  first 1 (not crossed off)
• Cross off that 1, then move left until the first
  0.
• Repeat the above 2 steps until we run out of 0s
  or 1s
• If there are more 0s than 1s REJECT
• If there are more 1s than 0s REJECT
• If there are an equal number, ACCEPT
• L 1n n is a composite number is
  decidable
• All decidable languages are Turing computable.
  Are there Turing computable languages that are
  not decidable?

17
Examples Turing Computable Languages

• The Halting Problem is Turing Computable
• HALT ltdT,t gt dT is a description of TM T,
  and T halts on input t
• Proof Sketch The following UTM H accepts HALT
• Simulate T on input t.
• If T halts, then ACCEPT
• Crucial Point H may not halt in some cases
  because T doesnt, but if T does halt, so does H.
  So L(H) HALT.
• Hilberts 10th problem Given a polynomial
  equation (e.g. 7x2-5xy-3y22x-110, or x3y3z3),
  give an algorithm that says whether the equation
  has at least one integer solution.
• Try all possible tuples of integers.
• If one of the tuples is a solution, ACCEPT

18
Beyond Turing Computability

• Are there problems that are even harder than HALT
  i.e. that are not even Turing Computable?
• Consider the language DOESNT-HALT ltdT,tgt T
  does not halt on input t
• Result DOESNT HALT is not Turing Computable!
• Proof Suppose DOESNT-HALT was Turing computable
  and a Turing Machine DH accepts it. Let H be our
  UTM that accepts HALT.
• Define another TM D as follows On input ltdT,
  tgt
• Run H and DH simultaneously (alternate step by
  step)
• If H accepts, ACCEPT
• If DH accepts, REJECT
• Then D decides HALT! A contradiction, therefore
  DH does not exist and DOESNT-HALT is not Turing
  Computable.

19
Discussion

• THERE ARE PROBLEMS WE JUST CANT SOLVE!!!
• Software verification is impossible without
  restrictions
• You cant get around this, but you can reduce the
  pathological cases
• Be careful-- these pathological cases wont go
  away
• There are mathematical facts we cant prove
• Gödels Theorem Any arithmetic system large
  enough to contain Q (a subset of number theory)
  will contain unprovable statements
• Based on constructing the statement This
  statement is unprovable
• Uses numerical encodings of statements (called
  Gödel numbers) like those for a TM
• Any sufficiently complex system will have holes
  in it.

20
5-minute break

• Next Nondeterministic Machines, Time and Space
  Efficiency of Algorithms

21
Nondeterminism

• We have seen the limitations of sequential
  machines that transition from one state to
  another unique state at each time step.
• Consider a new model of computation where at each
  step, the machine may have a choice of more than
  one state.
• For the same input, the machine may follow
  different computational paths when run at
  different times
• If there exists any path that leads to an accept
  state, the machine is said to accept the input
• Simple Example NFA (Nondeterministic Finite
  Automata)

22
NFA Example

• Heres one example
• There is only one nondeterministic transition in
  this machine
• What strings does this machine accept?
• Are NFAs more powerful than DFAs?

23
NFAs and DFAs are equivalent!

• The models are computationally equivalent (the
  DFA has exponentially more states though in this
  sketch)
• Proof sketch
• each state of the DFA represents a subset of
  states in the NFA
• What about Nondeterministic Turing machines?

24
Nodeterministic Turing Machines (NTMs)

• NTMs may have multiple successor states, e.g.
• (q,s,q1,s1,d1) and (q,s,q2,s2,d2)
• NTMs are equivalent in computational power to
  deterministic TMs!
• Proof sketch
• Design a machine based on a Universal TM U to
  simulate NTM M
• When there is a nondeterministic transition
  (q,s,q1,s1,d1) and (q,s,q2,s2,d2),
• U alternates between simulating one computation
  path and the other (similar to breadth first
  search)
• If one of the paths halts, the U halts (with Ms
  output on its tape)
• Nondeterminism useful for time and space
  complexity issues

25
Time and Space Efficiency

• The fact that a problem is decidable doesnt mean
  it is easy to solve.
• We are interested in answering what problems
  can/cannot be efficiently solved?
• Time complexity (worst case run time) is a major
  concern
• Space complexity (maximum memory utilized) is a
  second concern
• We first need to define how to measure the time
  and space complexity of an algorithm or a TM

26
Time and Space Complexity of an Algorithm

• Example Problem DUP Given an array A of n
  positive integers, are there any duplicates?
• For example, A 34, 9, 40, 87, 223, 109, 58, 9,
  71, 8
• An easy algorithm for DUP
• for i 1 to n-1
• for j i1 to n
• if Ai Aj
• Output i and j
• Halt
• else continue
• Space complexity n 2
• Time complexity How many steps in the worst
  case?

27
Time and Space Complexity of an Algorithm

• An easy algorithm for DUP
• for i 1 to n-1
• for j i1 to n
• if Ai Aj
• Output i and j
• Halt
• else continue
• Time complexity How many steps in the worst
  case?
• Worst case last two numbers are duplicates
• Total time steps
• 1 3(n-1) 1 3(n-2) upto n-1 terms
• approximately n2
• O(n2) (on the order of n2)

28
Big O notation for expressing complexity

• A function f(n) is big O of a function g(n), i.e.
  f(n) O(g(n)), if there exists an integer N and
  constant C such that
• f(n) ? cg(n) for all n ? N
• Thus, our algorithm uses O(n) space and O(n2)
  time at worst
• Exercise Design an algorithm for DUP that uses
  O(n) space and O(n log n) time

29
Time versus Space Tradeoffs

• New Algorithm for DUP
• Idea Use Ai as index into new array B
  initialized to 0s
• for i 1 to n
• If BAi 1
• Output Ai
• Halt
• else B Ai ? 1
• Similar to detecting collisions in hashing
• Worst Case Time complexity O(n)
• Worst Case Space complexity O(2m) where m is
  the number of bits required to represent numbers
  that can potentially occur in A.

30
Polynomial Time

• DTIME(t(n)) All languages decided by a
  deterministic TM in time O(t(n))
• P ? k?1 DTIME (nk)
• Importance of P It corresponds to our notion of
  the class of problems that can be solved
  efficiently in time (runs in polynomial number of
  steps with respect to size of input)
• Example DUP is in P so is sorting.
• P for a TM ? P in most other models
• Multitape TM, different alphabet, the RAM model
• DNA Computing
• Not necessarily for nondeterministic TMs
• Not necessarily for Quantum Computers

31
The Satisfiability Problem (SAT)

• SAT Boolean formula f f is an AND of many
  ORs and there is an assignment of 0s and 1s
  that makes f true
• Example f (x1 NOT(x2) x3)(NOT(x1) x2
  x3)
• f is satisfiable x1 0, x2 0, x3 0 (or x1
  0, x2 x3 1)
• Very hard for large formulas exhaustive search
  of all assignments of n variables
• Best known algorithm runs in exponential time in
  the number of variables
• BUT once you guess an assignment, very easy to
  check
• Nondeterminism might help!

32
The Class NP

• NTIME (t(n)) All languages decided by a
  nondeterministic TM in time O( t(n))
• NP ?k?1 NTIME (nk)
• NP stands for Nondeterministic Polynomial Time
• NTM can answer NP problems in polytime
• Another definition uses the idea of a verifier
• A verifier takes a string allegedly in the
  language, along with some piece of evidence.
• Using this evidence, it verifies that the string
  is indeed in the language.
• If the string is not in the language, or if the
  evidence isnt right, it REJECTS

33
Verifiers

• A verifier for a language L is an algorithm V,
  where L w V accepts lt w,c gt for some string c
  that is evidence of ws membership in L
• We measure the time of the verifier in terms of w
  -- not c, the evidence
• The language L is polynomially verifiable if it
  has a polytime verifier
• NP is the class of languages that have polynomial
  time verifiers
• SAT Boolean formulas f f has a satisfying
  assignment
• Evidence c is an assignment of variables that
  makes f true

34
NTMs can solve NP problems using verifiers

• Say language L is in NP.
• Let V be a polytime verifier for L.
• Define Nondeterministic Turing Machine N as
  follows
• N On input w of length n
• Nondeterministically choose an evidence string
  c of polynomial length
• Run V on lt w, c gt
• If V accepts, ACCEPT
• Else, REJECT
• Note One of the choices for c will be the
  correct evidence if w is in L.

35
Exercise

• Show that the following problems are in NP
• VERTEX-COVER lt G, k gt G is an undirected
  graph that has a k-node vertex cover i.e. all
  edges are covered by at least one vertex from a
  set of k vertices
• TSP ltC,bgt there is a tour of all the
  cities in C with total length no more than b
• COMPOSITE numbers n n is composite

36
Reductions

• Basic Idea Use one problem to solve another
• Problem A is reducible to problem B if you can
  transform any instance of problem A to an
  instance of problem B and solve problem A by
  solving problem B
• Example
• Language ACC ltdT ,tgt T is a TM that accepts
  input t
• HALT ltdT,tgt T halts on input t (Let H
  decide HALT)
• ACC is reducible to HALT On input lt dT, t gt,
• Run H on input lt dT, t gt.
• If H rejects (T does not halt on t), then REJECT
• Else, simulate T on input t.
• If T accepts, ACCEPT
• If T rejects, REJECT
• We have solved ACC using an algorithm H for HALT

37
NP Hard, NP Complete

• A problem is NP hard if solving it means we can
  solve every problem in NP
• Specifically, there is a polynomial time
  reduction from every problem in NP to the NP hard
  problem
• Note By this definition, a problem is NP-hard if
  there is a polynomial time reduction from a known
  NP-hard problem to the given problem (easier to
  show)
• A problem is NP complete if it is NP hard and in
  NP
• These problems epitomize the class NP (i.e. they
  are the hardest problems in NP)

38
Importance of NP completeness

• A large number of problems in optimization,
  engineering, computer science and mathematics are
  known to be NP complete, including problems in
  compiler optimization, scheduling, etc.
• No one has found an efficient (polynomial time)
  algorithm for any NP complete problem
• If someone finds a polynomial time algorithm for
  any one NP complete problem, then we can solve
  all NP complete problems (and all problems in NP)
  efficiently in polynomial time.

39
The Graph of NP Complete Problems

40
Cook-Levin Theorem SAT is NP complete

• Cook and Levin independently proved that SAT is
  NP complete
• Proof involves constructing a very large Boolean
  formula that captures the operation of a
  nondeterministic TM N that runs in polynomial
  time and solves a problem A in NP
• The large formula takes into account
• Basic facts such as N can be in only one state q
  at any time t, a tape cell can only contain 1
  symbol, read/write head is scanning 1 cell etc.
• e.g. S(t,q) ? S(t,q) for all q ? q and for t
  0, 1, , nk
• Initial and final conditions after nk steps have
  been executed
• Ns program i.e. list of quintuples

41
Cook-Levin Theorem SAT is NP complete

• Crucial facts
• It takes only a polynomial amount of time to
  generate the Boolean formula for any NTM
• The Boolean formula limits the NTM to behaving
  just as it should
• Thus, the constructed formula is satisfiable if
  and only if the NTM halts in nk time steps and
  outputs a Yes on its tape (which means the
  original NP problem has the answer Yes for the
  given input)
• We have thus shown that any NP problem is
  polynomial time reducible to SAT i.e. SAT is NP
  complete
• Now, suppose you have a new problem you suspect
  is NP complete to show that it is, just reduce
  SAT to the problem!

42
Proving NP completeness via Reductions

• VERTEX-COVER lt G, k gt G is an undirected
  graph that has a k-node vertex cover
• Vertex cover is a subset of nodes such that every
  edge in the graph touches at least one node in
  the cover
• Show that VERTEX-COVER is NP complete
• Proof
• Show that VERTEX-COVER is in NP
• Show that SAT is polytime reducible to
  VERTEX-COVER

43
PSPACE

• DSPACE(s(n)) is the set of languages that can be
  decided using no more than O(s(n)) cells of the
  tape.
• PSPACE ? k?1 DSPACE (nk)
• We can reuse space, but not time.
• Is PSPACE as big as NP? (Homework problem)
• We are asking if NP problems can be solved by
  PSPACE machines
• (Hint Try all possibilities for a solution
  (exhaustive search) and figure out how much space
  you really need for simulating the NP machine).

44
General Issues Applicability

• Issues to think about as we examine other models
• How do the time and space bounds apply?
• DNA computing is massively parallel - but only so
  big
• same with neural systems
• Quantum Computers?
• Do the decidability results really apply?
• Approximate solutions may suffice for many ill
  defined questions in
• vision
• speech understanding, speech production
• learning
• navigation/ movement

45
General Issues Representation

• Does the TM model apply to neural computing?
• Neurons compute using distributed signals and
  stochastic pulses
• Is thinking about symbol processing the wrong way
  to think about neural systems?
• Could some other model (e.g. probabilistic
  computing) provide us with a way to describe
  neural processing?
• How useful is the TM model in capturing the
  abstract computations involved in DNA computing
  and Quantum computing?
• Keep these questions in mind as we explore
  alternative computing paradigms

46
Summary and where we are headed

• We asked What functions are computable?
• Are there functions that no algorithm (or Turing
  machine) can ever compute? (Yes)
• We asked What functions are tractable?
• Formalized the notion of P as the class of
  problems with time-efficient solutions
• Lots of problems are NP complete with no fast
  algorithms known
• Big question Is P NP?
• We are now ready to explore
• How digital computers embody the theory we have
  discussed
• How problems that are hard to solve on digital
  computers may be solved more efficiently using
  alternative computing methods such as DNA,
  neural, or Quantum Computing.

47
Next Week Digital Computing

• We will see how a hierarchical approach allows us
  to build a general purpose digital computer (a
  finite state automaton)
• Transistors ? switches ? gates ? combinational
  and sequential logic ? finite-state behavior ?
  register-transfer behavior ?
• The physical basis is silicon integrated-circuit
  technology
• Guest Lecture by Chris Diorio on IC technology
  (first hour or so)
• We will discuss the theory and practice of
  digital computing, and end by examining their
  future Moores law and semiconductor scaling in
  the years to come.

48
Things to do this week

• Finish Homework Assignment 1 (due next class
  1/18)
• Read the handouts and Feynman chapters 1, 2, and
  7
• Have a great weekend!
