Data Mining Concepts and Research Trends

1

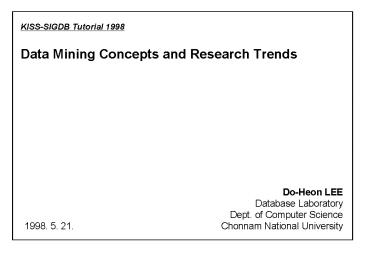

Data Mining Concepts and Research Trends
KISS-SIGDB Tutorial 1998
Do-Heon LEE Database Laboratory Dept. of Computer
Science Chonnam National University
1998. 5. 21.
2
Table of Contents

• Definition and Motivation of Data Mining
• Classification of Data Mining Techniques
• Mining Association Rules
• Attribute Dependencies
• Database Summarization
• Data Mining Projects
• DBMiner/GeoMiner/WebMiner
• MineSet
• Data Mining and Data Warehousing
• References

3
Definition of Data Mining

• Data mining is the
• nontrivial extraction of
• implicit, beyond databases and catalogs
• previously unknown, and exclude well-known
  knowledge
• potentially useful information
  application-dependent usefulness
• from large volume of performance perspective
• actual data . missing, erroneous data
• Some counter examples
• The 3th attribute of table EMP is SALARY.
• Explicit information in the DB catalog
• Most of college students have been graduated from
  high schools.
• Well-known information, common sense

4
Motivation of Data Mining Research
Growing reliance on database systems
Database operational data collection useful
resource reflecting domain characteristics
Fast advance of database system technology
Increasing volume of data stored in databases
Mining databases for useful knowledge that can be
exploited in decision making
5
Comparison with Machine Learning
Data Mining Dynamic data Errorneous
data Uncertain data Missing data Coexistence
of irrelvant data Immense size Structured data
Machine Learning Static data Error-free
data Exact data No missing data Only relevant
data Moderate size Flat collection of data

• Data mining is an actual application of machine
  learning methodologies.

6
Classification of Data Mining Techniques

• On knowledge types to be discovered
• Characterization generalized description of
  data characteristics
• Classfication description of discriminating
  characteristics
• Clustering grouping data having common
  properties
• Association co-occurence relationships among
  multiple events
• Trend analysis characterize evolution trend
  of temporal data
• Pattern analysis find specified patterns in
  large DBs
• Types of mining targets are continuously evolved
• according to emerged application demands. ( cf.
  SQL evolution )
• On database types to be mined
• relational, transactional, object-oriented,
  temporal, multi-media etc ..
• On techniques adopted
• statistics, symbolic learning, neural networks,
  visualization etc..

7
Association Rules Definition and Applications

• QUEST project at IBM Almaden Research Center
• Association rules ( among items )
• Given a collection of transactions each of which
  is item-1, ..., item-n ,
• an association rule has a form of
• item-11, item-12, ... , item-1m --gt
  item-21, item-22, ... , item-2k
• antecedent items
  consequence items
• The existence of an item(or items) implies the
  existence of other item(s) in the same
  transaction.

In a POS(Point-Of-Sales) data set, 10/15/1301
coke, bread, hamburger 10/15/1421 coke,
hamburger , juice 10/15/1425 milk, sandwich,
juice 10/15/1513 sandwich, milk, juice,
bread 10/15/1631 hamburger, juice,
coke .....
association rules
decision making for shelf layout design, direct
mailing, etc ...
hamburger --gt coke sandwich, juice --gt
milk

• Customer usage patterns in public communication
  services
• Fault co-occurence analysis in complex systems

8
Association Rules Usefulness Measures

• Two measures for identifying useful association
  rules
• support statistical significance - the
  fraction of transactions containing all items
• confidence rule strength - the fraction of
  transactions containing consequence items to
•
  transactions containing antecedent items

hamburger o o x x o o o o o x 7
coke o o x x o o o x x o 6
both o o x x o o o x x x 5
coke, bread, hamburger coke, hamburger ,
juice milk, sandwich, juice sandwich,
milk, juice, bread hamburger, juice, coke
coke, bread, hamburger coke, hamburger ,
juice hamburger, juice milk, hamburger,
sweater coke, milk, juice
For an assoication rule coke --gt hamburger
, support 5 out of 10 50 confidence 5
out of 6 83
9
Association Rules Mining Procedures
The first phase finding frequent item-sets (
high support ) the threshold value for support
is given as 40
coke, bread, hamburger coke, hamburger ,
juice milk, sandwich, juice sandwich,
milk, juice, bread hamburger, juice, coke
coke, bread, hamburger coke, hamburger ,
juice hamburger, juice milk, hamburger,
sweater coke, milk, juice coke, juice
coke, sweater
coke 8 bread 3 hamburger 7 juice
8 milk 4 sandwich 2 sweater 2
coke, hamburger 5 coke, juice
5 hamburger, juice 4
coke, hamburger, juice 2
The second phase finding strong associations
(high confidence) the threshold value for
confidence is given as 70

• Blind search 2N candidates
• AIS basic algorithm
• SETM sort-merge algorithm
• Apriori tree-structured candidate sets
• AprioriTid temprary table generation
• Partition partitioned mining
• DHP hash-based algorithm

coke --gt hamburger 5 out of 8 62.5
hamburger --gt coke 5 out of 7 71
coke --gt juice 5 out of 8
62.5 juice --gt coke 5 out of 8
62.5
10
Sequential Patterns
CID 1 1 2 2 2 3 4 4 4 5
Time 95/06/25 95/06/30 95/06/10 95/06/15 95/06/2
0 95/06/25 95/06/25 95/06/30 95/07/25 95/06/12
Items 30 90 10,20 30 40,60,70 30,50,70 30 40,7
0 90 90
CID 1 2 3 4 5
Sequence lt(30) (90)gt lt(10,20) (30)
(40,60,70)gt lt(30,50,70)gt lt(30) (40,70)
(90)gt lt(90)gt
Maximal sequential patterns with support gt 25
lt(30) (90)gt lt(30) (40,70)gt
11
Telecommunication Network Diagnosis
node-A
node-B
time 30 min
(C, 123 )
( F, 678 )
(E, 256 )
node-C
node-F
node-D
Co-occurence of 123 alarm in C and 256 alarm in
E implies 678 alarm in F in 30 minintes.
node-E
node-I
node-G
node-H
12
Attribute Dependencies

• Given attributes A1, A2, ..., Am
• f(A1, A2, ..., Am, a set of constants) gt
•
  g(A1, A2, ... Am, a set of constants)
• where f and g are arbitrary (boolean)
  functions.
• e.g. (A1 c1 and A2 c2) then (A3 c3 and
  A4 c4)
• Intractable problems because the number of
  possible functions and constants are potentially
  infinite.
• Thus, several constraints are given to make them
  tractable in actual domains.
• e.g. LHS is a conjuction of simple
  predicates and RHS is an assertion of
  classification --gt Classification problem

13
Classification

• Symbolic classification rules(e.g. decision
  trees)
• The most well-studied area among inductive
  learning problems.

A1
A1 A2 C a d 1 a e 2 b f 3 b g 3
a
b
A2
d
e
1
2
3

• Neural network approach
• Weight values in edges --gt symbolic description
  of classification rules
• Still far from a practical solution lt-- too
  costly learning time
• Suitable for single-learning/multiple-runs
  problems

14
Bottom-Up Summarization

• DBLEARN project at J.Han's Lab., Simon Fraser
  Univ., Canada

Name Lee Kim Yoon Park Choi Hong
Major music physics math painting computing stati
stics
Birth_Place Kwangju Sunchon Mokpo Yeosu Taegu Suw
on
GPA 3.4 3.9 3.7 3.4 3.8 3.2
vote 1 1 1 1 1 1
Major art science science art science science
Birth_Place Chunnam Chunnam Chunnam Chunnam Kyung
buk Kyonggi
GPA good execellent execellent good execellent go
od
vote 1 1 1 1 1 1
Major art science science science
Birth_Place Chunnam Chunnam Kyungbuk Kyonggi
GPA good execellent execellent good
vote 2 2 1 1
attribute-oriented substitution
merging redundant records
Domain Knowledge
15
Top-Down Summarization

• CLEVER system at DB Lab. KAIST

Table to be summarized
user's selection
tSD 0.4
lt w, w gt 1.000
PROGRAM vi emacs word gcc tetris
USER John Tom Lee Park Yang
lt engineering, w gt 0.833
lt w, developer gt 0.800
lt w, marketer gt 0.411
lt engineering, developer gt 0.700
lt w, programmer gt 0.589
Fuzzy set hierarchies
PROG_01
USR_01
lt editor, developer gt 0.489
lt engineering, programmer gt 0.522
lt editor, programmer gt 0.456
16
Data Mining Projects

• QUEST IBM Almeden Research Center
• a common set of operations in a unified framework
• classfication, association etc..
• KDW(Knowledge Discovery Workbench) GTE
  Laboratory Inc.
• focus on architectural issues of data mining
  system
• clustering, classification, summarization,
  deviation detection etc
• IMACS(Intelligent Market Analysis and
  Classification System) ATT Bell Lab
• focus on human interaction on data mining
• data archaeology
• CoverStory Information Resources Incorporated
• summarization on supermarket scanner data
• DBMiner/GeoMiner/WebMiner Simon Fraser Univ.
• MineSet Silicon Graphics Inc.

17
DBMiner

• DBMiner Research Group in Simon Fraser Univ.,
  Canada
• DMQL a SQL-like Data Mining Query Language
• Data structures Generalized relations,
  multi-dimensional data cube

18
DBMiner(contd)

• Functions
• Characterizer the general characteristics of a
  set of user-specified data
• attribute-oriented induction
• eg. Cold(x) gt headache(x) and cough(x)
• eg. Fever(x) gt headache(x) and
  low-leucocyte-count(x)
• Discriminator features that distinguish the
  target class from constrasting classes
• eg. Low-leucocyte-count(x) gt Fever(x)
• Classifier generalization-based decision tree
  induction
• Association rule finder multi-level association
  rules
• Meta-rule guided miner confine the search to
  specific forms of rules
• eg. Meta-rule major(s student, x) and p(s, y)
  gt GPA(s, z)
• Predictor predict the possible values for
  missing data, after factor analysis
• eg. An employees potential salary can be
  predicted based on the salary distribution of
  similar employees in the company
• Data evolution evaluator
• eg. Growth patterns of certain stocks
• Deviation evaluator
• eg. A set of stocks whose growth patterns deviate
  from the major trend.

19
GeoMiner/WebMiner

• GeoMiner with GMQL(Geo-Mining Query Language)
• An extension of DBMiner for spatial data mining
• Modules
• Geo-characterizer
• eg. Given spatial hierarchies of Western Canada,
  discover general weather patterns according to
  region partitions
• Geo-comparator( discriminator)
• eg. The differences in weather patterns between
  British Columbia and Alberta
• Geo-associator
• WebMiner with WebQL
• It finds resources in the internet related to a
  specific topic
• eg. What is the most popular document about data
  mining in terms of number of accesses
• cf. WEB traversal pattern discovery(by Chen, Park
  and Yu, 1996)
• eg. If a user visits h1 gt h2 gt h5 then he/she
  is apt to visit h8 gt h11

20
MineSet

• Developed by Silicon Graphics Inc.
• Combine intelligent data mining algorithms and
  multidimensional data visualization techniques
• Association rule generator/rule visualizer
• Classification tools
• MLC based classification modules
• Decision tree inducer
• Option tree inducer
• Evidence classifier inducer
• Decision table inducer
• Tree/evidence visualizers
• Map visualizer spatial data analysis
• Clustering module
• Regressin tree inducer predict unknown values

21
Rule Visualizer of MineSet
Cited from the Silicon Graphics Inc. Home Pages
22
Decision Tree Visualizer of MineSet
Cited from the Silicon Graphics Inc. Home Pages
23
Map Visualizer of MineSet
Cited from the Silicon Graphics Inc. Home Pages
24
Two Perspectives on Data Mining

• AI practitioners perspective
• Extensions of machine learning technology
• Focus on sophisticated measures and theories
  rather than efficiency improvement
• DB practitioners perspective
• Application of machine learning paradigms to
  massive and actual data management problems
• A suggestion as a DB practitioner
• First step Blindly search possible knowledge
  gt Data Mining
• There is no guru who could guide the search
  directions.
• No available heuristics Rather ignore
  heuristics for unknown patterns.
• Second step Validate the discovered rough
  knowledge in detail

25
Data Mining and Data Warehousing
Process-oriented
Data Mining
Metadata
Subject-oriented
Relational DB-1
Data mart-1
Relational DB-2
Data warehouse builder/ manager
Data mart-2
Object-oriented DB-1
Data warehouse
Data mart-3
Object-oriented DB-2
Data mart-4
Legacy DB-1
Data mart-5
File system-1
Operational Data
Data for Decision Support
26
Research Issues

• Looking for useful mining targets
• Associations, characteristic rules,
  classification, clustering
• Functional dependency, regression trees
• Similar sequential patterns/time series
• Variations of association rules
• Alternatives for simple support and confidence
  measures
• Generalized/multilevel association rules
• Performance enhancement for association rule
  discovery
• System implementation issues
• Identify core functions(eg. A tightly-coupled
  architectureMEO98, MLC)
• Elicit common DBMS requirements for various data
  mining tasks
• Integration with relational databases and/or
  multi-dimensional databases
• Data/knowledge visualization
• Extended query language or extened CLI eg. DMQL
• And so on ...

27
References

• Data Mining General
• FRW91 W. J. Frawley, G. Piatetsky-Shapiro and
  C. J. Matheus, Knowledge Discovery in Databases
  An Overview, Knowledge Discovery in Databases,
  G. Piatetsky-Shapiro and W. J. Frawley Ed., AAAI
  Press, 1991, pp. 1-27
• AGR93a R. Agrawal, T. Imielinski and A. Swami,
  Database Mining A Performance Perspective,
  IEEE Trans. on Knowledge and Data Enginieering,
  Vol. 5, No. 6, 1993, pp. 914-925
• MAT93 C. J. Matheus, P. Chan and G.
  Piatetsky-Shapiro, Systems for Knowledge
  Discovery in Databases, IEEE TKDE, Vol. 5, No.
  6, 1993, pp. 903-913
• HOL94a M Holsheimer and A. Siebes, Data Mining
  The Search for Knowledge in Databases, Report
  CS-R9406, ISSN 0169-118X, CWI(Centrum voor
  Wiskunde en Informatica), The Netherland, 1994
• Association Rules
• AGR93b R. Agrawal, T. Imielinski and A. Swami,
  Mining Associations between Sets of Items in
  Massive Databases, Proc. ACM SIGMOD, Washington
  D.C., May 1993
• AGR94 R. Agrawal and R. Srikant, Fast
  Algorithms for Mining Association Rules in Large
  Databases, Proc. VLDB, Santiago, Sep. 1994, pp.
  487-499
• KLE94 M. Klemettien, H. Mannila, P. Ronakainen,
  H. Toivonen and A. Verkamo, Finding Interesting
  Rules from Large Sets of Discovered Association
  Rules, Proc. CIKM, Gaithersburg, Nov. 1994, pp.
  401-407

28
References(Contd)

• HOT95 M. Houtsma and A. Swami, Set-Oriented
  Mining for Association Rules in Relational
  Databases, Proc. ICDE, Taipei, Mar. 1995, pp.
  25-33
• SAV95 A. Savasere, E. Omiecinski, S. Navathe,
  An Efficient Algorithm for Mining Association
  Rules in Large Databases, Proc. VLDB, Zurich,
  Sep. 1995, pp. 432-444
• SRI95 R. Srikant and R. Agrawal, Mining
  Generalized Association Rules, Proc. VLDB,
  Zurich, Sep. 1995, pp. 407-419
• HAN95 J. Han and Y. Fu, Discovery of
  Multiple-level Association Rules from Large
  Databases, Proc. VLDB, Zurich, Sep. 1995, pp.
  420-431
• PAR95a J. -S. Park and Y. Fu, An Efficient
  Hash Based Algorithm for Mining Association
  Rules, Proc. SIGMOD, 1995, pp. 175-186
• PAR95b J. -S. Park, M. -S. Chen and P. S. Yu,
  Efficient Parallel Data Mining for Association
  Rules, Proc. CIKM, 1995
• SRI96 R. Srikant and R. Agrawal, Minining
  Quantitative Association Rules in Large
  Relational Tables, Proc. SIGMOD, Quebec, Jun.
  1996, pp. 1-12
• FUK96 T. Fukuda, Y. Morimoto, S. Morishita and
  T.Tokuyama, Data Mining Using Two-Dimensional
  Optimized Association Rules Scheme, Algorithms,
  and Visualization, Proc. SIGMOD, Quebec, Jun.
  1996, pp. 13-23
• CHE96 D. Cheung, J. Han, V. Ng and C.Wong,
  Maintenance of Discovered Association Rules in
  Large Databases An Incremental Updating
  Technique, Proc. ICDE, New Orleans, Feb. 1996,
  pp. 106-114

29
References(Contd)

• BRI97a S. Brin, R. Motwami, J. Ullman and S.
  Tsur, Dynamic Itemset Counting and Implication
  Rules for Market Basket Data, Proc. SIGMOD,
  1997, pp. 255-264
• BRI97b S. Brin, R. Motwami and C. Silverstein,
  Beyond Market Baskets Generalizing Association
  Rules to Correlations, Proc. SIGMOD, 1997, pp.
  265-276
• HAN97 E. H. Han, G. Karypis and V. Kumar,
  Scalable Parallel Data Mining for Association
  Rules, Proc. SIGMOD, 1997, pp. 277-288
• AGG98 C. C. Aggarwal and P. S. Yu, Online
  Generation of Association Rules, Proc. Intl
  Conf. on Data Engineering, 1998, pp. 402-411
• OZD98 B. Özden, S. Ramaswamy and A.
  Silberschatz, Cyclic Association Rules, Proc.
  Intl Conf. on Data Engineering, 1998, pp.
  412-423
• LIN98 J. -L. Lin and M. H. Dunham, Mining
  Association Rules Anti-Skew Algorithms, Proc.
  Intl Conf. on Data Engineering, 1998, pp.
  486-493
• SAV98 A. Savasere, E. Omiecinski ans S.
  Navathe, Mining for Strong Negative Associations
  in a Large Database of Customer Transactions,
  Proc. Intl Conf. on Data Engineering, 1998, pp.
  494-502
• RAS98 R. Rastogi and K. Shim, Mining Optimized
  Association Rules with Categorical and Numeric
  Attributes, Proc. Intl Conf. on Data
  Engineering, 1998, pp. 503-513

30
References(Contd)

• Characterization
• HAN91 Y. Cai, N. Cercone and J. Han,
  Attribute-Oriented Induction in Relational
  Databases, Knowledge Discovery in Databases, G.
  Piatetsky-Shapiro and W. Frawley Ed., AAAI Press,
  1991, pp. 213-228
• HAN92a J. Han, Y. Cai and N. Cercone,
  Knowledge Discovery in Databases An
  Attribute-Oriented Approach, Proc. VLDB, 1992,
  pp. 547-559
• HAN92b J. Han, Y. Cai, N. Cercone and Y. Huang,
  DBLEARN A Knowledge Discovery System for Large
  Databases, Proc. CIKM, 1992, pp. 473-481
• HAN93 J. Han, Y. Cai and N. Cercone,
  Data-Driven Discovery of Quantitative Rules in
  Relational Databases, IEEE TKDE, Vol. 5, No. 1,
  Feb. 1993, pp. 29-40
• LEE94 D.-H. Lee and M. H. Kim, Discovering
  Database Summaries through Refinements of Fuzzy
  Hypotheses, Proc. ICDE, Houston, Feb. 1994, pp.
  223-230
• LEE97 D.H. Lee and M.H. Kim, "Database
  Summarization Using Fuzzy ISA Hierarchies", IEEE
  Transactions on Systems, Man and Cybernetics,
  Vol.27, No.4, August 1997, pp. 671-680

31
References(Contd)

• Sequential Patterns
• ARG93c R. Agrawal, C. Faloutsos and A. Swami,
  Efficient Similarity Search in Sequence
  Databases, Proc. the 4th Intl Conf. on
  Foundations of Data Organization and Algorithms,
  Chicago, Oct 1993
• FAL94 C. Faloutsos, M. Ranganathan and Y.
  Manolopoulos, Fast Subsequence Matching in
  Time-Series Databases, Proc. SIGMOD,
  Minneapolis, May. 1994, pp. 419-429
• AGR95a R. Agrawal and R. Srikant, Mining
  Sequential Patterns, Proc. ICDE, Taipei, Mar.
  1995, pp. 3-14
• AGR95b R. Agrawal, K.Lin, H. Sawhney and K.
  Shim, Fast Similarity Search in the Presense of
  Noise, Scaling, and Translation in Time-Series
  Databases, Proc. VLDB, Zurich, Sep. 1995, pp.
  490-501
• AGR95c R. Agrawal, G. Psaila, E. Wimmers and M.
  Zait, Querying Shapes of Histories, Proc. VLDB,
  Zurich, Sep. 1995, pp. 502-514
• HAT96 K. Hatonen, M. Klemettinen, H. Mannila,
  P. Ronkainen and H. Toivonen, Knowledge
  Discovery from Telecommunication Network Alarm
  Databases, Proc. ICDE, New Orleans, Feb. 1996,
  pp. 115-123
• SHA96 H. Shatkay and S.Zdonik, Approximate
  Queries and Representations for Large Data
  Sequences, Proc. ICDE, New Orleans, Feb. 1996,
  pp. 536-545
• LI96 C. Li, P. Yu and V. Castelli,
  HierarchyScan A Hierarchical Similarity Search
  Algorithm for Databases of Long Sequences, Proc.
  ICDE, New Orleans, Feb. 1996, pp. 546-555
• CHE96 M. -S. Chen, J. S. Park and P. S. Yu,
  Data Mining for Path Traversal Patterns in a Web
  Environment, Proc. ICDCS, 1997, pp. 385-392
• SHA97 J. Shafer and R. Agrawal, Parallel
  Algorithms for High-Dimensional Proximity Joins,
  Proc. VLDB, 1997, pp. 176-185

32
References(Contd)

• Classification/Clustering
• QUI89 J. Quinlan and R. Rivest, Inferring
  Decision Trees Using the Minimum Description
  Length Principle, Information and Computation,
  Vol. 80, 1989, pp. 227-248
• YAS91 R. Yasdi, Learning Classification Rules
  from Database in the Context of Knowledge
  Acquisition and Representation, IEEE TKDE, Vol.
  3, No. 3, Sep. 1991, pp. 293-306
• CHA91 K. Chan and A. Wong, A Statistical
  Technique for Extracting Classificatory Knowledge
  from Databases, Knowledge Discovery in
  Databases, G. Piatetsky-Shapiro and W. Frawley
  Ed., AAAI Press, 1991, pp. 107-123
• UTH91 R. Uthursamy, U. Fayyad and S. Spangler,
  Learning Useful Rules from Inconclusive Data,
  Knowledge Discovery in Databases, G.
  Piatetsky-Shapiro and W. Frawley Ed., AAAI Press,
  1991, pp. 141-157
• ZIA91 W. Ziarko, The Discovery, Analysis and
  Representation of Data Dependencies in
  Databases, Knowledge Discovery in Databases, G.
  Piatetsky-Shapiro and W. Frawley Ed., AAAI Press,
  1991, pp. 195-209
• PIA91 G. Piatetsky-Shapiro, Discovery,
  Analysis and Presentation of Strong Rules,
  Knowledge Discovery in Databases, G.
  Piatetsky-Shapiro and W. Frawley Ed., AAAI Press,
  1991, pp. 229-248
• MAN91 M. Manago and Y. Kodratoff, Induction of
  Decision Trees from Complex Structured Data,
  Knowledge Discovery in Databases, G.
  Piatetsky-Shapiro and W. Frawley Ed., AAAI Press,
  1991, pp. 289-306

33
References(Contd)

• SMY92 P. Smyth and R. Goodman, An Information
  Theoretic Approach to Rule Induction from
  Databases, IEEE TKDE, Vol. 4, No. 4, Aug. 1992,
  pp. 301-316
• WAN92 L. Wang and J. Mendel, Generating Fuzzy
  Rules by Learning from Examples, IEEE TSMC, Vol.
  22, No. 6, Nov. 1992, pp. 1414-1427
• AGR92 R. Agrawal, S. Ghosh, T. Imielinski, B.
  Iyer and A. Swami, An Interval Classifier for
  Database Mining Applications, Proc. VLDB,
  Vancouver, Aug. 1992, pp.207-216
• LU95 H. Lu, R. Setiono and H. Liu, NeuroRule
  A Connectionist Approach to Data Mining, Proc.
  VLDB, Zurich, Sep. 1995, 478-489
• HON91 J. Hong and C. Mao, Incremental
  Discovery of Rules and Structure by Hierarchical
  and Parallel Clustering, Knowledge Discovery in
  Databases, G. Piatetsky-Shapiro and W. Frawley
  Ed., AAAI Press, 1991, pp. 177-194
• NG94 R. Ng and J. Han, Efficient and Effective
  Clustering Methods for Spatial Data Mining,
  Proc. VLDB, 1994, pp. 144-155
• XU98 X. Xu, M. Ester, H. -P. Kriegel and J.
  Sander, A Distribution-Based Clustering
  Algorithm for Mining in Large Spatial Databases,
  Proc. Intl Conf. on Data Engineering, 1998, pp.
  324-333

34
References(Contd)

• System Implementations
• SEL96 P.Selfridge, D.Srivastava and L. Wilson,
  IDEA Interactive Data Exploration and
  Analysis, Proc. SIGMOD, Quebec, Jun. 1996, pp.
  24-34
• MEO98 R. Meo, G. Psalia and S. Ceri, A
  Tightly-Coupled Architecture for Data Mining,
  Proc. Intl Conf. on Data Engineering, 1998, pp.
  316-323
• HAN96 J. Han et. al., DBMiner A System for
  Mining Knowledge in Large Relational Databases,
  Proc. KDD, 1996
• HAN97 J. Han et. al., GEOMiner A System
  Prototype for Spatial Data Mining, Proc. SIGMOD,
  1997
• HAN98 WebMiner A Resource and Knowledge
  Discovery System for the Internet,
  http//db.cs.sfu.ca/WebMiner/
• KOH96 R. Kohavi et. al., Data Mining Using
  MCL A Machine Learning Library in C, Proc.
  Tools with AI, 1996, pp. 234-245
• HAL98 C. Hall ed., MineSet 2.0 for Data Mining
  and Multidimensional Data Analysis,
  http//www.cgi.com/Products/software/MineSet/DMStr
  ategies/index.html
