MINE LIFE CYCLE, DOWNSTREAM PROCESSING, AND SUSTAINABILITY

1

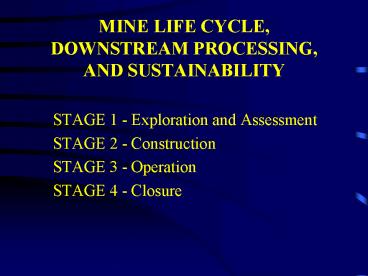

MINE LIFE CYCLE, DOWNSTREAM PROCESSING, AND
SUSTAINABILITY

• STAGE 1 - Exploration and Assessment
• STAGE 2 - Construction
• STAGE 3 - Operation
• STAGE 4 - Closure

2
MINE LIFE CYCLE, DOWNSTREAM PROCESSING, AND
SUSTAINABILITY

• STAGE 1 - Exploration and Assessment (1-10 years)
• Exploration - Geophysics
• Exploration - Drilling (1/10)
• Geology - Analytical and Mineralogical Assessment
• Economic Feasibility Assessment (1/10)
• Orebody Modeling (1/10)
• Mine Planning and Metallurgical Testwork

3
3-D Orebody Model for Mine Planning

• INCO's Research Mine at Sudbury, Ontario

4
Underground LHD
Campbell Mine, Ontario
5
Remote-LHD
Olympic Dam Mine, Australia
6
Mine Life Cycle (continued)

• STAGE 2 Construction (0.5-2 years )
• Mine
• Shaft-sinking tunnel/stope development (U/G)
• Adit tunnel/stope development (mountain-top)
• Top soil removal, key-cut, haul road development
  (Open-Pit)
• Plant
• Site Preparation, Foundations, Construction of
  buildings
• Procurement and Installation of Equipment
• Waste and Tailing Disposal
• Site Selection and Preparation
• Construction of Initial Coffer Dam for tailing
  disposal

7
Open Pit Mining
Shovel Loading - Porgera Mine, Papua New Guinea
8
Strip Mining
Coal Mine Shovel-Truck Operation
9
200 T Haulage Truck
10
Open Pits are Colorful
Florida Phosphate Mining
11
Diamond Pipe Deposit
12
Ekati Diamond Mine
Kimberlite Pipe Deposit
13
What its all about at Ekati!
Diamonds are forever!
14
Canadian Diamonds
15
Polar Diamond Certificate
16
Ekati's Polar Diamond
17
Open Pit Mine
Bingham Canyon Mine
18
Mill Complex
Bingham Canyon Mill
19
Secondary Crushing Plant
20
Grinding Mills
Bingham Canyon Grinding Mills
21
Grinding Mills
22
Mill Control Room
Carlin Mine, Nevada
23
Mine Life Cycle (continued)

• STAGE 3 - Operation ( 3 - 400 years )
• Mine
• Blast, Load, Haul, Dump
• Transport (hoist, convey, truck, rail), Stockpile
• Safely Store Waste (on site or in-mine)
• Mill
• Crush, Grind (comminution)
• Physical Separation (maybe chemical)
  (beneficiation)
• Thicken and Filter (dewater)
• Safely Store Tailing

24
Mine Life Cycle (continued)

• STAGE 3 - Operation ( 3 - 400 years )
• Waste Disposal
• Dump
• Contour, Spread top soil
• Hydro-seed and plan for final drainage
• Tailing Disposal
• Plan for Lifts as Tailing Dam builds
• Control Water Levels
• Recover water for recycle
• Revegetate dam walls

25
Tailing Dam Reclamation
26
Revegetation
Hydro-Seeding a Waste Dump
27
Mine/Mill Complex
Musslewhite Mine, Ontario
28
Downstream Processing

• Mine/mill complex
• produces ore or concentrate or unrefined
  metal/product
• product transported by airplane, rail, truck or
  ship to smelter or refinery
• if leaching is used at mine/mill, unrefined
  metal or final product is produced
• Smelting
• pyrometallurgical processing (multi-stage)
• roasting to partially remove/control sulfur
  content
• melting to separate oxides from sulfides (flux
  and slag)
• oxidation to remove sulfur and iron
• need SO2 control and slag disposal system

29
Downstream Processing

• Leaching
• hydrometallurgical processing
• vat leach, agitation leach, heap leach, in-situ
  leach
• Pressure Oxidation or Biological Leaching
• solid/liquid separation or ion adsorption process
• solution purification (solvent extraction/ion
  exchange)
• need residue disposal method (dewatering/storage)

• Refining
• electrometallurgical processing
• electrowinning to recover metals from solution
• electrorefining to purify unrefined metal
• treatment of slime deposits for PMs recovery

30
Copper Ores Concentrating

• Simplest Copper Flotation Circuit

31
Copper Ores Concentrating

• Copper Oxide Processing to final metal

32
Heap Leach Operation
Installing a Plastic Membrane Liner
33
Zaldivar Copper Heap Leach
34
Copper Downstream Processing

• Kidd-Creek Smelter flowsheet

35
Copper Anode Casting Wheel
36
Downstream Processing

• Nickel
• Typical Mine/Mill Treatment

37
Downstream Processing

• Nickel
• Matte Separation processing

38
Chuquicamata Mine/Mill/Smelter
39
Downstream Processing

• Bauxite
• Al2O3 production

40
Downstream Processing

• Phosphate ore processing

41
Downstream Processing

• Uranium Ore processing

42
Uranium Mines - Australia
43
Uranium Resources
44
Copper-Uranium Ore
Olympic Dam Mine, Australia
45
Olympic Dam Refinery, Australia
46
Olympic Dam Refinery, Australia
47
Downstream Processing

• Gold processing options

48
Gold Flakes
49
Gold Panning
50
Gold Flakes
51
Grinding and Cyanide Leaching
Musslewhite Mine, Ontario
52
Smelting Gold
Campbell Mine, Ontario
53
Pouring Slag
Musslewhite Mine, Ontario
54
Pouring Gold Bullion Bars
55
What its all about!
Gold Bullion
56
Samarco Iron Ore Flowsheet
57
Samarco Iron Ore Concentrator
58
Samarco Iron Ore Pipeline
59
Iron Ore Pellets
Malmberget, Norway
60
Downstream Processing

• Coal processing

61
Downstream Processing

• Coal processing

62
Downstream Processing

• Coal processing

63
Downstream Processing

• Coal processing

64
Downstream Processing

• Coal processing

65
Mine Life Cycle (continued)

• STAGE 4 - Closure( 1 - 20 years )
• Mine
• Flood Pit
• Seal Underground workings
• Long-term Acid Rock Drainage plan for waste dumps
• Mill
• Salvage Equipment
• Raze Buildings
• Contour and reseed site
• Long-term ARD plan for tailing dam

66
Sustainability

• Important Factors
• Technical
• Economic
• Social/Political
• Environmental
• Past mining activities focused on only the first
  two
• The latter two have now become equally, if not
• more important

67
Sustainability

• A Mine must plan for closure before it starts up
• A mining company must always consider local
  communities in all parts of the world
• As an industry, we must find ways to enhance our
  image and to influence government decision-making
• Future methods must reduce the footprint of
  mining
• no more open pits
• waste returned to the mine
• processing at the face
• robotics and remote-mining systems

68
Sustainability

• The BC Mining Industry must encourage its members
  to institute vertical integration policies
• We need to invest in much more value-added
  processing (i.e. smelting and refining in BC)
• Downstream manufacturing industries must be
  encouraged to develop in BC
• This will provide the necessary systems to begin
  significant recycling of metals and other
  materials in the Pacific North-West

69
Sustainability

• Social/Political Issues
• Land Use
• Government policies
• The Influence of Activism
• Environmental concerns
• Aboriginal peoples and treaties
• Need for jobs and a diversified economy
• In BC, the Tatsenshini/Windy Craggy decision has
• had important long-term impact on Mining
• Similarly, the Delgamuk decision and Nishka
  Treaty are important to the future of BC's mining
  industry
