Title: CS441 CURRENT TOPICS IN PROGRAMMING LANGUAGES

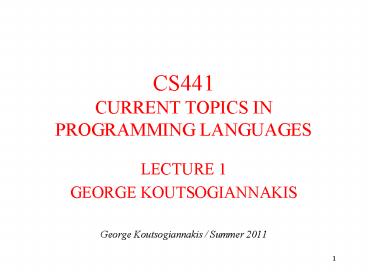

1
CS441CURRENT TOPICS IN PROGRAMMING LANGUAGES
  • LECTURE 1
  • GEORGE KOUTSOGIANNAKIS
  • George Koutsogiannakis / Summer 2011

2
Course Objective
  • Practice building reliable GUI (Graphical User
    Interface) using Java.
  • Create Client Server architectures
  • Networking protocols.
  • Design of Internet Client Server enterprises
    (applications).
  • Java will be used to build Client/Server
    architectures. Other platforms follow similar
    approaches to Java.

3
Course Material
  • THE PRESENTATIONS PROVIDE A LIST OF TOPICS
    DISCUSSED IN CLASS ON THE DAY OF THE LECTURE.
  • A SORT DISCUSSION IS PRESENTED IN THE POWER POINT
    PRESENTATION.
  • YOU MUST EITHER KEEP NOTES IN THE LIVE CLASS OR,
    IF YOU ARE A REMOTE STUDENT, WATCH THE TAPE FOR
    THE COMPLETE COVERAGE OF THE TOPICS.
  • IN ADDITION YOU CAN DOWNLOAD THE POWER POINT
    PRESENTATIONS FROM THE COURSE S WEB SITE
  • http//www.cs.iit.edu/cs441/schedule.html

4
Course Material
  • THIS SUMMARY DOES NOT NECESSARILLY LIMIT THE
    TOPICS DISCUSSED IN CLASS. TOPICS NOT LISTED HERE
    CAN BE DISCUSSED (FOR INSTANCE SAMPLE COD
    EWRITTEN ON THE WHITE BOARD). IT ONLY SERVES AS
    A GUIDELINE!.
  • PROGRAMMING EXAMPLES ARE GIVEN FOR SOME TOPICS IN
  • http//www.cs.iit.edu/cs441/handoutsnew.htm
    l
  • SUPPLEMENT YOUR UNDERSTANDING OF THE MATERIAL BY
    ALSO READING THE RECOMMENDED CHAPTERS FROM THE
    ASSIGNED TEXTS, NOTED ON THE SCHEDULE PAGE OF THE
    COURSES WEB SITE.

5
COURSE ADMINISTRATION
  • TOPICS DISCUSSED
  • COURSE WEB SITE
    http//www.cs.iit.edu/cs441
  • USAGE OF BLACKBOARD
  • TOOLS NEEDED FOR THE COURSE http//www.cs.iit.edu
    /cs441/tools.html
  • OFFICE HOURS
  • ASSIGNMENTS / PROJECT.
  • COURSE SYLLABUS
  • THIS IS AN INTERMEDIATE TO ADVANCE LEVEL COURSE
    IN JAVA. BASIC KNOWLEDGE OF JAVA IS ASSUMED. MUST
    KNOW HOW TO COMPILE AND INTERPRET. MUST KNOW HOW
    TO USE NUMEROUS FILES TOGETHER.

6
COURSE ADMINISTRATION
  • REVIEW OF COURSE S WEB SITE
  • COURSE GRADING
  • COURSE ASSIGNMENTS
  • DOWNLOADING OF ASSIGNMENTS
  • DEADLINES FOR ASSIGNMENT
  • TOOLS REQUIRED
  • OTHER
  • METHOD OF ASSIGNMENTS SUBMISSION.
  • BLACKBOARD S INDIVIDUAL ASSIGNMENT FOLDERS- DO
    NOT SUBMIT TO DIGITAL DROP BOX!!!!
  • ETHICS

7
JAVA FRAMEWORKS AND ACCEPTABLE PLATFORMS
  • DISCUSSION OF VARIOUS JAVA FRAMEWORKS AVAILABLE
    AND THEIR FUNCTIONALITY
  • JDK1.6 STANDARD EDITION UPDATE 23 or latest
    update. RECOMMEND THAT YOU DOWNLOAD AND INSTALL
    ON YOUR COMPUTER. EARLIER VERSIONS ARE
    ACCEPTABLE.
  • JAVA ENTERPRISE EDITION 6 (EE 6) . INCLUDES A
    JDK PLUS OTHER APIs.
  • WINDOWS ENVIRONMENT IS THE PREFERRED ENVIRONMENT
    FOR ASSIGNMENTS AND PROJECTS. I WILL BE CHECKING
    YOUR WORK USING WINDOWS.
  • If another environment is used you can demo your
    assignment to me on your laptop.

8
JAVA FRAMEWORKS AND ACCEPTABLE PLATFORMS
  • DURING THE FIRST PART OF THE COURSE EDIT PLUS IS
    THE PREFERRED IDE FOR WRITNG PROGRAMS. DO NOT USE
    NetBeans IN THE FIRST HAL F OF THE COURS
    EASSIGNMENTS UNLESS THE ASSIGNMENT SPECIFICALLY
    SAYS SO.
  • YOU CAN USE OTHER JAVA FRIENDLY IDEs AS LONG AS
    THEY DONT USE THEIR OWN JDK.
  • YOU MUST INSTALL A VERSION OF THE JDK AND LINK
    YOUR IDE TO THAT INSTALLATION.
  • DO NOT USE ECLIPSE AS IT USES ITS OWN JDK. IF
    YORU PROGRAM DOES NOT WORK BECAUSE YOU USED
    ECLIPSE TIME WILL BE WAISTED DEBUGGING IT (IT
    WILL BE RETURNE DTO YOU).
  • PREFERRED DATABASES MySQL / ACCESS/DERBY
  • WEB SERVER TOMCAT VERSION 6.0 AND UP
  • NET BEANS 6.5 AND UP (LATEST VERSION IS 6.9) .
    NOTE THAT EACH VERSION HA SITS OWN ISSUES AND
    PROBLEMS.

9
JAVA PROGRAMS
  • DIVISION OF JAVA PROGRAMS
  • APPLICATIONS.
  • APPLETS.
  • SERVER SIDE JAVA- SERVLETS, JAVA SERVER PAGES,
    JAVA SERVER FACES.
  • ENTERPRISE JAVA BEANS
  • WEB SERVICES
  • DISTRIBUTED SERVICES USING RMI OR RMI OVER IIOP
    (OR JAVA IDL).
  • SOME PROGRAMS REQUIRE SPECIAL TOOLS NOT AVAILABLE
    IN THE STANDARD EDITION JDK (AVAILABLE IN
    ENTERPRISE EDITION)
  • SERVLETS AND JAVA SERVER PAGES
  • WEB SERVICES
  • ENTERPRISE JAVA BEANS

10
APPLETS AND BROWSERS
  • BROWSERS AND WEB SERVERS (SERVER / CLIENT )
  • APPLETS AND THE BROWSER.
  • APPLETS AND SECURITY.
  • BROWSER ACTS AS A SANDBOX.
  • WEB SERVER AND APPLETS.
  • WEB SERVER AND SERVLETS.
  • WEB SERVER AND JAVA SERVER PAGES.

11
Applets
SERVER SIDE
CLIENT SIDE
Internet
1
myApplet.html
1
1
Web Server
Browser
myApplet.class
2
2
2
  • 1 Http request/response for html file//file is
    sent to Browser
  • Browser interprets the html script
  • 2 Http request/response for file
    myApplet.class// file is sent to Browser
  • Browser interprets java bytecodes
  • File is destroyed when Browser is closed.

12
Servelts
Java Client Application
Servlet executes on the server side
Internet
1
myServelt.class
1
1
Web Server
myJavaApplication.class
4
3
2
3
  • 1 Http request sent to Web Server for servelt
    file execution
  • 2 Servelet executes on the Server side and
    returns response to Web Server
  • 3 Http response formed by the Web Server based
    on the response from Servlet
  • Http response is sent to Client
    Application
  • 4 Http response passes contents to input
    stream of the client application
    (myJavaApplication.class)

13
Java Server Pages
  • 1 Http request sent to Web Server for jsp file
    execution
  • 2 java code of jsp executes on the Server
    side initially
  • 3 Http response formed by the Web Server based
    on the response from jsp. The java part of jsp
    is converted to a Servlet
  • Http response is sent to Client
    Application
  • 4 Http response passes contents to input
    stream of the client application
    (myJavaApplication.class). The browser interprets
    the particular format sent (html, XML etc.).

14
Other communication forms
  • html -gt applet -gt servlet
  • Client (Browser or some Java application
    program) interprets html which calls an applet
    from the server.
  • Applet bytecodes are interpreted by the browser
    (or java application program). Applet calls back
    to the server for the execution of a servlet.
  • Server executes the servlet.
  • The response of the servlet is sent back to the
    browser 9or java application program) in some
    format (like html).
  • Browser (or java application program) interprets
    response.

15
Other communication forms
  • html-gt servlet-gt applet
  • In this example of different modules
    communicating with each other, first the html
    code interpreted by the client (Browser or a Java
    application program) calls for a servlet to be
    executed by the server.
  • The server executes the servlet and sends the
    http response to the client.
  • The client interprets the response and as a
    result a call to an applet is made (to the
    server).
  • The server sends the applet to the client.
  • The client interprets the applet code.

16
Other communication forms
  • In this course we will examine some of the
    previous communication architectures as well as
    more complicated architectures on the server side
    i.e.
  • The servlet could be calling another server
    called a RMI server which in turn queries a data
    base.
  • Or, the servlet calls a session Enterprise Java
    Bean which in turn calls an Entity bean which in
    turn queries a database.

17
INHERITANCE REVIEW
  • JAVA DOES NOT SUPPORT MULTIPLE INHERITANCE
  • SINGLE INHERITANCE IS APPLIED IN JAVA VIA KEYWORD
    extends
  • MULTIPLE INHERITANCE CAN BE SIMULATED BY USING
    INTERFACES

18
A Sample Vehicle Hierarchy
  • This hierarchy is depicted using a Unified
    Modeling Language (UML) diagram.
  • In UML diagrams, arrows point from the subclass
    to the superclass.

19
Superclasses and Subclasses
  • A big advantage of inheritance is that we can
    write code that is common to multiple classes
    once and reuse it in subclasses
  • A subclass can define new methods and instance
    variables, some of which may override (hide)
    those of a superclass

20
Inheritance Rules

Superclass Members Inherited by subclass? Directly Accessible by Subclass? Directly Accessible by Client of Subclass?
public fields yes yes, by using field name yes
public methods yes yes, by calling method from subclass methods yes
protected fields yes yes, by using field name no, must call accessors and mutators
protected methods yes yes, by calling method from subclass methods no
private fields no no, must call accessors and mutators no, must call accessors and mutators
private methods no no no
21
Inheritance Rules for Constructors

Superclass Members Inherited by subclass? Directly Accessible by Subclass? Directly Accessible by Client of Subclass Using a Subclass Reference?
constructors no yes, using super( arg list ) in a subclass constructor no
22
Subclass Constructors
  • Constructors are not inherited.
  • However, the subclass can call the constructors
    of the super class to initialize inherited
    fields.
  • Implicit invocation
  • The default constructor of the subclass
    automatically calls the default constructor of
    the superclass.
  • For explicit invocation, use this syntax
  • super( argument list )
  • If used, this statement must be the first
    statement in the subclass constructor.

23
Multiple Inheritance
  • The concept of multiple inheritance is shown
    below (even though Java does not allow it).

Class A
Class B
Class C
Class D
24
abstract Classes and Methods
  • An abstract class is a class that is not
    completely implemented.
  • Usually, the abstract class contains at least one
    abstract method.
  • An abstract method specifies an API but does not
    provide an implementation.
  • The abstract method is used as a pattern for a
    method the subclasses should implement.

25
More on abstract Classes
  • An object reference to an abstract class can be
    declared.
  • We use this capability in polymorphism, which
    will be discussed later.
  • An abstract class cannot be used to instantiate
    objects (because the class is not complete).
  • An abstract class can be extended.
  • subclasses can complete the implementation and
    objects of those subclasses can be instantiated

26
Defining an abstract class
  • To declare a class as abstract, include the
    abstract keyword in the class header
  • accessModifier abstract class ClassName
  • // class body

27
Example Hierarchy
  • We can define a Figurehierarchy.
  • The superclass is Figure,which is abstract. (In
    theUML diagram, Figure is set in italics to
    indicate that it is abstract.)
  • We will derive two subclasses Circle andSquare.

28
Subclasses of abstract Classes
  • A subclass of an abstract class can implement
    all, some, or none of the abstract methods.
  • If the subclass does not implement all of the
    abstract methods, it must also be declared as
    abstract.
  • Our Circle subclass adds a radius instance
    variable and implements the draw method.
  • Our Square subclass adds a length instance
    variable and implements the draw method.

29
Restrictions for Defining abstract Classes
  • Classes must be declared abstract if the class
    contains any abstract methods
  • abstract classes can be extended
  • An object reference to an abstract class can be
    declared
  • abstract classes cannot be used to instantiate
    objects

30
Restrictions for Defining abstract Methods
  • abstract methods can be declared only within an
    abstract class
  • An abstract method must consist of a method
    header followed by a semicolon
  • abstract methods cannot be called
  • abstract methods cannot be declared as private or
    static
  • A constructor cannot be declared abstract

31
The Figure Class
  • public abstract class Figure
  • private int x
  • private int y
  • private Color color
  • // usual constructors, accessors,
  • // and mutators
  • // abstract draw method
  • public abstract void draw( Graphics g )
  • All classes in the hierarchy will have an (x, y)
    coordinate and color. Subclasses will implement
    the draw method.

32
Polymorphism
  • An important concept in inheritance is that an
    object of a subclass is also an object of any of
    its super classes.
  • That concept is the basis for an important OOP
    feature, called polymorphism.
  • Polymorphism simplifies the processing of various
    objects in the same class hierarchy because we
    can use the same method call for any object in
    the hierarchy using a super class object
    reference.

33
Polymorphism Conditions
  • conditions for polymorphism
  • The Figure, Circle, and Square classes are in the
    same hierarchy.
  • The non-abstract Circle and Square classes
    implement the draw method.
  • We assigned the Circle and Square objects to
    Figure references.
  • We called the draw method using Figure references.

34
Example
  • Suppose we have a class FigureClient.
  • This class uses the previous classes to actually
    draw figures.
  • i.e. (assuming that all classes are in the same
    folder)
  • public class FigureClient
  • public static void main ( String rags)
  • Circle circlenew Circle()
  • Square squarenew Square()
  • Figure figure //just declaration, no
    instantiation is allowed
  • figurecircle
  • figure.draw() // a circle will be drawn
  • figuresquare
  • figure.draw() // a square will be drawn
    now.

35
Superclasses and Subclasses
  • A big advantage of inheritance is that we can
    write code that is common to multiple classes
    once and reuse it in subclasses
  • A subclass can define new methods and instance
    variables, some of which may override (hide)
    those of a superclass

36
Interfaces
  • A class can inherit directly from only one class,
    that is, a class can extend only one class.
  • To allow a class to inherit behavior from
    multiple sources, Java provides the interface.
  • An interface typically specifies behavior that a
    class will implement. Interface members can be
    any of the following
  •    classes
  •    constants
  •    abstract methods
  •    other interfaces

37
Interface Syntax
  • To define an interface, use the following
    syntax
  • accessModifier interface InterfaceName
  • // body of interface
  • All interfaces are abstract thus, they cannot be
    instantiated. The abstract keyword, however, can
    be omitted in the interface definition.

38
Finer Points of Interfaces
  • An interface's fields are public, static, and
    final. These keywords can be specified or
    omitted.
  • When you define a field in an interface, you must
    assign a value to the field.
  • All methods within an interface must be abstract,
    so the method definition must consist of only a
    method header and a semicolon. The abstract
    keyword also can be omitted from the method
    definition.

39
Inheriting from an Interface
  • To inherit from an interface, a class declares
    that it implements the interface in the class
    definition, using the following syntax
  • accessModifier class ClassName extends
    SuperclassName
  • implements Interface1, Interface2,
  • The extends clause is optional.
  • A class can implement 0, 1, or more interfaces.
  • When a class implements an interface, the class
    must provide an implementation for each method in
    the interface.

40
Example
  • We define an abstract class Animal with one
    abstract method
  • public abstract void draw( Graphics g )
  • We define a Moveable interface with one abstract
    method
  • public interface Moveable
  • int FAST 5 // static constant
  • int SLOW 1 // static constant
  • void move( ) // abstract method

41
Derived Classes
  • TortoiseRacer class
  • extends Animal class
  • implements Moveable interface
  • implements draw and move methods
  • TortoiseNonRacer class
  • extends Animal class
  • (does not implement Moveable interface)
  • implements draw method only

42
Multiple Inheritance
  • Suppose we have abstract class Student (template
    class).
  • This class has abstract method getGPA which
    returns the gpa.
  • Suppose we also have abstract class Employee
    (template class)
  • This class has abstract method getSalary which
    returns the salary.
  • Class StudentEmployee wants to inherit both
    classes and implement both the gpa and the
    salary.
  • It can not do that because multiple inheritance
    is not allowed
  • public class StudentEmployee extends
    Student extends Employee
  • ABOVE IS NOT LEGAL!!!!!!!

43
Multiple Inheritance
  • Let us leave Employee intact and instead remove
    the abstract method getGPA from the Student
    class.
  • Thus there is no need for Student to be abstract
    any more.
  • Let us create an interface
  • public interface StudentInterface
  • defines the method getGPA
  • Let us create a class StudentImpl which inherits
    Student and implements interface
    StudentInterface. It implements the method getGPA
    which calculates the gpa.

44
Multiple Inheritance
  • Now class StudentEmployee extends Employee and it
    also implements the interface StudentInterface.
    Therefore it implements the method getGPA but
    kind of indirectly (via the implementation of the
    method in the StudentImpl class)
  • StudentImpl stnew StudentImpl()
  • public float getGPA()
  • return st.getGPA()
  • StudentEmployee object can invoke other
    methods of class Student since StudentImpl also
    inherits student.
  • It also can use the class Employee since it
    inherited that class directly.

45
Multiple Inheritance
Abstract Employee class
  • Student class

Interface StudentInterface
Class StudentEmployee Uses StudentImpl
StudentImpl
46
Example of Multiple Inheritance
  • Example of a Multiple Inheritance Implementation
    is posted on the Web Site Examples page.
  • In the example our goal it create a class called
    Expenses that inherits from both classes Employee
    and OperatingExpenses.
  • Class CorporationTest tests the multiple
    inheritance.

47
Example of Multiple Inheritance
  • Class Employee is abstract because method
    compensation is abstract.
  • Classes Engineer, Management, AdministartivePerson
    el inherit Employee and implement compensation
    according to their requirements.
  • Interface ExpenseInterface defines method
    getOperatingExpenses
  • Class Expense extends Employee and implements
    interface ExpenseInterface
  • Class OperatingExpenses has methods that
    calculates different operating expenses for the
    corporation.
  • Class ExpenseImpl extends OperatingExpenses and
    implements the interface ExpenseInterface

48
Engineer
Administrative Personel
Management
ExpensesInterface
Abstract class Employee
OperatingExpenses
OperatingExpensesImpl
Expenses Uses OperatingExpensesImpl
49
Example of Multiple Inheritance
  • Study program Multiple Inheritance Example
    available in the Examples (page) of the course s
    web site.
Write a Comment
User Comments (0)
About PowerShow.com
