Title: NEUTRAL HYDROGEN


1

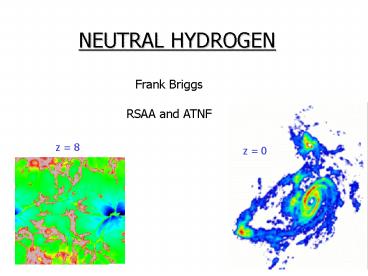

NEUTRAL HYDROGEN
Frank Briggs RSAA and ATNF
z 8
z 0
2
(No Transcript)
3
Quasar Absorption lines
Wavelength (Angstroms)
4
Quasar
(all DLAs have metal lines)
5
Photons DE gt 13.6 eV
6
bathe HI cloud in photoionizing radiation
?? minimum thickness of skin before
becomes self-shielding ??
7
bathe HI cloud in photoionizing radiation
optical depth t gt 1 for DE 13.6 eV
photons
note t lt 1 transparent hard to heat!
8
Energy Levels in Hydrogen
Optically thick at the Lyman limit
Optically thick in the Lyman
continuum
E 0
Energy
Ground State
9
Energy Levels in Hydrogen
Optically thick in the Lyman
continuum
E 0
BUT HI layer is transparent to all other
wavelengths shorter than the
Lyman limit
Energy
Ground State
10
Ionization by ambient starlight with l gt 912
Angstrom
E 0
Energy
Ground State
H He C N O Na Mg Al Si Ca Ti Cr Mn Fe Zn
11
Quasar Absorption lines
Wavelength (Angstroms)
12
Quasar Absorption lines
Lyman a forest
DLA
13

Quasar Absorption lines
  • thoroughly developed statistics !!!
  • for Lyman a and metal lines

(ordinary Galaxies
(whatever is common is most likely to intervene
by chance)
14
Relative interception cross sections
Z3 Ly break galaxy
15
HI Column density distribution function
Petijean etal 1993
-10
-15
Log f(NHI)
-20
12 14 18
20 22
Log NHI
16
HI Column density distribution function
Petijean etal 1993
-10
-15
Log f(NHI)
-20
12 14 18
20 22
Log NHI
17
Relative interception cross sections What are
these things???
Z3 Ly break galaxy
(tough to image)pin
18
nearby Neutral gas disks analogs to high Z DLAs
???
Optical Radio
19
Extended, low-column density gas analog of
LymanLimit/MgII
CIV is the lower density material ??
20
Square Kilometre Array
21
ARRAY
Simple antenna elements
Array
Station
22
Sensivity depends on collecting area
Angular resolution l/D
D
23

Sensivity depends on collecting area

Angular resolution l/D
D
24
VLA
25
6th ATNF Synthesis Imaging Workshop Synthesis
Imaging from Centimetre to Millimetre
Wavelengths 12-16 May 2003 at Narrabri
NSW www.atnf.csiro.au/synthesis
26
ARRAY
Simple antenna elements
Array
Station
27
SKA Design
Magic Carpet
28
Eggs on Legs
29
3C196-G1 z 0.437 HST image (Ridgway
Stockton)
30
Radio spectrum at 988 MHz Westerbork (Briggs,
deBruyn, Vermeulen)
Double Lobed Radio Source
300 km/s
31
map emission ?
map absorption ?
32
new GMRT
Kanekar Chengalur 988 MHz
33
high redshift radio galaxies
TNR J22541857
TNR J1402-1510
34
Radio galaxy spectra
No DLA absorption lines
No UV continuum
35
Molonglo Telescope SKAMP III
  • frequency coverage
  • sensitivity
  • RFI rejection

36
Cosmic Evolution Indicators
Redshift
37
Cosmic Evolution Indicators
Redshift
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Gnedins simulation of Reionization
http//casa.colorado.edu/gnedin/GALLERY/
log(mean intensity of ionizing flux)
log(Neutral fraction)
log(density)
log T
43
(No Transcript)
44

.. ionized
45
MAP
46
MAP Result
Z 17 4
???
Rules out WDM
47

48

49
Global Signal
50
The Z20 Expt
JR, FB, et al
51
Passband filters (from load scan) and RFI (from
sky scan)
52
(No Transcript)
53
LOFAR and SKA
distributed star formation
Quasar
10 arcmin
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
SUMMARY still plenty to do !
58
(No Transcript)
