IEEE 802.15 <subject>

1

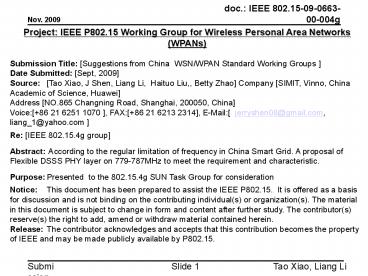

Project IEEE P802.15 Working Group for Wireless
Personal Area Networks (WPANs) Submission Title
Suggestions from China WSN/WPAN Standard
Working Groups Date Submitted Sept,
2009 Source Tao Xiao, J Shen, Liang Li,
Haituo Liu,, Betty Zhao Company SIMIT, Vinno,
China Academic of Science, Huawei Address
NO.865 Changning Road, Shanghai, 200050, China
Voice86 21 6251 1070 , FAX[phone]
2314, E-Mail jerryshen08_at_gmail.com,
liang_1_at_yahoo.com Re IEEE 802.15.4g
group Abstract According to the regular
limitation of frequency in China Smart Grid. A
proposal of Flexible DSSS PHY layer on 779-787MHz
to meet the requirement and characteristic. Purpos
e Presented to the 802.15.4g SUN Task Group for
consideration Notice This document has been
prepared to assist the IEEE P802.15. It is
offered as a basis for discussion and is not
binding on the contributing individual(s) or
organization(s). The material in this document is
subject to change in form and content after
further study. The contributor(s) reserve(s) the
right to add, amend or withdraw material
contained herein. Release The contributor
acknowledges and accepts that this contribution
becomes the property of IEEE and may be made
publicly available by P802.15.
2
Message for the Solutions on 780MHz Band

• 779 787 MHz, Ptxlt 10mw. Spurious emission is
  no larger than -36dBm
• No frequency band limited on each channel
• The Flexible data rates are welcome.
• Expect the solution on 15.4G may be compatible
  to China National WPAN/WSN Standards.

3
Possible Solution for Narrow Band (470 510Mhz)
Nov. 2009

• 470-510 MHz is narrow band. Each channel on this
  band is 200Khz. The max output power is 50mw.
• The China Nation Standards for this band is on
  way. China WSN Std committee is in charge of
  creating or adopting standards on this bands for
  WSN, Smart grid and more applications.
• Huawei, Vinno and SIMIT would support the
  sophistical, simple solutions on 470-510MHz, such
  as CPP, Joint-FSK
• One united solution on narrow band on 470-510Mhz
  are recommended.

Tao Xiao, Liang L, Jie Shen
Slide 3
