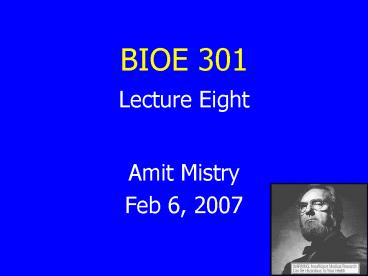

BIOE 301 Lecture Eight

1
BIOE 301 Lecture Eight

• Amit Mistry
• Feb 6, 2007

2
BIOE 301 Lecture 8

• WARM-UP
• Observation Global average near-surface
  atmospheric temperature rose 1.1
  0.4 Fahrenheit in the 20th century.
• What is the scientific approach to this?
• What is the engineering approach to it?

3
Review of Lecture 7

• Science
• Science is the human activity of seeking natural
  explanations for what we observe in the world
  around us.
• Five steps of the scientific method

• Engineering
• Systematic design, production and operation of
  technical systems to meet practical human needs
  under specified constraints
• Six steps of the engineering design method

4
Q3 How can technology solve health care
problems?

• CS1 Prevention of infectious disease

5
Roadmap of CS 1

• Science
• Organisms that cause infectious disease
• Immunity
• Engineering
• How to make a vaccine
• Vaccines From idea to product
• Societal Impact
• Health and economics
• Ethics of clinical trials
• Developed world/Developing world

6
Connections First day of class

• What caused the first bone marrow transplants to
  be rejected by recipients?

7
Bone Marrow - Pluripotent Stem Cells

• Hematopoietic stem cells differentiate into
• White blood cells
• Red blood cells
• Platelets
• Mesenchymal stem cells differentiate into
• Bone, cartilage, muscle

8
(No Transcript)
9
White Blood Cells
Neutrophil Lymphocyte Macrophage
The Defense The Good Guys
10
Pathogens

• How They Cause Disease

The Offense The Bad Guys
11
Types of Pathogens

• Bacteria
• Cells with membrane and cell wall (usually)
• Can survive outside host reproduce without host
• Can be killed or inhibited by antibiotics
• Viruses
• Nucleic acid core with protein envelope
• Use host intracellular machinery to reproduce
• Cannot be killed with antibiotics
• gt50 different viruses that can infect humans

12
Question

• Based on your understanding of the
  characteristics of bacteria, viruses, and blood
  cells, identify which item best represents each
  and be able to explain why you chose each.
• Bacterium
• Virus
• Blood cell

13
Pathogens
Human hair 100,000,000 nm
Red blood cell 7,000 nm
E. coli bacteria 800 nm
Virus 100 nm
www.awcommunity.org www.its.caltech.edu/boozer
14
Bacteria
15
How do Bacteria Cause Disease?

• Invade host
• Reproduce
• Produce toxins ? disturb cell function
• Examples
• Escherichia Coli
• Bacillus Anthracis
• Microbacterium tuberculosis
• Streptococcus pneumoniae

http//www.cubanology.com/Articles/Virus_vs_Bacter
ia.htm
16
Virus
17
How do Viruses Cause Disease?

• Virus invades host cell
• Binds to cell membrane receptors
• Endocytosis brings virus into cell
• Virus takes over cell
• Use viral nucleic acid and host cell resources to
  make new viral nucleic acid and proteins
• More virus is released from host cell
• Virus causes host cell to lyse OR
• Viral particles bud from host cell surface

18
Virus examples Influenza, HIV, West Nile,
Hepatitis Human Papillomavirus, Viriola Major
19
Using Viruses for Good, not Evil

• Gene Therapy infect cells with beneficial DNA
• Diabetes
• SCID
• Cancer
• Sickle cell anemia
• MS
• Cystic fibrosis

www.nih.gov
20
Pathophysiology of HIV/AIDS
21
Pathophysiology of HIV/AIDS
22
The Immune System

• How Are We Protected Against Pathogens?

23
Types of Immunity

• Three layers of immunity
• Physical Barriers
• Innate Immune System
• All animals possess
• Adaptive Immune System
• Vertebrates possess
• Keep pathogens out
• Kill them if they get in

24
Types of Immunity - Defense
Line of scrimmage
Physical Barriers Defensive Line
Innate Secondary Defense
Adaptive Coach
25
Types of Immunity

• Physical Barriers
• Skin (2 square meters)
• Mucous Membranes (400 square meters)
• Innate Immune System
• Produces general inflammatory response when
  pathogens penetrate physical barriers
• Adaptive Immune System
• Can adapt to defend against any invader
• Important when innate immune system cannot defend
  against attack
• Provides immune system with memory

26
Physical Barriers
27
What happens when you get a splinter?
28
What happens when you get a splinter?

• Pathogens gets past physical barrier
• Macrophages eat bacteria on splinter
• Phagocytosis
• Activated macrophages produce chemicals which
• Increase local blood flow
• Increase permeability of
• blood vessels
• Recruit other phagocytes to site

Redness Heat
Swelling
Pus
29
What happens when you get a splinter?

• Phagocytosis
• http//jcs.biologists.org/cgi/content/full/119/9/1
  903/DC1

30

31
Innate Immune System

• Primarily effective against pathogens outside of
  cells
• Two main weapons
• 1) Professional phagocytes
• Cells that eat stuff
• 2) The complement system
• Proteins that tag stuff for destruction

32
Components of Innate Immune System

• 1) Macrophages
• Sentinels that patrol periphery
• If they find an invader, they
  become activated
• If activated, they
• Send signals to recruit other immune system cells
  (Neutrophils)
• Become vicious killers
• Present antigen to adaptive immune system (more
  on this later)

33
Components of Innate Immune System

• 2) Complement proteins
• Present in tissues blood
• Attach to surfaces of bacteria and viruses
• Target them for destruction by phagocytes
• Form Membrane Attack Complexes
• Recruit other immune cells from blood

34
Adaptive Immune System

• Antibody-mediated
• Fight pathogens outside of cells
• Cell-mediated
• Fight pathogens inside of cells

35
What is an antibody?

• Bridge between
• Pathogen
• Tool to kill it
• Antibodies have two important regions
• Fab region
• Binds antigen
• Binds surface of virus-infected cell
• Fc region
• Binds macrophages and neutrophils, induces
  phagocytosis
• Binds natural killer cell, induces killing

36
Question

• Which components of your kit are most like
  antibodies?
• Arrange the components of the kit to demonstrate
  how these antibodies bridge a pathogen and the
  tool to kill it?

37
(No Transcript)
38
Antibodies

• How are antibodies made?
• B cells
• Lymphocytes that make antibodies
• Have B cell receptors on surface
• 100 million different types of B cells, each with
  different surface receptors
• B cell receptors are so diverse they can
  recognize every organic molecule
• When a B cell binds antigen
• Proliferates - In one week, clone of 20,000
  identical B cells
• Secretes antibody

39
(No Transcript)
40
Adaptive Immune System

• How do we kill virus once inside the cell?
• Antibodies cannot get to it
• Need T cells
• T Cells
• Recognize protein antigens
• When bind antigen, undergo clonal selection
• Three types of T Cells
• Killer T Cells (Cytotoxic T Lymphocytes CTLs)
• Helper T Cells (targeted by HIV)
• Regulatory T Cells

41
How do T Cells ID Virus Infected Cells?

• Antigen Presentation
• All cells have MHC molecules on surface
• When virus invades cell, fragments of viral
  protein are loaded onto MHC proteins
• T Cells inspect MHC proteins and use this as a
  signal to identify infected cells

42
Question

• Using the components of the kit, demonstrate the
  two steps required for viral antigens to be
  presented on the MHC complexes on the surface of
  the blood cell.

43
(No Transcript)
44
Question

• Demonstrate how the T cell can identify a virus
  infected cell.
• Why is this component of the adaptive immune
  system a significant advance over the innate
  immune system?

45
(No Transcript)
46
Immunologic Memory

• First time adaptive immune system is activated by
  an antigen
• Build up a clone of B cells and T cells
• Takes about a week
• After infection is over, most die off
• Some remain memory cells
• Second time adaptive immune system is activated
  by that antigen
• Memory cells are easier to activate
• Response is much faster no symptoms

47
(No Transcript)
48
(No Transcript)
49
Putting it all together

50
(No Transcript)
51
(No Transcript)
52
Putting it all together
Virus invades
Antibodies bind
Prevent virus function
Signal phagocytosis
Infects cells
Present antigen
Activates Killer T cells
Antigen presentation
Activates B cells
Kill infected cells!
Make more antibodies
53
Antibody-mediated
Virus invades
Antibodies bind
Prevent virus function
Signal phagocytosis
Infects cells
Present antigen
Activates Killer T cells
Antigen presentation
Activates B cells
Kill infected cells!
Make more antibodies
Cell-mediated
54
Summary of Lecture 8

• Pathogens Bacteria and Virus
• Levels of Immunity
• Barriers ? First line of defense
• Innate ? Inflammation
• Phagocytes
• Complement
• Adaptive ? Immunologic memory
• Cell mediated immunity ? Pathogens within cells
• Antibody mediated immunity
• Diversity to recognize 100 million antigens

55

• Turn in HW 4 today
• Next Time
• Project Task 2 due on 2/8/07
• Influenza virus
• Vaccines
• The most cost-effective medical intervention
  known to prevent death or disease

56
For more info

• National Bone Marrow Program http//www.marrow.or
  g/
• Baylor Center for Cell and Gene Therapy
• http//www.bcm.edu/genetherapy/
• Immunobiology BIOS 423 - Dr. Novotny
