Audit, Security Evaluation, Information Assurance

1

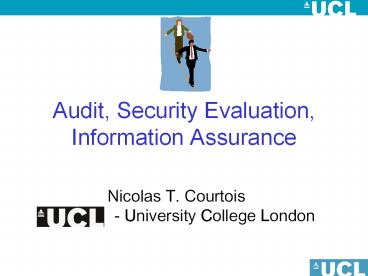

Audit, Security Evaluation,Information Assurance

• Nicolas T. Courtois -
  University College London

2

• Audit

3
Audit

• Major source of jobs
• Audit several different types
• Quality audits
• In project management advancement audits,
• In accounting Audit checks the accounts
• and compliance to certain rules such as nobody is
  claiming 200 of his time,
• Internal Audit
• compliance to the internal rules of an
  organization,
• External Audit
• an authority checks compliance to laws, and
  regulations,

4
IT and Audit

• In IT
• Certified Information Systems Auditor (CISA)
  scope is the whole of IT, not only security
• In Information Security Audit analysis of
  past events in order to see if the security
  breaches have occurred or have been
  attempted.
• Offline, after the facts About security.

5
Residual Risk def

• what remains after defences are in place

6
Audit is Needed

• because of this residual risk.
• Things are going to happen.
• Sometimes it is a part of the whole system of
  defenses.
• Certain security violations will be detected ONLY
  at a much later time. Thats all right if we can
• trace the culprit,
• cancel certain transactions,
• revoke certain keys,
• etc

7
Audit Logs

• Example In access control we do record
• subject requesting
• object of the request
• operation requested
• time and date
• location / IP address of the request
• status of the request
• granted / denied,
• physical resources used (like CPU time)...

8
Why Not More?

• Choices are specific to each application.
• If memory is critical, it is very important to
  log only the minimum, example in bank cards.
• Otherwise nowadays space if getting cheaper and
  cheaper But even then
• legal or contractual obligations
• (e.g. credit card merchants are NOT allowed to
  store the CVC)
• or privacy-friendly design considerations
• proportionality principles
• will prevent us from logging too much information

9

• Intrusion Detection

10
Intrusion Detection

• Audit
• usually offline, after the facts
• Intrusion detection
• usually active, real time, online.
• otherwise we speak about passive intrusion
  detection

11
Types of Intrusion Detection

• Threshold-based
• Anomaly-based,
• Rule-based,
• State transition-based,

12
Most Basic Intrusion Detection

• Notion of security events

13
Very Basic Example

• Alarms

14
Types of Intrusion Detection

• Threshold-based detect abnormal use. Examples
• try 4 different PINs in an ATM,
• the card will stop working forever
• high CPU load, a lot of data sent out
• Cons false positives.
• (for other methods too)

15
Types of Intrusion Detection (2)

• Anomaly-based
• Defines profiles what is the normal behavior in
  terms of
• key security events
• CPU/memory usage by a user
• their timing
• How to Measure the deviation?
• Each profile will define acceptable intervals,
  otherwise an alarm will be raised.
• Example an employee of the bank is expected to
  do between 10 and 40 credit history checks per
  day in office, with time intervals of at least 10
  minutes.
• Can also use the time series model
• events occurring in circumstances where the
  historical probability is VERY low (say a credit
  check during the lunch break in a big French
  bank) will raise an alert.

16
Key Latency Control

• Powerful mechanism to detect anomalies in
  behavior of employees and to detect malware.

17
Types of Intrusion Detection (2,3)

• Anomaly-based
• Doesnt require a lot of technical knowledge,
• it is just doing stats on apples and bananas
• Rule-based, can be based on
• past experience of intrusions / breaches
• Known system vulnerabilities / attacks
• Cons require a lot of expert knowledge

18
Rule Based - Example

• Information Flow Control
• Can be applied where BLP model is applicable.
• the key point is that maybe we dont need to
  enforce a very strict policy, just create
  administrative alerts when it is violated..

19
Types of Intrusion Detection (4)

• State transition-based Require a sort of
  security model where
• Each state is characterized by assertions
  evaluating whether certain conditions are
  verified in the system.
• For example, check if a user has the right
  privileges for a given object.

20
Integrity Control

• Can be applied where Biba model with a
  dynamically changing levels, for example one of
  the low watermark policies is applicable.
• it will be a state transition based intrusion
  detection mechanism.

21

• Information Assurance

22
Security ? Safety

• intentional damages...

23
Scope 4 Today

• Both
• Safety and Security!

24
Who to Trust ?

• pejorative Commercial security works if
  you believe it.
• Imagine a banker who wants to buy a product which
  is secure. How can he know it is secure?
  Security usually cannot be seen
• Only the opposite is visible

25
What Makes That a Product is Safe?

• Inherent to the technology
• trains and lifts are inherently MUCH safer than
  cars
• bad news computers networks are by nature a
  security nightmare
• Market regulation
• example make an airbag a legal obligation.
• no legal obligations for computers yet
• nobody is in charge

26
Open Source vs. Closed Source

• Can be much easier to attack!
• will many people looking at source code will find
  the bugs?
• bugs are VERY HARD to find,
• people rarely get paid for that much less hours
  spent
• security problems can be a result of a
  combination of
• codecompiler (e.g. buffer overflow)
• codehardware (side channel attacks on crypto)
• good programmers poor security background
  (prevalent)

27
Boeing vs. Airbus

• Airbus factories wide open to visitors
• 60 recorded crashes for 12 million flights.
• Boeing their factories are closed, security!
• 194 crashed for 35 million flights.
• Almost the same rate 1 crash out of 0.2 M
  flights.
• Beware of statistical manipulation how many
  crashes per mile? Per hour of flight? Deaths per
  hourpassenger? Etc
• Cars vs. planes similar rate of 1.5 death / 100
  million miles traveled

28
Which Model is Better?

• Open and closed security are as more or less
  equivalent, more or less as secure
• opening the system helps both the attackers and
  the defenders.
• Ross Anderson Open and Closed Systems are
  Equivalent (that is, in an ideal world). In
  Perspectives on Free and Open Source Software,
  MIT Press 2005, pp. 127-142.

29
Airlines What they Do

• High Assurance industry,
• obsessed with safety since ever
• What is Assurance?
• Building confidence that systems meet the
  security criteria, based on application of
  assurance techniques
• design methodology
• expert design analysis
• assessment/testing
• Estimate the likelihood that bad things will
  happen

30
Aviation vs. Computer Software

• goals
• mostly clear from the start
• slow speed
• carefully designed, 10 years time to market, high
  quality
• testing
• exhaustive tests
• maintenance
• scheduled,
• certified technicians,
• pilots need a licence
• failures
• EVERYTHING done to prevent ever happening again

vs. have just changed, new threats fast ship
it now, get it right for next release should
work 99 of the time upgrades not done, bad
users failures tolerated
separation of duty
31
Aviation

• Possibly an example to follow?
• Maybe? Maybe not? Not clear.
• Assurance Key ideas
• design a trusted engineering process
• classical industrial view engineer the whole
  process of designimplem.testing
• even more modern version create the right
  incentives for private business to solve all the
  problems for you
• codify best practices,
• train engineers e.g. at university
• train users of systems

32
Following the Idea..

• What is Information Assurance? The Same.
• Building confidence that systems meet the
  security criteria, based on application of
  assurance techniques
• design methodology
• expert design analysis
• assessment/testing
• Estimate the likelihood that bad things will
  happen

33
Evidence-based Assurance

• Sullivan there should be sufficient credible
  evidence that the system meets the requirements

34
Ross Anderson

• Fundamentally, assurance comes down to the
  question of whether capable, motivated people
  have beat up on the system enough.
• But how do you define enough?
• And how do you define the system?
• How do you deal with people who protect the wrong
  thing, out of date or plain wrong?
• allow for human failures?

35

• Failures

36
Attacks ? Target

• attacker

vulnerabilities
threat potential attack scenario
attack
system
target

• defences
• controls
• countermeasures

expectations, goals properties security
policywhat is allowed/not (protection goals)
if there is one
37
Security Failures
vulnerability

• defences
• controls
• countermeasures

• attacker
• threat potential attack scenario

security target a more detailed specification
of a set of means/protections to achieve the
goals and a yardstick to evaluate if
designers / implementers did a good job
ActualAttack scenario
security policy what is allowed/not,
protection goals
protection profile what needs to be protected
allowing comparison of very different products
famous for omissions
38
Types of Failures Sullivan

• Failure in design
• omissions/mistakes in the spec
• bad engineering /faulty design
• Failure in implementation
• hardware/software
• Failure in operation
• operator errors
• willful misuse
• random failures
• hardware or comm/network malfunction
• natural causes Acts of God
• failure in upgrade / maintenance

Design Assurance
Implementation Assurance
Operational Assurance
39
Design Assurance

• requirements should determine the security
  policy,
• or security model the space of possible
  security policies

40
Policy Assurance

• Evidence that the set of security requirements
  is
• Complete
• Every situation is either safe or unsafe.
• Ambitious. Are we sure we need this one?
• Consistent
• Free of (formal) contradiction... We want it!
• Technically Sound
• The policy captures what we wanted,
• not like to Biba policy where all subjects are
  downgraded immediately, and everybody is secure
  by name but not in meaningful way.

41
Design Assurance

• Show that the policy requirements will be met

42
Implementation Assurance

• Considerations
• implemented correctly
• Using tools and best practices used to avoid
  introducing extra implementation vulnerabilities
  (e.g. side channels, backdoors, etc)
• testing
• proof of correctness? Hard.
• document the product well!

43
Operational Assurance

• system should sustain the security policy
  requirements during
• installation/configuration,
• day-to-day operation
• usability testing is needed to
• upgrades/maintenance

44
Following the Idea..

• What is Information Assurance?
• It is also basically a method to argument.
• can I convince myself it is secure?

45
Forwards and Backwards

46
Life Cycle Assurance

• Conception
• focus on policy and requirements
• Building
• select mechanisms to enforce policies
• give evidence that are appropriate
• Deployment
• provide mechanisms for delivery that assures
  integrity,
• initial setup and key management
• appropriate configuration
• Fielded Product Life
• update and patch mechanism
• customer support
• product decommissioning and end of life

47

• Orange Book, CC

48
History

• 1983-1999
• Orange Book Trusted Computer System Evaluation
  Criteria TCSEC
• designed for OS mostly emphasis on
  confidentiality
• 1998-present
• Common Criteria ITSEC ISO 15408
• designed for everything
• Both deeply rooted in the military circles DoD,
  NSA, GCHQ, etc
• Both give a single linear scale right answer

49
Orange Book DC

• Division D Minimal Protection
• Division C Discretionary Protection
• C1 - DAC, Identification and Authentication,
  protected from external tampering,
• C2 Controls access to objects, object reuse,
  has auditing, more security testing

50
Orange Book B

• Division B Mandatory Protection
• B1 - labeled security, MAC for named objects,
  informal security policy
• B2 - structured protection consistent formal
  security policy/model MAC for all objects,
  labeling trusted path least privilege covert
  channel analysis, admin tools, configuration
  management, pen-tested
• B3 - structured design, security domains, full
  reference monitor, increases trusted path
  requirements, constrains code development,
  real-time monitoring, good documentation,

51
Orange Book A

• Division A Verification Protection
• A1 As B3, but designed from the scratch with
  formal methods

52
Common Criteria

• 1998 A Common Criteria Recognition Agreement
• US, UK, Canada, France, Germany
• joined in 2002 by
• Australia, Finland, Greece, Israel, Italy,
  Netherlands, New Zealand, Norway, Spain, Sweden
  India, Japan, Russia, South Korea
• later became an international standard ISO/IEC
  15408 http//www.commoncriteria.org/

53
Common Criteria

• What does it do?
• describes a language and a framework where
• the security requirements will be specified,
• goals can be claimed to be achieved,
• and this can be evaluated
• claims can later be shown to hold or shown not to
  hold!

54
Common Criteria Concepts

• Target Of Evaluation (TOE) the product or system
  that is the subject of the evaluation.
• Protection Profile (PP) a document that
  identifies security requirements relevant to a
  user community for a particular purpose.
• Security Target (ST) a document that identifies
  the security properties one wants to evaluate
  against
• Evaluation Assurance Level (EAL) - a numerical
  rating (1-7) reflecting the assurance
  requirements fulfilled during the evaluation.

55
ToE

• Target Of Evaluation (TOE) the product or system
  that is the subject of the evaluation.

56
PP

• Protection Profile (PP) a document that
  identifies security requirements relevant to a
  user community for a particular purpose.
• an implementation-independent set of security
  requirements for a category of products or
  systems that meet specific consumer needs
• a more detailed specification of a set of
  means/protections to achieve the goals
• and a yardstick to evaluate if designers /
  implementers did a good job
• subject to review and certified

57
PP - Example

• Controlled Access PP CAPP_V1.d
• Security functional requirements
• Authentication,
• User Data Protection,
• Prevent Audit Loss
• Security assurance requirements
• Security testing,
• Admin guidance,
• Life-cycle support,
• Assumes non-hostile and well-managed users
• Does not consider malicious system developers

58
ST

• Security Target (ST) a document that identifies
  the security properties one wants to evaluate
  against.
• a set of security requirements and
  specifications to be used for evaluation of an
  identified product or system
• describes specific security functions and
  mechanisms
• allowing comparison of very different products

59
Common Criteria Certificates

• CESG at GCHQ
• Communications-Electronics Security Group at
  Government Communications Headquarters
• gt Common Criteria Scheme

60
EAL Evaluation Assurance Level

• EAL1 Functionally Tested
• no need disclose the design/sources to
  government agencies
• EAL2 Structurally Tested
• 6 months, 150 K
• EAL3 Methodically Tested and Checked
• EAL4 Methodically Designed, Tested, and Reviewed
• EAL4 flaw remediation, better crypto, etc
• 24 months, 150 K - 2.5 M per product
• Ms. Windows 2000 source certified EAL4 for an
  undisclosed amount
• EAL5 Semi-formally Designed and Tested
• EAL6 Semi-formally Verified Design and Tested
• EAL7 Formally Verified Design and Tested

commercial
military
61
Microsoft and EAL4

• Schneier on Security
• Microsoft Windows Receives EAL 4 Certification
• Microsoft announced that all the products earned
  the EAL 4 (Evaluation Assurance Level), which
  is the highest level granted to a commercial
  product.
• The products receiving CC certification include
  Windows XP Professional with Service Pack 2 and
  Windows XP Embedded with Service Pack 2. Four
  different versions of Windows Server 2003 also
  received certification.
• Is this true?
• ...director of security engineering strategy at
  Microsoft Steve Lipner said the certifications
  are a significant proof point of Redmond's
  commitment to creating secure software.
• Bad publicity for EAL 4
• Target of evaluation switch the network off.

62
CC Recognition

• Only EAL 1-5 are recognized by other countries
• Levels 6-7 are closed military and national
  stuff

63
CC Criticism

• people that do these evaluations are more or less
  the national military or national intelligence
  agencies (GCHQ, NSA), but also US NIST,
• all willing to help defend the national industry
• but also conflicting interests (signals
  intelligence interception etc.)
• top-down culture, not listening to the industry
• slow, product is now obsolete by the time you go
  through it
• bureaucratic process, mostly about writing things
  in a certain way
• used to be a major source of jobs for
  cryptologists
• there is no evidence that EAL made products more
  secure in practice.
• Ross Anderson suggests that some governments were
  permissive/easy on business, or maybe cynical
  certified the products they could break
• evaluation depends on PP, this one is not too
  broad,
• chosen by the vendor in his favor.
• should be the one required by the customer!

64
Good Points

• Some countries such as France (DCSSI) have
  developed extra evaluations and force stronger
  mechanisms, especially in cryptography.
• products can be evaluated as high level (niveau
  élevé).
• It is recognized that CC contributed a lot for
  developing MUCH stronger cryptography used in the
  industry of countries such as France, Germany,
  UK etc

65
CC Decline?

• today, since 2000 or so..
• the profitability of security industries
  suffered,
• less legal reasons to ever evaluate products
• time to market became very important,
• got some bad publicity
• since 2000 CC evaluations are less widely used
• (banks still continue eg bank cards and
  terminals)
• New U.S. DoD strategy COTS Commercial Off The
  Shelf,
• can add custom configuration / setup
