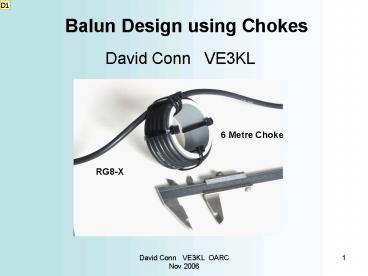

Balun Design using Chokes

1
Balun Design using Chokes

• David Conn VE3KL

6 Metre Choke
RG8-X
2
Acknowledgements

• QCWA Chapter 70 Members
• Dave Green VE3TLY
• Ben Price VE3CDA
• Doug Leach VE3XK
• Ray Parsons KG2B

3
Background on BalunsBalanced-to-UnbalancedTrans
mission Line TransformersBasic TYPES

• Choke type.. a simple coil of coax..my talk
• Ferrite Core Ruthroff, Guanella designs
• Ferrite Beads over the coax
• Bazooka. Quarter wave coupling stubs

4
Purpose of the Talk

• To show what a Choke does for you
• To give you the actual design information

All Design Information in the RAC Web Site and
TCA Jan/Feb 2007

• RAC Hotlinks 2007 Jan-Feb
• RAC Calculators (VE3KL Coil Calculator)

5
The Problem
Uncontrolled Antenna Pattern
RF in Radio Shack
SWR?
Television Interference
Unwanted Radiation
Power line noise
Noise Received From Vertically Polarized Sources
6
SWR with a Choke
7
SWR Without a Choke
EZNEC Simulation
8
The SolutionA Good Choke
Isolation Plane
9
How is a Good Choke Designed ?(Not by using
10 turns of coax with a diameter of 6 to 8
inches!)
10
VE3KL Coil Design Calculator
Coil Theory Inductance Maxwell 1873 Skin
Effect Lamb 1883 Inductance Wheeler
1928 Capacitance Grandi 1999 Insulator
Thickness Length Diameter Nr. Turns Pitch
Air Core Design
11
Frequency Response of the Choke
Ideally, put the resonant peak in the band center.
21 MHz
Keep the Coil Reactance Greater Than 1500 Ohms
12
VE3KL Design Graphs/TablesThree Methods

• Select a single band design dimensions not
  fixed.a compromise
• Select a single band optimized designdimensions
  fixed
• Select a multi-band designdimensions fixed a
  compromise

13
Example of A Single Band Design15 Metres
20 Turns, 56 mm
Reactance Greater Than 1500 Ohms
14
Example of A Single Band Design..2 Metres
10 Turns,53 mm
15
Examples of Single Band Optimized Designs
16
Examples of A Multi Band Designs
17
Which Design?

• Select the Single Band design when size is
  important..my Hamstick 20 m Dipole
• Select an Optimized Single Band Design when
  performance is paramount not Size.a Mono Band
  Beam
• Select a Multi Band Design for your Tri Band Beam
  and others

18
Coaxial Cable Issues ?

• MIL Spec and Amateur Types
• Bending Radius
• Waterproof ? Connectors?
• Specifications not complete
• Foam core vs. solid core
• Dielectric properties of the outer jacket?

19
Summary?

• Chokes Clean up your antenna system
• Many Designs available on the RAC Web Site
• Models use state of the art algorithms
• MF Chokes get very large
• VHF Chokes get small
• Transmission Line Chokes needed for UHF and above

20
Mr. Problem
NO
Uncontrolled Antenna Pattern
RF in Radio Shack
SWR?
Wanted for recycling
Television Interference
Power Line Noise
Noise Received From Vertically Polarized Sources
21
VY 73David VE3KL
Build One for Your Next Antenna
