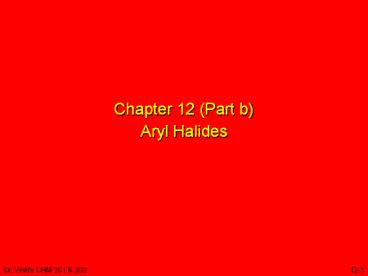

Chapter 12 (Part b) Aryl Halides

1
Chapter 12 (Part b)Aryl Halides
2
Aryl Halides

• Aryl halides are halides in which the halogen is
  attached directly to an aromatic ring.
• Carbon-halogen bonds in aryl halides are shorter
  and stronger than carbon-halogen bonds in alkyl
  halides.

3
Table 23.1 CH and CCl Bond Dissociation
Energies of Selected Compounds
Bond EnergykJ/mol (kcal/mol)
X H
X Cl
CH3CH2X
sp3
410 (98)
339 (81)
sp2
452 (108)
368 (88)
sp2
469 (112)
406 (97)
4
Aryl Halides

• Aryl halides are halides in which the halogen is
  attached directly to an aromatic ring.
• Carbon-halogen bonds in aryl halides are shorter
  and stronger than carbon-halogen bonds in alkyl
  halides.
• Because the carbon-halogen bond is stronger, aryl
  halides react more slowly than alkyl halides when
  carbon-halogen bond breaking is rate determining.

5
Physical Properties of Aryl Halides

• resemble alkyl halides
• all are essentially insoluble in water
• less polar than alkyl halides

? 1.7 D
? 2.2 D
6
Reactions of Aryl Halides

• Electrophilic Aromatic Substitution (Chapter 12a)
• Formation of aryl Grignard reagents (Chapter 14)
• We have not yet seen any nucleophilic
  substitution reactions of aryl halides.
  Nucleophilic substitution on chlorobenzene occurs
  so slowly that forcing conditions are required.

7
Example
(97)
8
Reasons for Low Reactivity

• SN1 not reasonable because
• 1) CCl bond is strong therefore, ionization
  to a carbocation is a high-energy process
• 2) aryl cations are less stable than alkyl
  cations

9
Reasons for Low Reactivity

• SN2 not reasonable because ring blocks attack of
  nucleophile from side opposite bond to leaving
  group

10
Nucleophilic Substitution inNitro-Substituted
Aryl Halides
11
But...

• nitro-substituted aryl halides do
  undergonucleophilic aromatic substitution readily

CH3OH


NaOCH3
NaCl
85C
(92)
12
Effect of nitro group is cumulative

• especially when nitro group is ortho and/orpara
  to leaving group

1.0
too fast to measure
13
Kinetics

• follows second-order rate law rate karyl
  halidenucleophile
• inference both the aryl halide and the
  nucleophile are involved in rate-determining
  step

14
Effect of leaving group

• unusual order F gt Cl gt Br gt I

X
Relative Rate
F
312
Cl
1.0
Br
0.8
I
0.4
NaOCH3, CH3OH, 50C
15
General Conclusions About Mechanism

• bimolecular rate-determining step in
  whichnucleophile attacks aryl halide
• rate-determining step precedes carbon-halogenbond
  cleavage
• rate-determining transition state is stabilized
  byelectron-withdrawing groups (such as NO2)

16
The Addition-Elimination Mechanismof
Nucleophilic Aromatic Substitution
17
Addition-Elimination Mechanism

• Two step mechanism
• Step 1) nucleophile attacks aryl halide and
  bonds to the carbon that bears the
  halogen (slow aromaticity of ring lost in
  this step)
• Step 2) intermediate formed in first step
  loses halide (fast aromaticity of ring
  restored in this step)

18
Reaction
CH3OH


NaOCH3
NaF
85C
(93)
19
Mechanism
Step 1

• bimolecular
• consistent with second-order kinetics first
  order in aryl halide, first order in nucleophile

20
Mechanism
Step 1
21
Mechanism

• intermediate is negatively charged
• formed faster when ring bears electron-withdrawing
  groups such as NO2

H
H


H
H
NO2
22
Stabilization of Rate-Determining Intermediateby
Nitro Group
23
Stabilization of Rate-Determining Intermediateby
Nitro Group
24
Mechanism
Step 2
H
H


H
H
NO2
25
Mechanism
Step 2
H
H
fast
H
H
26
Leaving Group Effects
F gt Cl gt Br gt I is unusual, but consistentwith
mechanism

• carbon-halogen bond breaking does not occuruntil
  after the rate-determining step
• electronegative F stabilizes negatively charged
  intermediate

27
Related Nucleophilic AromaticSubstitution
Reactions
28
Example Hexafluorobenzene
(72)

• Six fluorine substituents stabilize negatively
  charged intermediate formed in rate-determining
  step and increase rate of nucleophilic aromatic
  substitution.

29
Example 2-Chloropyridine
NaOCH3
CH3OH
50C

• 2-Chloropyridine reacts 230,000,000 times faster
  than chlorobenzene under these conditions.

30
Example 2-Chloropyridine

• Nitrogen is more electronegative than carbon,
  stabilizes the anionic intermediate, and
  increases the rate at which it is formed.

31
Example 2-Chloropyridine


N
Cl

• Nitrogen is more electronegative than carbon,
  stabilizes the anionic intermediate, and
  increases the rate at which it is formed.

32
Descriptive Passage The Elimination-Addition
Mechanismof Nucleophilic Aromatic
SubstitutionBenzyne
33
Aryl Halides Undergo Substitution WhenTreated
With Very Strong Bases
KNH2, NH3
33C
(52)
34
Regiochemistry

• new substituent becomes attached to eitherthe
  carbon that bore the leaving group orthe carbon
  adjacent to it

NaNH2,NH3

33C
35
Regiochemistry

• new substituent becomes attached to eitherthe
  carbon that bore the leaving group orthe carbon
  adjacent to it

36
Regiochemistry
NaNH2, NH3
33C


37
Same result using 14C label

(48)
(52)
38
Mechanism
Step 1
39
Mechanism
Step 1

• compound formed in this step is called benzyne

40
Benzyne

• Benzyne has a strained triple bond.
• It cannot be isolated in this reaction, but is
  formed as a reactive intermediate.

41
Mechanism
Step 2
42
Mechanism
Step 2

• Angle strain is relieved. The two sp-hybridized
  ring carbons in benzyne become sp2 hybridized in
  the resulting anion.

43
Mechanism
Step 3


NH2

44
Mechanism
Step 3


NH2

45
Hydrolysis of Chlorobenzene

• 14C labeling indicates that the high-temperature
  reaction of chlorobenzene with NaOH goes via
  benzyne.

NaOH, H2O
395C

(54)
(43)
46
Diels-Alder Reactions of Benzyne
47
Other Routes to Benzyne

• Benzyne can be prepared as a reactive
  intermediate by methods other than treatment of
  chlorobenzene with strong bases.
• Another method involves loss of fluoride ion from
  the Grignard reagent of 1-bromo-2-fluorobenzene.

48
Other Routes to Benzyne
FMgBr

49
Benzyne as a Dienophile

• Benzyne is a fairly reactive dienophile, and
  gives Diels-Alder adducts when generated in the
  presence of conjugated dienes.

50
Benzyne as a Dienophile
Br

F
(46)
51
