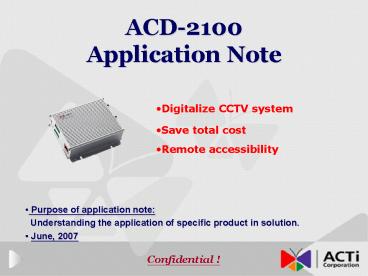

ACD-2100 Application Note

1
ACD-2100 Application Note
Digitalize CCTV system
Save total cost
Remote accessibility

• Purpose of application note
• Understanding the application of specific
  product in solution.
• June, 2007

2
ACTi NVR 2.0 complete the total solution
Freedom to choose ACTi ACD-2100 empower any analog camera to get on IP.
Enjoy quality from analog camera Through ACD-2100, keep the excellent video output from analog camera.
Full- function support DI/O compatible, 2 way audio, support PTZ with mouse/ Joystick
Save total cost ACD-2100 analog camera cost saving when comparing to pure IP solution.
With ACTi NVR 2.0, it complete total solution without extra charge. With ACTi NVR 2.0, it complete total solution without extra charge.
1
1
1
2
1
3
3
1
2
3
3
ACD-2100 -1 Channels Video Server-Feature
Application
Simultaneous MPEG4 digital composite analog video output
Hardware Motion setting Multi-window motion detection
RS-485,RS-422,RS-232
2 separate DI/O, TTL.
The best choice of saving money
Composite Input/ Output
Event Management
Transparent Serial Port

• Best Application
• CCTV existed
• Low budget project

DI/DO
Economic Model
