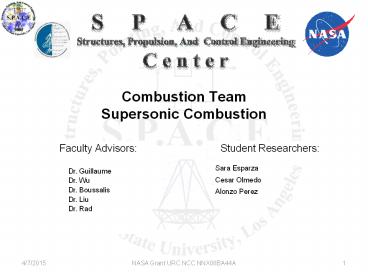

Combustion Team Supersonic Combustion

1
Combustion TeamSupersonic Combustion
Faculty Advisors
Student Researchers

• Sara Esparza
• Cesar Olmedo
• Alonzo Perez

Dr. Guillaume Dr. Wu Dr. Boussalis Dr. Liu Dr.
Rad
2
Outline

• Recent testing
• Shortened Combustion Chamber
• Determination of Mach Speed
• Schlieren
• Transparent (acrylic) Chamber
• Cold Flow
• Preheater
• Large Compressor
• Refuel Hydrogen Tank

3
Recent Testing

• Video
• Pressures
• 65 psi air
• 200 psi hydrogen
• Parameters do not prove supersonic combustion
• Schlieren photography needed

4
Temperature Data
5
Shortened Combustion Chamber

• Combustion can be held at a higher mach number
• Ensures that the mach number stays above one
• Less frictional loss
• Shorter mixing time

6
Pressure Measurement

• Reading depends on diameter size
• Pressure reading decreases as the diameter
  increases

7
Determination of Mach Speed

• Calculations
• Schlieren Imaging
• Cold flow
• Analyze shock wave profiles

8
Schlieren Imaging

• Acrylic chamber
• Allows visualization
• H Studios Haziza polishing
• Schlieren Imaging
• Cold flow
• Analyze shock wave profiles

9
Possible Results
Overexpanded Pressure at nozzle exit lower than
ambient
Underexpanded Exit pressure greater than back
pressure
10
Preheater

• Amptek Flexible Electric Heating Tape
• Enhances likelihood of combustion
• Reduces density and apparent pressure within
  chamber

11
Large Compressor

• Drives pressure ratio
• Overcomes pressure loss due to heat addition
• Larger mass flow rate
• Longer testing time
• Miniature wind tunnel

12
Large Compressor

• Size 80 Gallons
• Test time 30 seconds

13
Refuel Hydrogen Tank

• Fuel supply
• Industrial Hydrogen Tank
• Praxair Customer

14
Future Work

• Schlieren setup and imaging
• Purchase compressor
• More Testing
• NASA Report
• USC Fluids Conference

15
Thanks!

• Any Questions?

16
Timeline2011
Hypersonic Combustion Team Timeline March 2011 - June2011 Hypersonic Combustion Team Timeline March 2011 - June2011 Hypersonic Combustion Team Timeline March 2011 - June2011 Hypersonic Combustion Team Timeline March 2011 - June2011 Hypersonic Combustion Team Timeline March 2011 - June2011 Hypersonic Combustion Team Timeline March 2011 - June2011
2011 2011 2011 2011 2011 2011
Student Name March April April May June
Sara Esparza Finish fabrication of combustion chamber Schlieren Photography Setup Analysis Schlieren Photography Setup Analysis Test Intake with Hydrogen Publish Papers Test Full Thrust System in Wind Tunnel
Sara Esparza Fluent analysis of hydrogen and air inside intake mixture Determine the possibility of premixing hydrogen Determine the possibility of premixing hydrogen Test Intake with Hydrogen Publish Papers Test Full Thrust System in Wind Tunnel
Cesar Olmedo Finish fabrication of combustion chamber Finalize Spark System and Strength Schlieren Photography Setup Test Intake with Hydrogen Publish Papers Test Full Thrust System in Wind Tunnel
Cesar Olmedo Fluent analysis of combustion chamber Finalize Spark System and Strength Schlieren Photography Setup Test Intake with Hydrogen Publish Papers Test Full Thrust System in Wind Tunnel
