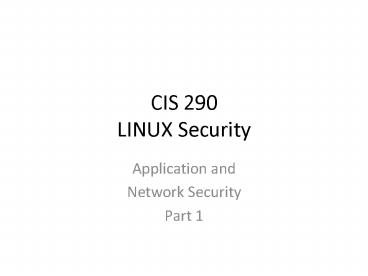

CIS 290 LINUX Security

1
CIS 290LINUX Security

• Application and
• Network Security
• Part 1

2
SSH

• /etc/ssh/sshd_config
• AllowTcpForwarding no
• AllowAgentForwarding No
• DenyUsers, AllowUsers, DenyGroups,
  AllowGroups
• AllowTcpForwarding No
• Banner No
• ChrootDirectory No
• ClientAliveInterval 600
• ClientAliveCountMax 0
• ForceCommand
• HostbasedAuthentication no
• IgnoreRhosts yes
• ListenAddress
• LoginGraceTime
• MaxAuthTries
• MaxSessions
• MaxStartups
• PermitEmptyPasswords no

3
Original Sentry Tools (Psionic)

• Logcheck (still an RPM)
• Portsentry
• http//sourceforge.net/projects/sentrytools/
• Tcplogd
• See also netstat an or ss -a

4
Network Security

• TCP Wrappers hosts.allow, hosts.deny
• /etc/security/access.conf
• Iptables 2.4 - formerly ipfwadm lt2.0, ipchains,
  2.1)
• /etc/sysctl.conf
• Avoid a smurf attack
• net.ipv4.icmp_echo_ignore_broadca
  sts 1
• Turn on protection for bad icmp error messages
• net.ipv4.icmp_ignore_bogus_error_r
  esponses 1
• Turn on syncookies for SYN flood attack
  protection
• net.ipv4.tcp_syncookies 1
• Turn on and log spoofed, source routed, and
  redirect packets
• net.ipv4.conf.all.log_martians
  1
• net.ipv4.conf.default.log_martians
  1

5
Network Security

• /etc/sysctl.conf
• No source routed packets here
• net.ipv4.conf.all.accept_source_ro
  ute 0
• net.ipv4.conf.default.accept_sourc
  e_route 0
• Turn on reverse path filtering
• net.ipv4.conf.all.rp_filter 1
• net.ipv4.conf.default.rp_filter 1

• Make sure no one can alter the routing tables
• net.ipv4.conf.all.accept_redirects
  0
• net.ipv4.conf.default.accept_redir
  ects 0
• net.ipv4.conf.all.secure_redirects
  0
• net.ipv4.conf.default.secure_redire
  cts 0
• Don't act as a router
• net.ipv4.ip_forward 0
• net.ipv4.conf.all.send_redirects
  0
• net.ipv4.conf.default.send_redirec
  ts 0

6
Network Security

• /etc/sysctl.conf
• Turn on execshild
• kernel.exec-shield 1
• kernel.randomize_va_space 1
• Tune IPv6 (or turn it off)
• net.ipv6.conf.default.router_solic
  itations 0
• net.ipv6.conf.default.accept_ra_rt
  r_pref 0
• net.ipv6.conf.default.accept_ra_pi
  nfo 0
• net.ipv6.conf.default.accept_ra_def
  rtr 0
• net.ipv6.conf.default.autoconf 0
• net.ipv6.conf.default.dad_transmit
  s 0
• net.ipv6.conf.default.max_addresse
  s 1
• Optimization for port usefor LBs
• Increase system file descriptor
  limit
• fs.file-max 65535
• Allow for more PIDs (to reduce rollover
  problems) may break some programs 327

7
Network Security

• Increase system IP port limits
• net.ipv4.ip_local_port_range
  2000 65000
• Increase TCP max buffer size setable using
  setsockopt()
• net.ipv4.tcp_rmem 4096 87380
  8388608
• net.ipv4.tcp_wmem 4096 87380
  8388608
• Increase Linux auto tuning TCP buffer limits
• min, default, and max number of
  bytes to use
• set max to at least 4MB, or
  higher if you use very high BDP paths
• Tcp Windows etc
• net.core.rmem_max 8388608
• net.core.wmem_max 8388608
• net.core.netdev_max_backlog
  5000
• net.ipv4.tcp_window_scaling 1

8
Firewall - Iptables

• /etc/sysconfig/iptables
• Commands iptables, iptables-save,
  iptables-restore
• There are total 4 chains
• INPUT - The default chain is used for packets
  addressed to the system. Use this to open or
  close incoming ports (such as 80,25, and 110 etc)
  and ip addresses / subnet (such as
  202.54.1.20/29).
• OUTPUT - The default chain is used when packets
  are generating from the system. Use this open or
  close outgoing ports and ip addresses / subnets.
• FORWARD - The default chains is used when
  packets send through another interface. Usually
  used when you setup Linux as router. For example,
  eth0 connected to ADSL/Cable modem and eth1 is
  connected to local LAN. Use FORWARD chain to send
  and receive traffic from LAN to the Internet.
• RH-Firewall-1-INPUT - This is a user-defined
  custom chain. It is used by the INPUT, OUTPUT and
  FORWARD chains.

9
iptables

• Packet Matching Rules
• Each packet starts at the first rule in the
  chain.
• A packet proceeds until it matches a rule.
• If a match found, then control will jump to the
  specified target (such as REJECT, ACCEPT, DROP).
• Target Meanings
• The target ACCEPT means allow packet.
• The target REJECT means to drop the packet and
  send an error message to remote host.
• The target DROP means drop the packet and do not
  send an error message to remote host or sending
  host.
