Database Applications: Web-Enabled Databases and Search Engines: Cont.

1

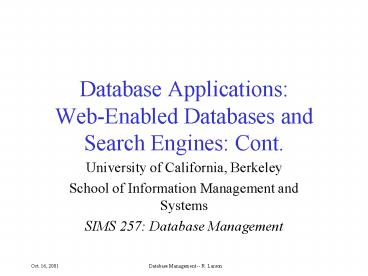

Database ApplicationsWeb-Enabled Databases and
Search Engines Cont.

• University of California, Berkeley
• School of Information Management and Systems
• SIMS 257 Database Management

2
Today

• Databases for Web Applications Continued

3
Why Use a Database System?

• Database systems have concentrated on providing
  solutions for all of these issues for scaling up
  Web applications
• Performance
• Scalability
• Maintenance
• Data Integrity
• Transaction support
• While systems differ in their support, most offer
  some support for all of these.

4
Dynamic Web Applications 2
Files
Web Server
CGI
database
DBMS
Internet
database
database
Server
Clients
5
Server Interfaces
Database
Web Server
SQL
HTML
Native DB Interfaces
DHTML
Web Application Server
Web DB App
JavaScript
CGI Web Server APIs
ODBC Native DB interfaces JDBC
ColdFusion PhP Perl Java
ASP
Adapted from John P Ashenfelter, Choosing a
Database for Your Web Site
6
What Database systems are available?

• Choices depend on
• Size (current and projected) of the application
• Hardware and OS Platforms to be used in the
  application
• Features required
• E.g. SQL? Upgrade path? Full-text indexing?
  Attribute size limitations? Locking protocols?
  Direct Web Server access? Security?
• Staff support for DBA, etc.
• Programming support (or lack thereof)
• Cost/complexity of administration
• Budget

7
Desktop Database Systems

• Individuals or very small enterprises can create
  DBMS-enabled Web applications relatively
  inexpensively
• Some systems will require an application server
  (such as ColdFusion) to provide the access path
  between the Web server and the DBMS

8
Pros and Cons of Database Options

• Desktop databases
• usually simple to set up and administer
• inexpensive
• often will not scale to a very large number of
  users or very large database size
• May lack locking management appropriate for
  multiuser access
• Poor handling for full-text search
• Well supported by application software
  (Coldfusion, PHP, etc.)

9
Enterprise Database Systems

• Enterprise servers are powerful and available in
  many different configurations
• They also tend to be VERY expensive
• Pricing is usually based on users, or CPUs

10
Pros and Cons of Database Options

• Enterprise databases
• Can be very complex to set up and administer
• Oracle, for example recommends RAID-1 with 7x2
  disk configuration as a bare minimum, more
  recommended
• Expensive
• Will scale to a very large number of users
• Will scale to very large databases
• Incorporate good transaction control and lock
  management
• Native handling of Text search is poor, but most
  DBMS have add-on text search options
• Support for applications software (ColdFusion,
  PHP, etc.)

11
Free Database Servers

• System is free, but there is also no help line.
• Include many of the features of Enterprise
  systems, but tend to be lighter weight
• Versions may vary in support for different
  systems
• Open Source -- So programmers can add features

12
Pros and Cons of Database Options

• Free databases
• Can be complex to set up and administer
• Inexpensive (FREE!)
• usually will scale to a large number of users
• Incorporate good transaction control and lock
  management
• Native handling of Text search is poor
• Support for applications software (ColdFusion,
  PHP, etc.)

13
Embedded Database Servers

• May require programming experience to install
• Tend to be fast and economical in space
  requirements

14
Pros and Cons of Database Options

• Embedded databases
• Must be embedded in a program
• Can be incorporated in a scripting language
• inexpensive (for non-commercial application)
• May not scale to a very large number of users
  (depends on how it is used)
• Incorporate good transaction control and lock
  management
• Text search support is minimal
• May not support SQL

15
Web Application Server Software

• ColdFusion
• PHP
• ASP
• All of the are server-side scripting languages
  that embed code in HTML pages

16
ColdFusion

• Developing WWW sites typically involved a lot of
  programming to build dynamic sites
• e.g. Pages generated as a result of catalog
  searches, etc.
• ColdFusion was designed to permit the
  construction of dynamic web sites with only minor
  extensions to HTML through a DBMS interface

17
ColdFusion

• Started as CGI
• Drawback, as noted above, is that the entire
  system is run for each cgi invocation
• Split into cooperating components
• NT service -- runs constantly
• Server modules for 4 main Web Server API (glue
  that binds web server to ColdFusion service)
  Apache, ISAPI, NSAPI, WSAPI
• Special CGI scripts for other servers

18
What ColdFusion is Good for

• Putting up databases onto the Web
• Handling dynamic databases (Frequent updates,
  etc)
• Making databases searchable and updateable by
  users.

19
Requirements

• Unix or NT systems
• Install as SuperUser
• Databases must be defined via data source names
  (DSNs) by administrator

20
Requirements and Set Up

• Field (attribute) names should be devoid of
  spaces. Use the underscore character, like
  new_items instead of new items.
• Use key fields. Greatly reduces search time.
• Check permissions on the individual tables in
  your database and make sure that they have
  read-access for the username your Web server uses
  to log in.
• If your fields include large blocks of text,
  you'll want to include basic HTML coding within
  the text itself, including boldface, italics, and
  paragraph markers.

21
Templates

• Have a database named contents_of_my_shopping_cart
  .mdb -- single table called contents...
• Create an HTML page (uses extension .cfm), before
  ltHEADgt...
• ltCFQUERY NAME cart" DATASOURCEcontents_of_my_s
  hopping_cart"gtSELECT FROM contents
  lt/CFQUERYgt

22
Templates cont.

• ltHEADgt
• ltTITLEgtContents of My Shopping Cartlt/TITLEgt
• lt/HEADgt
• ltBODYgt
• ltH1gtContents of My Shopping Cartlt/H1gt
• ltCFOUTPUT QUERY cart"gt
• ltBgtItemlt/Bgt ltBRgt
• Date_of_item ltBRgt
• Price ltPgt
• lt/CFOUTPUTgt
• lt/BODYgt
• lt/HTMLgt

23
Templates cont.
Contents of My Shopping Cart
Bouncy Ball with Psychedelic Markings
12 December 1998
0.25
Shiny Blue Widget 14
December 1998 2.53
Large Orange Widget
14 December 1998
3.75
24
CFIF and CFELSE
ltCFOUTPUT QUERY cart"gt Item Item
ltBRgt ltCFIF Picture EQ""gt ltIMG
SRCgeneric_picture.jpg"gt ltBRgt ltCFELSEgt
ltIMG SRC"Picture"gt ltBRgt lt/CFIFgt lt/CFOUTPUTgt
25
More Templates
ltCFQUERY DATASOURCE AZ2gt INSERT INTO
Employees(firstname, lastname, phoneext)
VALUES(firstname, lastname, phoneext)
lt/CFQUERYgt ltHTMLgtltHEADgtltTITLEgtEmployee
Addedlt/TITLEgt ltBODYgtltH1gtEmployee
Addedlt/H1gt ltCFOUTPUTgt Employee ltBgtfirstname
lastnamelt/Bgt added. lt/CFOUTPUTgtlt/BODYgt lt/HTMLgt
26
CFML ColdFusion Markup Language

• Read data from and update data to databases and
  tables
• Create dynamic data-driven pages
• Perform conditional processing
• Populate forms with live data
• Process form submissions
• Generate and retrieve email messages
• Perform HTTP and FTP function
• Perform credit card verification and
  authorization
• Read and write client-side cookies

27
PHP

• PHP is an Open Source Software project with many
  programmers working on the code.
• Commonly paired with MySQL, another OSS project
• Free
• Both Windows and Unix support
• Estimated that more than 250,000 web sites use
  PHP as an Apache Module.

28
PHP Syntax

• Similar to ASP
• Includes most programming structures (Loops,
  functions, Arrays, etc.)
• Loads HTML form variables so that they are
  addressable by name

ltHTMLgtltBODYgt lt?php myvar Hello World
echo myvar ?gt lt/BODYgtlt/HTMLgt
29
Combined with MySQL

• DBMS interface appears as a set of functions

ltHTMLgtltBODYgt lt?php db mysql_connect(localhost
, root) mysql_select_db(mydb,db) result
mysql_query(SELECT FROM employees,
db) Printf(First Name s ltbrgt\n,
mysql_result(result, 0 first) Printf(Last
Name s ltbrgt\n, mysql_result(result, 0
last) ?gtlt/BODYgtlt/HTMLgt
30
ASP Active Server Pages

• Another server-side scripting language
• From Microsoft using Visual Basic as the Language
  model (VBScript), though Javascript (actually MS
  Jscript) is also supported
• Works with Microsoft IIS and gives access to ODBC
  databases

31
ASP Syntax
lt SQL"SELECT last, first FROM employees
ORDER BY last" set conn
server.createobject("ADODB.Connection")
conn.open employee" set peopleconn.execute(
SQL) gt lt do while not people.eof set
resultlinepeople(0) , people(1) ltBRgt
Response.Write(resultline)
people.movenext loopgt lt people.close gt
32
Text Search

• Native text searching within databases is very
  poor.
• Involves a full scan of the database to resolve
  LIKE queries.
• Text fields are limited in size
• For example Oracle VARCHAR has a maximum of 4000
  bytes
• LONG (BLOBS, etc) fields support larger data, but
  are not indexable and cant be used in WHERE
  clauses.
• Some Databases offer Text retrieval add-ons
• Oracles interMedia or ConText Text retrieval
  engines
• Informix Text DataBlade
• IBM DB2 Text Extender

33
Text Search Options
34
Features to look for

• Ranked and Boolean Search
• Proximity search
• Fielded searching
• Concept expansion
• Spider for Indexing
• Document types available
• HTML, PDF, XML, MS-Office, Multimedia?

35
Other Options

• Have an external search engine crawl and present
  your site.
• Inktomi provides portal sites for customers
• Snap uses Inktomi to do the same sort of thing

36
Conclusions

• Database technology is a required component for
  large-scale dynamic Web sites, especially
  E-Commerce sites
• Web databases cover most of the needs of dynamic
  sites except for text search
• Many solutions and systems are available for
  web-enabled databases and search engines
