Principal Components An Introduction

1

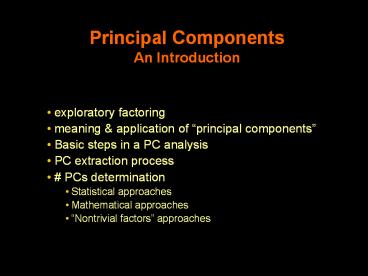

Principal ComponentsAn Introduction

• exploratory factoring
• meaning application of principal components
• Basic steps in a PC analysis
• PC extraction process
• PCs determination
• Statistical approaches
• Mathematical approaches
• Nontrivial factors approaches

2
Exploratory vs. Confirmatory Factoring

• Exploratory Factoring when we do not have RH
  about . . .
• the number of factors
• what variables load on which factors
• we will explore the factor structure of the
  variables, consider multiple alternative
  solutions, and arrive at a post hoc solution
• Weak Confirmatory Factoring when we have RH
  about the factors and factor memberships
• we will test the proposed weak a priori factor
  structure
• Strong Confirmatory Factoring when we have RH
  about relative strength of contribution to
  factors by variables
• we will test the proposed strong a priori
  factor structure

3
Meaning of Principal Components

• Component analyses are those that are based on
  the full correlation matrix
• 1.00s in the diagonal
• yep, theres other kinds, more later
• Principal analyses are those for which each
  successive factor...
• accounts for maximum available variance
• is orthogonal (uncorrelated, independent) with
  all prior factors
• full solution (as many factors as variables)
  accounts for all the variance

4
Applications of PC analysis

• Components analysis is a kind of data reduction
• start with an inter-related set of measured
  variables
• identify a smaller set of composite variables
  that can be constructed from the measured
  variables and that carry as much of their
  information as possible
• A Full components solution ...
• has as many PCs as variables
• accounts for 100 of the variables variance
• each variable has a final communality of 1.00
  all of its variance is accounted for by the full
  set of PCs
• A Truncated components solution
• has fewer PCs than variables
• accounts for lt100 of the variables variance
• each variable has a communality lt 1.00 -- not all
  of its variance is accounted for by the PCs

5
The basic steps of a PC analysis

• Compute the correlation matrix
• Extract a full components solution
• Determine the number of components to keep
• total variance accounted for
• variable communalities
• Rotate the components and interpret (name)
  them
• Structure weights gt .3-.4 define which
  variables load
• Compute component scores
• Apply components solution
• theoretically -- understand meaning of the data
  reduction
• statistically -- use the component scores in
  other analyses

• interpretability
• replicability

6
PC Factor Extraction

• Extraction is the process of forming PCs as
  linear combinations of the measured variables
• PC1 b11X1 b21X2 bk1Xk
• PC2 b12X1 b22X2
  bk2Xk
• PCf b1fX1 b2fX2 bkfXk
• Heres the thing to remember
• We usually perform factor analyses to find out
  how many groups of related variables there are
  however
• The mathematical goal of extraction is to
  reproduce the variables variance, efficiently

7
PC Factor Extraction, cont.

• Consider R on the right
• Obviously there are 2 kinds of information among
  these 4 variables
• X1 X2 X3 X4
• Looks like the PCs should be formed as,

X1 X2 X3 X4 X1 1.0 X2 .7
1.0 X3 .3 .3 1.0 X4 .3 .3
.5 1.0

• PC1 b11X1 b21X2 -- capturing the
  information in X1 X2
• PC2 b32X3 b42X4 -- capturing the
  information in X3 X4
• But remember, PC extraction isnt trying to
  group variables it is trying to reproduce
  variance
• notice that there are cross correlations
  between the groups of variables !!

8
PC Factor Extraction, cont.

• So, because of the cross correlations, in order
  to maximize the variance reproduced, PC1 will be
  formed more like ...
• PC1 .5X1 .5X2 .4X3 .4X4
• Notice that all the variables contribute to
  defining PC1
• Notice the slightly higher loadings for X1 X2
• Because PC1 didnt focus on the X1 X2 variable
  group or X3 X4 variable group, there
  will still be variance to account for in both,
  and PC2 will be formed, probably something like
• PC2 .3X1 .3X2 - .4X3 - .4X4
• Notice that all the variables contribute to
  defining PC2
• Notice the slightly higher loadings for X3 X4

9
PC Factor Extraction, cont.

• While this set of PCs will account for lots of
  the variables variance -- it doesnt provide a
  very satisfactory interpretation
• PC1 has all 4 variables loading on it
• PC2 has all 4 variables loading on it and 2 of
  then have negative weights, even though all the
  variables are positively correlated with each
  other
• The goal here was point out what extraction does
  (maximize variance accounted for) and what it
  doesnt do (find groups of variables)

10
Determining the Number of PCs

• Determining the number of PCs is arguably the
  most important decision in the analysis
• rotation, interpretation and use of the PCs are
  all influenced by the how may PCs are kept for
  those processes
• there are many different procedures available
  none are guaranteed to work !!
• probably the best approach to determining the
  of PCS
• remember that this is an exploratory factoring
  -- that means you dont have decent RH about the
  number of factors
• So Explore
• consider different reasonable PCs and try
  them out
• rotate, interpret /or tryout resulting factor
  scores from each and then decide

To get started well use the SPSS standard of
? gt 1.00
11
Statistical Procedures

• PC analyses are extracted from a correlation
  matrix
• PCs should only be extracted if there is
  systematic covariation in the correlation
  matrix
• This is know as the sphericity question
• Note the test asks if there the next PC should
  be extracted
• There are two different sphericity tests
• Whether there is any systematic covariation in
  the original R
• Whether there is any systematic covariation left
  in the partial R, after a given number of factors
  has been extracted
• Both tests are called Bartletts Sphericity Test

12
Statistical Procedures, cont.

• Applying Bartletts Sphericity Tests
• Retaining H0 means dont extract another
  factor
• Rejecting H0 means extract the next factor
• Significance tests provide a p-value, and so a
  known probability that the next factor is 1 too
  many (a type I error)
• Like all significance tests, these are influenced
  by N
• larger N more power more likely to reject H0
  more likely to keep the next factor ( make a
  Type I error)
• Quandary?!?
• Samples large enough to have a stable R are
  likely to have excessive power and lead to
  over factoring
• Be sure to consider variance, replication
  interpretability

13
Mathematical Procedures

• The most commonly applied decision rule (and the
  default in most stats packages -- chicken egg
  ?) is the ? gt 1.00 rule heres the logic
• Part 1
• Imagine a spherical R (of k variables)
• each variable is independent and carries unique
  information
• so, each variable has 1/kth of the information in
  R
• For a normal R (of k variables)
• each variable, on average, has 1/kth of the
  information in R

14
Mathematical Procedure, cont.

• Part 2
• The trace of a matrix is the sum of its
  diagonal
• So, the trace of R (with 1s in the diag) k (
  vars)
• ? tells the amount of variance in R accounted for
  by each extracted PC
• for a full PC solution ? ? k (accounts for all
  variance)
• Part 3
• PC is about data reduction and parsimony
• trading fewer more-complex things (PCs - linear
  combinations of variables) for fewer more-simple
  things (original variables)

15
Mathematical Procedure, cont.

• Putting it all together (hold on tight !)
• Any PC with ? gt 1.00 accounts for more variance
  than the average variable in that R
• That PC has parsimony -- the more complex
  composite has more information than the average
  variable
• Any PC with ? lt 1.00 accounts for less variance
  than the average variable in that R
• That PC doesnt have parsimony -- the more
  complex composite has more no information than
  the average variable

16
Mathematical Procedure, cont.

• There have been examinations the accuracy of this
  criterion
• The usual procedure is to generate a set of
  variables from a known number of factors (vk
  b1kPC1 bfkPCf, etc.) --- while varying N,
  factors, PCs communalities
• Then factor those variables and see if ? gt 1.00
  leads to the correct number of factors
• Results -- the rule works pretty well on the
  average, which really means that it gets the
  factors right some times, underestimates
  sometimes and overestimates sometimes
• No one has generated an accurate rule for
  assessing when which of these occurs
• But the rule is most accurate with k lt 40, f
  between k/5 and k/3 and N gt 300

17
Nontrivial Factors Procedures

• These common sense approaches became increasing
  common as
• the limitations of statistical and mathematical
  procedures became better known
• the distinction between exploratory and
  confirmatory factoring developed and the crucial
  role of successful exploring became better
  known
• These procedures are more like judgement calls
  and require greater application of content
  knowledge and persuasion, but are often the
  basis of good factorings !!

18
Nontrivial factors Procedures, cont.

• Scree -- the junk that piles up at the foot of
  an glacier
• a diminishing returns approach
• plot the ? for each factor and look for the
  elbow
• Old rule -- factors elbow (1966 3 below)
• New rule -- factors elbow - 1 (1967 2
  below)

• Sometimes there isnt a clear elbow -- try
  another rule
• This approach seems to work best when combined
  with attention to interpretability !!

? 4 2 0
PC 1 2 3 4 5 6
19
An Example
A buddy in graduate school wanted to build a
measure of contemporary morality. He started
with the 10 Commandments and the 7 Deadly
Sins and created a 56-item scale with 8
subscales. His scree plot looked like How many
factors?
?
1? big elbow at 2, so 67 rule suggests a
single factor, which clearly accounts
for the biggest portion of variance 7? smaller
elbow at 8, so 67 rule suggests 7 8? smaller
elbow at 8, 66 rule gives the 8 he was looking
for also 8th has ? gt 1.0 and 9th had ? lt 1.0
0 1 10 20
1 8 20
40 56

• Remember that these are subscales of a central
  construct, so..
• items will have substantial correlations both
  within and between subscales
• to maximize the variance accounted for, the
  first factor is likely to pull in all these
  inter-correlated variables, leading to a large ?
  for the first (general) factor and much smaller
  ?s for subsequent factors
• This is a common scree configuration when
  factoring items from a multi-subscale scale!

20
Rotation finding groups in the variables

• Factor Rotations
• changing the viewing angle or head tilt of
  the factor space
• makes the groupings visible in the graph apparent
  in the structure matrix

Unrotated Structure PC1 PC2 V1
.7 .5 V2 .6 .6 V3 .6 -.5 V4
.7 -.6
PC1
Rotated Structure PC1 PC2 V1 .7
-.1 V2 .7 .1 V3 .1 .5 V4 .2
.6
PC2
V2
V1
PC1
V3
V4
PC2
21
Interpretation Naming groups in the variables

• Usually interpret factors using the rotated
  solutions using the rotated
• Factors are named for the variables correlated
  with them
• Usual cutoffs are /- .3 - .4
• So a variable that shares at least 9-16 of
  its variance with a factor is used to name that
  factor
• Variables may load on none, 1 or 2 factors

Rotated Structure PC1 PC2 V1 .7
-.1 V2 .7 .1 V3 .1 .5 V4 .2
.6
This rotated structure is easy PC1 is V1 V2
PC2 is V3 V4 It is seldom this easy !?!?!
22
Kinds of Factors

• General Factor
• all or almost all variables load
• there is a dominant underlying theme among the
  set of variables which can be represented with a
  single composite variable
• Group Factor
• some subset of the variables load
• there is an identifiable sub-theme in the
  variables that must be represented with a
  specific subset of the variables
• smaller vs. larger group factors ( vars
  variance)
• Unique Factor
• single variable loads

23
Kinds of Variables

• Univocal variable -- loads on a single factor
• Multivocal variable -- loads on 2 factors
• Nonvocal variable -- doesnt load on any factor

• You should notice a pattern here
• a higher cutoff (e.g., .40) tends to produce
• fewer variables loading on a given factor
• less likely to have a general factor
• fewer multivocal variables
• more nonvocal variables
• a lower cutoff (e.g., .30) tends to produce
• more variables loading on a given factror
• more likely to have a general factor
• more multivocal variables
• fewer nonvocal variables
