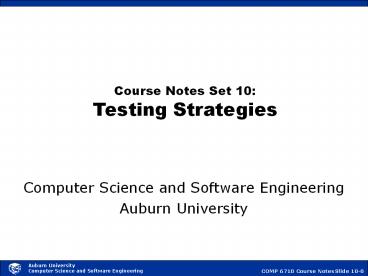

Course Notes Set 10: Testing Strategies

1
Course Notes Set 10Testing Strategies

• Computer Science and Software Engineering
• Auburn University

2
Strategic Approach to Testing

• Testing begins at the unit level and works toward
  integrating the entire system
• Various techniques for testing are appropriate at
  different times
• Conducted by the developer and by independent
  test groups

3
Testing Strategies
RequirementsSpecification
System Testing
Preliminary Design
Integration Testing
Detailed Design
Unit Testing
Coding
Adapted from Software Testing A Craftmans
Approach, by Jorgensen, CRC Press, 1995
4
A Testing Strategy
System engineering
Requirements
Design
Code
Unit Test
Integration Test
Validation Test
System Test
Adapted from Software Engineering 4th Ed, by
Pressman, McGraw-Hill, 1997
5
Integration Testing

• After individual components have passed unit
  testing, they are merged together to form
  subsystems and ultimately one complete system.
• Integration testing is the process of exercising
  this hierarchically accumulating system.

6
Integration Testing

• We will (normally) view the system as a hierarchy
  of components.
• Call graph
• Structure chart
• Design tree
• Integration testing can begin at the top of this
  hierarchy and work downward, or it can begin at
  the bottom of the hierarchy and work upwards.
• It can also employ a combination of these two
  approaches.

7
Example Component Hierarchy
A
B
C
D
E
F
G
Figure and associated examples adapted from
Pfleeger 2001
8
Integration Testing Strategies

• Big-bang integration
• Bottom-up Integration
• Top-down Integration
• Sandwich Integration

9
Big-bang Integration

• All components are tested in isolation.
• Then, the entire system is integrated in one step
  and testing occurs at the top level.
• Often used (perhaps wrongly), particularly for
  small systems.
• Does not scale.
• Difficult or impossible to isolate faults.

10
Big-bang Integration
Test A
Test B
Test C
Test A,B,C, D,E,F, G
Test D
Test E
Test F
11
Bottom-up Integration

• Test each unit at the bottom of the hierarchy
  first.
• Then, test the components that call the
  previously tested ones (one layer up in the
  hierarchy).
• Repeat until all components have been tested.
• Component drivers are used to do the testing.

12
Bottom-up Integration
Test E
Test B,E,F
Test F
Test A,B,C, D,E,F, G
Test C
Test G
Test D,G
13
Bottom-up Integration

• The manner in which the software was designed
  will influence the appropriateness of bottom-up
  integration.
• While it is normally appropriate for
  object-oriented systems, bottom-up integration
  has disadvantages for functionally-decomposed
  systems
• Top-level components are usually the most
  important, but the last to be tested.
• The upper levels are more general while the lower
  levels are more specific. Thus, by testing from
  the bottom up the discover of major faults can be
  delayed.
• Top-level faults are more likely to reflect
  design errors, which should obviously be
  discovered as soon as possible and are likely to
  have wide-ranging consequences.
• In timing-based systems, the timing control is
  usually in the top-level components.

14
Top-down Integration

• The top-level component is tested in isolation.
• Then, all the components called by the one just
  tested are combined and tested as a subsytem.
• This is repeated until all components have been
  integrated and tested.
• Stubs are used to fill in for components that are
  called but are not yet included in the testing.

15
Top-down Integration
Test A
Test A,B, C,D
Test A,B,C, D,E,F,G
16
Top-down Integration

• Again, the design of the system influences the
  appropriateness of the integration strategy.
• Top-down integration is obviously well-suited to
  systems that have been created through top-down
  design.
• When major system functions are localized to
  components, top-down integration allows the
  testing to isolate one function at a time and
  follow its control flow from the highest levels
  of abstraction to the lowest levels.
• Also, design problems show up earlier rather than
  later.

17
Top-down Integration

• A major disadvantage is the need of stubs.
• Writing stubs can be complex since they must
  function under the same conditions as their real
  counterpart.
• The correctness of the stub will influence the
  validity of the test.
• A large number of stubs could be required,
  particularly when there are a large number of
  general-purpose components in the lowest layer.
• Another criticism is the lack of individual
  testing on interior components.
• To address this concern, a modified top-down
  integration strategy can be used. Instead of
  incorporating an entire layer at once, each
  component in a given layer is tested individually
  before the integration of that layer occurs.
• This introduces another problem, however Now
  both stubs and component drivers are needed.

18
Modified Top-down Integration
Test B
Test E
Test A
Test C
Test A,B, C,D
Test F
Test A,B,C, D,E,F, G
Test D
Test G
19
Sandwich Integration

• Top-down and bottom-up can be combined into what
  Myers calls sandwich integration.
• The system is viewed as being composed of three
  major levels the target layer in the middle, the
  layers above the target, and the layers below the
  target.
• A top-down approach is used for the top level
  while a bottom-up approach is used for the bottom
  level. Testing converges on the target level.

20
Sandwich Integration
Test E
Test B,E,F
Test F
Test D,G
Test A,B,C, D,E,F, G
Test G
Test A
21
Measures for Integration Testing

• Recall v(G) is an upper bound on the number of
  independent/basis paths in a source module
• Similarly, we would like to limit the number of
  subtrees in a structure chart or call graph

22
Subtrees in Architecture vs. Paths in Units

• A call graph (or equivalent) architectural
  representation corresponds to a design tree
  representation, just as the source code for a
  unit corresponds to a flowgraph.
• Executing the design tree means it is entered at
  the root, modules in the subtrees are executed,
  and it eventually exits at the root.
• Just as the program can have a finite (if it
  halts), but overwhelming, number of paths, a
  design tree can have an inordinately large number
  of subtrees as a result of selection and
  iteration.
• We need a measure for design trees that is the
  analog of the basis set of independent paths for
  units.

23
Design Tree Complexity of 1
1
2
3
4
5
7
6
9
8
10
12
11
13
14
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
24
Design Tree Complexity gt 1
1
2
3
4
5
7
6
9
8
10
12
11
13
14
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
25
Design Tree Notation
M
M
M
B
B
A
A
B
A
Possible Paths Neither A B A B
Possible Paths A B
Possible Paths Neither A B
26
Subtrees vs. Paths
Ms Flowgraph
Design Tree C
E
M
A
B
B
A
X
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
27
Flowgraph Information

• Flowgraph symbols
• A black dot is a call to a subordinate module
• A white dot is a sequential statement (or a
  collection of sequential statements)
• Rules for reduction
• Sequential black dot may not be reduced
• Sequential white dot a sequential node may be
  reduced to a single edge
• Repetitive white dots a logical repetition
  without a black dot can be reduced to a single
  node
• Conditional white dots a logical decision with
  two paths without a black dot may be reduced to
  one path

28
Reduction Rules
2. Sequential White Dot
3. Repetitive White Dot
1. Sequential Black Dot
4. Conditional or Looping White Dot Decisions
or
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
29
Example Reduction
1
1
1
3
2
3
2
3
2
5
4
4
4
7
6
6
6
8
8
9
8
9
9
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
30
Example Reduction
1
1
1
1
3
3
3
3
4
4
4
4
6
8
8
8
9
9
9
9
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
31
Architectural Design Measures

• Number of subtrees
• The set of all subtrees is not particularly
  useful, but a basis set would be.
• Module Design Complexity iv(G)
• The cyclomatic complexity of the reduced
  flowgraph of the module
• Design Complexity S0
• S0 of a module M is
• S0 iv(Gj)
• j D
• where D is the set of descendants of M unioned
  with M
• Note If a module is called several times, it is
  added only once

32
Design Complexity Example
S011 iv3
S04 iv2
S01 iv1
S03 iv2
S01 iv1
S01 iv1
S01 iv1
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
33
Design Complexity Example
M
S09 iv2
A
B
S01 iv1
S06 iv2
S0(A) iv(A) iv(C) iv(D) iv(E)
C
S04 iv2
D
E
S01 iv1
S01 iv1
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
34
Architectural Design Measures

• Integration Complexity S1
• Measure of the number of integration tests
  required
• S1 S0 - n 1
• S0 is the design complexity
• n is the number of modules

35
Integration Complexity
S15 S09 iv3
S15 S09 iv3
M
N
S05 iv3
A
B
iv1
S05 iv3
S
T
iv1
C
D
iv1
iv1
V
U
iv1
iv1
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
36
Integrated Properties of M and N
S018 iv3
M
Integration Point
S05 iv3
A
B
S010 iv1
C
D
iv1
iv1
S09 iv3
N
S05 iv3
S
T
S01 iv1
V
U
iv1
iv1
37
Integration Testing

• Module integration testing
• Scope is a module and its immediate subordinates
• Testing Steps
• Apply reduction rules to the module
• Cyclomatic complexity of the subalgorithm is the
  module design complexity of the original
  algorithm. This determines the number of
  required tests.
• The baseline method applied to the subalgorithm
  yields the design subtrees and the module
  integration tests

38
Integration Testing

• Design integration testing
• Derived from integration complexity, which
  quantifies a basis set of integration tests
• Testing steps
• Calculate iv and S0 for each module
• Calculate S1 for the top module (number of basis
  subtrees required)
• Build a path matrix (S1 x n) to establish the
  basis set of subtrees
• Identify and label each predicate in the design
  tree and place those labels above each column of
  the path matrix corresponding to the module it
  influences
• Apply the baseline method to the design to
  complete the matrix (1 the module is executed
  0 the module is not executed)
• Identify the subtrees in the matrix and the
  conditions which derive the subtrees
• Build corresponding test cases for each subtree

39
Design Integration Example
S08 iv2
M
P1
S03 iv1
S04 iv2
A
B
P2
S01 iv1
S01 iv1
S01 iv1
C
E
D
S1 S0 - n 1 8 - 6 1 3
P1 condition W X P2 condition Y Z
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
40
Integration Path Test Matrix
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
41
Integration Path Test Matrix
Adapted from McCabe and Butler, Design
Complexity Measurement and Testing, CACM 32(12)
42
Example
with ModuleC use ModuleC package body
ModuleA is procedure ProcA is begin
S1 if CA then S1
else ProcC end if
end ProcA begin null end ModuleA
with ModuleC use ModuleC package body
ModuleB is procedure ProcB is begin
S1 if CB then
ProcC else S2 end
if if CB2 then S3
end if end ProcB begin null
end ModuleB
with ModuleA, ModuleB use ModuleA, ModuleB
procedure Main is begin S1
while CM loop ProcA ProcB
end loop end Main
package body ModuleC is procedure ProcC
is begin S1 if CC then
S2 else S3
end if end ProcC begin null
end ModuleC
What is an appropriate number of integration test
cases and what are those cases?
43
Example
Main
ProcA
ProcB
ProcC
Adapted from Watson and McCabe, Structured
Testing A Testing Methodology Using the
Cyclomatic Complexity Metric, NIST 500-235, 1996
44
System Testing

• The primary objective of unit and integration
  testing is to ensure that the design has been
  implemented properly that is, that the
  programmers wrote code to do what the designers
  intended. (Verification)
• The primary objective of system testing is very
  different We want to ensure that the system does
  what the customer wants it to do. (Validation)

Some notes adapted from Pfleeger 2001
45
System Testing

• Steps in system testing
• Function Testing
• Performance Testing
• Acceptance Testing
• Installation Testing

Function Test
Performance Test
Acceptance Test
Installation Test
Delivered System
Integrated Modules
Functioning System
Verified, Validated Software
Accepted System
46
Function Testing

• Checks that an integrated system performs its
  functions as specified in the requirements.
• Common functional testing techniques
  (cause-effect graphs, boundary value analysis,
  etc.) used here.
• View the entire system as a black box.

47
Performance Testing

• Compares the behavior of the functionally
  verified system to nonfunctional requirements.
• System performance is measured against the
  performance objectives set by the customer and
  expressed as nonfunctional requirements.
• This may involve hardware engineers.
• Since this stage and the previous constitute a
  complete review of requirements, the software is
  now considered validated.

48
Types of Performance Tests

• Stress tests
• Configuration tests
• Legacy Regression tests
• Security tests
• Timing tests
• Environmental tests
• Quality tests
• Recovery tests
• Documentation tests
• Usability tests

49
Acceptance Testing

• Customer now leads testing and defines the cases
  to test.
• The purpose of acceptance testing is to allow the
  customer and users to determine if the system
  that was built actually meets their needs and
  expectations.
• Many times, the customer representative involved
  in requirements gathering will specify the
  acceptance tests.

50
Types of Acceptance Tests

• Benchmark tests
• Subset of users operate the system under a set of
  predefined test cases.
• Pilot tests
• Subset of users operate the system under normal
  or everyday situations.
• Alpha testing if done at developers site
• Beta testing if done at customers site
• Parallel tests
• New system operates in parallel with the previous
  version. Users gradually transition to the new
  system.

51
Installation Testing

• Last stage of testing
• May not be needed if acceptance testing was
  performed at the customers site.
• The system is installed in the environment in
  which it will be used, and we verify that it
  works in the field as it did when tested
  previously.
