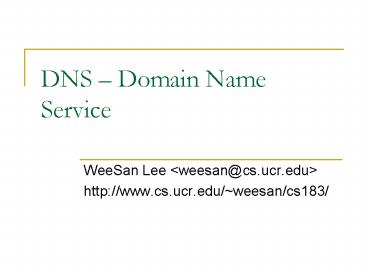

DNS Domain Name Service

• WeeSan Lee ltweesan_at_cs.ucr.edugt
• http//www.cs.ucr.edu/weesan/cs183/

2
Roadmap

• Introduction
• The DNS Namespace
• Top-level Domains
• Second-level Domains
• Domain Names
• How to Register a Domain Name?
• How DNS Works?
• BIND
• Tools
• QA

3
Introduction

• A service that maps between hostnames and IP
  addresses
• A hierarchical distributed caching database with
  delegated authority.
• Uses port 53
• UDP for the queries and responses
• TCP for the zone transfer

4
Introduction (cont)
Recursive servers
Non-recursive servers
root name server (.)
Q
R
http//www.cs.berkeley.edu/
Q
Q
momo.cs.ucr.edu
edu
R
A
A
Q
Q
eon
R
berkeley.edu
cs.berkeley.edu
5
The DNS Namespace

• A tree structure that starts with the root (.)
• Each node represents a domain name
• 2 branches
• Forward mapping
• hostnames ? IP addresses
• Reverse mapping
• IP addresses ? hostnames

6
Top-level Domains

• gTLDs (generic TLDs)
• com, edu, net, org, gov, mil, int, arpa
• aero, biz, coop, info, jobs, museum, name, pro
• ccTLDs (country code TLDs)
• au, ca, br, de, fi, fr, jp, se, hk, cn, tw, my,
• Profitable domain names
• CreditCards.com - 2.75M
• Loans.com 3M
• Business.com - 7.5M

7
Second-level Domain Name

• Examples
• ucr.edu
• sony.co.jp
• Must apply to a registrar for the appropriate TLD
• Network Solutions, Inc used to monopolize the
  name registration
• Now, 500 registrars

8
Domain Names

• Valid domain names
• Each component a-zA-Z0-9\-1,63
• Each name lt 256 chars
• Case insensitive
• www.cs.ucr.edu WWW.CS.UCR.EDU
• FQDN
• Fully Qualified Domain Name
• eon.cs.ucr.edu
• eon hostname
• cs.ucr.edu domain name

9
How To Register A Domain Name?

• Pick a domain name of interest
• Dedicate 2 NS servers
• RFC1219 stated that each domains should be served
  by at least 2 servers a master a slave
• One technical contact person
• One administrative contact person
• Then, register the name to a registrar of your
  choice
• Used to be done via email or fax, now all
  web-based

10
How DNS Works?

• Delegation
• All name servers read all the 13 root servers
  from a local configuration file
• a-m.root-servers.net
• dig
• Those servers in turn knows all the TLDs
• .edu knows .ucr.edu
• .com knows .google.com
• etc

11
DNS Caching

• DNS servers cache results they receive from other
  servers
• Each result is saved based on its TTL
• Negative caching
• For nonexistent hostname (for 10 mins)
• Also for unreachable/unresponsive servers

12
Authoritative vs. Non-authoritative

• An authoritative answer from a name server (such
  as reading the data from the disk) is
  guaranteed to be accurate
• A non-authoritative answer (such as an answer
  from the cache) may not
• Primary and secondary servers are authoritative
  for their own domains

13
Recursive vs. Non-recursive

• Recursive
• Queries on a client behalf until it returns
  either an answer or an error
• Non-recursive
• Refers the client to another server if it cant
  answer a query

14
DNS Database

• A set of text files, called zone files,
  maintained by the system admin. on the master NS
• 2 types of entries
• Parser commands, eg.
• ORIGIN and TTL
• Resource Records (RR)
• name tt class type data
• eon 76127 IN A 138.23.169.9
• orpheus.cs.ucr.edu. 76879 IN A 138.23.169.17

A very important . there!
15
DNS Database (cont)

• Resource Record Types
• SOA Start Of Authority
• NS Name Server
• A IPv4 name-to-address translation
• AAAA IPv6 name-to-address translation
• PTR Address-to-name translation
• MX Mail eXchanger
• CNAME Canonical NAME
• TXT Text

16
BIND

• The Berkeley Internet Name Domain system
• Current maintainer Paul Vixie _at_ ISC
• BIND 9
• Use RTT to pick the best root servers and use
  them in round-robin fashion
• named

17
/etc/named.conf

• options
• directory "/var/named"
• // query-source address port 53
• forwarders 138.23.169.10
• zone "." IN
• type hint
• file "named.ca" // Read from
  /var/named/named.ca

18
/etc/named.conf

• zone "localhost" IN
• type master
• file "localhost.zone" // Read from
  /var/named/localhost.zone
• allow-update none
• zone "0.0.127.in-addr.arpa" IN
• type master
• file "named.local" // Read from
  /var/named/named.local
• allow-update none

19
/etc/named.conf

• zone "voicense.com" IN
• type master
• file "voicense.com.zone"
• zone "0.0.10.in-addr.arpa" IN
• type master
• file "voicense.com.rev"
• zone "macrohard.com IN
• type slave
• file "macrohard.com.zone.bak"
• masters 10.0.0.1

20
/var/named/voicense.com.zone
Email address weesan_at_voicense.com
Remember to increment the serial after each
editing

• TTL 86400
• ORIGIN voicense.com.
• _at_ IN SOA voicense.com. weesan.voicense.com. (
• 20040304
  serial
• 7200
  refresh (2 hrs)
• 1800
  retry (30 mins)
• 604800
  expire (1 week)
• 7200 )
  mininum (2 hrs)
• IN NS ns.voicense.com.
• IN MX 10 mail.voicense.com.
• IN MX 20 mail.myisp.com.
• IN A 10.0.0.1
• mail IN CNAME voicense.com.
• www IN CNAME voicense.com.
• ns IN CNAME voicense.com.
• lee IN A 10.0.0.31
• wee IN A 10.0.0.32

21
/var/named/voicense.com.zone

• Serial
• An increasing integer number (for syncing)
• Refresh
• How often the slave servers should sync. with the
  master
• Retry
• How long the slave servers should retry before
  giving up
• Expire
• How long should the slave servers continue to
  serve the domains in the absent of the master
• Mininum
• TTL for negative answers that are cached

22
/var/named/voicense.com.rev

• TTL 86400
• _at_ IN SOA voicense.com. weesan.voicense.com. (
• 20040304
  serial
• 7200
  refresh (2 hrs)
• 1800
  retry (30 mins)
• 604800
  expire (1 week)
• 7200 )
  mininum (2 hrs)
• IN NS ns.voicense.com.
• 1 IN PTR fw.voicense.com.
• 31 IN PTR lee.voicense.com.
• 32 IN PTR wee.voicense.com.

23
How To Load Balance A Web Server?

• www IN A 10.0.0.1
• www IN A 10.0.0.2
• www IN A 10.0.0.3

24
How To Load Balance A Web Server?

• host www.google.com
• www.google.com is an alias for www.l.google.com.
• www.l.google.com has address 74.125.19.104
• www.l.google.com has address 74.125.19.103
• www.l.google.com has address 74.125.19.147
• www.l.google.com has address 74.125.19.99
• host www.google.com
• www.google.com is an alias for www.l.google.com.
• www.l.google.com has address 74.125.19.99
• www.l.google.com has address 74.125.19.104
• www.l.google.com has address 74.125.19.103
• www.l.google.com has address 74.125.19.147

25
Zone Transfer

• DNS servers sync with each other via zone
  transfer
• All-at-once and incremental updates
• A slave server compares the serial number on the
  masters and save backup zone files on disk.
• Uses TCP on port 53

26
Tools

• dig
• dig eon.cs.ucr.edu
• dig eon.cs.ucr.edu ns
• dig _at_momo.cs.ucr.edu eon.cs.ucr.edu mx
• man dig
• host
• host eon.cs.ucr.edu
• host -t ns cs.ucr.edu
• host -t mx eon.cs.ucr.edu momo.cs.ucr.edu
• man host

27
Tools (cont)

• nslookup
• nslookup eon.cs.ucr.edu
• nslookup eon.cs.ucr.edu momo.cs.ucr.edu
• whois
• whois google.com
• whois ucr.edu

28
/etc/resolv.conf

• Resolver
• cat /etc/resolv.conf
• search cs.ucr.edu weesan.com
• nameserver 138.23.169.10
• nameserver 138.23.178.2

29
/etc/nsswitch.conf

• Used by C library
• gethostbyname()
• cat /etc/nsswitch.conf
• hosts file nis dns

30
Reference

• LAH
• Ch 15 DNS The Domain Name System
