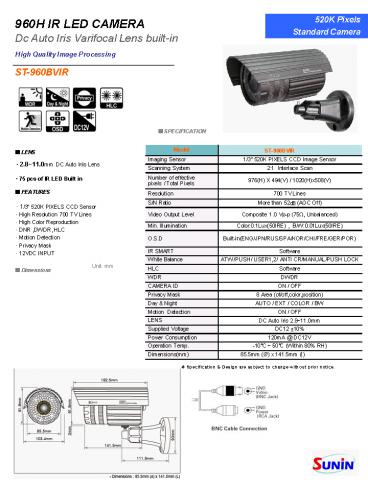

520K Pixels Standard Camera
960H IR LED CAMERA
Dc Auto Iris Varifocal Lens built-in
High Quality Image Processing

ST-960BVIR
SPECIFICATION
LENS 2.811.0mm DC Auto Iriis Lens 75
pcs of IR LED Built in
Model ST-960BVIR
Imaging Sensor 1/3" 520K PIXELS CCD Image Sensor
Scanning System 21 Interlace Scan
Number of effective pixels / Total Pixels 976(H) X 494(V) / 1020(H)x508(V)
Resolution 700 TV Lines
S/N Ratio More than 52? (AGC Off)
Video Output Level Composite 1.0 Vp-p (75?, Unbalanced)
Min. Illumination Color0.1Lux(50IRE) , B/W0.01Lux(50IRE)
O.S.D Built-In(ENG/JPN/RUS/SPA/KOR/CHI/FRE/GER/POR)
IR SMART Software
White Balance ATW/ PUSH/ USER1,2/ ANTI CR/MANUAL/PUSH LOCK
HLC Software
WDR DWDR
CAMERA ID ON / OFF
Privacy Mask 8 Area (of/off,color,position)
Day Night AUTO / EXT / COLOR / BW
Motion Detection ON / OFF
LENS DC Auto Iris 2.811.0mm
Supplied Voltage DC12 10
Power Consumption 120mA _at_ DC12V
Operation Temp. -10C 50C (Within 80 RH)
Dimensions(mm) 85.5mm (Ø) x 141.5mm (l)
FEATURES 1/3 520K PIXELS CCD Sensor
High Resolution 700 TV Lines High Color
Reproduction DNR ,DWDR, HLC Motion
Detection Privacy Mask 12VDC INPUT
Unit mm
Dimensions
Specification Design are subject to change
without prior notice.
