Basic Rules of Engineering Design

1

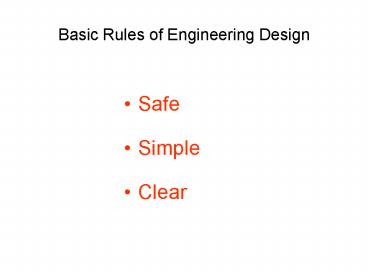

Basic Rules of Engineering Design

• Safe
• Simple
• Clear

2
Interrelationship Between the Safety Levels
3
Definition Safety

• Safety
• is a state in which the risk is smaller than the
  risk limit
• Risk limit
• is the largest still acceptable system-specific
  risk relating to a particular technical process
  or situation
• Protection
• is the reduction of risk by suitable means to
  reduce the frequency of the occurrence or the
  extent of damage or both

4
Safety Aspects of a System
5
Aspects of Safety Technology

• Self-protection product liability
• EC machinery directive DIN EN 292 VDE 100 VDI
  2244
• CE-Certification declaration of conformity
• ISO 9001 document management modification
  management version management

6
Aspects of Safety Technology

• Market acceptance
• safe and environment-friendly products are
  received better by the market
• customers are prepared to pay more for safer
  products
• safety leads to a positive brand image Mercedes,
  Volvo, Saab.

7
Safe Embodiment Design
8
Direct Safety Principles
9
Safe-Life

• Important Measures
• Over-dimensioning of parts
• Clear and simple embodiment design
• Field-tests for determining the actual loads
• Employ experienced interdisciplinary teams for
  the development
• Documented quality assurance over the complete
  life-cycle
• Inspection/maintenance

10
Example Fail-Safe
11
Redundancy Principle
12
Indirect Safety Principles
13
Control of a Safety Fence
14
Aspects of Warning Safety Technology

• Lowest level of safety technology supplementary
  to other measures
• minimum measure when no other safety principle is
  applicable
• consider aspects of noticability and ergonomics

15
Warnings
16
Aspects Concerning Safety Data Sheets

• safety data sheets describe the danger potential
  of materials and substances
• the danger potential of materials and substances
  must be considered over the complete life cycle
  of a product
• - production
• - commissioning
• - operation
• safety data sheets are a part of the product
  documentation

17
Material Aspect of Safety Technology

• The safety of a product can be increased by
  choosing a material that suits the operating
  conditions of the product
• Determining the operating conditions is crucial
  for the choice of materials
• - corrosion resistant materials
• - fatigue resistant materials
• - materials that have a good adhesion to
• lubricants

18
Selecting Material Designed for Safety
19
The Nature of Principles of Embodiment Design
20
Aim of Principles of Embodiment Design

• The application of principles of embodi-ment
  design leads to products that are optimally
  designed regarding the requirements taken into
  account!

21
Direct and Short Force Transmission Path
22
Direct and Short Force Transmission
23
Direct and short force transmission
24
Direct and Short Force Transmission

• Flowlines of force must always be closed
• Force transmission must be as short as possible
• Avoid
• deflection of forces
• discontinuous change of cross-section
• change of density of force flowlines

25
Direct and short force transmission
Idea of force transmission DefinitionThe basic
idea and illustration of force and moment
transmission is taken from the field of fluid
mechanicsSource
26
Direct and short force transmission

• Fundamentals
• The flowlines of force should always be closed.
  (Inertial forces are not taken in to
  consideration)
• The stresses and strains change with in circular
  flowlinesof force.
• The flowlinesof force searches the shortest path
• The flowlinesof force come closer in narrow cross
  sectional areas.-On the other hand, they expand
  in broad cross sectional areas

27
Direct, Short Force Transmission Welding
28
Direct Force Transmission Bearing Pedestal
29
Direct Force Transmission Relief Notches
30
Matched DeformationShaft-Hub Connection
31

• Principle of Balanced Forces
• Target
• Reached by system is free of forces to the
  outside
• symmetric structure of the system regarding the
  flow of forces
