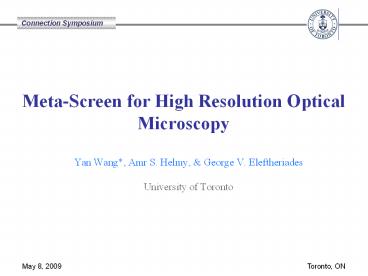

Meta-Screen for High Resolution Optical Microscopy

1
Meta-Screen for High Resolution Optical Microscopy

• Yan Wang, Amr S. Helmy, George V.
  Eleftheriades
• University of Toronto

2
Overview

• Background
• Conventional optical microscope and its
  resolution limit
• Development in various high resolution microscopy
  technologies and their pros and cons.
• Scanning near-field optical microscopy (SNOM)
• Basic operating principles and drawbacks.
• Theory of meta-screen
• Improves the current SNOM resolution
• Design principles and performances
• Conclusion

3
Background

• Optical microscopy seeing things with light
• Conventional compound optical microscopes

Nikon Eclipse 600 transmitted/reflected light
microscope
An 1879 Carl Zeiss Jena Optical microscope
4
Background (contd)

• Resolution limit of conventional optical
  microscopes
• Abbeys diffraction limit (200nm for the visible
  spectrum)

Propagating waves e-jßz
Toronto
4
May 6, 2010
5
Background (contd)

• Efforts in achieving high-resolution (beyond the
  diffraction limit)
• Electron microscope (TEM, SEM and REM etc.)
• Atomic force microscope (AFM)
• Pendrys perfect lens (meta-material
  application)

Jason Palmer, BBC news, Friday, 28 August 2009,
Single molecules stunning image
J.B. Pendry, Negative refraction makes a perfect
lens Phys. Rev. Lett. 85, 18 (2000).
6
SNOM

• Scanning near-field optical microscope

WiTech alpha300S Scanning Near-field Optical
Microscope, ?lm, Germany

• Aperture probe limits resolution
• Operates in the near-field
• Does not depend on the wavelength of the
  illuminating light
• Suffers tremendous power loss

Human leucocyte
SPP propagation
Toronto
6
May 6, 2010
7
Meta-screen

• Improve the focusing ability of the aperture
  (multi-aperture approach)
• Circular aperture vs. slot aperture
• Single-slot vs. multi-slot

8
Meta-screen

• Multi-slot metallic transmission screen
  (Meta-Screen)

Toronto
8
May 6, 2010
9
Meta-screen (contd)

• Meta-screen improves near-field focusing

Y. Wang et. al., Plasmonic meta-screen for
alleviating the trade-offs in the near-field
optics , Optics Express, 17, 12351-12361 (2009)
Toronto
9
May 6, 2010
10

• Thank you!
