Data Mining for Network Intrusion Detection

1

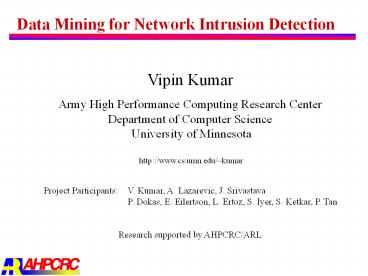

Data Mining for Network Intrusion Detection
Vipin Kumar Army High Performance Computing
Research Center Department of Computer Science
University of Minnesota http//www.cs.umn.edu/
kumar Project Participants V. Kumar, A.
Lazarevic, J. Srivastava P.
Dokas, E. Eilertson, L. Ertoz, S. Iyer, S.
Ketkar, P. Tan Research
supported by AHPCRC/ARL
2
Cyber Threat Analysis

• As the cost of information processing and
  Internet accessibility falls, organizations are
  becoming increasingly vulnerable to potential
  cyber threats such as network intrusions

• Intrusions are actions that attempt to bypass
  security mechanisms of computer systems
• Intrusions are caused by
• Attackers accessing the system from Internet
• Insider attackers - authorized users attempting
  to gain and misuse non-authorized privileges

3
Intrusion Detection

• Intrusion Detection System
• combination of software and hardware that
  attempts to perform intrusion detection
• raises the alarm when possible intrusion happens
• Traditional intrusion detection system IDS tools
  (e.g. SNORT) are based on signatures of known
  attacks
• Limitations
• Signature database has to be manually revised
  for each new type of discovered intrusion
• They cannot detect emerging cyber threats
• Substantial latency in deployment of newly
  created signatures across the computer system

www.snort.org
4
Data Mining for Intrusion Detection

• Increased interest in data mining based IDS for
  detection
• Attacks for which it is difficult to build
  signatures
• Unforeseen/Unknown attacks
• Emerging Threats
• Data mining approaches for intrusion detection
• Misuse detection
• Building predictive models from labeled labeled
  data sets (instances are labeled as normal or
  intrusive)
• Can only detect known attacks and their
  variations
• High accuracy in detecting many kinds of known
  attacks
• Anomaly detection
• Able to detect novel attacks as deviations from
  normal behavior
• Potential high false alarm rate - previously
  unseen (yet legitimate) system behaviors may also
  be recognized as anomalies

5
Misuse Detection

• Classification of intrusions
• RIPPER Madam ID _at_ Columbia U, Bayesian
  classifier ADAM _at_ George Mason U, fuzzy
  association rules Bridges00, decision trees
  ARL U Texas, Sinclair99, neural networks
  Lippmann00, Ghosh99, Canady98, genetic
  algorithms Bridges00, Sinclair99
• Association pattern analysis
• Building normal profile Barbara01,
  Manganaris99, frequent episodes for constructing
  features Madam ID _at_ Columbia U
• Cost sensitive modeling
• AdaCost Fan99, MetaCost Domingos99, Ting00,
  Karakoulas95
• Learning from rare class
• Kubat97, Fawcett97, Ling98, Provost01,
  Japkowicz01, Chawla01, Joshi01

6
Anomaly Detection

• Statistical approaches
• Finite mixture model Yamanishi00, ?2 based
  Ye01
• Various anomaly detection
• Temporal sequence learning Lane98, neural
  networks Ryan98, similarity tree Kokkinaki97,
  generating artificial anomalies Fan01,
• Clustering Madam ID, Eskin02, unsupervised SVM
  Madam ID, Eskin02,
• Outlier detection schemes
• Nearest neighbor approaches Knorr98, Jin01,
  Ramaswamy00, Aggarwal01, Density based
  Breunig00, connectivity based
  Tang01,Clustering based Yu99

7
Key Technical Challenges

• Large data size
• Millions of network connections are common for
  commercial network sites,
• High dimensionality
• Hundreds of dimensions are possible
• Temporal nature of the data
• Data points close in time - highly correlated
• Skewed class distribution
• Interesting events are very rare ? looking for
  the needle in a haystack
• Data Preprocessing
• Converting network traffic into data
• High Performance Computing (HPC) can be critical
  for on-line analysis and scalability to very
  large data sets

8
MINDS Project - Recent Accomplishments

• MINDS MINnesota INtrusion Detection System
• Learning from Rare Class Building rare class
  prediction models
• Anomaly/outlier detection
• Summarization of attacks using association
  pattern analysis

9
MINDS - Learning from Rare Class

• Problem Building models for rare network attacks
  (Mining needle in a haystack)
• Standard data mining models are not suitable for
  rare classes
• Models must be able to handle skewed class
  distributions
• Learning from data streams - intrusions are
  sequences of events
• Key results
• PNrule and related work Joshi, Agarwal, Kumar,
  SIAM 2001, SIGMOD 2001, ICDM 2001, KDD 2002
• SMOTEBoost algorithm Lazarevic, in review
• CREDOS algorithm Joshi, Kumar, in review
• Classification based on association - add
  frequent items as meta-features to original
  data set

10
MINDS - Anomaly and Outlier Detection

• Approach
• Detecting novel attacks/intrusions by identifying
  them as deviations from normal behavior
• Goals
• Construct useful set of features for data mining
  algorithms
• Identify novel intrusions using outlier detection
  schemes
• Distance based techniques
• Nearest neighbor approach
• Mahalanobis-distance approach
• Clustering based approaches
• Density based schemes
• Unsupervised Support Vector Machines (SVM)

11
Experimental Evaluation

• Publicly available data set
• DARPA 1998 Intrusion Detection Evaluation Data
  Set
• Real network data from
• University of Minnesota

• Anomaly detection is applied
• 4 times a day
• 10 minutes time window

Open source signature-based network IDS
network
www.snort.org
10 minutes cycle 2 millions connections
net-flow data using CISCO routers
Anomaly scores
Association pattern analysis

MINDSanomaly detection
Data preprocessing
12
DARPA 1998 Data Set

• DARPA 1998 data set (prepared and managed by MIT
  Lincoln Lab) includes a wide variety of
  intrusions simulated in a military network
  environment
• 9 weeks of raw TCP dump data
• 7 weeks for training (5 million connection
  records)
• 2 weeks for training (2 million connection
  records)
• Connections are labeled as normal or attacks (4
  main categories of attacks - 38 attack types)
• DOS - Denial Of Service
• Probe - e.g. port scanning
• U2R - unauthorized access to gain root
  privileges,
• R2L - unauthorized remote login to machine,
• Two types of attacks
• Bursty attacks - involve multiple network
  connections
• Non-bursty attacks - involve single network
  connections

13
Feature construction

• Three groups of features
• Basic features of individual TCP connections
  source destination IP/port, protocol, number of
  bytes, duration, number of packets (used in SNORT
  only in stream builder)
• Time based features
• For the same source (destination) IP address,
  number of unique destination (source) IP
  addresses inside the network in last T seconds
• Number of connections from source (destination)
  IP to the same destination (source) port in last
  T seconds
• Connection based features
• For the same source (destination) IP address,
  number of unique destination (source) IP
  addresses inside the network in last N
  connections
• Number of connections from source (destination)
  IP to the same destination (source) port in last
  N connections

14
MINDS Outlier Detection on DARPA98 Data
ROC curves for bursty attacks
LOF approach is consistently better than other
approaches Unsupervised SVMs are good but only
for high false alarm (FA) rate NN approach is
comparable to LOF for low FA rates, but detection
rate decrease for high FA Mahalanobis-distance
approach poor due to multimodal normal behavior
ROC curves for single-connection attacks
LOF approach is superior to other outlier
detection schemes Majority of single connection
attacks are probably located close to the dense
regions of the normal data
15
Outlier Detection Recent Results (on DARPA98
data)

• Analyzing multi-connection attacks using the
  score values assigned to network connections
• Detection rate is measured through number of
  connections that have score higher than 0.5

Low peaks due to occasional reset value for the
feature called connection status
16
Recently Detected Real-life Attacks

• During the past few months various
  intrusive/suspicious activities were detected at
  the AHPCRC and at the U of Minnesota using MINDS
• A sample of top ranked anomalies/attacks picked
  by MINDS
• August 13, 2002
• Detected scanning for Microsoft DS service on
  port 445/TCP (Ranked 1)
• Reported by CERT as recent DoS attacks that needs
  further analysis (CERT August 9, 2002)
• Undetected by SNORT since the scanning was
  non-sequential (very slow)

Number of scanning activities on Microsoft DS
service on port 445/TCP reported in the World
(Source www.incidents.org)
17
Recently Detected Real-life Attacks (ctd)

• A sample of top ranked anomalies/attacks picked
  by MINDS
• August 13, 2002
• Detected scanning for Oracle server (Ranked 2)
• Reported by CERT, June 13, 2002
• First detection of this attack type by our
  University
• Undetected by SNORT because the scanning was
  hidden within another Web scanning
• August 8, 2002
• Identified machine that was running Microsoft
  PPTP VPN server on non-standard ports, which is a
  policy violation (Ranked 1)
• Undetected by SNORT since the collected GRE
  traffic was part of the normal traffic
• October 30, 2002
• Identified compromised machines that were running
  FTP servers on non-standard ports, which is a
  policy violation (Ranked 1)
• Anomaly detection identified this due to huge
  file transfer on a non-standard port
• Undetectable by SNORT due to the fact there are
  no signatures for these activities

18
Recently Detected Real-life Attacks (ctd)

• A sample of top ranked anomalies/attacks picked
  by MINDS
• October 10, 2002
• Detected several instances of slapper worm that
  were not identified by SNORT since they were
  variations of existing warm code
• Deteted by MINDS anomaly detection algorithm
  since source and destination ports are the same
  but non-standard, and slow scan-like behavior for
  the source port
• Potentially detectable by SNORT using more
  general rules, but the false alarm rate will be
  too high

• Number of slapper worms on port 2002 reported in
  the World (Source www.incidents.org)

19
Recently Detected Real-life Attacks (ctd)

• Top ranked anomalies/attacks picked by MINDS
• October 10, 200
• Detected a distributed windows networking scan
  from two different source locations (Ranked 1)
• Similar distributed scan from 100 machines
  scattered around the World happened at University
  of Auckland, New Zealand, on August 8, 2002 and
  it was reported by CERT, Insecure.org and other
  security organizations

Attack sources
Destination IPs
Distributed scanning activity
20
SNORT vs. MINDS Anomaly/Outlier

• SNORT has static knowledge manually updated by
  human analysts
• MINDS anomaly/outlier detection algorithms are
  adaptive in nature include infinite number of
  rules
• MINDS anomaly/outlier detection algorithms san
  also be effective in detecting anomalous behavior
  originating from a compromised machine

21
SNORT vs. MINDS Anomaly/Outlier

• Content-based attacks (e.g. content of the
  packet)
• SNORT is able to detect only those attacks with
  known signatures
• Out of scope for MINDS anomaly/detection
  algorithms, since they do not use the content of
  the packets
• Scanning activities
• Same source sequential destination scans
• SNORT is better than MINDS anomaly/outlier
  detection in identifying these attacks, since it
  is specifically designed for their detection
• Scans with random destinations
• MINDS anomaly/outlier detection algorithms
  discover them quicker than SNORT since SNORT has
  to increase time window (specifies the scanning
  threshold) which results in the large memory
  requirements
• Slow scans
• MINDS anomaly/outlier detection identifies them
  better than SNORT, since SNORT has to increase
  time window which increases processing
  requirements

22
SNORT vs. MINDS Anomaly/Outlier

• Policy violations (e.g. rogue and unauthorized
  services)
• MINDS anomaly/outlier detection algorithms are
  successful in detecting policy violations, since
  they are looking for unusual and suspicious
  network behavior
• To detect these attacks SNORT has to have a rule
  for each specific unauthorized activity, which
  causes increase in the number of rules and
  therefore the memory requirements

23
MINDS - Framework for Mining Associations
Ranked connections
attack
Discriminating Association Pattern Generator
Anomaly Detection System
normal
update

1. Build normal profile
2. Study changes in normal behavior
3. Create attack summary
4. Detect misuse behavior
5. Understand nature of the attack

R1 TCP, DstPort1863 ? Attack R100 TCP,
DstPort80 ? Normal
Knowledge Base
24
Discovered Real-life Association Patterns

• Rule 1 SrcIPXXXX, DstPort80, ProtocolTCP,
  FlagSYN, NoPackets 3, NoBytes120180
  (c1256, c2 1)
• Rule 2 SrcIPXXXX, DstIPYYYY, DstPort80,
  ProtocolTCP, FlagSYN, NoPackets 3, NoBytes
  120180 (c1177, c2 0)

• At first glance, Rule 1 appears to describe a Web
  scan
• Rule 2 indicates an attack on a specific machine
• Both rules together indicate that a scan is
  performed first, followed by an attack on a
  specific machine identified as vulnerable by the
  attacker

25
Discovered Real-life Association Patterns(ctd)
DstIPZZZZ, DstPort8888, ProtocolTCP (c1369,
c20)DstIPZZZZ, DstPort8888, ProtocolTCP,
FlagSYN (c1291, c20)

• This pattern indicates an anomalously high number
  of TCP connections on port 8888 involving machine
  ZZZZ
• Follow-up analysis of connections covered by the
  pattern indicates that this could be a machine
  running a variation of the Kazaa file-sharing
  protocol
• Having an unauthorized application increases the
  vulnerability of the system

26
Discovered Real-life Association Patterns(ctd)
SrcIPXXXX, DstPort27374, ProtocolTCP,
FlagSYN, NoPackets4, NoBytes189200 (c1582,
c22) SrcIPXXXX, DstPort12345, NoPackets4,
NoBytes189200 (c1580, c23) SrcIPYYYY,
DstPort27374, ProtocolTCP, FlagSYN,
NoPackets3, NoBytes144 (c1694, c23)

• This pattern indicates a large number of scans on
  ports 27374 (which is a signature for the
  SubSeven worm) and 12345 (which is a signature
  for NetBus worm)
• Further analysis showed that no fewer than five
  machines scanning for one or both of these ports
  in any time window

27
Discovered Real-life Association Patterns(ctd)
DstPort6667, ProtocolTCP (c1254, c21)

• This pattern indicates an unusually large number
  of connections on port 6667 detected by the
  anomaly detector
• Port 6667 is where IRC (Internet Relay Chat) is
  typically run
• Further analysis reveals that there are many
  small packets from/to various IRC servers around
  the world
• Although IRC traffic is not unusual, the fact
  that it is flagged as anomalous is interesting
• This might indicate that the IRC server has been
  taken down (by a DOS attack for example) or it is
  a rogue IRC server (it could be involved in some
  hacking activity)

28
Discovered Real-life Association Patterns(ctd)
DstPort1863, ProtocolTCP, Flag0, NoPackets1,
NoByteslt139 (c1498, c26)DstPort1863,
ProtocolTCP, Flag0 (c1587, c26)DstPort1863,
ProtocolTCP (c1606, c28)

• This pattern indicates a large number of
  anomalous TCP connections on port 1863
• Further analysis reveals that the remote IP block
  is owned by Hotmail
• Flag0 is unusual for TCP traffic

29
Conclusions

• Rare class predictive models improve the
  detection of infrequent attack types
• MINDS anomaly/outlier detection algorithms are
  successful in detection of intrusions that could
  not be picked by commercial state of the art
  IDS tools (SNORT)
• Slow scans and random scans
• Policy violations and unauthorized activities
• MINDS association patterns can be useful in
  creating summaries of detected attacks and
  suggesting new signatures

30
Future Work

• On-line detection algorithms
• Better characterization of normal behavior
• Detection of distributed attacks
• Insider attacks
• Other applications of anomaly detection
• Credit card fraud detection
• Insurance fraud detection
• Transient fault detection for industrial process
  control
• Detecting individuals with rare medical syndromes
  (e.g. cardiac arrhythmia)

31

• Questions?

32
Distance based Outlier Detection Schemes

• Nearest Neighbor (NN) approach
• For each point compute the distance to the k-th
  nearest neighbor dk
• Outliers are points that have larger distance dk
  and therefore are located in the more sparse
  neighborhoods
• Mahalanobis-distance based approach
• Mahalanobis distance is more appropriate for
  computing distances with skewed distributions

Back
33
Density based Outlier Detection Schemes

• Local Outlier Factor (LOF) approach
• For each point compute the density of local
  neighborhood
• Compute LOF of example p as the average of the
  ratios of the density of example p and the
  density of its nearest neighbors
• Outliers are points with the largest LOF value

In the NN approach, p2 is not considered as
outlier, while the LOF approach find both p1 and
p2 as outliers
Back
34
Unsupervised Support Vector Machines for Outlier
Detection

• Unsupervised SVMs attempt to separate the entire
  set of training data from the origin, i.e. to
  find a small region where most of the data lies
  and label data points in this region as one class

• Parameters
• Expected number of outliers
• Variance of rbf kernel
• As the variance of the rbf kernel gets smaller,
  the separating surface gets more complex

push the hyper plane away from origin as much as
possible
Back
35
SNORT signature based Network IDS

• SNORT (www.snort.org) is an open source Network
  Intrusion Detection System (IDS) based on
  signatures
• SNORT contains anomaly detector SPADE
  (Statistical Packet Anomaly Detection Engine)
  usually turned off due to high false alarm rate
• SNORT may be configured in one of the following
  modes
• sniffer mode reads the packets from the network
  and displays them for you in a continuous stream
  on the console
• packet logger mode logs the packet to the disk
• intrusion detection mode - analyzes network
  traffic for matches against a user defined rule
  set and perform several actions based upon what
  it sees.

Back
36
SPADE SNORT Anomaly Detection

• SPADE is a SNORT preprocessor plugin which sends
  alerts of anomalous packet through standard SNORT
  reporting mechanisms (the fewer times that a
  particular kind of packet has occurred in the
  past, the higher its anomaly score will be)
• It is a part of SPICE (Stealthy Probing and
  Intrusion Correlation Engine) project at
  www.silicondefense.com
• SPICE consists of two parts
• SPADE that act as an anomaly sensor engine and
  report anomalous events to event correlator
• event correlator that groups these events
  together and send out reports of unusual activity
  (e.g., portscans)

Back
37
Recently detected real-life attacks

• http//www.cert.org/current/current_activity.html
  Microsoft-DS
• Microsoft-DS (445/tcp) Activityupdated August 9
         added August 9
• We have received reports of widespread scanning
  and possible denial of service activity targeted
  at the Microsoft-DS service on port 445/tcp. We
  are interested in receiving reports of this
  activity from sites with detailed logs and
  evidence of an attack. Please send all reports to
  cert_at_cert.org

Back
