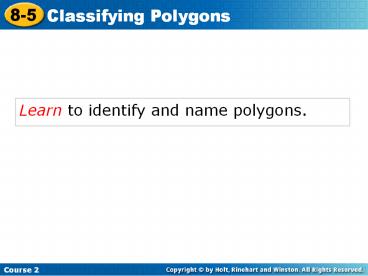

Learn to identify and name polygons.

1
Learn to identify and name polygons.
2
Insert Lesson Title Here
Vocabulary
polygon regular polygon
3
Triangles and rectangles are examples of
polygons. A polygon is a closed plane figure
formed by three or more line segments. Each line
segment forms a side of the polygon, and meets,
but does not cross, another line segment at a
common point. This common point is a vertex of a
polygon.
The polygon at left has six sides and
six vertices.
4
Additional Example 1 Identifying Polygons
Determine whether each figure is a polygon. If it
is not, explain why not.
A.
B.
The figure is a polygon. It is a closed figure
with 4 line segments.
The figure is not a polygon. It is not a closed
figure.
5
Additional Example 1 Identifying Polygons
Determine whether each figure is a polygon. If it
is not, explain why not.
C.
D.
The figure is not a polygon. The figure is not
formed by line segments.
The figure is not a polygon. There are line
segments in the figure that intersect.
6
Check It Out Example 1
Determine whether each figure is a polygon. If it
is not, explain why not.
A.
B.
The figure is a polygon. It is a closed figure
with 5 line segments.
The figure is not a polygon. It is not a closed
figure.
7
Check It Out Example 1
Determine whether each figure is a polygon. If it
is not, explain why not.
C.
D.
The figure is not a polygon. The figure is not
formed by line segments.
The figure is not a polygon. There are line
segments in the figure that intersect.
8
Polygons are classified by the number of
sides and angles they have.
Triangle 3 sides 3 angles
Quadrilateral 4 sides 4 angles
Pentagon 5 sides 5 angles
Hexagon 6 sides 6 angles
Heptagon 7 sides 7 angles
Octagon 8 sides 8 angles
Nonagon 9 sides 9 angles
Decagon 10 sides 10 angles
9
Additional Example 2 Classifying Polygons
Name each polygon.
A.
B.
Octagon
Quadrilateral
10
Insert Lesson Title Here
Check It Out Example 2
Name each polygon.
B.
A.
Quadrilateral
Pentagon
11
Insert Lesson Title Here
A regular polygon is a polygon in which all sides
are congruent and all angles are congruent.
12
Additional Example 3 Identifying and Classifying
Regular Polygons
Name each polygon and tell whether it is
a regular polygon. If it is not, explain why not.
B.
A.
The figure is a quadrilateral. It is not a
regular polygon because all of the sides are not
congruent.
The figure is a regular quadrilateral. A regular
quadrilateral is also called a square.
13
Insert Lesson Title Here
Check It Out Example 3
Name each polygon and tell whether it is
a regular polygon. If it is not, explain why not.
B.
A.
The figure is a triangle. It is not a regular
polygon because all sides and angles are not
congruent.
The figure is a regular triangle.
14
Insert Lesson Title Here
Lesson Quiz Part I
Determine whether each figure is a polygon. If it
in not, explain why not. Name each polygon. 1.
2. 3.
yes pentagon
no open figure
yes octagon
15
Insert Lesson Title Here
Lesson Quiz Part II
Determine whether each figure is a polygon. If it
in not, explain why not. Name each polygon. 4.
5. Tell whether each figure above is a regular
t polygon. If it is not, explain why
not.
no curved lines
1 No, all sides and angles are not congruent. 2,
4 No, they are not polygons. 3 Yes
