Bonding and Molecular Structure: Fundamental Concepts

1

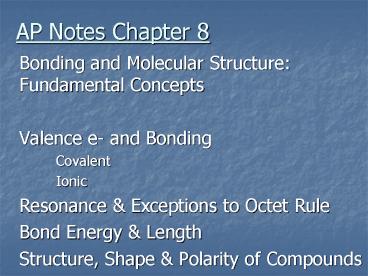

AP Notes Chapter 8

• Bonding and Molecular Structure Fundamental
  Concepts
• Valence e- and Bonding
• Covalent
• Ionic
• Resonance Exceptions to Octet Rule
• Bond Energy Length
• Structure, Shape Polarity of Compounds

2
What is a Bond?

• A force that holds atoms together.
• Why?
• We will look at it in terms of energy.
• Bond energy the energy required to break a bond.
• Why are compounds formed?
• Because it gives the system the lowest energy.

3
Covalent compounds?

• The electrons in each atom are attracted to the
  nucleus of the other.
• The electrons repel each other,
• The nuclei repel each other.
• The reach a distance with the lowest possible
  energy.
• The distance between is the bond length.

4
Thus Hydrogen is Diatomic!
Bond Formation
5
Covalent Character
6
Why Isnt Helium Diatomic?
7

• F F F2
• 2p ____ ____ ___ ___ ____ ____ 2p2s
  ____ ____ 2s
• F F

8
Ionic Bonding

• An atom with a low ionization energy reacts with
  an atom with high electron affinity.
• The electron moves.
• Opposite charges hold the atoms together.

9

• Li Cl1s22s1 Ne
  3s23p52s ___ 3p _____ _____
  ___1s _____ 3s _____
  Ne

10

• Li Cl 2s ___ 3P _____ _____
  _____1s _____ 3s _____ Ne

11

• LiCl2s ___ 3P _____
  _____ _____1s _____ 3s _____
  Ne

12
Electronegativity

• Describes the relative ability of an atom within
  a molecule to attract a shared pair of electrons
  to itself.

13
Electronegativity

• Pauling electronegativity values, which are
  unit-less, are the norm.

14
ElectronegativityRange from 0.7 to 4.0
Figure 9.9 Kotz Treichel
15
Bond A - B

• DEN ENA - ENB

16
Bond Character

• Ionic Bond - Principally Ionic
  Character
• Covalent Bond - Principally
  Covalent Character

17
Determining Principal Character of Bond
18
F - F EN 0
Non-polar
19
N - O ?EN 3.0 - 3.5
0.5
O
N
Slightly polar
20
(No Transcript)
21
Ca - O ? EN 1.0 - 3.5
2.5
Ca
O
Ionic Bond with somecovalent character
22
(No Transcript)
23
Electronegativity

• The ability of an electron to attract shared
  electrons to itself.
• Pauling method
• Imaginary molecule HX
• Expected H-X energy H-H energy X-X
  energy 2
• D (H-X) actual - (H-X)expected

24
Electronegativity

• D is known for almost every element
• Gives us relative electronegativities of all
  elements.
• Tends to increase left to right.
• decreases as you go down a group.
• Noble gases arent discussed.
• Difference in electronegativity between atoms
  tells us how polar.

25
Electronegativity difference
Bond Type
Zero
Covalent
Covalent Character decreases Ionic Character
increases
Intermediate
Large
26
Dipole Moments

• A molecule with a center of negative charge and a
  center of positive charge is dipolar (two poles),
• or has a dipole moment.
• Center of charge doesnt have to be on an atom.
• Will line up in the presence of an electric field.

27
How It is drawn
28
Which Molecules Have Them?

• Any two atom molecule with a polar bond.
• With three or more atoms there are two
  considerations.
• There must be a polar bond.
• Geometry cant cancel it out.

29
(No Transcript)
30
(No Transcript)
31
Ionic Radii -- Cations
32
Ionic Radii -- Anions
33
(No Transcript)
34
Molecular Polarity
Vector Sum of Bond Polarities
35
MgBr2 Mg - Br EN 1.2 -
2.8 1.6
Mg
Br
Br
Covalent BOND w/much ionic character, BUT
NON-POLAR molecule
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
Lewis Structures
40
The most important requirement for the formation
of a stable compound is that the atoms achieve
noble gas e- configuration
41
Valence Shell ElectronPair Repulsion
Model(VSEPR)

• The structure around a given atom is determined
  principally by minimizing electron-pair repulsions

42
VSEPR
43
LEWIS STRUCTURES

• draw skeleton of species
• count e- in species
• subtract 2 e- for each bond in skeleton
• distribute remaining e-

44
Distinguish Between ELECTRONIC Geometry
MOLECULAR Geometry
45
CH4
Bond angle 109.50
Electronic geometry tetrahedral Molecular
geometry tetrahedral
46
H3O
Bond angle 1070
Electronic geometry tetrahedral Molecular
geometry trigonal pyramidal
47
H2O
Bond angle 104.50
Electronic geometry tetrahedral Molecular
geometry bent
48
NH2-
Bond angle 104.50
Electronic geometry tetrahedral Molecular
geometry bent
49
(No Transcript)
50
Octet Rule holds for connecting atoms, but may
not for the central atom.
51
BaI2
Bond angle 1800
Electronic geometry linear Molecular geometry
linear
52
BF3
Bond angle 1200
Electronic geometry trigonal planar Molecular
geometry trigonal planar
53
PF5
Bond angle 1200 900
Electronic geometry trigonal bipyramidal Molecula
r geometry trigonal bipyramidal
54
SF4
Bond angle 1200 900
Electronic geometry trigonal bipyramidal Molecula
r geometry see-saw
55
ICl3
Bond angle lt 900
Electronic geometry trigonal bipyramidal Molecula
r geometry T-shape
56
I3-
Bond angle 1800
Electronic geometry trigonal bipyramid Molecular
geometry linear
57
(No Transcript)
58
PCl6-
Bond angle 900
Electronic geometry octahedral Molecular
geometry octahedral
59
BrF5
Bond angle 900
Electronic geometry octahedral Molecular
geometry square pyramidal
60
ICl4-
Bond angle 900
Electronic geometry octahedral Molecular
geometry square planar
61
Actual shape
Non-BondingPairs
ElectronPairs
BondingPairs
Shape
2
2
0
linear
3
3
0
trigonal planar
3
2
1
bent
4
4
0
tetrahedral
4
3
1
trigonal pyramidal
4
2
2
bent
62
Actual Shape
Non-BondingPairs
ElectronPairs
BondingPairs
Shape
5
5
0
trigonal bipyrimidal
5
4
1
See-saw
5
3
2
T-shaped
5
2
3
linear
63
Actual Shape
Non-BondingPairs
ElectronPairs
BondingPairs
Shape
6
6
0
Octahedral
6
5
1
Square Pyramidal
6
4
2
Square Planar
6
3
3
T-shaped
6
2
1
linear
64
What happens when there are not enough electrons
to satisfy the central atom?
65
EXAMPLES

• Ethene
• Acetic Acid
• Oxygen
• Nitrogen

66
RESONANCE FORMAL CHARGE
67
Resonance

• Sometimes there is more than one valid structure
  for an molecule or ion.
• NO3-
• Use double arrows to indicate it is the average
  of the structures.
• It doesnt switch between them.
• NO2-
• Localized electron model is based on pairs of
  electrons, doesnt deal with odd numbers.

68
EXAMPLES

• Nitrate ion
• Ozone

69
FORMAL CHARGE

• the charge assigned to an atom in a molecule or
  polyatomic ion

FC atom Family - LPE ½(BE) Sum FCs
atoms ion charge Closer sum FCs is to zero
more stable
70
Formal Charge

• For molecules and polyatomic ions that exceed the
  octet there are several different structures.
• Use charges on atoms to help decide which.
• Trying to use the oxidation numbers to put
  charges on atoms in molecules doesnt work.

71
Formal Charge

• The difference between the number of valence
  electrons on the free atom and that assigned in
  the molecule.
• We count half the electrons in each bond as
  belonging to the atom.
• SO4-2
• Molecules try to achieve as low a formal charge
  as possible.
• Negative formal charges should be on
  electronegative elements.

72
Assignment of e-

• 1. Lone pairs belong entirely to atom in
  question
• 2. Shared e- are divided equally between the
  two sharing atoms

73
The sum of the formal charges of all atoms in a
species must equal the overall charge on the
species.
74
A useful equation

• (happy-have) / 2 bonds
• POCl3 P is central atom
• SO4-2 S is central atom
• SO3-2 S is central atom
• PO4-2 P is central atom
• SCl2 S is central atom

75
Exceptions to the octet

• BH3
• Be and B often do not achieve octet
• Have less than and octet, for electron deficient
  molecules.
• SF6
• Third row and larger elements can exceed the
  octet
• Use 3d orbitals?
• I3-

76
Exceptions to the octet

• When we must exceed the octet, extra electrons go
  on central atom.
• ClF3
• XeO3
• ICl4-
• BeCl2

77
If nonequivalent Lewis structures exist, the
one(s) that best describe the bonding in the
species has...
78
FAVORED LEWIS STRUCTURES

• 1. formal charges closest to zero
• 2. negative formal charge
• is on the most electronegative atom

79
EXAMPLES

• Carbon dioxide
• Thiocyanate ion
• Sulfate ion

80
BOND ENERGY LENGTH
81
Bond EnergiesE (Bonds Broken) (Bonds Made)
82
Bonds form between atoms because bonded atoms
exhibit a lower energy.
Thus, energy is required to break bonds and
energy is released when bonds are formed.
83
Bond Order bonds to a specific set
of elementsC-C the BO1CC the BO2C
C the BO3Fractions are possible
84
COVALENT BONDS

• Bond Dissociation
• Energy
• Table 9.9 (text)

85
Bond Energy (kJ/mol) H-F 565 H-Cl
432 H-Br 366 H-I 299
86
Bond Energy (kJ/mol) Cl-Cl 242 Br-Br
193 I-I 151
87
Bond Energy (kJ/mol)
88
Bond Energy (kJ/mol)
89
Use bond energies to predict ?Hc for acetylene
(C2H2).
90
Energy
0
Internuclear Distance
91
Energy
0
Internuclear Distance
92
Energy
0
Internuclear Distance
93
Energy
0
Internuclear Distance
94
Energy
0
Bond Length
Internuclear Distance
95
Energy
Bond Energy
0
Internuclear Distance
96
Bond Energy Length
(kJ/mol) (pm)
97
Bond Energy Length
(kJ/mol) (pm)
98
Binary Ionic Compounds

• metal(s) non-metal (g) ---gt salt(s)

99
Lattice Energy

• Energy change occurring when separated gaseous
  ions are packed together to form an ionic solid
• M(g) NM-(g) --gt M-NM

100
What is the lattice energy of NaCl(s)? Na(g)
Cl-(g) ---gt NaCl(s)
101
Lattice Energies

• LiCl 834 BeCl2 3004
• NaCl 769 MgCl2 2326
• KCl 701 CaCl2 2223
• Li2O 2799 BeO 4293
• Na2O 2481 MgO 3795
• K2O 2238 CaO 3414

102
LE Lattice Energy
Where k proportionality constant dependent on
structure of solid and on electron configuration
of the ions
Where Q1 Q2 charges on the ions
Where r the shortest distance between the
centers of the cation and anion
