Chapter 8: Cell Reproduction

1

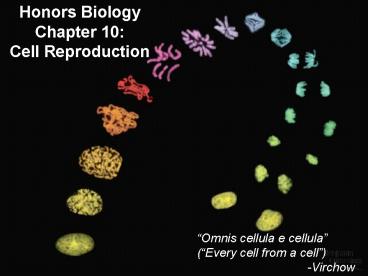

Honors BiologyChapter 10Cell Reproduction
Omnis cellula e cellula (Every cell from a
cell) -Virchow
2
Students Will Be Able To

• Describe the reasons for and control of cell
  division.
• Distinguish between homologous chromosomes and
  sister chromatids.
• Distinguish between diploid and haploid cells.

3
Why do cells divide?

• Its hard! Why bother? What are some reasons
  you can think of?

amoeba
starfish
4
Why do cells divide
amoeba
starfish
5
Asexual reproduction

• Single-celled eukaryotes
• yeast
• Paramecium
• Amoeba
• Simple multicellular eukaryotes
• Hydra
• budding

6
Binary Fission--Prokaryotes

• Binary Fission division of a prokaryotic cell.
• Each new cell is identical
• Like mitosis for cells that dont have nuclei

7
Limits to Cell Growth

• Cells can only grow so big for two reasons
• DNA Overload
• Exchanging Material
• DNA Overload
• A single copy of DNA holds information for an
  entire cell.
• As a cell gets larger it places more demands on
  its DNA.
• Example A library has only a certain number of
  books. If a town doubles or triples in population
  there wouldnt be enough books for everyone.

8
Limits to Cell Growth

• Exchanging materials
• Food, oxygen, and water enter and waste products
  leave cells through the cell membrane.
• The rate at which materials enter/exit depends on
  the surface area or the amount of membrane of the
  cell
• The rate at which the food and oxygen are used up
  depends on the cells volume or how big it is.
• A small surface area to volume ratio would not
  provide enough area for the amount of nutrients
  required and wastes created.

9
Ratio of Surface Area to Volume

• Volume increases faster than surface area in a
  growing cell.
• Area L x W x 6 sides
• Volume L x W x H
• 1 cm 2 cm
  4 cm
• A 6 cm2 A 24 cm2 A 96 cm2

• V 1 cm3 V 8 cm3 V 64 cm3

• Surface Area/ 6/1 3/1
  1.5/1
• Volume Ratio

10
So, lets divide!

• What has to be copied
• DNA
• organelles
• cell membrane
• lots of othermolecules
• enzymes

animal cell
plant cell
11
Copying DNA

• A dividing cell duplicates its DNA
• creates 2 copies of all DNA
• separates the 2 copies to opposite ends of the
  cell
• splits into 2 daughter cells

• But the DNA starts loosely wound in the nucleus
• If you tried to divide it like that, it could
  tangle break

DNA
cell
nucleus
12
Organizing packaging DNA
DNA
cell
DNA has been wound up
nucleus
DNA in chromosomes ineveryday working cell
cell
nucleus
4 chromosomesin this organism
DNA in chromosomes in cell getting ready to
divide
13
Chromosomes

• Chromosome Rod shaped structure of a DNA
  molecule wrapped around proteins (histones) which
  maintain the shape

14
Copying packaging DNA

• When cell is ready to divide
• copy DNA first, then
• coil up doubled chromosomes like thread on a
  spool
• now can move DNA around cell without having it
  tangle break

15
The Chromosome

• Each half of a copied chromosome a chromatid.
• When DNA copies itself, the result is two sister
  chromatids
• When the cell divides, each of the new cells will
  receive one chromatid from each chromosome.
• The waist of each chromatid, where it is
  attached to its sister chromatid centromere.

16
double-strandedhuman chromosomes ready for
mitosis
17
Chromosome Numbers

• Each species has a characteristic number of
  chromosomes in each cell
• Sex chromosomes are chromosomes that determine
  the sex of the organism.
• Example humans are either XX or XY.
• All other chromosomes autosomes.

18
Chromosome Numbers

• The cell receives one copy of each autosome from
  each parent. The two copies of each autosome are
  called homologous chromosomes.

19
Chromosome Numbers
Homologous pairs PRIOR to DNA replication (no
sister chromatids)
20
Chromosome Numbers
Homologous pairs AFTER DNA Replication (each
chromosome a pair of sister chromatids)
21
Chromosomes of Human Female
46 chromosomes 23 pairs
22
Chromosomes of Human Male
46 chromosomes 23 pairs
23
Diploid and Haploid Cells

• Diploid cells have both chromosomes for each
  homologous pair.
• All normal human body cells are diploid
• Diploid is abbreviated as 2n.
• Haploid cells lack homologous pairs, have just
  one chromosome of each kind.
• Sperm and egg cells are haploid cells.
• Haploid is abbreviated as 1n.
• When a sperm cell(1n) and an egg cell (1n)
  combine to create the first cell of a new
  organism, the new cell will be diploid (2n).

24
The Cell Cycle Division
25
Students Will Be Able To

• Describe and model the major stages of the cell
  cycle (G1, S, G2, M), including the stages of
  mitosis (prophase, metaphase, anaphase,
  telophase) and cytokinesis.
• Distinguish between diploid and haploid cells.
• Identify cell organelles involved in cell
  division.

26
The Cell Cycle

• Cell Cycle the life cycle of the cell.
• Interphase time between divisions90 of the
  cell cycle.
• G1 cells grow to full size.
• S DNA is copied.
• G2 rapid metabolism, cell prepares for
  division.
• Cell Division cell divides into 2 daughter cells
• M Mitosis nucleus divides
• C Cytokinesis cytoplasm divides

27
Cell Cycle
28
G0 Phase

• Cells can also enter the G0 stasis or paused
  phase, no division preparation.
• They can later exit G0 or remain there
  perpetually.
• Example human nervous cells stop dividing at
  maturity and normally never divide again.

29
Interphase

• G1, S, and G2
• The nucleus is well defined and has nuclear
  envelope with nucleoli
• Centrioles have replicated and are together
• Spindle fibers, a kind of microtubule, begin to
  extend from centrioles
• Chromosomes have been duplicated, but cannot be
  seen because they are in chromatin form

30
Mitosis Dividing DNA cells

• Stage 1 cell copies DNA

Copy DNA!
DNA
cell
nucleus
(interphase)
31
DNA must be duplicated
32
Phases of MitosisProphase

• Chromatin fibers condense into chromosomes
  (tightly coiled).
• Nucleoli disappear
• Mitotic Spindle begins to form (microtubules
  extending from centrosomes)
• Centrosomes move to opposite poles of cell
• Nuclear membrane breaks down

33
Mitosis Dividing DNA cells

• Stage 2 DNA winds into chromosomes
• DNA is wound up into chromosomes to keep it
  organized

duplicated chromosomes
Wind up!
cell
nucleus
(prophase)
34
Phases of MitosisMetaphase

• Centrosomes are at opposite poles
• Chromosomes line up on Metaphase (Mitotic) Plate,
  an imaginary line across the center of the cell
• Chromosomes are attached to 2 spindle fibers, one
  from each pole

35
Mitosis Dividing DNA cells

• Stage 3 Chromosomes line up
• chromosomes line up in middle
• attached to protein cables that will help them
  move

Line up!
duplicated chromosomes lined up in middle of cell
(metaphase)
36
Phases of MitosisAnaphase

• Chromatids separate into separate chromosomes
• Chromosomes are dragged, centromere first, toward
  opposite poles
• The cell stretches
• At the end of anaphase, there are identical,
  complete set of chromosomes at each pole

37
Mitosis Dividing DNA cells

• Stage 4 Chromosomes separate
• chromosomes split, separating pairs
• start moving to opposite ends

Separate!
chromosomes split move to opposite ends
(anaphase)
38
Phases of MitosisTelophase

• Spindle fibers begin to break down
• Daughter nuclei begin to form at the poles
• Nuclear envelopes arise
• Nucleoli form
• Chromatin fibers uncoil
• Mitosis is complete

39
Mitosis Dividing DNA cells

• Stage 5 Cell starts to divide
• cells start to divide
• nucleus forms again

Divide!
(telophase)
40
Phases of MitosisCytokinesis

• Separation of the cytoplasm cleavage
• Cell pinches in a separates
• 2 new daughter cells are identical

41
Cytokinesis in Plants

• Plants cannot pinch in because of cell walls
• Instead, they form a cell plate

42
Mitosis Dividing DNA cells

• Stage 6 DNA unwinds again
• cells separate
• now they can do their every day jobs

(cytokinesis)
43
Mitosis in whitefish embryo
44
Mitosis in plant cell
45
Overview of mitosis
Interphase
Prophase
Cytokinesis
Metaphase
Anaphase
Telophase
46
Students Will Be Able To

• Describe and model the major stages of the cell
  cycle (G1, S, G2, M), including the stages of
  mitosis (prophase, metaphase, anaphase,
  telophase) and cytokinesis.
• State the difference between cancerous and
  non-cancerous cells.

47
Controls on Cell Division

• Normally, cells stop growing when they come in
  contact with other cells.
• If cells are removed or damaged, cells bordering
  the open space will divide until they have filled
  the space and then stop.

48
Cell Cycle Regulation

• Cell growth can be turned on and off by proteins,
  called cyclins, within the cell.
• Not all cells move through the cell life cycle at
  the same rate.
• The lining of the digestive tract divides every
  1-3 days
• Nerve and muscles, do not divide once full grown

49
Regulating the Cell Cycle
50
What if

• Something goes wrong, and a cell stops at a
  checkpoint when it shouldnt? What is the
  result?
• Something goes wrong, and a cell passes
  checkpoints when it shouldnt? What is the
  result?

51
Uncontrolled Cell Growth

• is a disorder in which cells lose the
  ability to control their growth and division.
• do not respond normally to cyclins
  and other signals.
• As a result,

52
Ch. 11-4 Meiosis Sexual Reproduction
53
Students Will Be Able To

• Describe the stages of meiosis, and how meiosis
  maintains consistency (chromosome number) and
  diversity (genetic content) across generations.
• Compare and contrast mitosis and meiosis in terms
  of their purposes, processes, and their products.
• State how gametogenesis varies between males and
  females (in humans).

54
How about sexual reproduction?

• What if a complex multicellular organism (like
  us) wants to reproduce?
• joining of egg sperm
• Do we make egg sperm by mitosis?

No!
What if we did, then.

46
92
46
egg
sperm
zygote
Doesnt work!
55
How do we make sperm eggs?
zygote
egg
meiosis
fertilization
sperm
gametes
56
Meiosis

• The formation of reproductive cells (gametes)
• Nuclear division that cuts the number of
  chromosomes in half
• Produces 4 genetically different haploid gametes.
  (1n sperm or eggs)

57
Meiosis makes sperm eggs

• Chromosome number will be halved by separating
  homologous pairs

egg
meiosis
haploid
diploid
sperm
58
Remember from before

• Homologous chromosomes
• Same genes, but not identical!
• control same inherited characters, but have
  different instructions for those characters
• homologous same information

diploid2n 2n 4
eye color (brown?)
eye color (blue?)
homologouschromosomes
double strandedhomologous chromosomes
59
What do you think

• If homologous chromosomes are NOT identical
• and we are going to undergo a reduction
  division, in which daughter cells will get only
  HALF the chromosomes of the parent cell
• what is the implication for genetic sameness or
  diversity?

60
Stages of Meiosis

• Cells go through normal interphase growing,
  duplicating DNA, and getting ready to divide.

61
Stages of Meiosis IProphase I

• DNA coils into chromosomes
• Spindle fibers appear
• Nucleus and nucleolus disassemble
• Homologous chromosomes pair up to form tetrads
• Crossing over can occur

62
Crossing Over

• Exchanges DNA between homologous chromosomes in
  tetrads
• Results in genetic recombination or a new mix of
  genes

63
Stages of Meiosis IMetaphase I

• Tetrads line up at middle of the cell
• Spindle fibers attach each homologous chromosome
  to the pole

64
Stages of Meiosis IAnaphase I

• Spindles pull the tetrads apart, sending the
  homologous chromosomes to opposite ends of the
  cell
• Independent Assortment genetic material is
  pulled apart randomly.
• Its random whether the maternal or paternal
  chromosome goes north while the other goes
  south

65
Stages of Meiosis ITelophase I and Cytokinesis I

• Nuclear membranes form.
• The cell separates into two cells.
• New cells are haploid- one of each homologous pair

66
Meiosis II

• The two cells produced by Meiosis I now
  immediately enter a second mitotic
  division?Meiosis II
• No interphase, no DNA replication.

67
Stages of Meiosis IIProphase II

• The chromatin condenses into chromosomes.
• The centrioles separate to the poles
• The spindle fibers form
• The nuclear membrane breaks down.

68
Stages of Meiosis IIMetaphase II

• The chromosome line up across the center of the
  cell.
• Each chromosome is connected to a spindle fiber
  at its centromere.

69
Stages of Meiosis IIAnaphase II

• The sister chromatids separate
• The spindle fibers pull chromosomes to poles

70
Stages of Meiosis IITelophase II

• A nuclear membrane forms around the chromosomes
  in each of the four new nuclei.
• Cytokinesis II
• Cytoplasm divides
• Results in 4 new cells, each of which contains ½
  of the original cell s number of chromosomes.

71
Meiosis mitosis

• Meiosis to make gametes
• sperm egg
• Fertilization two gametes unite to form a
  zygote, new cell with combined DNA
• Mitosis to make copies of cells
• growth, development

72
The value of meiosis 1

• Consistency over time
• meiosis keeps chromosome number same from
  generation to generation

from Mom
offspring
from Dad
73
The value of meiosis 2

• Change over time
• meiosis introduces genetic variation
• gametes of offspring do not have same genes as
  gametes from parents
• new combinations of traits

from Dad
variation
from Mom
offspring
new gametes made by offspring
74
Formation of Gametes

• Males Spermatogenesis the original cell
  produces four sperm cells by meiosis.
• Females Oogenesis the original cell produces
  one egg and three polar bodies by meiosis. Polar
  bodies cant be fertilized. The egg cell receives
  most of the original cells cytoplasm.

75
One final, tough question

• (Think of how fertilization works to answer this
  one)
• WHY do you think that spermatogenesis produces
  four gametes, but oogenesis sacrifices three
  potential gametes to produce just one?
