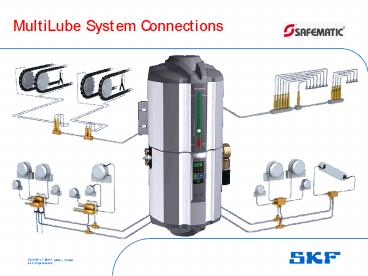

MultiLube System Connections

1
MultiLube System Connections
2
SG2 system connections
Output (2-12 pcs) Female thread R1/8 or NPT1/8
Input (2 pcs) Female threadR1/4 or NPT1/4
Output (2 pcs) Female thread R1/4 or NPT1/4
3
SG2 doser groups

• Lubricant greases NLGI 000 - NLGI 2
• SGA dosers dosage sizes 0.15 - 8.68 g
• SGA dosers material Zn or AISI 316
• BPSG baseplate material Al or AISI 316
• Input (2 pcs) female thread R1/4 or NPT1/4
• Output (2-12 pcs) female thread R1/8 or NPT1/8

4
SG2 spray lubricant system connections
Input (2 pcs) Pressure air Female thread R1/8
or NPT 1/8
Input(2 pcs)Lubricant Female thread R1/8 or
NPT1/8
Output (2 pcs) Female thread R1/4 or NPT1/4
5
SN-07 spray nozzle

• Lubricant greases NLGI 000 - NLGI 2 and oil
• Nozzle material brass
• Input (2 pcs) lubricant, female thread R1/8 or
  NPT1/8pressure air, female thread R1/8 or NPT
  1/8

6
SMG system connections
Output (2-8 pcs) Fitting for tube ø 6mm
or Female thread NPT1/8
Input (2 pcs) Female thread R1/8 or NPT1/8
Output (2 pcs) Female thread R1/4 or NPT1/4
7
SMG dosers

• Lubricant greases NLGI 000 - NLGI 2
• SMG dosers dosage sizes 0.13 - 1.32 g
• SMG dosers material Zn
• Input (2 pcs) female thread R1/8 or NPT1/8
• Output (2-8 pcs) fitting for tube ø 6mm or
  female thread NPT1/8

8
OS system connections
Input (1 pc) Fitting for pipe ø 6mm and ø 12mm
orfemale thread NPT1/8
Input (1 pc) Female threadR1/4 or NPT1/4
Output (1-6 pcs)Fitting for tube ø 6mm
or female thread NPT1/8
Output (1 pc) Female thread R1/4 or NPT1/4
9
OS-3 doser groups

• Lubricant oil 32 - 450 cSt / 40 C
• OS-3 doser dosage sizes 0.3 - 2.0 cm³
• OS-3 doser material Zn
• BPOS mounting rail material Al
• Input (1 pc) female thread R1/4 or NPT1/4
• Output (1-6 pcs) fitting for tube ø 6 mm or
  female thread NPT1/8

10
LG system connections
Input (1 pc) Female thread R1/4
Output (1-6 pcs) Fitting for tubeø 4mm and ø
6mm or pipe end ø 1/4
Output (1 pc) Female thread R1/4 or NPT1/4
11
LG doser groups

• Lubricantgreases NLGI 000 - NLGI 1 and oil
• LG dosers dosage sizes 0.02 - 0.5 cm³
• LG dosers material AISI 304
• BPLD mounting rail material AISI 304
• Input (1 pc) female thread R1/4
• Output (1-6 pcs) fitting for tubes ø 4 mm and ø
  6 mm or pipe end ø 1/4

12
B system connections
Input (1 pc) Fitting for pipe ø 8mm orpipe end
ø 1/2
Output (1-6 pcs) Fitting for pipe ø 4mm and ø
6mm orpipe end ø 1/4
Output (1 pc) Female thread 1/4 or NPT1/4
13
B doser groups

• Lubricantgreases NLGI 000 - NLGI 1 and oils
• B dosers dosage sizes 0.02 - 0.5 cm³
• B dosers material Zn
• BPLD mounting rail material Zn
• Input (1 pc) fitting for pipe ø 8 mm or pipe end
  ø 1/2
• Output (1-6 pcs) fitting for pipe ø 4mm and 6mm
  or pipe end ø 1/4
