Construction Site

1

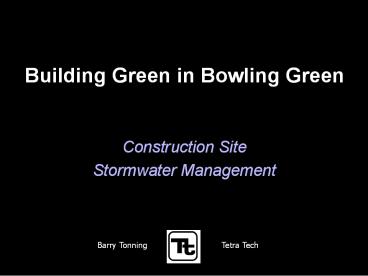

Building Green in Bowling Green

• Construction Site
• Stormwater Management

Barry Tonning Tetra
Tech
2
State and local rules require

• Local and state permit coverage
• SWPPP available for review
• BMPs in the field that match the SWPPP
• Contractors weekly inspection forms available
  for review

3
Minimizing the active construction area
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
Consistency between whats in the SWPPP and BMPs
installed in the field
Site Drainage Plan
Site Building Plan
Site Grading Plan
Existing Site Conditions
Final Site Land-scaping Plan
Stormwater Pollution Prevention Plan
8
SWPPP Applicability, Preparation, Contents, and
Process for Amending

• SWPPP applies to the site AND offsite
  borrow/disposal areas
• SWPPP is prepared BEFORE filing the NOI and
  beginning work
• SWPPP describes site, pollutants at site, plan
  for controlling pollutant discharges,
  construction procedure, responsible parties
• SWPPP is amended by site personnel or project
  engineer as construction proceeds on an as-needed
  basis

9
Basic SWPPP outline

• Site description map
• Description of receiving waters
• Description of construction project
• Identification of pollutants, sources, and any
  non-stormwater discharges
• Erosion sediment controls
• Controls for other pollutants
• Procedures for inspections, BMP maintenance, and
  recordkeeping
• Certification signatures

10
Building, stabilizing, and preserving the
drainage system (ditches, traps, ponds)
11
Drainage system controls

• Inlets for storm drains and channels
• Pond up the runoff to settle filter it
• Use rock berms, rock bags, or other items
• Storm drain channel outlets
• Protect areas receiving discharge flows from
  erosion caused by flow velocities
• Use rock or turf reinforcement mats seed heavily
• Ditches convey water without eroding
• Traps pond and settle out muddy runoff

12
Good application of silt fence and rock bags for
inlet protection Lots of options available
13
Other inlet protection approaches
14
Outlet Protection
15
Drainage ditch liner materials

• Steep or high flow channels (gt 20)
• Use concrete or riprap
• Moderately steep channels ( 10)
• Use riprap or turf mats seeding
• Slightly sloping channels (5)
• Use turf mats or blankets seeding
• Mostly flat channels (2)
• Use seeding with blankets
• Seed ditches immediately after construction
• Triple the seeding rate

16
(No Transcript)
17
Sediment traps basins

• Designed placed to pool runoff so sediment can
  settle out
• Installed before grading/fill work begins!
• Seeded immediately after construction
• Located in swales or low-lying areas where flows
  are concentrated
• Should not be placed near flowing streams
• Outlets should be made of rock or pipe

18
Rock filter as sediment trap
19
Good siting installation of sediment traps
20
Protecting riser during construction! Wrap
with filter fabric Use rock inlet dam Pile
57s around pipe
21
(No Transcript)
22
Buffer zone requirements

• 25 ft undisturbed buffer between disturbed areas
  and bankfull elevation of high quality waters /
  impaired waters
• 50 buffer required between sediment-impaired
  waters with no TMDL and disturbed areas
• Dredge/fill areas,
• stream crossings,
• or other deviations
• require adequately
• protective alternate
• practices, explained
• in SWPPP

23
Buffer Zone

• Edge of Receiving Water is defined as bankfull
  elevation of a water of the Commonwealth

24
Slope stabilization
25
Slope protection basics

• Seed and mulch immediately after grading
• Divert upland runoff with berms or channels
• Tread-track or terrace highly erodible soils
• Install sediment barriers at toe of slope and at
  correct spacing on long slopes
• Use blankets, mats, or mulch on steep slopes
• Control runoff from upland areas with drain pipes
  or lined downdrain channels

26
Mass grading tips

• Install all downgradient silt fences, traps,
  basins before clearing grubbing
• Use grubbed-out debris as sediment barriers /
  berms downhill from your work
• Use soil stockpiles as sediment berms / traps
  that intercept concentrated/sheet flow
• Seed and mulch/blanket/mat your ditches and
  slopes as soon as you build them

27
Blankets and mats(rolled erosion control
products)

• Excellent for slope and channel protection
• Use blankets for slopes flatter than 31 and
  channels flatter than 201
• Use mats for slopes greater than 31 and channels
  steeper than 201
• KY TC requires blankets in all channels slopes
  gt 41

28
Wishful thinking . . .
29
Stabilization requirements

• Temporary stabilization required on portions of
  the site where construction activities have
  temporarily ceased shall be initiated within 14
  days
• Final stabilization also required within 14 days
  after permanently ceasing work
• Final stabilization required if work is suspended
  for more than 180 days

30
Homebuilder lot BMP compliance
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Fiber roll installation
36
Good housekeeping pollution prevention
37
Good housekeeping

• Mud tracking on roadways
• Fuel, oil, paint, hazardous waste mgmt
• Concrete washout sites
• Trash debris management
• Sewage management
• Dust control (if needed)

38
Waste management

• Provide convenient, well-maintained toilet
  facilities

39
(No Transcript)
40
Establish proper building material handling and
storage areas

• Building materials with runoff potential should
  be stored indoors or under cover

41
Designate concrete washout areas Or wash out
material in formed-up areas ready for the next
pour
42
(No Transcript)
43
(No Transcript)
44
Establish proper equipment/vehicle fueling and
maintenance practices

• Your on-site fueling and maintenance area should
  have a spill kit
• Conduct vehicle fueling and maintenance
  activities in areas away from ditches
• Conduct maintenance on vehicles and equipment
  off-site if possible

45
Develop a spill prevention and response plan

• Note the locations of chemical storage areas,
  storm drains, ditches, and surface waters
• Specify how to notify appropriate authorities
• Describe the procedures for spill cleanup
• Identify personnel responsible for implementing
  the plan

46
The Good, The Bad, and the Ugly

• The Good stabilized exit pads, initial silt
  fence installation, initial inlet protection
• The Bad temporary seeding/mulching, silt fence
  maintenance, inlet maintenance, waste and
  materials management
• The Ugly ditch and channel protection, some
  homebuilder lots

47
Fair construction entrance poor silt fence
48
Good fence, needs seed/mulch
49
Good inlet protection
50
Good stabilization on pipe job
51
Well vegetated sediment basin, with poorly
vegetated inactive area in foreground
52
Poor vegetation and no sign of active grading
53
Unstabilized slope
54
Lot with poor vegetation and poor silt fencing
55
Lack of inlet maintenance and sediment management
56
Poor stabilization drainage management

Left northwest corner discharge location,
showing sediment in discharge. Right stopped up
curb inlet (lower middle) with pooled water. No
grading occurring in this area.
57
Eroding, unstabilized drainage swale
58
Poor site stabilization, drainage system, and
sediment trap construction maintenance
59
Overflowing concrete washout
60
Vacant inactive site with poorly installed silt
fence and poor vegetation
61
Poor soil stabilization, shaky silt fence,
ineffective inlet protection
62
Torn and frayed
63
Poor site management
