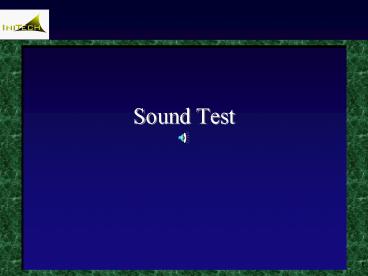

1Sound Test
2Testing and Integration of a Rocket-Launched
Video Imaging Platform
Apoorva Bhopale Susan Schmidt Rob Wingo Brian
Love
1 May 2002
3Project Background
- Project is sponsored by Applied Research Labs
- Main Objective
- Prove the validity of a rocket launched balloon
as a telecommunications platform - Possible uses, disaster relief, drug
interdiction, inexpensive throwaway satellites - Rocket is to be launched this summer
4Overview of the Presentation
- Goals to accomplish
- Description of each goal
- Work completed for each goal
- Future work
- Questions
5Semester Goals
- Design and build payload canister with mountings
for electronics - Size and build drogue chute
- Test balloon buoyancy
- Test Electronics
- Test balloon deployment
6Flight Profile
7Chute Sizing
8Drogue Chute
- Required to deploy balloon after ejection
- Will be used to slow descent after operations
-
9Sizing
- Previous work concluded that a small chute will
deploy the balloon - Limiting factors for design are descent
constraints
- Considerations
- Weight of payload
- Altitude
- Allowable impact velocity
10Algorithm
11Calculations
Standard Atmosphere
12Chute Design
108
116
Weight 14.2 oz.
13Balloon Tilt
- Weight drop of 11 oz. from 25 to 14 oz.
- Balloon used was 1/4 scale
14Neutral Buoyancy
15Calculations
Need mass air inside balloon 4kg less than the
STP value for neutral buoyancy
16Temperature Difference
17Considerations
- Absorbed solar energy
- Air circulation inside balloon
- Descent rate of inflated balloon vs. chute
- Thermal updrafts
- Need experimental data to prove theoretical
- Testing difficult on ground
18Payload Canister
19Initial Avionics CanisterDesign
- Canister made of 4.25 inch
- PVC pipe
- Covered in carbon fiber
- Electronic components
- secured with bubble wrap
- Plexiglas bottom
- for camera
20Previous Canister Design Changes
- Components hit canister walls and each other
- Bubble wrap was not sufficient vibration control
- Foam was then used to secure items
21Issues with Past Designs
- Carbon fiber blocks radio waves
- Electrical components not secure
- Plexiglas fogs at higher altitude
- Plexiglas cracks easily
- Component constraints cannot handle temperatures
of high altitudes
22Requirements for the Avionics Canister
- Structural integrity
- Limit component vibration
- Airtight seal
- Temperature control
23Structural IntegrityExternal Material Options
- Metals
- Possible Shrapnel
- Weight
- Porous materials, i.e. wood
- Airtight seal
- Plexiglas
- Cracks easily
- Lexan
- High cost
- Availability
- And the winner is
24PVC
- Weather Resistant
- High strength to weight ratio
- Corrosion Resistant
- Good thermal insulator
- Self-extinguishing
- Low cost!!
25Internal Structure
- High impact resistance
- Used to stabilize internal components
- Used for the camera viewing area
26Limit Component Vibration
- Two 0.09 thick Lexan perpendicular
- boards
- Secured components with nuts and bolts
- Ends capped with hobby plywood
27Airtight Seal
- Change in pressure from sea level to higher
altitudes cause fogging on the Lexan - Seal end of canister with Teflon Tape
- Teflon tape for extruding connections
- Pump in Nitrogen through a gas fitting
- Inert gas replaces the water vapor
28Temperature Control
- Cameras operating range
- -1.1C to 37.77C
- Above 8,000 feet the temperature drops below this
operating range - The rocket test in summer will not reach this
altitude - The temperature limits of the components must be
evaluated for higher flights
29Electronics
30Electronic Components
- Accelerometer board
- GPS/Video Overlay board
- GPS receiver
- Video camera
- Telemetry system
- Batteries
31Semester Objectives
- Connect all of components and make work
- Range test telemetry system
- Find problem with power source
- Determine how to use accelerometer board as an
event trigger - Mount electronics in canister
32Component Connectivity
- Successfully connected all components
33Range Test First try
- Unsuccessful
- Assumed power problem
34Range Test Second try
- Made adjustments to power supply and connectivity
board - Still unsuccessful
35Range Test Third try
- Re-soldered connectivity board
- Still unsuccessful
- Contacted transmitter manufacturer
- Discovered range can be drastically reduced by
ground effects
36Ground Effect Problem
- Transmitter designed for aerial use only
- Will not be able to accomplish range test on
ground
37Balloon Deployment
38Balloon Deployment
- Objectives
- Determine a method to pack the balloon
- Determine an adequate amount of black powder to
eject the canister
39Balloon Size
40Suggested Method
41Pyrotechnic Ejection
- Advantages
- Reliable
- Lightweight
- Used extensively
42Possible Failure Modes of the Ejection
- Too Little Black Powder
- Does not clear ejection tube
- Inhibits the rockets main chute deployment
- Payload crashes with the rocket
- Too much Black Powder
- Rocket tube explodes
- Drogue chute rips from balloon
- Burnt drogue chute or balloon
43Theory of Pyrotechnic Ejection
- Wp Weight of Black Powder (lbs)
- dP Ejection Charge Pressure in Psi
- V Free volume in cubic inches
- R Combustion gas constant 22.16 ft-
lbf/lbm-R - T Combustion gas temperature, 3307 degrees
R
44Test Footage
45Conclusions From Test
- Place Canister closest to the ejection charge
- Use 7 grams of Black Powder
46Conclusion
- Design and build payload canister with mountings
for electronics - Size and build drogue chute
- Test balloon buoyancy
- Test Electronics
- Test balloon deployment
47Future Work
- Verify range of the transmitter another way
- Possibly send it back to manufacturer
- Test the deployment method in a rocket
- Determine a way to sever connection between
balloon and canister - Neutral Buoyancy test
- Setup accelerometer board to be used as event
trigger
48Acknowledgements
- Dr. Ronald Stearman
- Dr. Martin Barlett
- Dr. Jennifer Lehman
- Danny Linehan
- Daniel Parcher
- Rick VanVoorhis
- Lixin Gong
