MIDAS-II GAS SCRUBBER

1
MIDAS-II GAS SCRUBBER

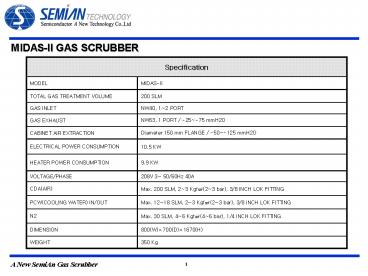

Specification Specification
MODEL MIDAS-II
TOTAL GAS TREATMENT VOLUME 200 SLM
GAS INLET NW40, 12 PORT
GAS EXHAUST NW63, 1 PORT / -25-75 mmH2O
CABINET AIR EXTRACTION Diameter 150 mm FLANGE / -50-125 mmH2O
ELECTRICAL POWER CONSUMPTION 10.5 KW
HEATER POWER CONSUMPTION 9.9 KW
VOLTAGE/PHASE 208V 3 50/60Hz 40A
CDA(AIR) Max. 200 SLM, 23 Kgf?(23 bar), 3/8 INCH LOK FITTING
PCW(COOLING WATER) IN/OUT Max. 1218 SLM, 23 Kgf?(23 bar), 3/8 INCH LOK FITTING
N2 Max. 30 SLM, 46 Kgf?(46 bar), 1/4 INCH LOK FITTING
DIMENSION 800(W)700(D)1670(H)
WEIGHT 350 Kg
1
A New SemiAn Gas Scrubber
2
MIDAS-II Model gas treatment diagram
P3
N2
GAS OUTLET
CDA
DEMISTER
P1
BURN CHAMBER
GAS IN 12 PORT
COOLER 3
PCW OUT
COOLER 1
PCW IN
P2
POWDER TRAP
COOLER 2
A New SemiAn Gas Scrubber
12
